User Instructions
8/15

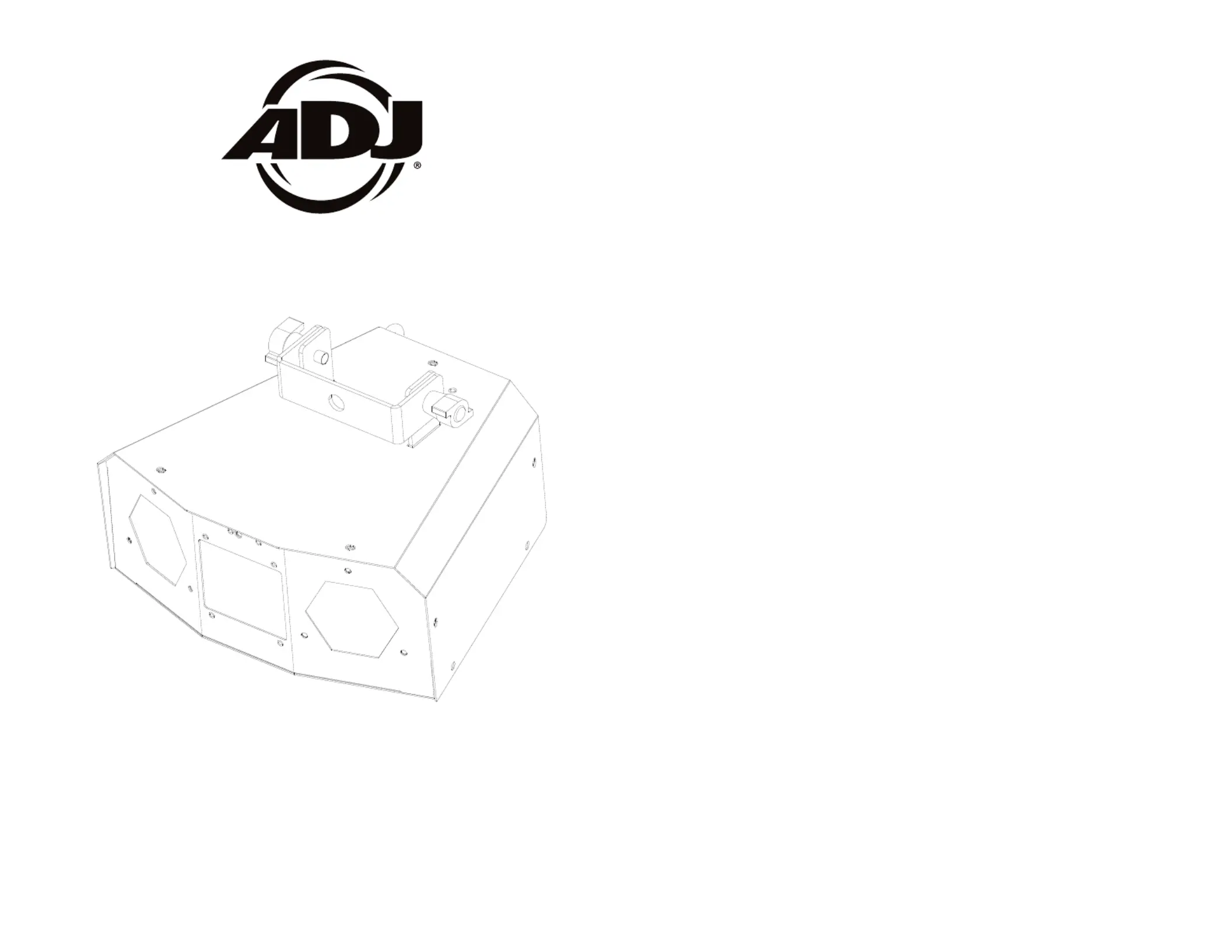

DUAL GEM PULSE IR
©2015 ADJ Products, LLC all rights reserved. Information,
specications, diagrams, images, and instructions herein are
subject to change without notice. ADJ Products, LLC logo and
identifying product names and numbers herein are trademarks
of ADJ Products, LLC. Copyright protection claimed includes all
forms and matters of copyrightable materials and information
now allowed by statutory or judicial law or hereinafter granted.
Product names used in this document may be trademarks or
registered trademarks of their respective companies and are
hereby acknowledged. All non-ADJ Products, LLC brands and
product names are trademarks or registered trademarks of their
respective companies.
ADJ Products, LLC and all aliated companies hereby dis-
claim any and all liabilities for property, equipment, building,
and electrical damages, injuries to any persons, and direct or
indirect economic loss associated with the use or reliance of
any information contained within this document, and/or as a
result of the improper, unsafe, unsucient and negligent as-
sembly, installation, rigging, and operation of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment.
Please turn o all electrical products when they are not in use. To
avoid power consumption in idle mode, disconnect all electrical
equipment from power when not in use. Thank you!
ADJ Products, LLC - www.adj.com - Dual Gem Pulse IR Instruction Manual Page 3
Dual Gem Pulse IR Precautions
Safety Issue: This unit may blow the breaker if the maximum allotted
load of 2 amps is reached. If the fuse needs replacement, please see
the fuse replacement guidelines on page 4.
• Be sure the local power outlet match the required voltage of the
unit.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no
user serviceable parts inside.
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• This unit is intended for indoor use only, use of this product out-
doors voids all warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-Cord Protection - Power-supply cords should be routed
so that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to cords at
plugs, convenience receptacles, and the point where they exit from
the fixture. Do not attempt to remove or break o the ground prong
from the electrical cord. This prong is used to reduce the risk of
electrical shock and re in case of an internal short.
• The fixture should be serviced by qualified service personnel when:
A. The power cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
C. The appliance has been exposed to rain or water.
D. The fixture does not appear to operate normally or exhibits a
marked change in performance.
Dual Gem Pulse IR Warranty Registration
The ual Gem Pulse IR two year (730 days) limited warD carries a -
ranty. Please fill out the enclosed warranty card to validate your
purchase. All returned service items whether under warranty or not,
must be freight pre-paid and accompany a return authorization (R.A.)
n umber. If the unit is under warranty you must provide a copy of your
proof of purchase invoice. Please contact ADJ customer support for
a R.A. number.
Dual Gem Pulse IR Introduction
ADJ Products, LLC - www.adj.com - Dual Gem Pulse IR Instruction Manual Page 2
General instructions:
To optimize the performance of this product, please read these
operating instructions carefully to familiarize yourself with the basic
operations of this unit. These instructions contain important safety
information regarding the use and maintenance of this unit. Please
keep this manual with the unit, for future reference.
Unpacking:
Thank you for purchasing the Dual Gem Pulse IR by ADJ Products,
LLC. Every Dual Gem Pulse IR has been thoroughly tested and has
been shipped in perfect operating condition. Carefully check the ship-
ping carton for damage that may have occurred during shipping. If
the carton appears to be damaged, carefully inspect your unit for any
damage and be sure all equipment necessary to operate the system
has arrived intact. In the event damage has been found or parts are
missing, please contact our toll free customer support number for fur-
ther instructions. Please do not return the unit to your dealer without
rst contacting customer support.
Customer Support:
ADJ Products, LLC provides a toll free customer support line, to pro-
vide set up help and to answer any question should you encounter
problems during your set up or initial operation. You may also visit us
on the web at www.adj.com for any comments or suggestions. For
service related issue please contact ADJ. Service Hours are Monday
through Friday 8:00 a.m. to 4:30 p.m. Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2941
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
your nearest ADJ dealer.
PLEASE do not discard the shipping carton in the trash. Please
recycle when ever possible.
ADJ Products, LLC - www.adj.com - Dual Gem Pulse IR Instruction Manual Page 4
Dual Gem Pulse IR Operation
Introduction: The ADJ Dual Gem
Pulse IR is a dual output LED
moon-ower eect. This fixture is designed for mobile DJ’s, clubs,
bands, roller rinks and any arena that requires a compact, light weight,
easy to use unit.
Power Supply: Before plugging your unit in, be sure the source volt-
age in your area matches the required voltage for your ADJ Dual Gem
Pulse IR before attempting operation.
General Operation: This fixture is designed to operate as a stand
alone sound active unit, there is no need of a controller. It has been
tested and there is no assembly necessary. The Dual Gem Pulse IR
is ready to be plugged in out of the box, there is no power switch.
When this fixture is plugged in, the units two LED panels will start to
project preset designs to the sound of an audio source via an internal
microphone. The audio sensitivity is preset at the factory for optimum
performance and is not user adjustable. The middle panel is a pulse
effect, that can be activated by the Strobe On/Off switch located at
the rear of the unit. After plugging the unit if there is no output, check
the fuse. If the fuse has not popped, please contact customer sup-
port for further instructions. This fixture features a light weight case
design and an adjustable hanging bracket.
ADJ Products, LLC - www.adj.com - Dual Gem Pulse IR Instruction Manual Page 5
Dual Gem Pulse IR Features
• Includes Built-In Hanging Yoke
• Sound-Active
• Light Weight
• Strobe Eect Switch
• UC IR Compatible (Sold Separately)
The UC IR (sold separately) infrared remote gives you control of
various functions (See below). To control the fixture you must aim the
remote at the front of the fixture and be no more than 30 feet away.
The Dual Gem Pulse comes with the Airstream IR remote transmit-
ter. The transmitter plugs into the headphone jack of your iOS phone
or tablet. To control your IR fixture you must raise the volume to the
maximum on your iOS phone or table and aim the transmitter at the
front of the fixture and be no more than 15 feet away. After you have
purchased the Airstream IR transmitters, the app is a free download
from the app store for your iOS phone or tablet. The app comes with
3 pages of control depending on the IR fixture you are using. Please
see below for IR functions including the corresponding app page.
Works with App page 1.
STAND BY - Pressing this button will blackout the fixture. Press the
button again to return to the initial state.
FULL ON -Hold this button down to fully light up the unit. When you
let the button go, the unit will return to its previous state.
FADE/GOBO - This button is invalid for this fixture.
“DIMMER +” and “DIMMER -” - These buttons are invalid for this
fixture.
STROBE - Press and hold this button for strobing.
COLOR - Press this button to activate color mode. Use buttons 1-9
to find your desired color.
1-9 - Use buttons 1-9 to select your desired color when color mode
is active.
SOUND ON & OFF - Use the buttons to activate and deactivate
sound active mode.
SHOW 0 - This button is invalid for this fixture.
Dual Gem Pulse IR UC IR Control
With this feature you can connect the xtures to one another
using the IEC input and output sockets. The quantity that can be
connected is 34 xtures maximum for 120V and 50 xtures maxi-
mum for 230V. After the maximum amout of xtures is connected
you will need to use a new power outlet. They must be the same
xtures. DO NOT mix xtures.
Dual Gem Pulse IR Power Cord Daisy Chain
