User Instructions
EvEnt Bar Q4
©2013 ADJ Products, LLC all rights reserved. Information,
specications, diagrams, images, and instructions herein are
subject to change without notice. ADJ Products, LLC logo and
identifying product names and numbers herein are trademarks
of ADJ Products, LLC. Copyright protection claimed includes all
forms and matters of copyrightable materials and information
now allowed by statutory or judicial law or hereinafter granted.
Product names used in this document may be trademarks or
registered trademarks of their respective companies and are
hereby acknowledged. All non-ADJ Products, LLC brands and
product names are trademarks or registered trademarks of their
respective companies.
ADJ Products, LLC and all aliated companies hereby dis-
claim any and all liabilities for property, equipment, building,
and electrical damages, injuries to any persons, and direct or
indirect economic loss associated with the use or reliance of
any information contained within this document, and/or as a
result of the improper, unsafe, unsucient and negligent as-
sembly, installation, rigging, and operation of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment.
Please turn o all electrical products when they are not in use. To
avoid power consumption in idle mode, disconnect all electrical
equipment from power when not in use. Thank you!
ADJ Produc s, LLC - www.adj.com - Event Bar Q4 Instruction Manual Page 3t
• 6 DMX Channel Modes; 2 Channel Mode, 12 Channel Mode, 14
Channel Mode, 32 Channel Mode, 34 Channel Mode, & 37 Chan-
nel Mode.
• 3 Operating Modes - Show Mode, Sound Active & DMX Control
• 8 Built-In Shows
• UC3 Controller Compatible (Sold Separately)
• Digital Display for Address and Function Setting
• Power Cord Daisy Chain (See page 22)
• Omega Bracket for Truss Mounting
• Built-In Mount for a lighting stand (Stand Sold Separately)
Event Bar Q4 Features
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures
warranty. In the unlikely event your unit may require service please
contact ADJ Products, LLC.
During operation the housing may become hot. Avoid touching the
unit with bare hands while in use.
ADJ Products, LLC will not accept any liability for any resulting dam-
ages caused by the non-observance of this manual or any unauthor-
ized modication to this unit.
Event Bar Q4 Handling Precautions
Event Bar Q4 Warranty Registration
The Event Bar Q4 2 year (730 days) limited warranty. Please carries a
fill out the enclosed warranty card to validate your purchase and war-
ranty. You may also register your product online at www.adj.com. All
returned service items whether under warranty or not, must be freight
pre-paid and accompany a return authorization (R.A.) umber. If the n
unit is under warranty you must provide a copy of your proof of pur-
chase invoice. Please contact ADJ customer support for a R.A. num-
ber.
To optimize the performance of this product, please read these
operating instructions carefully to familiarize yourself with the basic
operations of this unit. These instructions contain important safety
information regarding the use and maintenance of this unit. Please
keep this manual with the unit, for future reference.
Event Bar Q4 General Instructions
ADJ Produc s, LLC - www.adj.com - Event Bar Q4 Instruction Manual Page 2t
Event Bar Q4 General Information
Unpacking: Thank you for purchasing the Event Bar Q4 by ADJ
Products, LLC. Every Event Bar Q4 has been thoroughly tested and
has been shipped in perfect operating condition. Carefully check the
shipping carton for damage that may have occurred during shipping.
If the carton appears to be damaged, carefully inspect your xture for
any damage and be sure all equipment necessary to operate the unit
has arrived intact. In the event damage has been found or parts are
missing, please contact our toll free customer support number for fur-
ther instructions. Please do not return this unit to your dealer without
contacting customer support rst.
Introduction: The Event Bar Q4 is DMX intelligent 4-head moving
pinspot LED fixture. The fixture has three operating modes; sound
active mode, show mode, or DMX controlled. The Event Bar Q4 has 4
DMX Modes; 2 Channel Mode, 32 Channel Mode, 33 Channel Mode,
and 37 Channel Mode. The Event Bar Q4 can be run as a stand alone
unit or in Master-Slave configuration. This unit is suitable for theaters,
studios, retail stores, and other similar locations. For best results use
fog or special effects smoke to enhance the light projections.
Customer Support: ADJ Products, LLC provides a toll free cus-
tomer support line, to provide help and to answer any question should
you encounter problems during your set up or initial operation. You
may also visit us on the web at www.adj.com for any comments or
suggestions. Service Hours are Monday through Friday 8:00 a.m. to
4:30 p.m. Pacic Standard Time.
Voice: (323) 582-3322
Fax: (323) 832-9142
E-mail: support@americandj.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Warning! This may cause severe eye damage. Avoid looking directly
into the light source at all times!
ADJ Produc s, LLC - www.adj.com - Event Bar Q4 Instruction Manual Page 5t
Power Supply: The ADJ Event Bar Q4 contains an automatic volt-
age switch, which will auto sense the voltage when it is plugged into
the power source. With this switch there is no need to worry about the
correct power voltage, this unit can be plugged in anywhere.
DMX-512: -DMX is short for Digital Multiplex. This is a universal pro
tocol used by most lighting and controller manufactures as a form of
communication between intelligent fixtures and controllers. A DMX
controller sends DMX data instructions from the controller to the fix-
ture. DMX data is sent as serial data that travels from fixture to fixture
via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX
fixtures (most controllers only have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of
dierent manufactures to be linked together and operate from a sin-
gle controller, as long as all xtures and the controller are DMX com-
pliant. To ensure proper DMX data transmission, when using several
DMX fixtures try to use the shortest cable path possible. The order
in which fixtures are connected in a DMX line does not influence the
DMX addressing. For example; a fixture assigned a DMX address of 1
may be placed anywhere in a DMX line, at the beginning, at the end,
or anywhere in the middle. When a fixture is assigned a DMX address
of 1, the DMX controller knows to send DATA assigned to address 1
to that unit, no matter where it is located in the DMX chain.

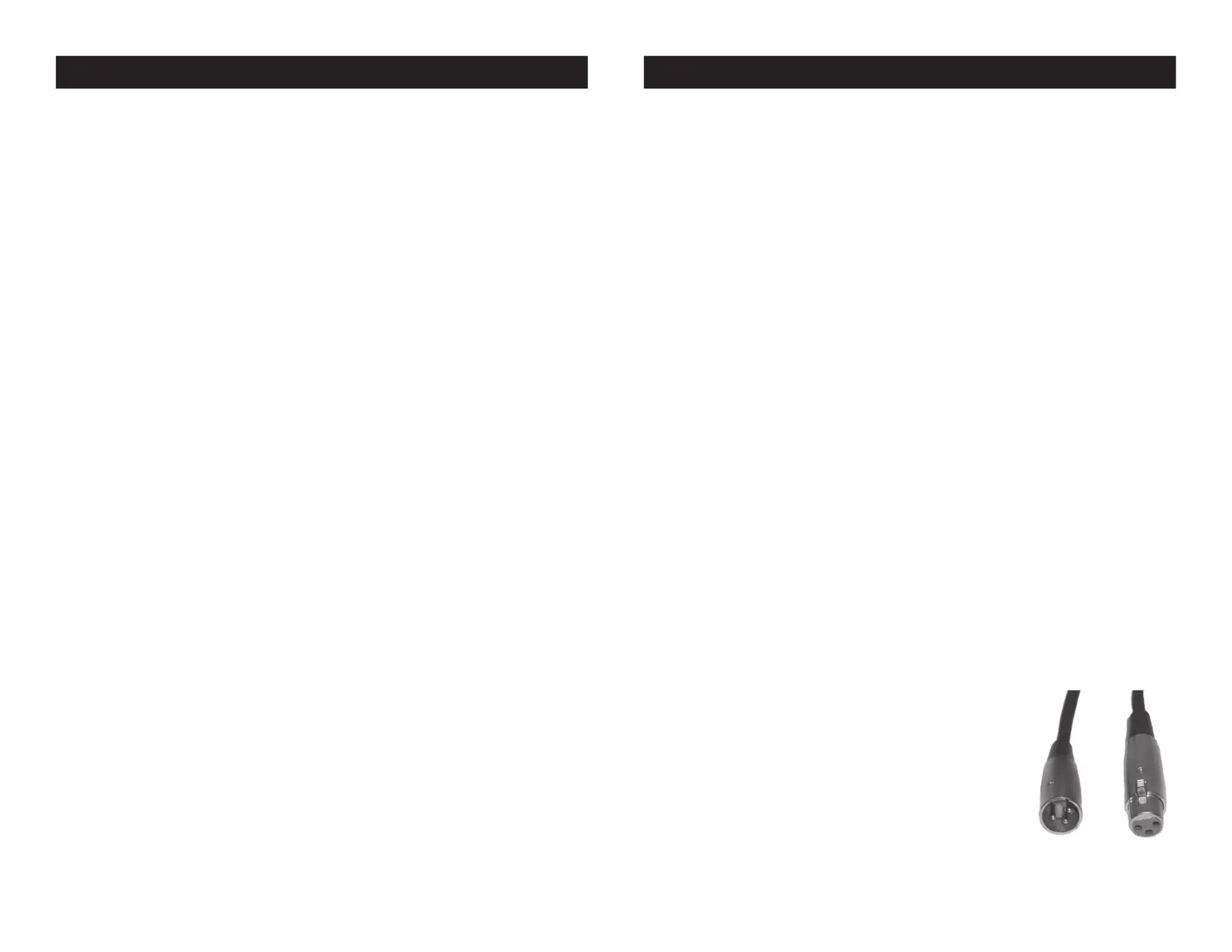

Data Cable (DMX Cable) Requirements (For DMX and Master/Slave
Operation): The Event Bar Q4 has 6 DMX channel modes; 2 chan-
nel mode, 12 channel mode, 14 channel mode, 32 channel mode,
34 channel mode, & 37 channel mode. The DMX address is set elec-
tronically using the controls on the rear of the bar. Your unit and your
DMX controller require a approved DMX-512 110
Ohm Data cable for data input and data output.
We recommend Accu-Cable DMX cables. If you are
making your own cables, be sure to use standard
110-120 Ohm shielded cable (This cable may be
purchased at almost all professional sound and
lighting stores). Your cables should be made with
a male and female XLR connector on either end of
the cable. Also remember that DMX cable must be
daisy chained and cannot be split.
Event Bar Q4 Set Up
Figure 1
For Your Own Personal Safety, Please Read and Understand This
Manual Completely Before You Attempt To Install Or Operate
This Unit!
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken.
• Do not attempt to remove or break o the ground prong from
the electrical cord. This prong is used to reduce the risk of electrical
shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out-
doors voids all warranties.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to cords at plugs, convenience recep-
tacles, and the point where they exit from the appliance.
• Cleaning -The fixture should be cleaned only as recommended by
the manufacturer. See page 24 for cleaning details.
• Heat -This fixture should be situated away from heat sources such
as radiators, heat registers, stoves, or other appliances (including
amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. Objects have fallen, or liquid has been spilled into the appliance.
B. The appliance has been exposed to rain or water.
C. The appliance does not appear to operate normally or exhibits a
marked change in performance.
Event Bar Q4 Safety Precautions
ADJ Produc s, LLC - www.adj.com - Event Bar Q4 Instruction Manual Page 4t
