Sinks manufactured by ADVANCE TABCO

®

are designed and constructed for the use of

liquid containment. Suggested applications include Food Preparation, Manufacturing,

Cooking, Laboratory and Service and the like. ADVANCE TABCO

®

does not recommend

product use for activities employing harsh and active chemicals. Please consult factory

regarding unusual applications.

CHECK FOR CONCEALED DAMAGE

FILE CLAIM WITH DELIVERING FREIGHT CARRIER

EDGEWOOD, NY 11717-8380

© ADVANCE TABCO, OCTOBER 2018

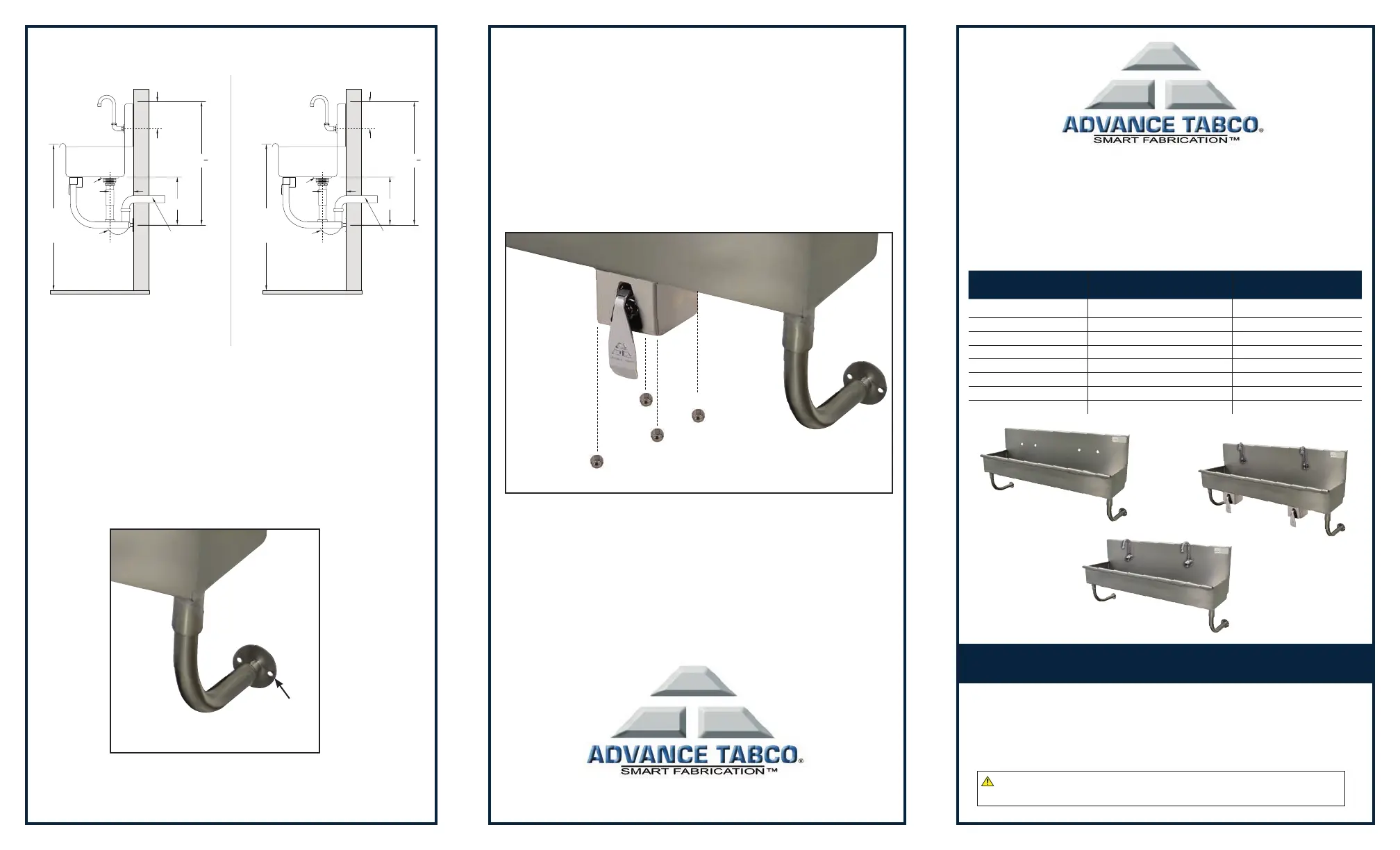

Installation Instructions for

WALL MOUNTED

19-18 SERIES & WSS SERIES SINKS

Suggested Rough-In Plumbing Dimensions

Figure 4

Adjustable

Flange

STEP 5

Adjust the tubular wall support brackets and flanges

to proper alignment. Loosen or tighten each flange

to sit snug against the wall and secure to wall using

screws (Not Included) (Figure 4). Be sure to go

back and hand tighten the set screws at this time.

P-Trap

Drain

To Waste Line

34”

Suggested

Height

12"

Finished Floor

28

1

2

"

5"

L

C

L

C

L

C

P-Trap

Drain

To Waste Line

34”

Suggested

Height

12"

Finished Floor

25

1

2

"

5"

L

C

L

C

L

C

For Further Assistance

Contact Customer Service at:

800-645-3166

or

[email protected]

MANUAL FAUCET

OPERATED

ELECTRONIC

OPERATED

KNEE

OPERATED

Model #Model #Model #

19-18-1-ADA19-18-1-EFADAN/A

19-18-40/19-18-40-ADA19-18-40EF/19-18-40EFADA19-18-40KV/19-18-40KV

19-18-60/19-18-60-ADA19-18-60EF/19-18-60EFADA19-18-60KV/19-18-60KV

19-18-80/19-18-80-ADA19-18-80EF/19-18-80EFADA19-18-80KV/19-18-80KV

19-18-100/19-18-100-ADA19-18-100EF/19-18-100EFADA19-18-100KV/19-18-100KV

19-18-120/19-18-120-ADA19-18-120EF/19-18-120EFADA19-18-120KV/19-18-120KV

WSS-14-21/WSS-16-25WSS-14-21EF/WSS-16-25EFWSS-14-21KV/WSS-16-25KV

Electronic Operated

Knee Operated

INSTALLING KNEE VALVES FOR KV SERIES

Knee Valves can be installed before or after sink is

mounted to the wall. Attach each Knee Valve onto the

sink by fitting into existing stud welded screws found

underneath the unit.

Use supplied nuts to secure valve(s) to sink. Tighten with

7/16” open end wrench (Figure 5).

Connect supply lines to knee valve(s) and supply line(s)

from knee Valve(s) to Faucet(s). Connect drain(s).

Figure 5

4 Nuts

Per Valve

Manual Operated

(Faucet Not Included)

WARNING: Equipment that includes a faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer or birth defects or other reproductive harm. For more Info.,visit www.p65warnings.ca.gov.

WARNING: Equipment that includes a faucet may expose you to chemicals, including lead, that are known to the

State of California to cause cancer or birth defects or other reproductive harm. For more Info.,visit www.p65warnings.ca.gov.

WARNING: Faucets on this page may expose you to chemicals, including lead, that are known to the State of California to cause cancer or birth defects or other reproductive harm. For more Info.,visit www.p65warnings.ca.gov.

Manual, Electronic

& Knee Valve Units

A.D.A. Units
