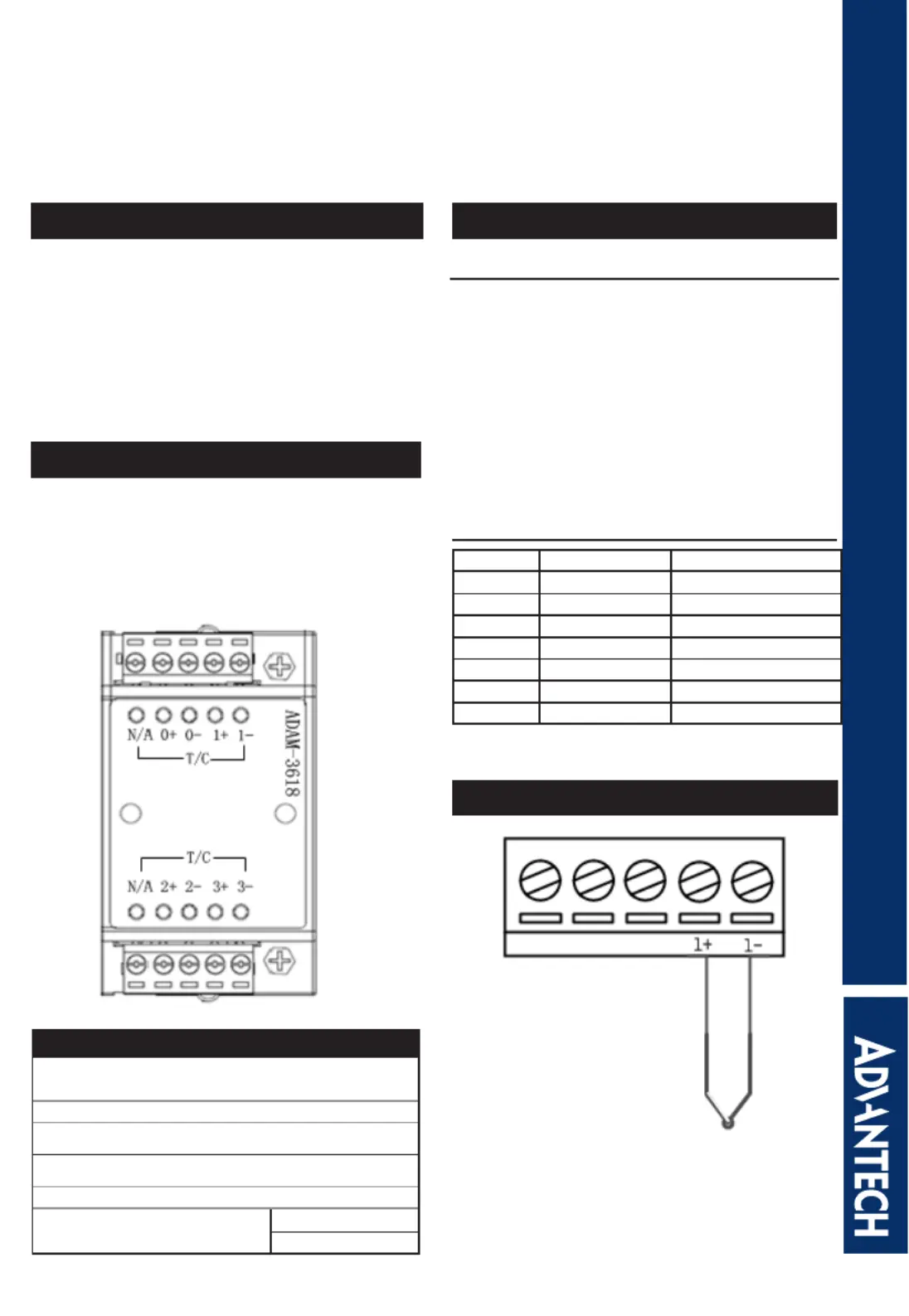

Startup Manual 1

Packing List

Before installation, make sure that you have

received the following:

•

ADAM-3618 Product

• ADAM-3618 Startup Manual

If anything is missing or damaged, contact your

distributor or sales representative immediately.

Specications

System Functions

• Analog Input Channels: 4 differential

• Input Types: J, K, T, E, R, S, B

Type Thermocouple

• Resolution16-bit

• AccuracyRefer to below

• Isolation Voltage2000 V

DC

• Burn-out DetectionYes

• Power Consumption1w

• Operation Temp.-40 ~ 70°C

• Warranty2 years

Notes

For more information on this and other Advantech

products, please visit our websites at:

http://www.advantech.com

For technical support and service:

http://www.advantech.com/support/

This startup manual is for ADAM-3618

Part No: 2003A61800 1st Edition

May 2016

STARTUP MANUAL

ADAM-3618

4-ch Thermal Couple Module

Application Wiring

Overview

As ADAM-3600 Extension I/O, ADAM-3618 is a

16-bit, 4-channel analog input module that pro-

vides temperature signal acquisition. This module

is extremely cost-effective solution for industrial

measurement and monitoring applications

Caution:

When connecting jumpers or installing the card, you should disconnect the power to prevent surges

damaging sensitive electronic components.

TypeRangeAccuracy @ 25°C

J

0~760 2.5°C°C±

K0~1370°C

±2.5°C

T-100~400°C

±2 °C

E0~1000°C

±2.5°C

R500~1750°C

±2.5°C

S500~1750°C

±2.5°C

B500~1800°C

±3°C

TC type range & Accuracy
