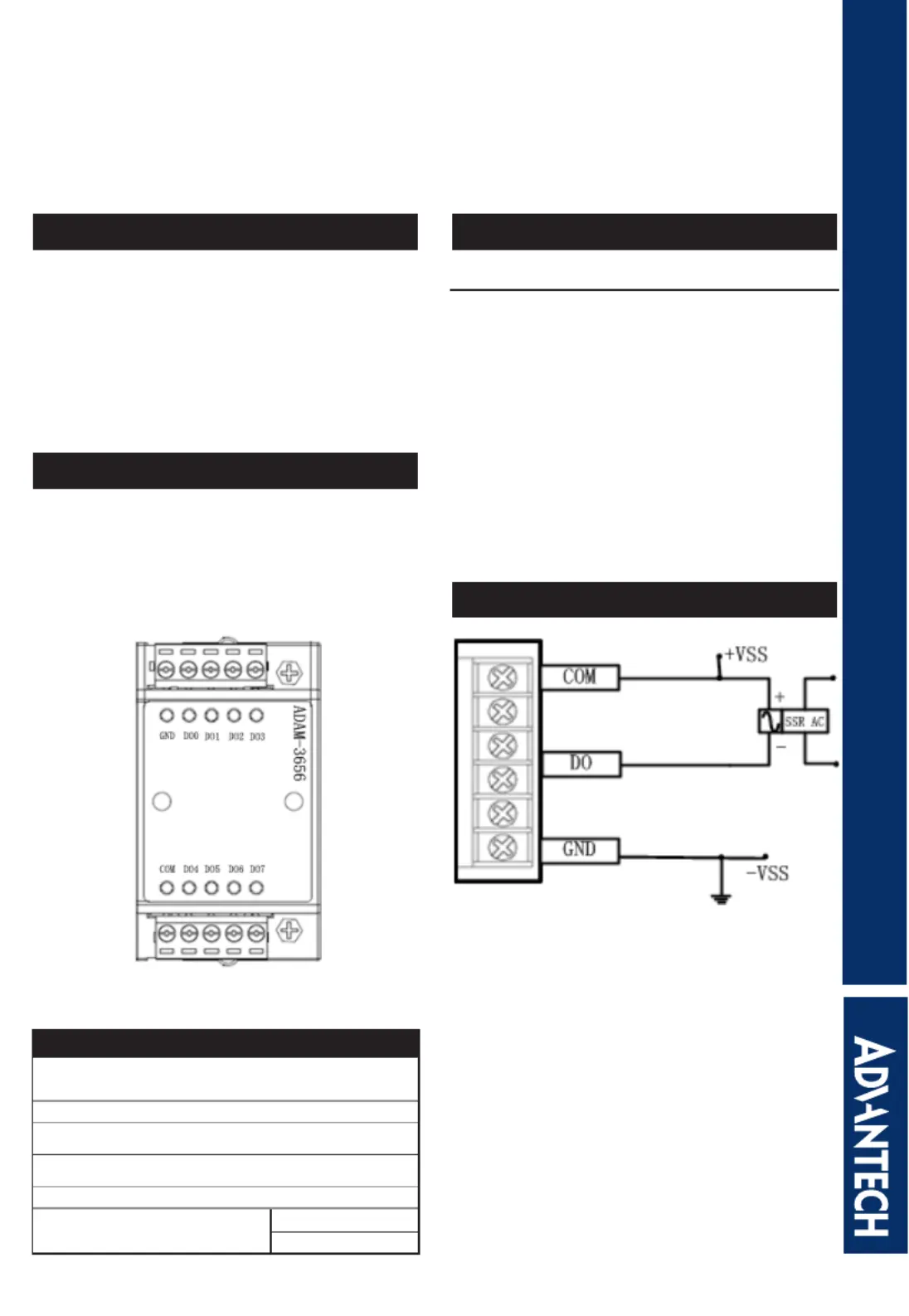

Startup Manual 1

Packing List

Before installation, please make sure that you

have received the following:

• ADAM-3656 Product

• ADAM-3656 Startup Manual

If anything is missing or damaged, contact your

distributor or sales representative immediately.

Specications

System Functions

• Digital Input Channels: 8

• Digital Output: Open Collector

• Rated Voltage: 8~30 V

DC

• Rated Current: 200mA(max.load)/channel

• Pulse Output Frequency: 1KHz

• Over Voltage Protection: +40 V

DC

• Isolation Voltage: 2,000 V

DC

• Power Consumption: 1 w

• Operating Temp.: -40 ~ 70°C

• Warranty: 2 years

Notes

For more information on this and other Advantech

products, please visit our websites at:

http://www.advantech.com

For technical support and service:

http://www.advantech.com/support/

This startup manual is for ADAM-3656.

Part No: 2003A656001st Edition

October 2015

STARTUP MANUAL

ADAM-3656

8-ch Digital Output Module

Application Wiring

Overview

As an ADAM-3600 Extension I/O, ADAM-3656

provides 8-ch sink type isolated digital output.

The digital outputs are open-collector transistor

switches that you can control from the ADAM-

3600 main unit.

Caution:

When connecting jumpers or installing the card, you should disconnect the power to prevent surges

damaging sensitive electronic components.
