STARTUP MANUAL
ADAM-3956
100-pin SCSI DIN-rail Wiring Board
Declaration of Conformity
FCC Class A
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and,if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
CE
This product has passed the CE test for environmental
specications when shielded cables are used for external
wiring. We recommend the use of shielded cables. This
kind of cable is available from Advantech. Please contact
your local supplier for ordering information.
Notes
For more information on this and other Advantech
products, please visit our websites at:
http://www.advantech.com
http://www.advantech.com/eAutomation
For technical support and service:
http://support.advantech.com/
This startup manual is for the ADAM-3956
Part No: 20033956023rd Edition
November 2013
Features
1. DIN-rail wiring board forPCI-1240/1245/1245E/1245
V/1245L/1265/1285/1285E application.
2. Dimensions (W x L x H): 122 x 171 x 45mm (4.8" x
6.73" x 1.77")
3. DB-26 connector
4. LED indicators
Overview
The ADAM-3956 terminal board provides convenient and
reliable signal wiring for PCI-1240/1245/1245E/1245V/1
245L/1265/1285/1285E with 100-pin SCSI connector. Its
D-SUB 26P type connectors give you the quick and easy
way to connect to the Panasonic A5/MINAS A , Yaskawa
Sigma 5 , Mitsubishi J3S and Delta A2 servo motors.

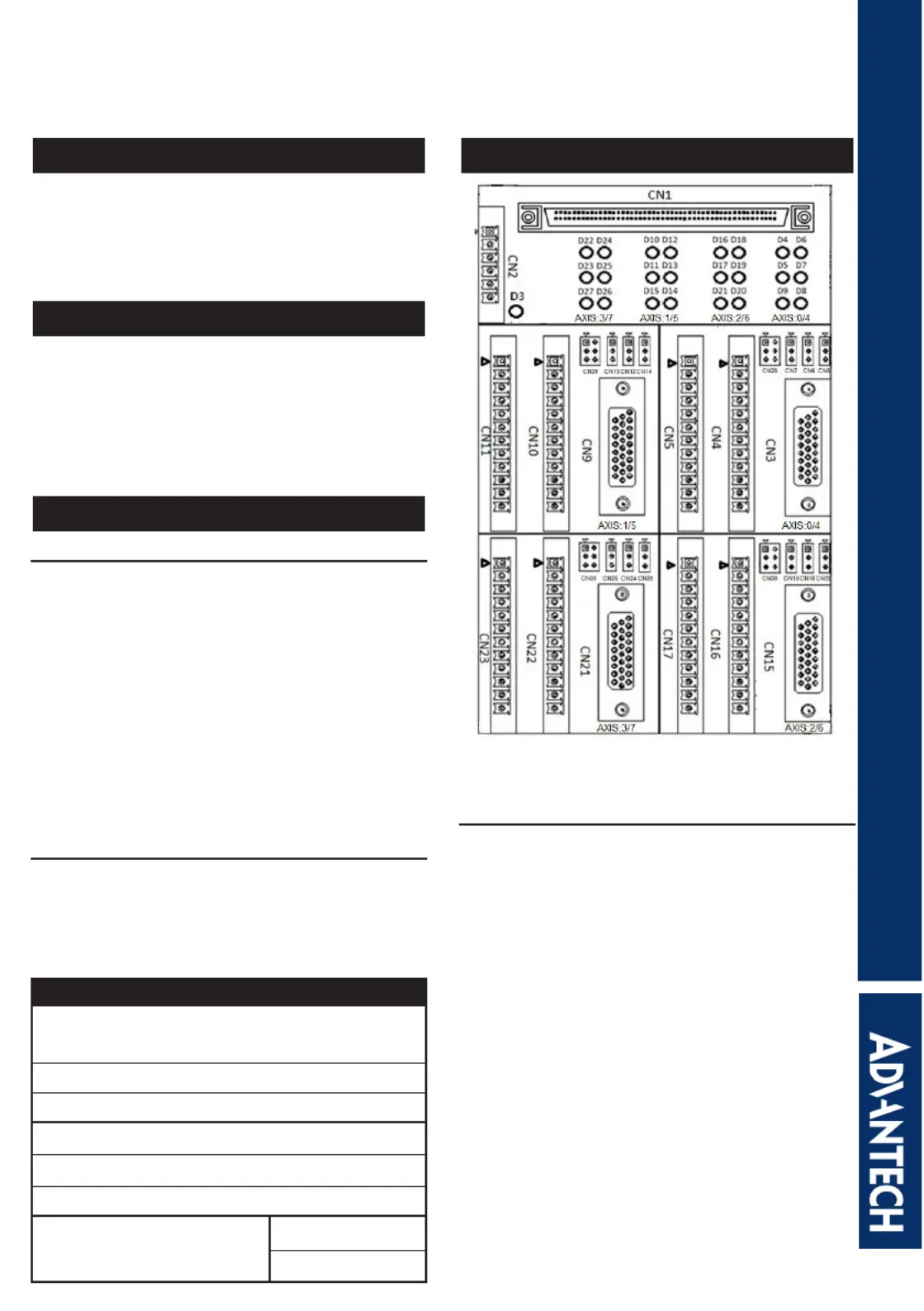

Board Components
Optional Cables
PCL-101100M-3E SCSI-100 Shielded Cable, 3m
PCL-101100SB-1E Mini-SCSI-100 Shielded Cable, 1m
PCL-101100SB-2E Mini-SCSI-100 Shielded Cable, 2m
PCL-101100SB-3E Mini-SCSI-100 Shielded Cable, 3m
PCL-10153PA5-2EDB26 to SCSI-50 Cable for
Panasonic A4/A5, 2m
PCL-10153PA5LS-2EDB26 to SCSI-50 Cable for
Panasonic MINAS A, 2m
PCL-10153YS5-2EDB26 to SCSI-50 Cable for Yaskawa
Sigma V, 2m
PCL-10153MJ3-2EDB26 to SCSI-50 Cable for
Mitsubishi J3S, 2m
PCL-10153DA2-2EDB26 to SCSI-50 Cable for Delta
A2, 2m
