ASMB-807 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

•1 x ASMB-807 startup manual

•2 x SATA data cables

•2 x SATA power cables

•2 x CPU carrier (E1A & E1B)

•1 x I/O port bracket

•2 x M.2 screws

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Standard M/B Functions

•CPU: LGA4677 Intel Xeon® W-3500/2500 series and

Xeon® W-3400/2400 series processors

•BIOS:AMI 512 Mbit SPI BIOS

•Chipset: Intel

®

W790 PCH

•System Memory: 8* DDR5 4400/4800

Registered ECC DIMM, Max. Capacity 2TB

Note1: Due to the inherent limitations of older PC archi-

tectures, the system may not fully detect 512 GB

RAM when 512 GB RAM is installed.

Note2: Max speed of 4800 MT/s can only be supported

with1DIMMperchannelconguration(Total4

DIMMs installed on DIMMA1/B1/E1/F1 slots)

ASMB-807 Series LGA 4677 Intel® Xeon® W

Processors ATX Server Board with 8 x DDR5, 3 x PCIe

x16, 8 x SATA 3.0, 9 x USB 3.2, 2 x M.2, Dual 10GbE,

and IPMI

•

SATAInterface: 8 x SATA3 6Gb/s ports Intel Rapid

Storage (for Windows only) (SATA0-SATA7 supports

software RAID 0, 1, 10 & 5)

•Serial Ports: One external serial port and one onboard

header, RS-232 only

•Keyboard/Mouse Header (KBMS1): Supports the stan-

dard PS/2 keyboard and mouse via PS/2 cable.

•Watchdog Timer: 255 level timer intervals

•USB Port: Supports up to 6 x USB 3.2 Gen2x1 ports, 2 x

USB 3.2 Gen1x1 (onboard 20-pin header), 3 x USB 2.0 (2

ports from onboard 10-pin header + 1 x onboard Type A),

and 1 x USB 3.2 Gen2x2 ports (onboard Type-E A-Key

header)

VGA Interface

•Chipset: ASPEED AST2500/2510

•Display Memory: 64 MB

•Resolution: Supports VGA up to resolution 1920 x 1200

@ 60 Hz refresh rate

Ethernet Interface

•Interface: 10/100/1000/2500 Mbps & 10 GbE Base-T

•Controller: LAN1/2: Intel I226; LAN3/4: Intel X710

CPU Carrier Information

•E1A: Intel Xeon® W-3500/3400 series processors

•E1B: Intel Xeon® W-2500/2400 series processors

Mechanical and Environment

•Dimensions (L x W): 244 x 304 mm (9.6” x 12”)

•Power Supply Voltage: +3.3 V, +5 V, +12 V, +5 Vsb

•Power Consumption (mainboard only, excluding IO

device): Max. load: +3.3 V @ 2.94A, +5 V@ 1.81A,

+12 V @ 0.03A,+5 Vsb @ 0.14A, 12 V_8P @ 19.36A

•Operating Temperature: 0 ~ 60°C (depending on CPU

speed and cooler solution)

•Net Weight: 0.97 kg

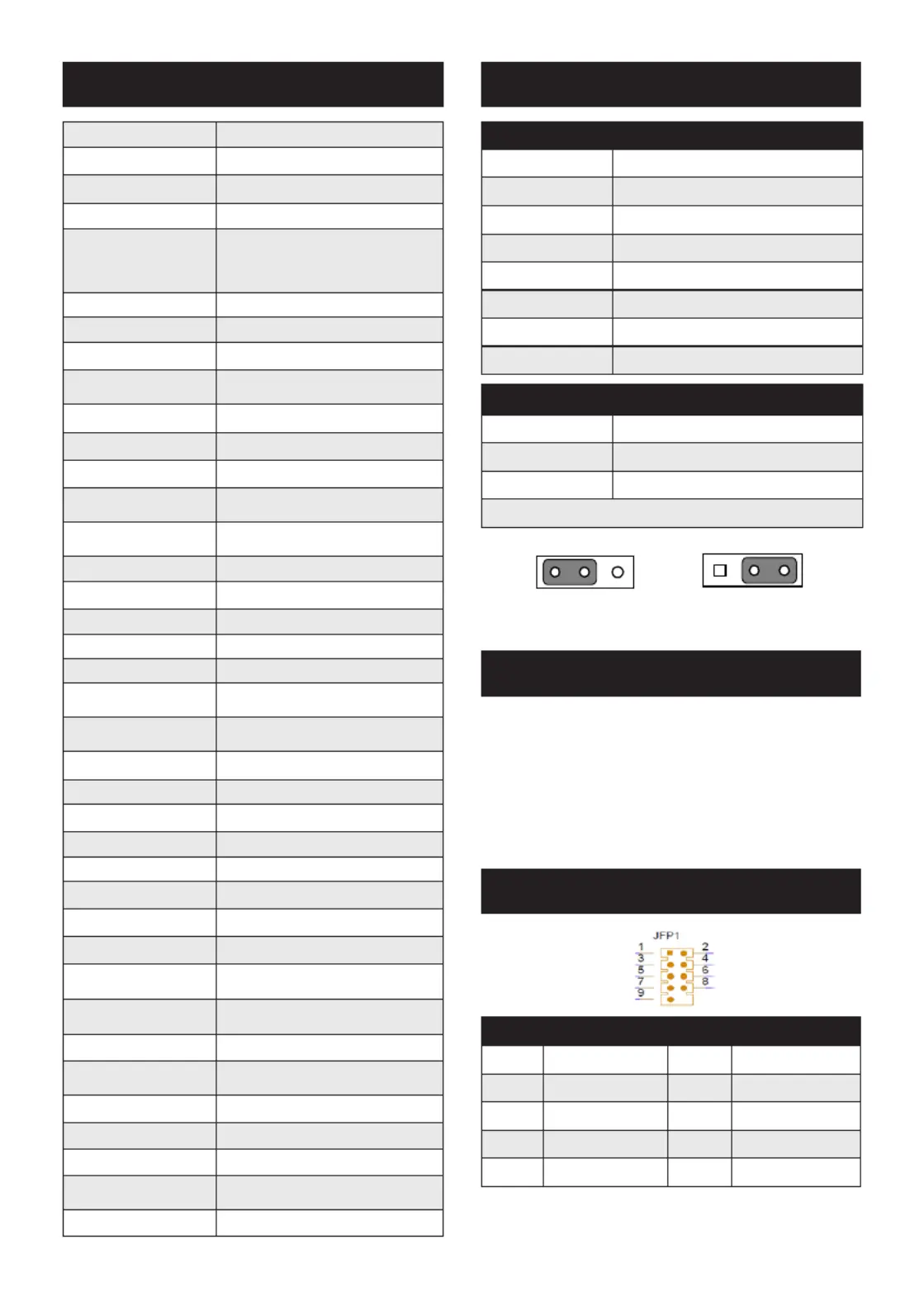

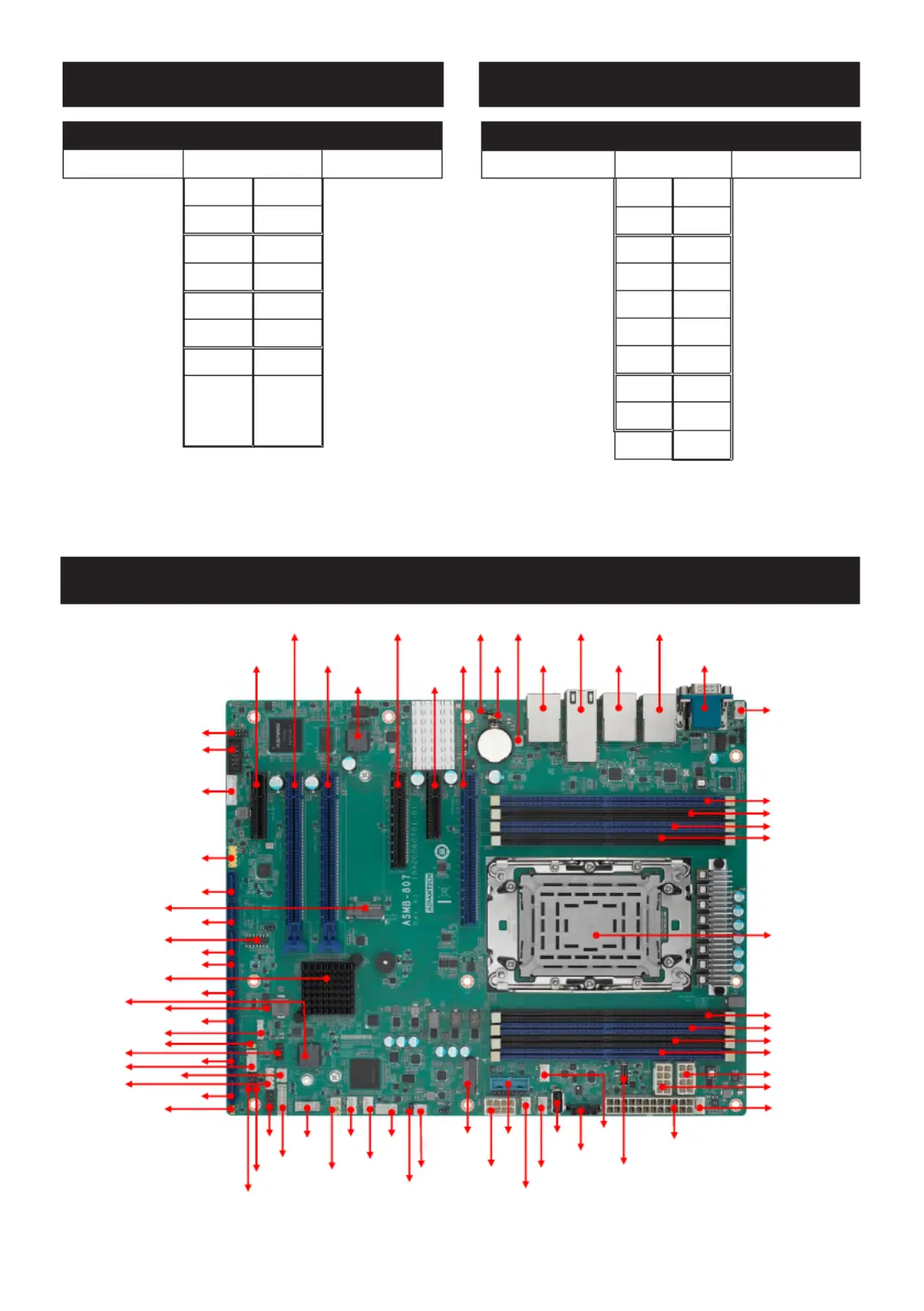

The board has a number of jumpers that allow you to con-

gureyoursystemtosuityourapplication.Thetablebelow

lists the function of each of the jumpers and connectors.

Connectors

LabelFunction

ATXPWR1ATX 24-pin main power connector

ATX12V1, ATX12V2Processor power connector

Specications

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our

support website at:

http://support.advantech.com

Register your products on our website and get 2

months extra warranty for Free at:

http://www.register.advantech.com

This manual is for the ASMB-807 series Rev. A1.

Part No. 2042080700

Printed in China

1st Edition

Oct 2024

Specications(Cont.)

Jumpers and Connectors

Startup Manual
