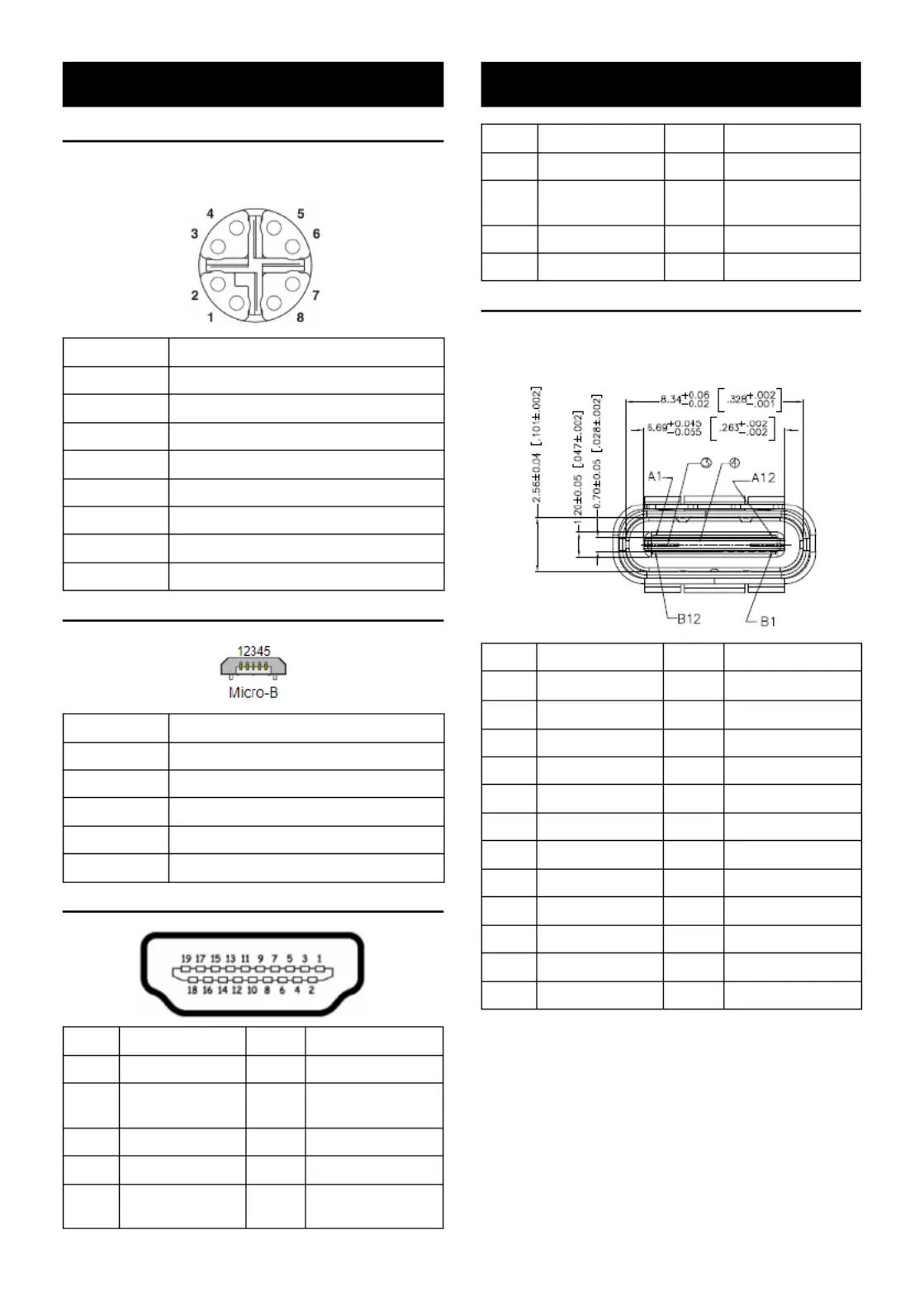

ICAM-500/520 Startup Manual 1

Before installation, please ensure that the following items

have been included in your shipment:

1. ICAM-520/500 smart camera x 1

2. Startup manual x 1

If any of the above items are missing or damaged, contact

your distributor or sales representative immediately.

Caution: DANGER OF EXPLOSION IF BATTERY IS

INCORRECTLY REPLACED. REPLACE ONLY WITH THE

SAME OR EQUIVALENT TYPE RECOMMENDED BY THE

MANUFACTURER, DISCARD USED BATTERIES AC-

CORDING TO THE MANUFACTURER’S INSTRUCTIONS.

Attention: DANGER D’EXPLOSION SI LA BATTERIE EST

INEXACTEMENT REMPLACÉE. REMPLACEZ SEULE-

MENT AVEC LA MÊME CHOSE OU LE TYPE ÉQUIVA-

LENT RECOMMANDÉ PAR LE FABRICANT, JETTENT

LES BATTERIES UTILISÉES INSTRUCTIONS DE S

SELON FABRICANT DES’.

ICAM-520/500 Series

Smart Camera

Startup Manual

Sensor

•SONY IMX296, 1.6MP @ 60fps , Global shutter, Mono-

chrome/Color

Processor

•ICAM-520:

NVIDIA Xavier NX

6-core NVIDA Camel ARM

®

v8.2 64-bit

CPU: 6MB L2 + 4MB l3 (Max. operating frequency:

1.9GHz)

GPU: 384-core NVIDIA Volta GPU with 48 Tensor

•ICAM-500:

NVIDIA Jetson Nano

CPU: Quad Core ARM Cortex A57 (Max. operating

frequency: 1.43GHz)

GPU: Maxwell GPU, 128 CUDA core, performance up to

512 GFLOPS (FP16)

Image Signal Processor

•Mono: Brightness, Sharpness, Dark noise correction

(Default enable)

•Color: Brightness, Color debayering, Sharpness, Auto

with balance and CCM

Memory, Storage

•ICAM-520:

NVIDIA Xavier NX

8 GB LPDDR4/16GB eMMC

•ICAM-500

NVIDIA Jetson Nano

4 GB LPDDR4/16GB eMMC

Optical

•12 mm variable focal length:

FOV 40 x 29.3 mm @ 100 mm working distance

FOV 364.5 x 263.7 @ 900 mm working distance

•16mm variable focal length:

FOV 33.9 x 25.3 mm @ 100 mm working distance

FOV 305.4 x 228.2 @ 900 mm working distance

•LED illumination:

8 x PWM white/red LEDs, programmable

Synchronization

•Hardware Trigger/software Trigger/free-run

Packing List

For more information on this and other Advantech

products, please visit our website at

http://www.advantech.com

For technical support services, please visit our support

website at

http://support.advantech.com

This manual is for the the ICAM-500/520.

Part No. 204V050000

Printed in Taiwan

Edition 1

December 2022
