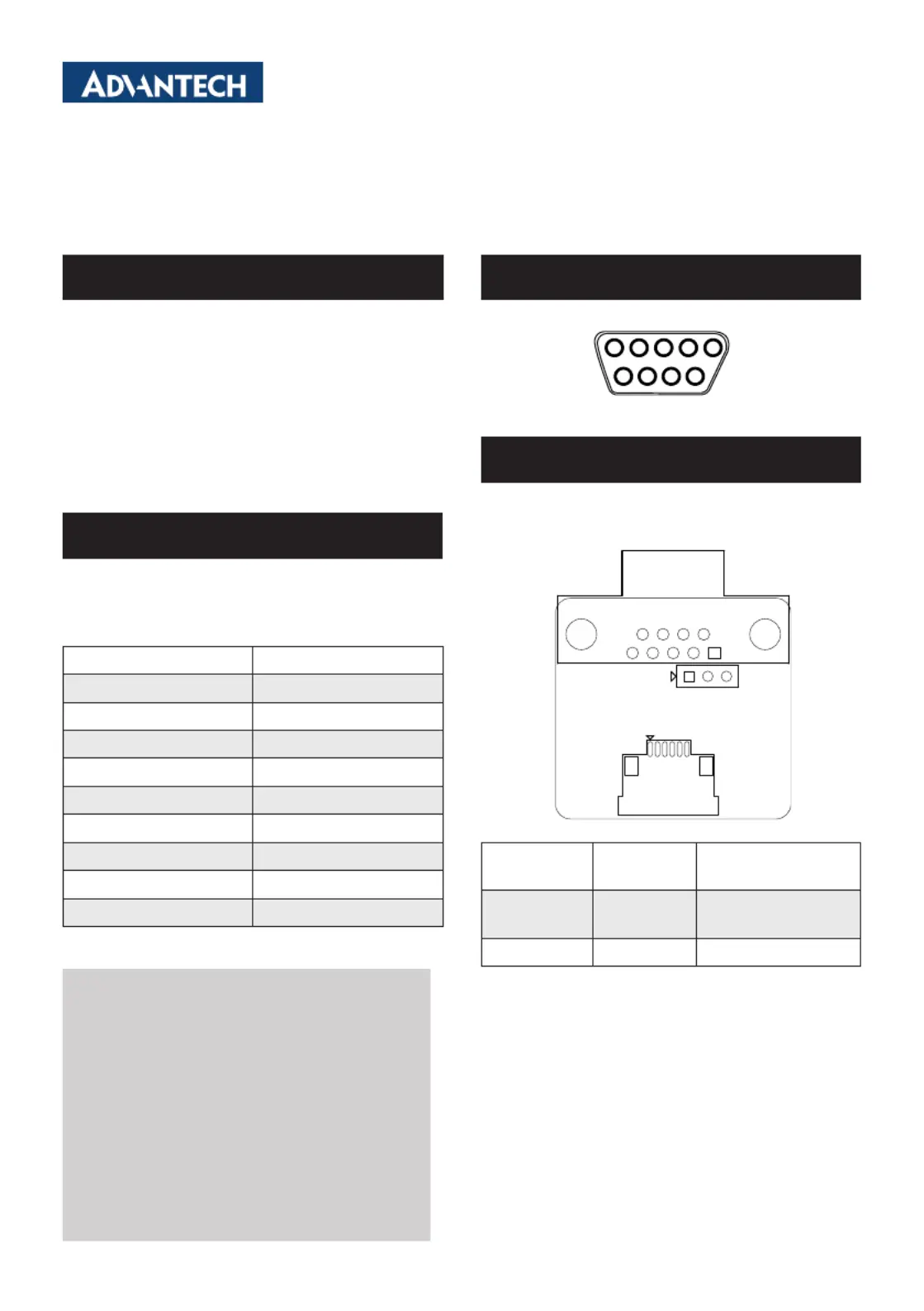

MOS-1130Y-0202 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

1. miniPCIe card x 1

2. iDoor IO side module p1-x1 with iDoor bracket x 1

3. FPC cable x 2

4. Startup manual x 1

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

The following tables and gures show the pin assignments

of 1 connector on the bracket to the modular card. if you

see two ports or above, it will use the same pin-denition

of this one.

PINCAN Port

1-

2CAN_L

3GND

4-

5-

6-

7CAN_H

8-

9-

MOS-1130Y-0202

2-Ports Isolated CANBus mPCIe, CANOpen, DB9

Startup Manual

You can set the terminator resistor by below jumper setting

if necessary to match impedance.

PIN# of JP1Status

Value of Terminator

Resistor

PIN 1-2

(Default)

Closed Mode120 Ohms

PIN 2-3Open Mode

12345

6789

32

1

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://support.advantech.com

This manual is for the MOS-1130Y-0202 Series.

Part No. 2046113000

Print in China

1st Edition

July 2024

Pin Assignments

Pin Assignments (Cont.)

Jumper Settings
