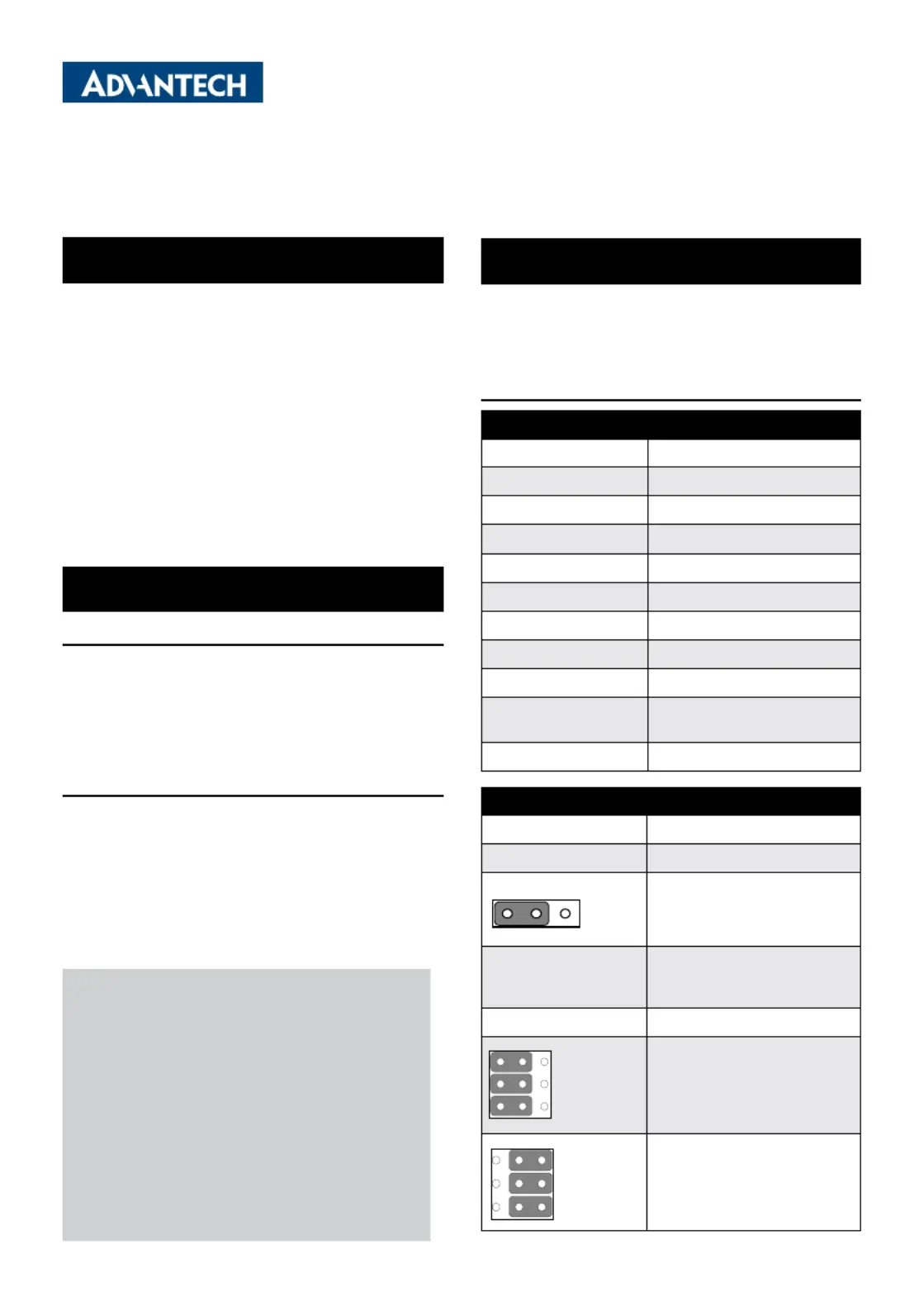

PCA-6108P6 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

1. PCA-6108P6 startup manual 2002610824

2. 3-pin ATX connector cable 1700030500

3. Screw M4*6L (15 pcs) 1939000410

4. 2-year quality warranty card 2190000902

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note: Acrobat Reader is required to view any PDF

file.Acrobat Reader can be downloaded at:

www.adobe.com/Products/acrobat/readstep2.

html (Acrobat is a trademark of Adobe)

Standard Functions

•PICMG 1.0 slots: PCA-6108P6 supports PICMG 1.0 CPU

boards

•ISA slots: One ISA slot

•32-bit PCI: Five 32 bit/33 MHz PCI slots

•PICMG/PCI slot: One PICMG/PCI slot

Mechanical and Environment

•Dimension: 260mm x 200mm

•Power supply voltage: +12 V, +5 V, -12 V, -5 V, +3.3 V,

+5 VSB

•Power requirements: Refer to the CPU board, add-on

card, and peripherals

•Operating temperature: 0 ~ 60° C

•Weight: 0.398 kg

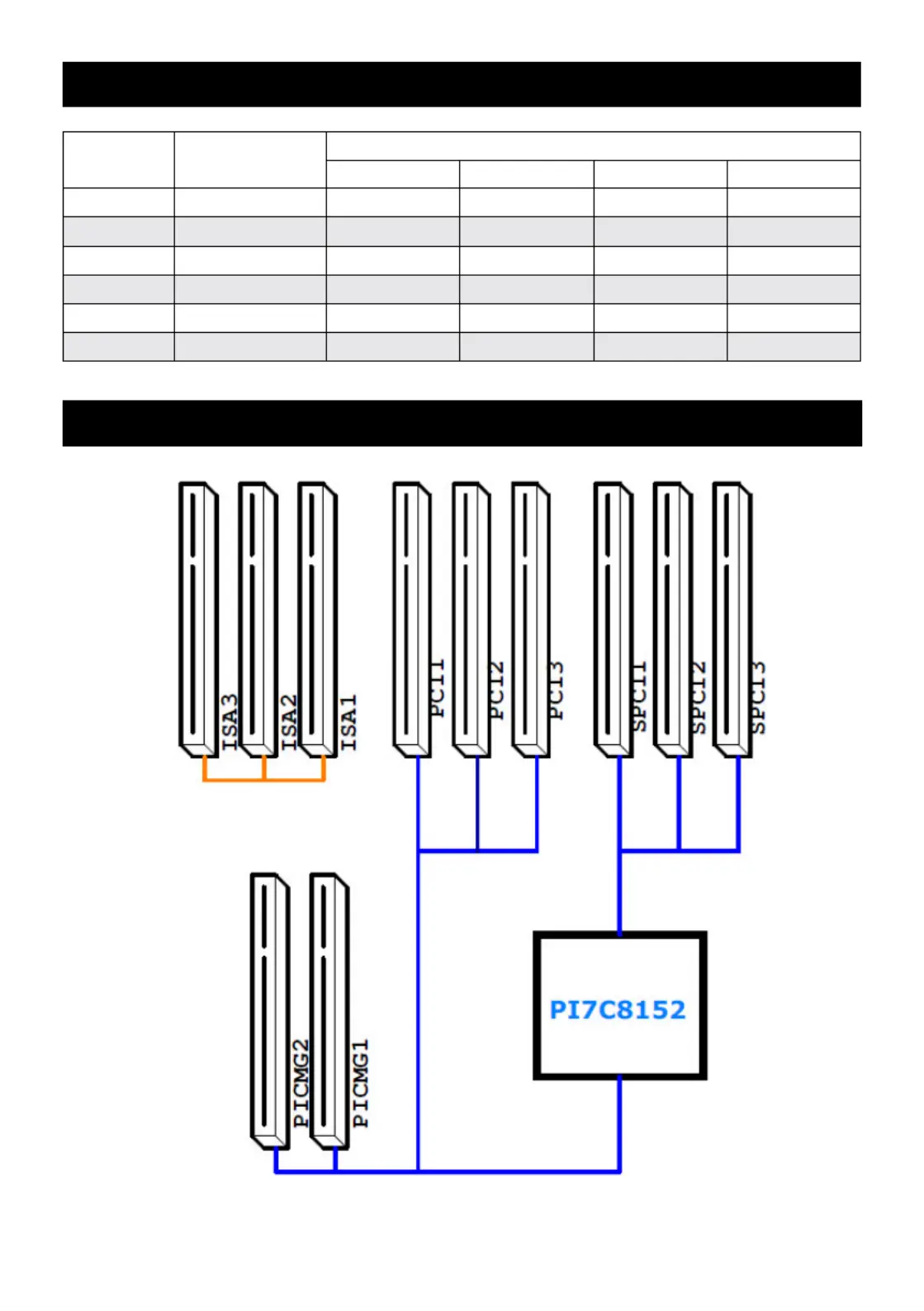

PCA-6108P6 Backplane: 8-slot BP for 8-slot Chassis, 1 ISA, 5 PCI,

1 PICMG, 1 PICMG/PCI

Startup Manual

The board has a number of jumpers that allow you to con-

figure your system to suit your application.

The table below lists the function of each of the jumpers and

connectors.

Jumpers and Connectors

Connectors

LabelFunction

PICMG1~PICMG2PICMG1.0 CPU board slot

ISA3 ISA slot

PCI1~PCI332 bit / 33MHz PCI slot

SPCI1~SPCI3 32 bit / 33MHz PCI slot

VAT1 AT power connector

VATX1 ATX power connector

VBIG1 BIG 4-pin connector

VKB1~VKB3 KB-In or KB-Out connector

HCN1

PS-On, to CPU card for ATX

power signal

HCN3 +5 V and +12 V fan connector

Jumpers

LabelFunction

HCN1ATX/AT Mode Selection

AT Mode

Remove default jumper

and connect 3-pin ATX

connector cable

ATX Mode

J3PCI Bridge Voltage Selection

Setting 5V voltage to PCI slot

(default)

Setting 3.3V voltage to PCI

slot

123

3 6 9

1 4 7

3 6 9

1 4 7

Specications

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://support.advantech.com

This manual is for the PCA-6108P6 Series.

Part No. 2002610824

Printed in China

5th Edition

July 2014

Jumpers and Connectors
