PCM-3614

4-port RS-422/485 High-Speed Module

PC/104 and the PC/104 logo are trademarks of the PC/104 ConsortiumPart no. 2000364100 1st Edition Printed in Taiwan August 2000

PCM-3614 4-port RS-422/485 High-Speed Module

Introduction

The PCM-3614 is a PC/104-compatible module with four in-

dividually configurable RS-422/485 ports. It works with PC/

104 CPU modules to extend additional RS-422/485 ports. The

PCM-3614 also features lots of functions such as high trans-

mission speed 921.6 kbps, independent/shared IRQ and more.

It also provides high-performance 16C550 UART communi-

cation chip with 16-byte FIFO to reduce CPU load. This makes

the PCM-3614 especially suitable for multitasking environ-

ments.

The PCM-3614 comes with a Windows 95/98/NT/ME con-

figuration utility (Windows 2000/XP utility will soon be ready

and allowed to download through our Web site). The Win-

dows configuration utility provides functions such as self-di-

agnostics and performance analysis for easy troubleshooting

and debugging.

The PCM-3614 provides versatile function settings to meet

users' needs. These function settings include Standard/En-

hance mode, Independent/Shared IRQ mode and Speed

mode. Standard/Enhance mode setting helps the user use

base address more flexible. Especially in Enhance mode, dif-

ferent base addresses can be set according to the applica-

tion. In Shared IRQ mode, all ports of interrupt can be speci-

fied to one. This solves the problem of IRQ insufficiency within

the embedded system. In Speed mode, the PCM-3614 al-

lows transmission rate up to 921.6 kbps, improving the over-

all performance of the system.

Features

•Four Independent RS-422/485 serial ports

•Automatic RS-485 data flow control

•Transmission speeds up to 921.6 Kbps

•Shared IRQ settings for each port

•Windows configuration utility for Windows 95/98/NT/ME

P.S. Windows 2000/XP/CE driver will soon be available on

our Web site

•Built-in termination resistors

•LED indicators: TX, RX

•Standard PC ports: COM1, COM2, COM3, COM4

compatible

Specification

•Bus interface: PC/104 (ISA)

•Number of ports: 4

•I/O address: 0x000 ~ 0x3F8

•UART: 4 x 16C550

•IRQ: 3, 4, 5, 6, 7, 9, 10, 11, 12, 15

•Data bits: 5, 6, 7, 8

•Stop bits: 1, 1.5, 2

•Parity: none, even, odd

•Speed (bps): 50 ~ 921.6K

•Connectors: Four DB-9 male

•Signal support: TxD+, TxD-, RxD-, CTS+, CTS-,

RTS+ and RTS-

•Surge protection: 1000 V

DC

•Temperature:Operating : 0 ~ 65° C

(refer to IEC-68-1-1,2) ( 32~149° F)

Storage : -25 ~ 80° C (-13~176° F)

•Operation Humidity: 0% ~ 90% Relative

Humidity, non-condensing

Product Package

•PCM-3614 PC/104 4-port RS-422/485 High-

Speed Module

•Advantech ICOM Driver/Utility CD

•One cable

Initial inspection

We carefully inspected the PCM-3614 both mechani-

cally and electrically before we shipped it. It should

be free of marks and scratches and in perfect elec-

trical order on receipt.

Handle the board only by its edges. The static change

on your body may damage its integrated circuits.

Keep the card in its anti-static package whenever it

is not installed. You can use this package to return

the card if it should need repair.

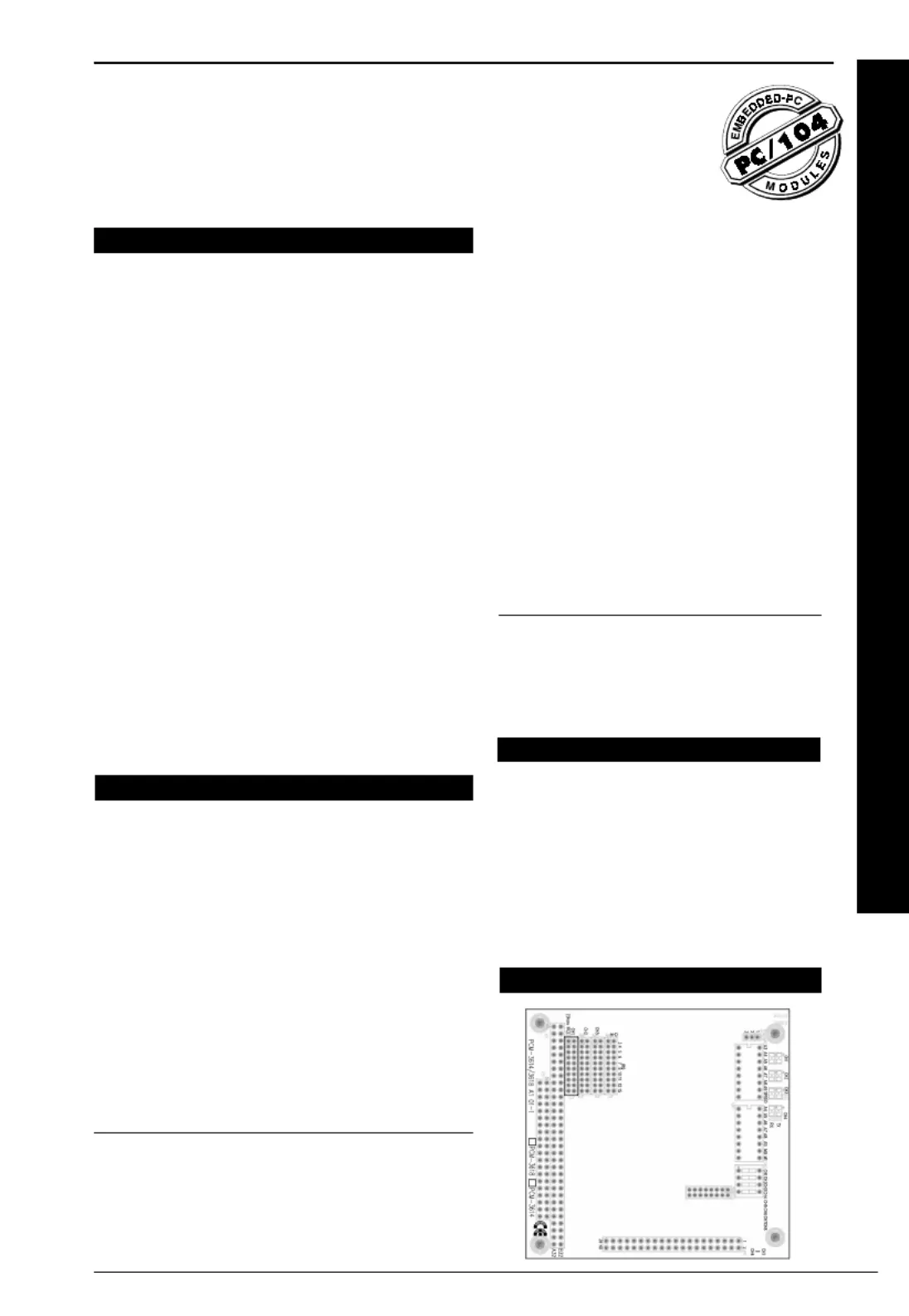

Board Layout
