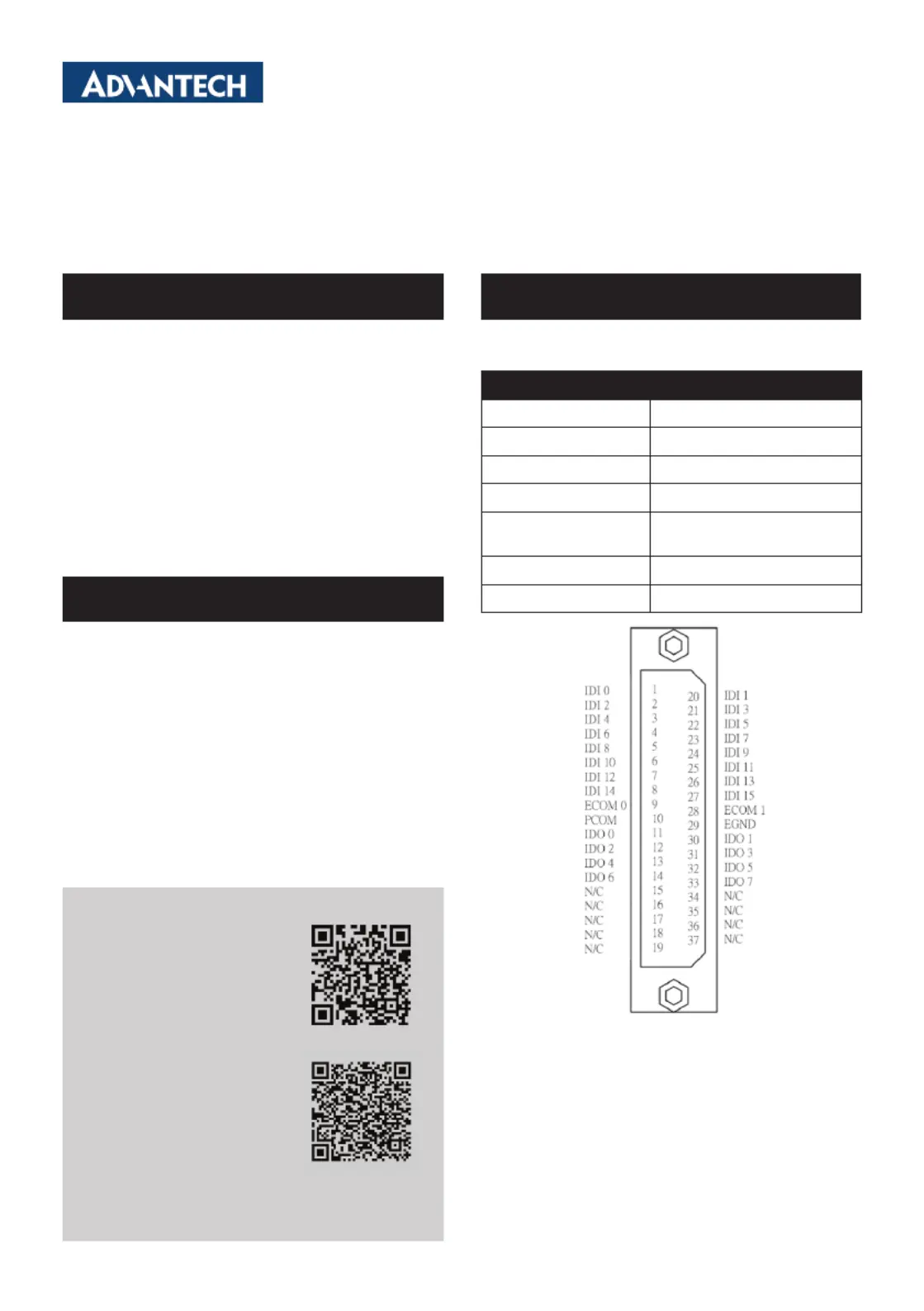

PCM-37D24DI Startup Manual 1

Before installation, please ensure that the following items

have been included in your shipment:

1. 1 x M.2 card with controller

2. 1 x DB37 I/O plate x 1 with iDoor bracket

3. 1 x Wired cable

4. 1 x Extension bracket kit

5. 1 x Startup manual

6. 1 x Warranty card

If any of the above items are missing or damaged, contact

your distributor or sales representative immediately.

The support documentation and drivers can be accessed

from Advantech website.

• Documentation

- Datasheet

- StartUp

• Drivers

PCM-37D24DI

24-Channel Isolated Digital I/O, M.2 B+M key

(3042, PCIe*1), DB37

Startup Manual

The following table and fi gure show the pin assignments of

the connector on the bracket of the I/O module.

Description of PIN Use

IDIn (n=0 ~ 15)Isolated digital input

IDOn (n=0 ~ 7)Isolated digital output

ECOM0External common of IDI0~7

ECOM1External common of IDI8~15

PCOM

Free wheeling common diode

for IDO

EGNDExternal ground

NCNot Connected

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support services, please visit our support

website at:

http://www.advantech.com.tw

This manual is for PCM-37D24DI.

Part No. 204137D200

Printed in Taiwan

Edition 1

December 2024

Documentation/Software Support

Pin Assignment
