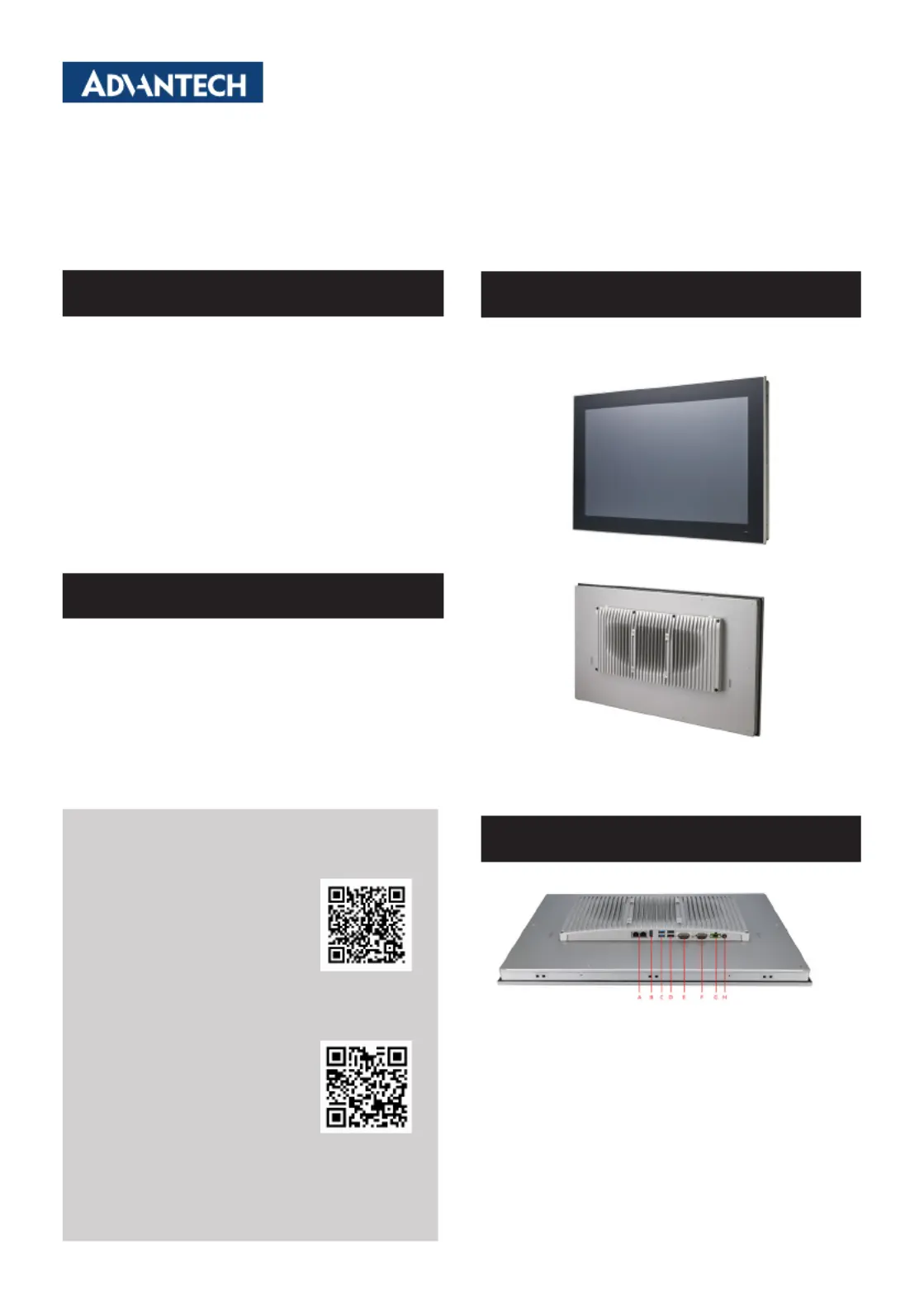

PPC-3211SW_3181SW_3151SW-P65A/324W-P7 Series Startup Manual 1

Before installation, ensure that the following items are

included with the product:

1. 1 x Panel PC

2. 1 x PPC-3211SW/3181SW/3151SW/324W-P7 startup

manual

3. 1 x Phoenix connector

4. 10/12/14 x Mount brackets (10 for PPC-3151SW; 12 for

PPC-3211SW/3181SW; and 14 for PPC-324W-P7)

5. 10/12/14 x Mount screws (10 for PPC-3151SW; 12 for

PPC-3211SW/3181SW; 14 for PPC-324W-P7)

If any of the above items are missing or damaged, contact

your distributor or sales representative immediately.

Software Installation

Before installing software on the panel PC, install the cor-

responding drivers to ensure full functionality.

All drivers can be downloaded from the Advantech website

at http://www.advantech.com.

PPC-3211SW/3181SW/3151SW/324W-P7

21.5”/18.5”/15.6”/23.8”Panel PC with TFT LCD

and 6th/7th Gen Intel

®

Core

TM

Processor

Startup Manual

Note: The examples provided in this manual are of the

PPC-3211SW model.

Front View

Rear View

A. 2 x LAN

B. 1 x HDMI

C. 2 x USB 3.0

D. 2 x USB 2.0

E. COM2: RS-232/422/485

F. COM1: RS-232

G. DC-In

H. Power button

VESA mount screws: 4 x M4 screws

Screw depth: 12 mm (max.)

Packing List

For more information about this product, visit the

Advantech website at

http://www.advantech.com/products/fanless-panel-

pcs/sub_1-2jkjm3

For technical support and customer service, visit the

Advantech support website at

http://support.advantech.com/support/new_de-

fault.aspx

This manual is for the PPC-3211SW/3181SW/3151SW

/324W-P7 series, Rev. A0, models.

Part No. 2043315101

Printed in China

Edition 2

October 2020

Appearance

I/O Layout
