PPC-415W/421W Startup Manual 1
Before installation, ensure that the following items are
included with the product:
1. 1 x Panel PC
2. 1 x PPC-415W/PPC-421W startup manual
3. 2 x Phoenix connector
4. 10/12 x Mount brackets (12 for PPC-421W, 10 for
PPC-415W)
5. 10/12 x Mount screws (12 for PPC-421W, 10 for PPC-
415W)
If any of the above items are missing or damaged, contact
your distributor or sales representative immediately.
Before installing software on the panel PC, install the cor-
responding drivers to ensure full functionality.
All drivers can be downloaded from the Advantech website
at http://www.advantech.com.
PPC-415W/PPC-421W 15.6”/21.5” Panel PC with
TFT LCD and 13th Gen Intel
®
Core
TM
i Processor
Startup Manual

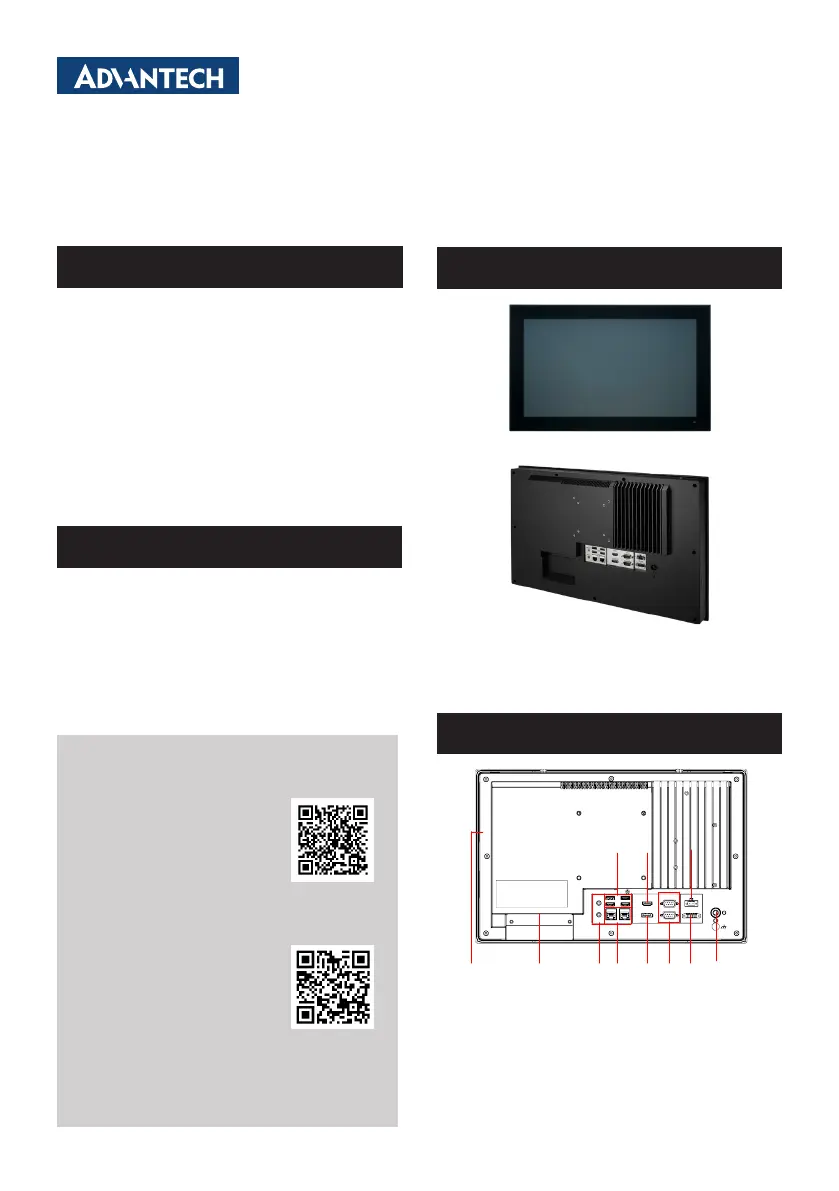

Front View
Front View
Rear View
VESA mount screws: 4 x M4 screws
Screw depth: 8 mm (max.)
A. 1 x Expansion slot (PCI or PCIe x1)
B. 1 x Mic-In/Line-Out C. 2 x Intel Gigabit Ethernet
D. 1 x DisplayPort E. 2 x RS-232
F. 1 x Isolated RS-422/485 G. 1 x Power button
H. 1 x DC Input and AT/ATX switch
I. 1 x HDMI J. 3 x USB 3.2, 1 x USB 2.0
K. 2 x RS-232 (right side, optional)
A
B
C
D E F G
J I H
K
Packing List
For more information about this product, visit the
Advantech website at
http://www.advantech.com/products/fanless-panel-
pcs/sub_1-2jkjm3
For technical support and customer service, visit the
Advantech support website at
http://support.advantech.com/support/new_de-
fault.aspx
This manual is for PPC-415W/421W series, Rev. A0.
Part No. 2041421W00
Printed in China
Edition 1
November 2023
Appearance
I/O Layout
Software Installation
2 PPC-415W/421W Startup Manual
Specications
Product PPC-415W PPC-421W
LCD Display 15.6" 21.5"
Display Type 15.6" TFT LCD (LED backlight) 21.5" TFT LCD (LED backlight)
Resolution Max. 1920 x 1080 1920 x 1080
Brightness 450 cd/m
2
300 cd/m
2
Color 16.7M 16.7M
Viewing Angle 85 (Left), 85 (Right), 85 (up), 85 (Bottom) 89 (Left), 89 (Right), 89 (Up), 89 (Down)
Contrast 800 1000
Backlight Lifetime 50, 000 hours 30, 000 hours
Touchscreen type Multi-touch projected capacitive
Light Transmission 88 % ± 2 %
Controller USB interface
CPU Intel
®
Core™i7-1365URE/i5-1345URE/i3-1315URE
Memory 2 x SODIMM, DDR5 4800, max. 32GB x 2
Storage
1 x 2.5" SATA bay; 1 x M.2 2242/2280 M Key
slot for Storage (SATA or NVME PCIe x 4,
support SATA RAID)
2 x 2.5" SATA bay (supports Intel RAID); 1 x
M.2 2242/2280 M Key slot for Storage (SATA or
NVME PCIe x 4, support SATA RAID)
Network (LAN) 2 x Intel I226LM controller; Speed: 10M/100M/1000M/2.5G
I/O Ports
5 x Serial ports: 2 x RS-232, 1 x RS-422/485 with 1K V
DC
isolation,2 x RS-232 (on right side
optional)
3 x USB3.2, 1 x USB2.0
1 x Line-Out, 1 x Mic-In
1 x HDMI 1.4
1 x DisplayPort (1.4a)
1 x 8bit GPIO (Optional)
Hardware Security 1 x TPM2.0
Expansion
1 x M.2 2230 E Key slot for wireless card
1 x PCIe x 4; 1 x PCI (optional)
Speaker 2 x 1W
OS Support Microsoft
®
Windows 11 (64 bit),Win 10 IOT LTSC, Linux
Power Supply 9 - 32 Vdc
Power Consumption Typ.70W Max.105W Typ.75W Max.110W
Operating Temperature -20 ~ 60 °C (-4 ~ 140 °F)
Storage Temperature -40 ~ 60 °C (-40 ~ 140 °F) -30 ~ 60 °C (-22 ~ 140 °F)
Relative Humidity 95% @ 40°C (non-condensing)
Shock Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27
Vibration Operating random vibration test, 5 ~ 500Hz, 2Grms with SSD, following IEC 60068-2-64
Safety and EMC
Safety: CB, UL, CCC, UKCA
EMC: CE, FCC Class B, VCCI,UKCA, BSMI
Dimensions
419.70mm x 269.00mm x 59mm
(16.5 x 10.6 x 2.3 in)
558.4x 349.8 x 63.8 mm
(21.9 x 13.7 x 2.5 in)
Weight 5.4kg (11.9 lb) 7.67kg (16.9lb)
