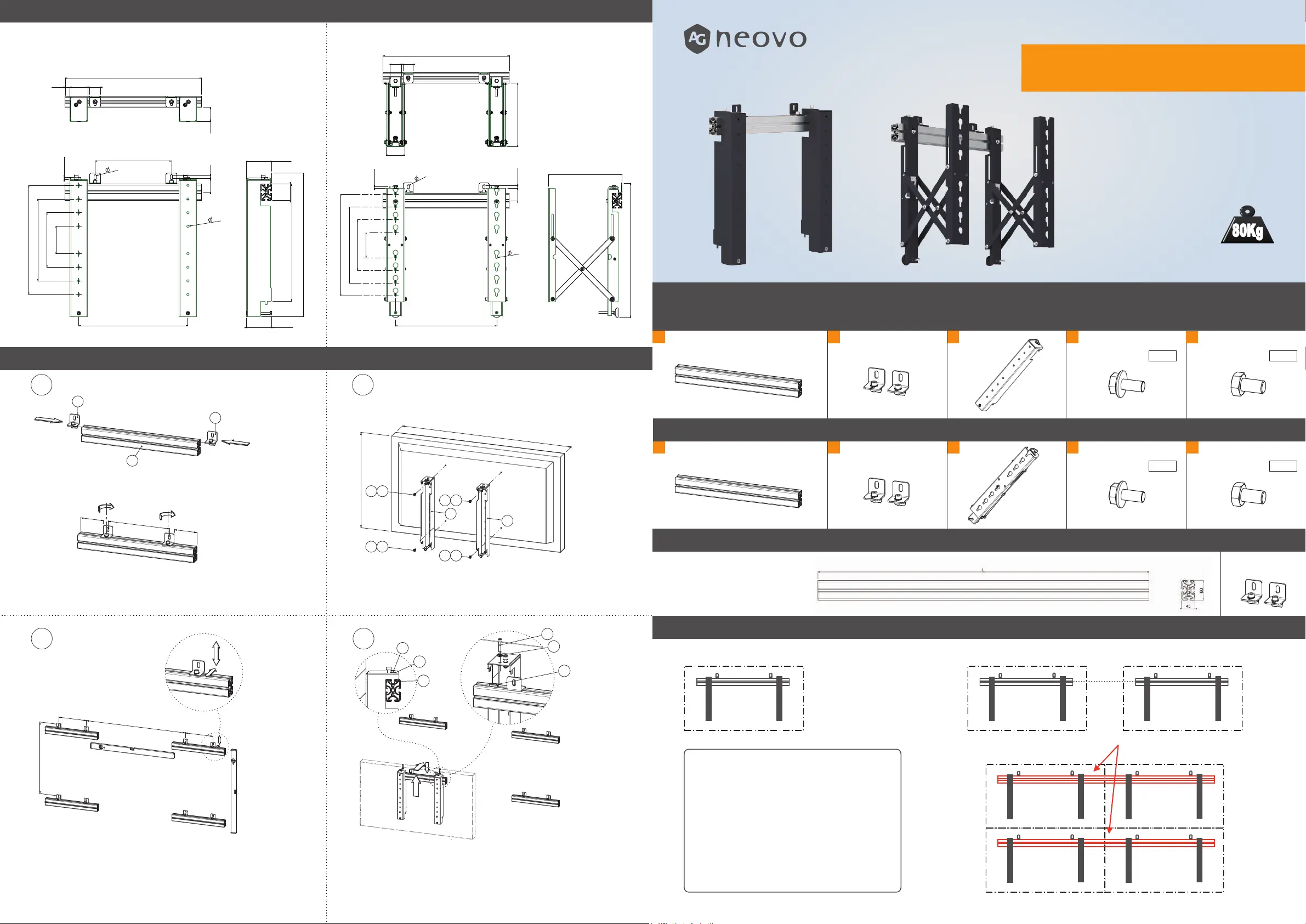

VWM-01 / VWM-02 / VWA-01 & VWA-04

Installation Manual

Video Wall Mounting Kit

VWM-01VWM-02

234

5

VWM-01 Enclosed Parts

M6x12

*1 pcs*4 pcs*4 pcs

M8x14

*2 pcs

*2 pcs

1

234

5

VWM-02 Enclosed Parts

M6x12

*1 pcs*4 pcs*4 pcs

M8x14

*2 pcs

*2 pcs

1

Optional Proles VWA-01 + Brackets VWA-04

VWA-01 L= 2.000 mm

VWA-04

Single use

In-line use

Videowall use

VWM-01:

Installation of single-use or in-line use

VWM-02:

Easy installation of Videowall. Push-out function for

build-in videowall, easy connecting and service of

the displays.

(even lowest line can still be VWM-01)

OPTIONAL

VWA-01:

To install displays straight in one line. For easy and

fast in-line or videowall setup.

VWA-01 (optional)

VWM-01/02

VWM-02

VWM-01VWM-01

VWM-01

Set-up Guide

VWM-01/02

VWM-02

Physical Dimensions (mm)

500

93

+10

0

526

100

200

300

400

400

280

6540

8.5

10

50

Max.fine adjustment

6.5 mm

93

+10

0

60

430

17.5

8.5

52.5

93-293

(stroke=200)

+10

0

532

500

40

52.5-252

100

200

300

400

Max.fine adjustment

6.5mm

10

8.5

50

8.5

400

46

74

VWM-01VWM-02

Installation

Slide the wallbrackets (2) wit the slot nut in the slot of the aluminium profile (1).

Positionate them and sleightly turn on the bolts.

VWM-01: Mount the brackets (3) with screw (4 or 5) on the backside of the display.

VWM-02: Screw only the screws (4 or 5) in the VESA holes of the display and keep

a clearance of 4 mm.

Screw now the brackets with Profile(s) on the wall. Line-up the profile(s) by

adjusting the wallbrackets (2).

For videowall installation check distance (H + 1 mm) and dist

ance (W-264 mm)

and make sure the profiles are levelled (horizontally as well as vertically).

To save installation time we suggest to use our additional profile VWA-01.

VWM-01: Hook the display with brackets to the aluminium profile and make sure

that adjusting screw (c) does not touch the profile.

VWM-02: Hook the modules to the aluminimum profile and make sure that adjusting

screw (c) does not touch the profile. Place bolt (a) with associated washer in the

sliding nut, but do not

tighten. Place the two modules with a horizontal distance

according to the width of the VESA.

265

97.5

97.5

W

H

265

265

W - 264 mm

H + 1 mm

01

03

02

04

1

2

2

45

45

45

45

3

3

a

b

c

a

b

c
