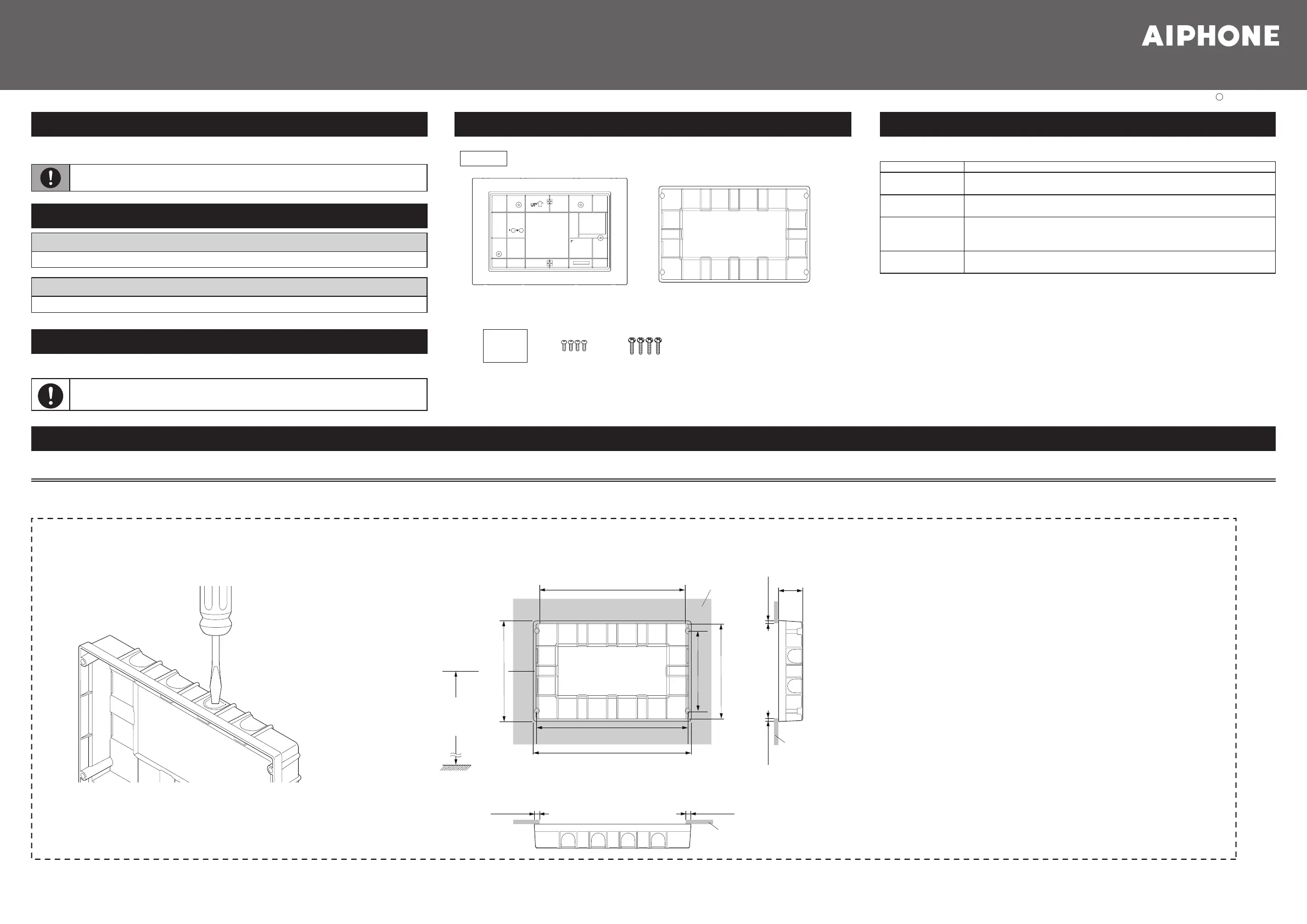

IXG-FMK-2C7 (Flush mount kit for Tenant Station)

Issue Date: Mar. 2020 FK2532 A P0320 RQ 60235

Introduction

• Read this manual before installation and connection.

Read the "Installation Manual" included with IXG-2C7 or IXG-2C7-L.

Perform installation and connection only after gaining sufficient understanding of the

system and this manual.

Part Names and Accessories

Front view

Wall-mounting

screws × 4

Frame-mounting

screws ×4

Included accessories

Installation Manual ×1

(this manual)

Panel & FrameBack box

Installation Manual

Precautions

Notice

• The illustrations used in this manual may differ from the actual product.

Precautions for mounting

• Do not use an impact driver to fasten screws. Doing so may cause damage to the device.

Literature information

The important information concerning correct operation and what you should observe is marked with

the following symbols.

Restricts user actions / provides instructions.

How to Install

Tenant Station (IXG-2C7, IXG-2C7-L) is sold separately.

<Front>

<Underside >

<Side>

240 (9-7/16")

Opening dimension of wall

265 (10-7/16")

Back Box dimension

169 (6-5/8")

Back Box dimension

165 (6-1/2")

Opening dimension of wall

Wall

Wall

12.5 (1/2")

2 (1/16") 2 (1/16")

12.5 (1/2")

Wall

40

(1-9/16")

2. Install the back box in the wall.

Installation of Back Box

Recommended

Mounting height

(center of back box)

1,500mm (4' 11'')

1. Make a hole for the cable.

How to install Tenant Station is described on the back.

Pass the LAN cable and low voltage cable through the opened hole.

134 (5-1/4")

255 (10-1/16")

Specifications

■IXG-FMK-2C7

MountingFlush wall-mounted

MaterialsPanel: Self-extinguishing resin

Frame & Back Box: Self-extinguishing plastic

ColorPanel & Frame: White

Back Box: Black

DimensionsPanel & Frame: 290 mm (11-7/16") [W] × 199 mm (7-13/16") [H] × 30 mm

(1-3/16") [D]

Back Box: 265 mm (10-7/16") [W] × 169 mm (6-5/8") [H] × 40 mm (1-9/16") [D]

MassPanel & Frame: Approx. 110g (0.25 lbs)

Back Box: Approx. 220g (0.49 lbs)

Installation of Tenant Station with Flush mount kit
