IMPORTANT INSTRUCTIONS -
OPERATING MANUAL
READ AND SAVE THESE INSTRUCTIONS
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED.
PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH
INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
GENERAL SAFETY INFORMATION
When using electrical appliances, basic precautions should always be followed to
reduce the risk of fire, electric shock and injury to person, including the following:
SAVE THESE INSTRUCTIONS
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND
INJURY TO PERSON, OBSERVE THE FOLLOWING:
a) Use this unit only in the manner intended by the manufacturer.If you have
questions, contact the manufacturer.
b) Before servicing or cleaning the unit, switch power off at service panel and
lock the service disconnecting means to prevent power from being switched on
accidentally. When the service disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag, to the service panel.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND
INJURY TO PERSON, OBSERVE THE FOLLOWING:
a) Installation work and electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards, including fire-related
construction.
b) Sufficient air is needed for proper combustion and exhausting of gases through
the flue (chimney) of fuel burning equipment to prevent back drafting. Follow
the heating equipment manufacturer’s guideline and safety standards such
as those published by the National Fire Protection Association (NFPA) and the
American Society for Heating, Refrigeration, and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and
other hidden utilities.
CAUTION: FOR GENERAL VENTILATING USE ONLY. DO NOT USE TO
EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS AND VAPORS.
CAUTION: TO REDUCE THE RISK OF FIRE AND TO PROPERLY EXHAUST
AIR, BE SURE TO DUCT AIR OUTSIDE - DO NOT VENT EXHAUST AIR INTO
SPACES WITHIN WALLS OR CEILINGS OR INTO ATTICS, CRAWL SPACES, OR
GARAGES.
d) Ducted fans must always be vented to the outdoors.
e) This unit must be grounded.
f) To avoid motor bearing damage and noisy and/or unbalanced impellers, keep
drywall spray, construction dust, etc. off power unit.
g) Read all instructions before installing or using range hood.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, DO NOT
USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.
WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
a) Never leave surface units unattended at high settings. Boil overs cause
smoking and greasy spillovers that may ignite. Heat oils slowly on low or
medium settings.
b) Always turn hood ON when cooking at high heat or when flambéing food
(ie. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should not be allowed to
accumulate on fan filter.
d) Use proper pan size. Always use cookware appropriate for the size of the
surface element.
WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN THE
EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:
a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then
turn off burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out
immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN - You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels -
a violent steam explosion will result.
d) Use an extinguisher ONLY if:
I. You know you have a Class ABC extinguisher, and you already know
how to operate it.
II. The fire is small and contained in the area where it started.
III. The fire department is being called.
IV. You can fight the fire with your back to an exit.
WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL
DUCTWORK.
www.airkinglimited.com
6728037 Rev. B 12-12 1 of 12
Range Hood
AB Series
INSTALLATION INSTRUCTIONS
CAUTION: MAKE SURE POWER IS SWITCHED OFF AT SERVICE PANEL BEFORE
STARTING INSTALLATION.
SECTION 1
Preparing the Range Hood
1. Unpack hood from the carton and confirm that all pieces are present. In addition to the
range hood you should have:
2 - Aluminum Grease Filters (36" models - 3)
2 - 50 watt GU10 Lamps
1 - 3-1/4" x 10" Damper
1 - 7" Round Damper
10 - Damper Mounting Screws
4 - #8 Mounting Screws
1 - Instruction/Safety Sheet
NOTE: Some hoods may be shipped with a protective plastic adhered to the range hood. It is
recommended to leave this in place during installation to protect the hood from scratching.
Remove when the installation is complete.
TIP: Use a hair dryer to warm the plastic coating. This will allow the coating to easily release
from the hood.
2. Lay the hood flat on a table so the underside is facing you. Use a piece of cardboard to
avoid damaging the table or the hood.
3. Remove the following items from the hood and place in a safe place until needed (Figure 1):
Pull on tabs to remove.Grease filters:
Both the damper assemblies and lamps are contained with the Damper and Lamp Box:
box located on the inside of the hood. Remove and place in a safe place until needed.
Remove the screws holding it in place.Wire compartment cover:
4. Install the included 50 watt GU10 lamps into the lamp holder by lining up the pins on the
lamp base to the socket of the lamp holder and turning the lamp body clockwise until the
lamp snaps into place and is firmly seated in the lamp holder.
SECTION 2
Prepare the location for Hood Support
1. If the hood will be installed under cabinets that have a recessed bottom, it will be necessary
to install wood mounting strips (not included) so the hood will mount properly (Figure 2).
www.airkinglimited.com
6728037 Rev. B 12-12 2 of 12
2. The thickness of the strips should be the same as the recess of the cabinet and they
should be approximately 2" wide.
3. Install the strips using appropriate length wood screws (not included). Make sure the
strips line up to the keyhole slots of the range hood.
SECTION 3
Prepare the Hood for Installation
1. Choose the type of ducting you will require. This model is equipped to vent either
Vertically or Horizontally through a 3-1/4" x 10" duct or through a 7" round duct. It can
be modified to be ductless (re-circulates the air back into the kitchen) with the addition
of a model CF-09S Charcoal Filter (not included) (Figure 3).
2a. Horizontal or Vertical - Remove the rectangular knockout by inserting a screw driver under
the edge and break the tabs holding it in place. Peel back with pliers (Figure 4).
2b. - From inside the hood, depress the latches with your fingers before removing Ductless
the shutter. Pull down on the tab in front of the fan blade. Bend the shutter at the creased
area and break the top part of the shutter off and discard. Insert the remaining part of the
shutter back into the slot (Figure 4).
2c. 7" Round - Remove the round knockout located on the top of the hood by inserting a screw
driver under the edge and break the tabs holding it in place. Peel back with pliers (Figure 4).
3. Determine where the electrical service will enter the hood and remove the appropriate
electrical knockout by inserting a screw driver into the slot and rocking back and forth until the
knockout comes loose (Figure 4).
SECTION 4
Installing the Range Hood
CAUTION: MAKE SURE POWER IS SWITCHED OFF AT SERVICE PANEL BEFORE
STARTING INSTALLATION.
1. Once the proper knockout(s) have been removed, either hold the hood up to the installation
location and mark the locations of the ducting (if applicable), electrical, and mounting holes
or mark the locations by measurement.
2. Cut appropriate holes for ducting connection (if applicable) and electrical connection in the
wall/cabinet.
3. For vertical or horizontal ducting, install the appropriate damper assembly to the hood by
placing the assembly over the opening and securing in place with the provided screws
(Figure 5). If using the 3-1/4" x 10" damper, make sure the damper hinge is towards the
front or the top of the hood to ensure the best possible performance.

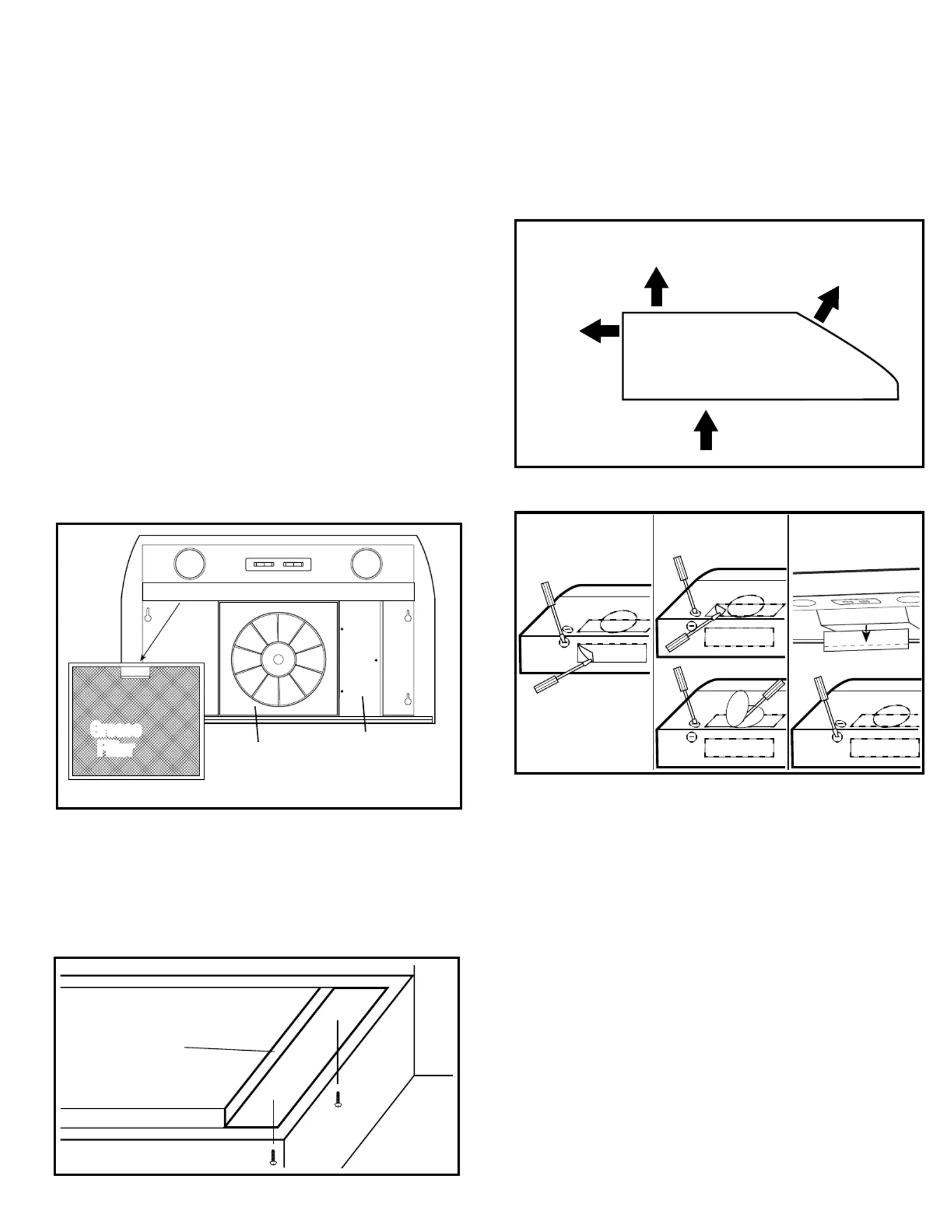

Figure 2
Wood Strip
Figure 3
Horizontal
Vertical
Ductless
Figure 1
Motor
Wire
Compartment
Cover
Grease
Filter
Figure 4
Horizontal Vertical Ductless
www.airkinglimited.com
6728037 Rev. B 12-12 3 of 12
4. Install an approved wire connector to the electrical knockout of the hood and guide the
electrical cable through the hood, allowing at least 6" of wire for connections and tighten.
NOTE: If installing into existing construction and you will not have access to the ductwork
once the hood is in place, make ducting connections at this point. Refer to the Ducting Section
for instructions.
5. Install the 4 mounting screw at the previously marked locations. Leave approximately 1/8"
clearance. Slide the hood in place through the keyhole slots and align the front of the hood
so that it is flush with the front of the cabinets. Tighten all screws securely (Figure 6).
CAUTION: DO NOT INSTALL CLOSER THAN 22 INCHES ABOVE COOKING SURFACE.
SECTION 5
Wiring
CAUTION: ALL ELECTRICAL CONNECTIONS MUST BE MADE IN ACCORDANCE
WITH LOCAL CODES, ORDINANCES, OR NATIONAL ELECTRICAL CODE. IF YOU ARE
UNFAMILIAR WITH METHODS OF INSTALLING ELECTRICAL WIRING, SECURE THE
SERVICES OF A QUALIFIED ELECTRICIAN.
1. Connect the 1 loose Black wire from the range hood to the Black wire from the supply,
and the 1 loose White wire from the range hood to the White wire of the supply. Connect
the ground wire (green or bare) from the supply to the green ground wire of the hood.
Use approved methods for all connections (Figure 7).
1/8"
Keyhole
NOTE: DO NOT disconnect any wiring that has already been crimped with a wire connector
from the factory.
2. Install the wire compartment cover using the three screws removed earlier. Make sure
the 2 screws with the pointed tips are installed through the wire cover and into the
polymetric undercarriage. The blunt tip screw is to be installed to the interior of the wire
compartment. Make sure all wiring is securely contained within the wire compartment
and tighten all screws.
SECTION 6
Ducting
CAUTION: ALL DUCTING MUST COMPLY WITH LOCAL AND NATIONAL
BUILDING CODES.
WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
1. Connect the ducting to the hood’s duct collar and damper. Secure in place using tape to
seal all joints (Figure 8).
CAUTION: ALWAYS DUCT THE FAN TO THE OUTSIDE THROUGH A WALL OR
ROOF CAP.
SECTION 7
Finishing the Installation
2. Reinstall the filters by fitting them into the channel on either side of the hood and
pushing upwards on them until they are secured in place (Figure 9).
2. Turn switches to the “OFF” position and restore power. Test that the light and the fan are
operating properly.
3. If there is any vibration noise, check for the source and try to tighten fasteners.
SECTION 8
Operation
Controls
Your Range Hood is equipped with two rocker switches with one controlling the lighting and the
other controlling the exhaust fan. The light switch has three positions Hi, Low and OFF. The fan
switch has three positions, High, Low, and OFF.

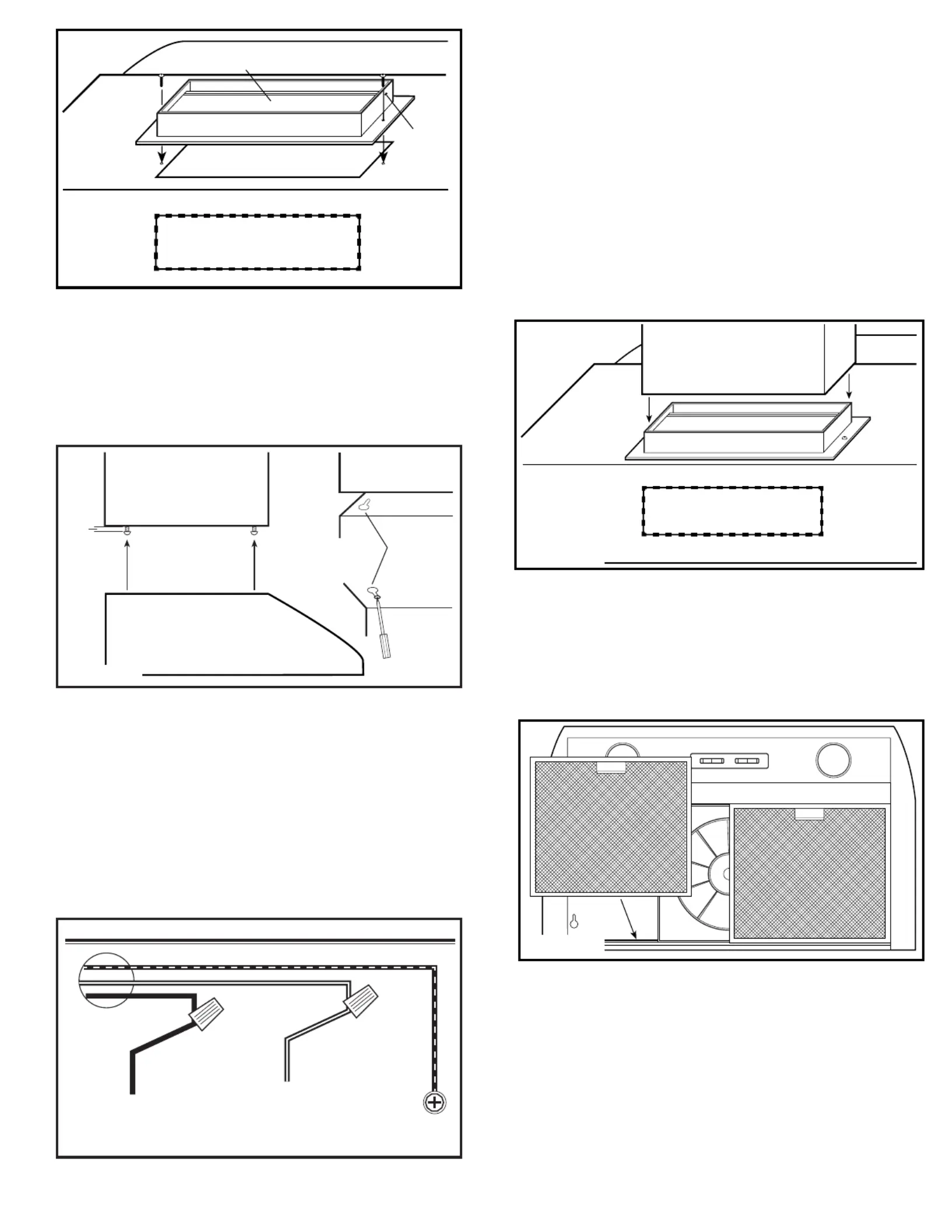

Figure 7
Hot (Black)
Ground
(Green or Bare)
Neutral (White)
Figure 6
Figure 9
Figure 5
Damper
Hinge
Figure 8
