Updated 12-25 • Specifications subject to change without notice.airkinglimited.com

PROJECT

LOCATION

CONTRACTOR

ARCHITECT

ENGINEER

SUBMITTED BYDATE

FAN NUMBER MODEL NUMBER CFM IN W.G RPM WATTS AMPS SONES QTY OPTIONAL EQUIPMENT & REMARKS

Acceptable for ceiling mounting over tub or

shower when installed in a GFCI protected

branch circuit.

100 CFM / 1.1 Sones / 11 Watts @ 0.10" SP., 86 CFM @ 0.25 SP.

80 CFM / 0.7 Sones / 7 Watts @ 0.10" SP., 65 CFM @ 0.25 SP.

50 CFM / 0.3 Sones / 5 Watts @ 0.10" SP., 45 CFM @ 0.25 SP.

V

E

N

T

I

L

A

T

I

O

N

S

T

A

N

D

A

R

D

S

62.2

ASHRAE

COMPLIES WITH

• Grill

White, polymeric grill secured in place with torsion springs;

easily removed if necessary, dimensions - 13" x 13".

• Blower Wheel

One piece polymeric centrifugal blower wheel, 57/32" diameter,

4

1

/

8

" wide, with 36 paddles.

• Motor

3 speed, DC motor, suitable for continuous operation.

Rated 120 volts, 60 hz.

• Fan Housing

23 gauge galvanized steel housing. Dimensions: 10

1

/

4

" x 10

1

/

4

" x 3

3

/

8

" .

• Duct Collar

Plastic oval collar for 4" duct connection, comes complete with built in

back draft damper.

4" oval to 4" round collar transition included with unit.

• Ventilating Area

For bathrooms up to 100 sq. ft. For other rooms up to 125 sq. ft.

• Electrical Connections

3/4" electrical access.

• Unit Mounting

Designed to mount in ceilings with at least 3

1

/

2

" of clearance. The unit is

mounted directly to the joist using the integrated mounting flange and an

included mounting rail. Suitable for mounting into a drywall thickness up to

3

/

4

". Requires a rough-in opening of 10

1

/

4

" x 10

1

/

4

".

• Single Pack Shipping Info

Box Dim: 16

1

/

2

" x 14

1

/

8

" x 6

3

/

4

"

UPC: 0-8316294461-0

Shipping Weight: 7.6 lbs.

U.S.:820 Lincoln Avenue

West Chester, Pennsylvania 19380-4466

Tel: (610) 692-7400 • 877-304-3785Fax: (610) 696-8048 •

Canada: 12315 Coleraine Drive

Bolton, Ontario L7E 3B4

Tel: 905-456-2033

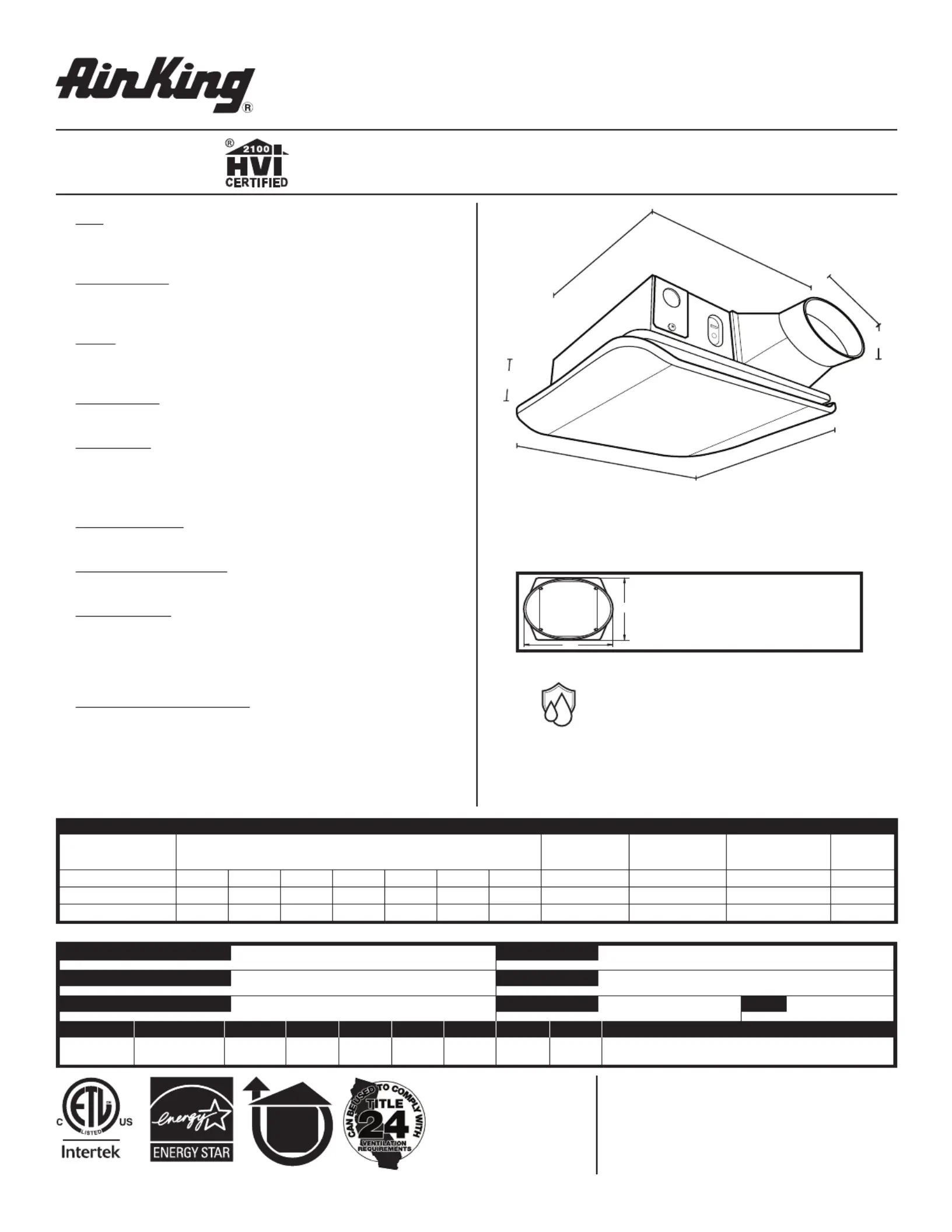

EXHAUST FAN SPECIFICATIONS

SF5810

* HVI Certified performance

EXPANDED PERFORMANCE

Static Pressure (inches of w.g.) Sones Fan Speed Maximum

Air Flow - CFM 0 0.05 0.1* 0.2 0.25* 0.3 0.375 @ .1 SP* RPM Fan Watts* Amps

High Speed 110 105 100 94 86 80 75 1.1 929 11 0.15

Medium Speed 938880 73 65 58 48 0.7 840 70.11

Low Speed 71 6350 48 45 39 28 0.3 726 5 0.07

10

1

/

4

"10

1

/

4

"

3

3

/

8

"

13"

13"

5"

2

5

/

8

"

2

5

/

8

"

5"

Oval duct collar allows fan to be

installed into tighter spaces with

at least 3

1

/

2

" of clearance.
