American DJ ®
4295 Charter Street
Los Angeles CA. 90058
www.americandj.com
1/07
User Instructions
American DJ - www.americandj.com - Dynasty Scan DMX Instruction Manual Page 2®
Unpacking: Thank you for purchasing the Dynasty Scan DMX by
American DJ . Every Dynasty Scan DMX has been thoroughly tested ®
and has been shipped in perfect operating condition. Carefully check
the shipping carton for damage that may have occurred during ship-
ping. If the carton appears to be damaged, carefully inspect your fix-
ture for any damage and be sure all equipment necessary to operate
the unit has arrived intact. In the event damage has been found or parts
are missing, please contact our toll free customer support number for
further instructions. Please do not return this unit to your dealer with-
out contacting customer support first.
Introduction: The Dynasty Scan DMX is a six channel, intelligent
DMX scanner. The fixture can operate in three different operating
modes; stand alone, sound-active, or in a Master/Slave configuration.
The Dynasty Scan DMX is best used in multiples of four. When used
as a stand alone unit or when used in multiples linked in a master/
slave configuration. For best results use fog or special effects smoke
to enhance the beams projections.
During the initial start-up or use of this product a light smoke or
smell may arise from the unit. This is a normal process and is
cause by the heat associated with the lamp.
Customer Support: American DJ provides a toll free customer ®
support line, to provide help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.americandj.com for any comments or
suggestions. Service Hours are Monday through Friday 9:00 a.m. to 5:
00 p.m. Pacific Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2941
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning! To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Warning! This may cause severe eye damage. Avoid looking directly
into the light source at all times!
Dynasty Scan DMX General Information
American DJ - www.americandj.com - Dynasty Scan DMX Instruction Manual Page 4American DJ - www.americandj.com - Dynasty Scan DMX Instruction Manual Page 3 ®®
For Your Own Personal Safety, Please Read and Understand This
Manual Completely Before You Attempt To Install Or Operate
This Unit!
• To reduce the risk of electrical shock or fire, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required volt-
age for your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken.
• Do not attempt to remove or break off the ground prong from
the electrical cord. This prong is used to reduce the risk of electrical
shock and fire in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out-
doors voids all warranties.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to cords at plugs, convenience recep-
tacles, and the point where they exit from the appliance.
• Cleaning -The fixture should be cleaned only as recommended by
the manufacturer. See page 17 for cleaning details.
• Heat -This fixture should be situated away from heat sources such
as radiators, heat registers, stoves, or other appliances (including
amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. Objects have fallen, or liquid has been spilled into the appliance.
B. The appliance has been exposed to rain or water.
C. The appliance does not appear to operate normally or exhibits a
marked change in performance.
Dynasty Scan DMX Safety Precautions
• DMX-512 Protocol Compatible (Uses Six DMX Channels)
• 6 DMX Channels
• X/Y Mirror Movement
• 9 Gobos, Plus Spot - With Gobo Wheel Scroll
• 11 Colors, Plus White - With Rainbow Effect
• 3 Operating Modes - Master/Slave; Stand Alone; Sound Active
• Internal Microphone
• ZB-EFR 15v, 150w
• Manual Focus Lens
• Variable Strobe (1/2-8 fps)
• Digital Display for Address and Function Setting
Dynasty Scan DMX Features
To optimize the performance of this product, please read these operating
instructions carefully to familiarize yourself with the basic operations of
this unit. These instructions contain important safety information regard-
ing the use and maintenance of this unit. Please keep this manual with
the unit, for future reference.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
American DJ .®
Dynasty Scan DMX General Instructions
The Dynasty Scan DMX carries a one year limited warranty. Please fill
out the enclosed warranty card to validate your purchase. All returned
service items whether under warranty or not, must be freight pre-paid
and accompany a return authorization (R.A.) number. The R.A. number
must be clearly written on the outside of the return package. A brief
description of the problem as well as the R.A. number must also be
written down on a piece of paper and included in the shipping carton.
If the unit is under warranty, you must provide a copy of your proof of
purchase invoice. You may obtain a R.A. number by contacting our
customer support team on our toll free customer support number. All
packages returned to the service department not displaying a R.A.
number on the outside of the package will be returned to the shipper
at the shippers cost.
Dynasty Scan DMX Product
Registration
American DJ - www.americandj.com - Dynasty Scan DMX Instruction Manual Page 5 American DJ - www.americandj.com - Dynasty Scan DMX Instruction Manual Page 6® ®
Power Supply: Before plugging your unit in, be sure the source volt-
age in your area matches the required voltage for your American DJ ®
Dynasty Scan DMX The American DJ Dynasty Scan DMX is available ®
in a 120v and 220v version. Because line voltage may vary from venue
to venue, you should be sure your unit voltage matches the wall outlet
voltage before attempting to operate you fixture.
DMX-512: DMX is short for Digital Multiplex. This is a universal pro-
tocol used by most lighting and controller manufactures as a form of
communication between intelligent fixtures and controllers. A DMX
controller sends DMX data instructions from the controller to the fix
-
ture. DMX data is sent as serial data that travels from fixture to fixture
via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX
fixtures (most controllers only have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models
of different manufactures to be linked together and operate from a
single controller, as long as all fixtures and the controller are DMX
compliant.
To ensure proper DMX data transmission, when using
several DMX fixtures try to use the shortest cable path possible. The
order in which fixtures are connected in a DMX line does not influence
the DMX addressing. For example; a fixture assigned a DMX address
of 1 may be placed anywhere in a DMX line, at the beginning, at the
end, or anywhere in the middle. Therefore, the first fixture controlled
by the controller could be the last fixture in the chain. When a fixture
is assigned a DMX address of 1, the DMX controller knows to send
DATA assigned to address 1 to that unit, no matter where it is located
in the DMX chain.

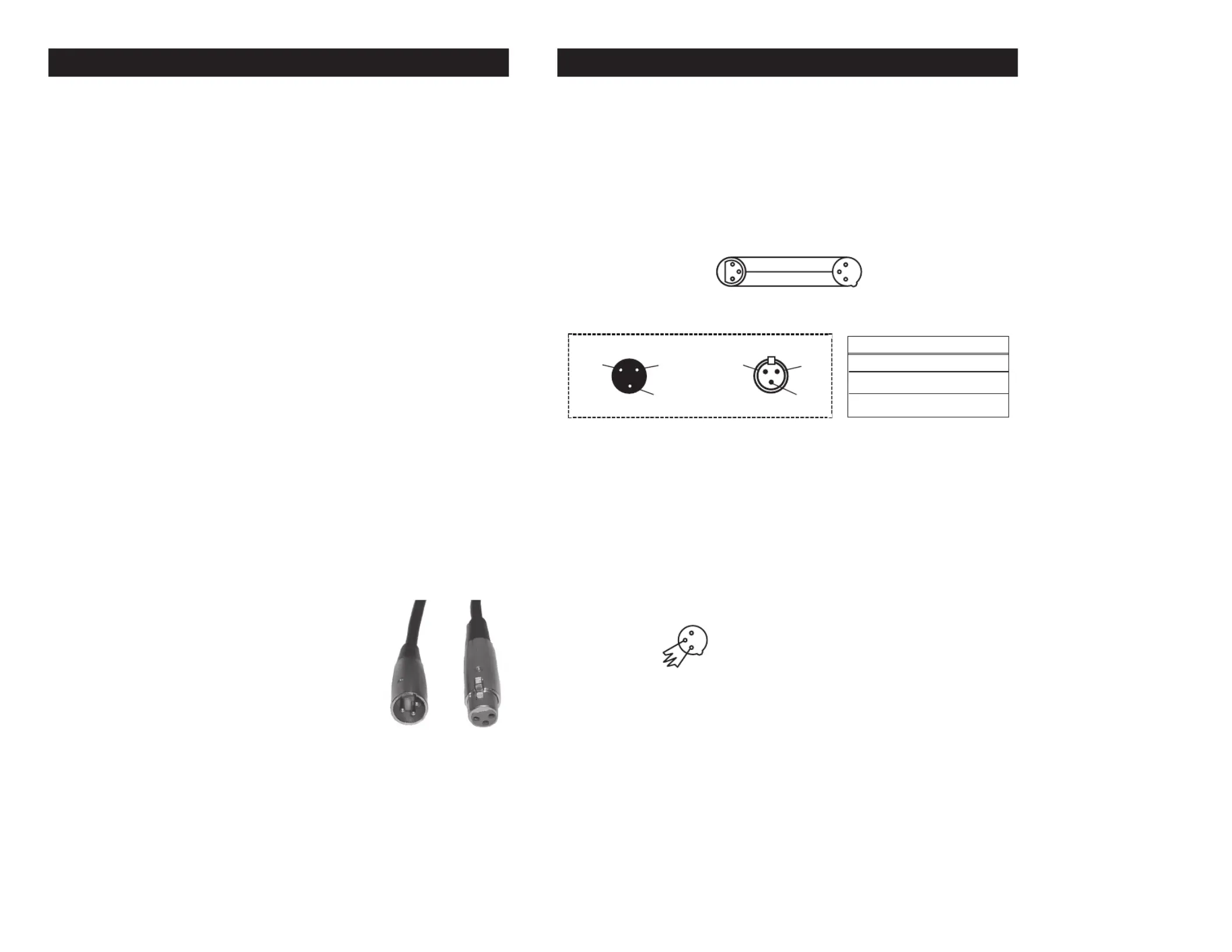

Data Cable (DMX Cable) Requirements (For DMX and Master/Slave
Operation):
The Dynasty Scan DMX can be controlled via DMX-512
protocol. The Dynasty Scan DMX is a six channel
DMX unit. The DMX address is set electronically
using the controls on the side panel of the unit. Your
unit and your DMX controller require a standard 3-
pin XLR connector for data input and data output
(Figure 1). If you are making your own cables, be
sure to use standard two conductor shielded cable
(This cable may be purchased at almost all profes-
sional sound and lighting stores). Your cables should be made with
Dynasty Scan DMX Set Up
Figure 1
a male and female XLR connector on either end of the cable. Also
remember that DMX cable must be daisy chained and cannot be split.
Dynasty Scan DMX Set Up
Notice: Be sure to follow figures two and three when making your own
cables. Do not use the ground lug on the XLR connector. Do not con-
nect the cable’s shield conductor to the ground lug or allow the shield
conductor to come in contact with the XLR’s outer casing. Grounding
the shield could cause a short circuit and erratic behavior.
DMX512 IN
3-PIN XLR
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OUT
3-PIN XLR
Figure 2
Figure 3
1 Ground
1 Ground
XLR Male Socket
XLR Pin Configuration
3 Hot
2 Cold
2 Cold
3 Hot
XLR Female Socket
Pin 3 = Data True (positive)
Pin 2 = Data Compliment (negative)
Pin 1 = Ground
Special Note: Line Termination.
When longer runs of cable are
used, you may need to use a terminator on the last unit to avoid erratic
behavior. A terminator is a 90-120 ohm 1/4 watt resistor which is con-
nected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This unit is inserted in the female XLR connector of the last
unit in your daisy chain to terminate the line. Using a cable terminator
(ADJ part number Z-DMX/T) will decrease the possibilities of erratic
behavior.
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
Figure 4
Produktspezifikationen
| Marke: | American Audio |
| Kategorie: | Nicht kategorisiert |
| Modell: | Dynasty Scan DMX |
Brauchst du Hilfe?
Wenn Sie Hilfe mit American Audio Dynasty Scan DMX benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten
Bedienungsanleitung Nicht kategorisiert American Audio
14 August 2025
14 August 2025
14 August 2025
14 August 2025
14 August 2025
14 August 2025
14 August 2025
14 August 2025
14 August 2025
14 August 2025
Bedienungsanleitung Nicht kategorisiert
- Koma Elektronik
- TEAC
- Skullcandy
- Greenworks
- Monacor
- Theragun
- Humanscale
- Buxton
- The T.mix
- Maxxus
- RAM Mounts
- Hive
- Pentatech
- Unitech
- Metrel
Neueste Bedienungsanleitung für -Kategorien-
14 August 2025
14 August 2025
14 August 2025
14 August 2025
14 August 2025
14 August 2025
14 August 2025
14 August 2025
14 August 2025
14 August 2025
