Seite 1/8
American DJ ®
6122 S. Eastern Ave.
Los Angeles CA. 90040
www.americandj.com
Rev. 1/10
User Instructions
American DJ - www.americandj.com - Revo II™ Instruction Manual Page 2®
Unpacking: Thank you for purchasing the Revo II™ by American DJ . ®
Every Revo II™ has been thoroughly tested and has been shipped in
perfect operating condition. Carefully check the shipping carton for
damage that may have occurred during shipping. If the carton appears
to be damaged, carefully inspect your xture for any damage and be
sure all equipment necessary to operate the unit has arrived intact. In
the event damage has been found or parts are missing, please contact
our toll free customer support number for further instructions. Please
do not return this unit to your dealer without contacting customer sup-
port rst.
Introduction: The Revo II™ is a four channel, DMX intelligent LED fix-
ture. The fixture can operate in three different operating modes; stand
alone, sound-active, or in a Master/Slave configuration. The Revo II™
comes with several built in programs. When used as a stand alone unit
or when used in multiples linked in a master/slave configuration. For
best results use fog or special effects smoke to enhance the beams
projections.
Customer Support: American DJ provides a toll free customer ®
support line, to provide help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.americandj.com for any comments or
suggestions. Service Hours are Monday through Friday 9:00 a.m. to
4:30 p.m. Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2941
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Warning! This may cause severe eye damage. Avoid looking directly
into the light source at all times!
Revo II™ General Information
WARNING! Due to the magnifying type lens, please keep
the lens out of contact with direct sunlight. Direct sunlight
can cause heat to build up inside of the unit, which will
seriously damage unit.
For Your Own Personal Safety, Please Read and Understand This
Manual Completely Before You Attempt To Install Or Operate
This Unit!
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required volt-
age for your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken.
• Do not attempt to remove or break off the ground prong from
the electrical cord. This prong is used to reduce the risk of electrical
shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out-
doors voids all warranties.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to cords at plugs, convenience recep-
tacles, and the point where they exit from the appliance.
• Cleaning -The fixture should be cleaned only as recommended by
the manufacturer. See page 14 for cleaning details.
• Heat -This fixture should be situated away from heat sources such
as radiators, heat registers, stoves, or other appliances (including
amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. Objects have fallen, or liquid has been spilled into the appliance.
B. The appliance has been exposed to rain or water.
C. The appliance does not appear to operate normally or exhibits a
marked change in performance.
Revo II™ Safety Precautions
American DJ - www.americandj.com - Revo II™ Instruction Manual Page 4American DJ - www.americandj.com - Revo II™ Instruction Manual Page 3 ®®
• DMX-512 Protocol Compatible (Four DMX Channels)
• RGB + White
• 3 Operating Modes - Master/Slave; Stand Alone; Sound Active
• Internal Microphone
• Digital Display for Address and Function Setting
• UC3 Controller (Not Included)
• 10 Sound Active Shows
• Power Cord Daisy Chain
Revo II™ Features
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
American DJ .®
During operation the housing may become extremely hot. Avoid
touching the unit with bare hands while in use.
American DJ will not accept any liability for any resulting damages ®
caused by the non-observance of this manual or any unauthorized
modication to this unit.
Revo II™ Handling Precautions
Revo II™ Warranty Registration
The Revo II™ carries a limited warranty. Please fill 3 year (1095 days)
out the enclosed warranty card to validate your purchase and war-
ranty. You may also register your product online at www. americandj.
com. All returned service items whether under warranty or not, must
be freight pre-paid and accompany a return authorization (R.A.) num-
ber. If the unit is under warranty you must provide a copy of your
proof of purchase invoice. Please contact American DJ® customer
support for a R.A. number.
To optimize the performance of this product, please read these
operating instructions carefully to familiarize yourself with the basic
operations of this unit. These instructions contain important safety
information regarding the use and maintenance of this unit. Please
keep this manual with the unit, for future reference.
Revo II™ General Instructions
American DJ - www.americandj.com - Revo II™ Instruction Manual Page 6American DJ ®® - www.americandj.com - Revo II™ Instruction Manual Page 5
Power Supply: Before plugging your unit in, be sure the source
voltage in your area matches the required voltage for your American
DJ Revo II.™ The American DJ Revo II® ®
™
is available in a 120v and
220v version. Because line voltage may vary from venue to venue,
you should be sure your unit voltage matches the wall outlet voltage
before attempting to operate you xture. Also be sure to only use the
included I.E.C. power cable supplied with the unit, this cable matches
the voltage and current requirements of the unit.
DMX-512: DMX is short for Digital Multiplex. This is a universal pro-
tocol used by most lighting and controller manufactures as a form of
communication between intelligent fixtures and controllers. A DMX
controller sends DMX data instructions from the controller to the fix-
ture. DMX data is sent as serial data that travels from fixture to fixture
via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX
fixtures (most controllers only have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models
of different manufactures to be linked together and operate from a
single controller, as long as all xtures and the controller are DMX
compliant. To ensure proper DMX data transmission, when using
several DMX fixtures try to use the shortest cable path possible. The
order in which fixtures are connected in a DMX line does not influence
the DMX addressing. For example; a fixture assigned a DMX address
of 1 may be placed anywhere in a DMX line, at the beginning, at the
end, or anywhere in the middle. Therefore, the first fixture controlled
by the controller could be the last fixture in the chain. When a fixture
is assigned a DMX address of 1, the DMX controller knows to send
DATA assigned to address 1 to that unit, no matter where it is located
in the DMX chain.

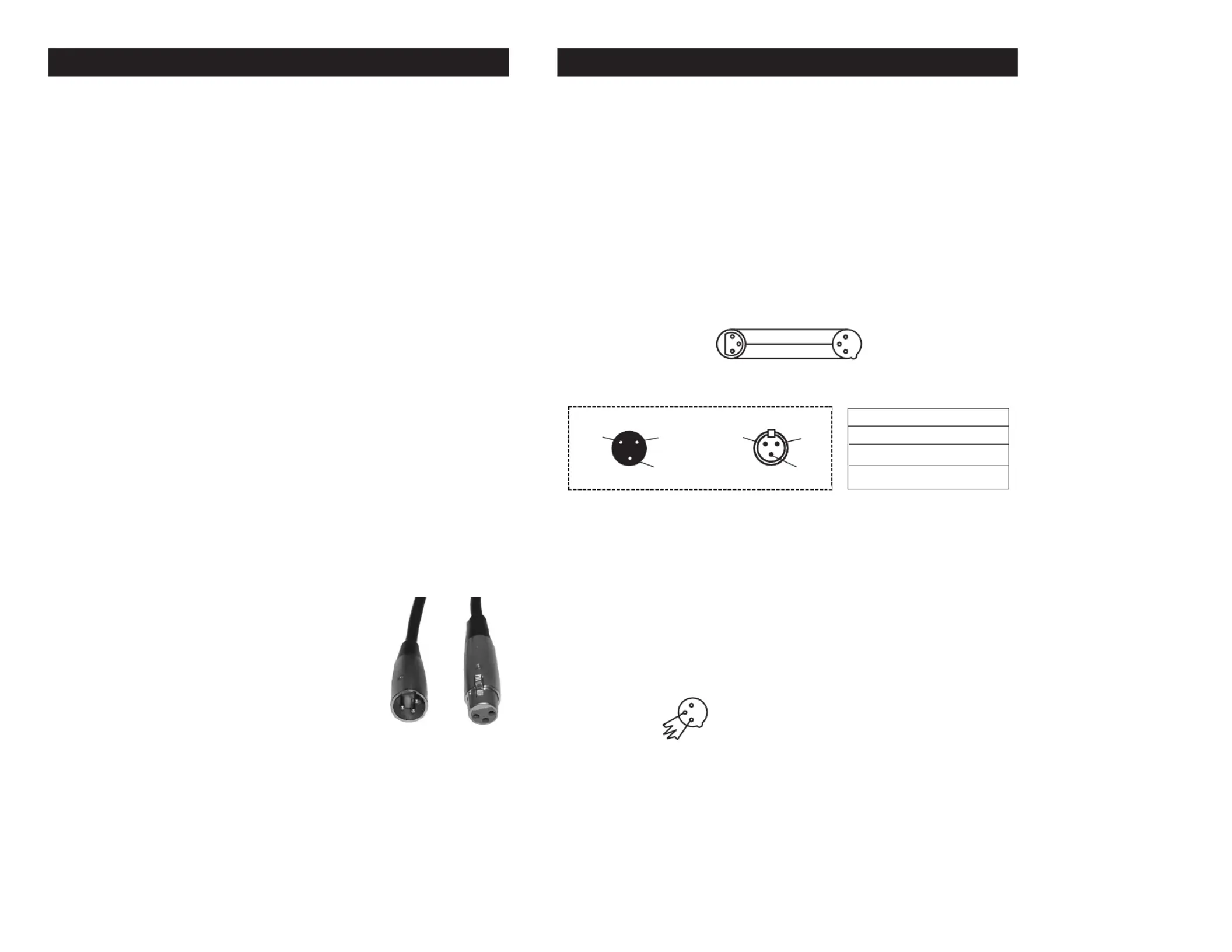

Data Cable (DMX Cable) Requirements (For DMX
and Master/Slave Operation): The Revo II™ can
be controlled via DMX-512 protocol. The Revo II™
a four channel DMX unit. The DMX address is set
electronically using the controls on the side panel of
the unit. Your unit and your DMX controller require
a standard 3-pin XLR connector for data input and
data output (Figure 1). If you are making your own
cables, be sure to use standard two conductor shielded cable (This
Revo II™ Set Up
Figure 1
cable may be purchased at almost all professional sound and lighting
stores). Your cables should be made with a male and female XLR con-
nector on either end of the cable. Also remember that DMX cable must
be daisy chained and cannot be split.
Revo II™ Set Up
Notice: Be sure to follow gures two and three when making your own
cables. Do not use the ground lug on the XLR connector. Do not con-
nect the cable’s shield conductor to the ground lug or allow the shield
conductor to come in contact with the XLR’s outer casing. Grounding
the shield could cause a short circuit and erratic behavior.
DMX512 IN
3-PIN XLR
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OUT
3-PIN XLR
Figure 2
Figure 3
1 Ground
1 Ground
XLR Male Socket
XLR Pin Conguration
3 Hot
2 Cold
2 Cold
3 Hot
XLR Female Socket
Pin 3 = Data True (positive)
Pin 2 = Data Compliment (negative)
Pin 1 = Ground
Special Note: Line Termination.
When longer runs of cable are
used, you may need to use a terminator on the last unit to avoid erratic
behavior. A terminator is a 90-120 ohm 1/4 watt resistor which is con-
nected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This unit is inserted in the female XLR connector of the last
unit in your daisy chain to terminate the line. Using a cable terminator
(ADJ part number Z-DMX/T) will decrease the possibilities of erratic
behavior.
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
Figure 4
