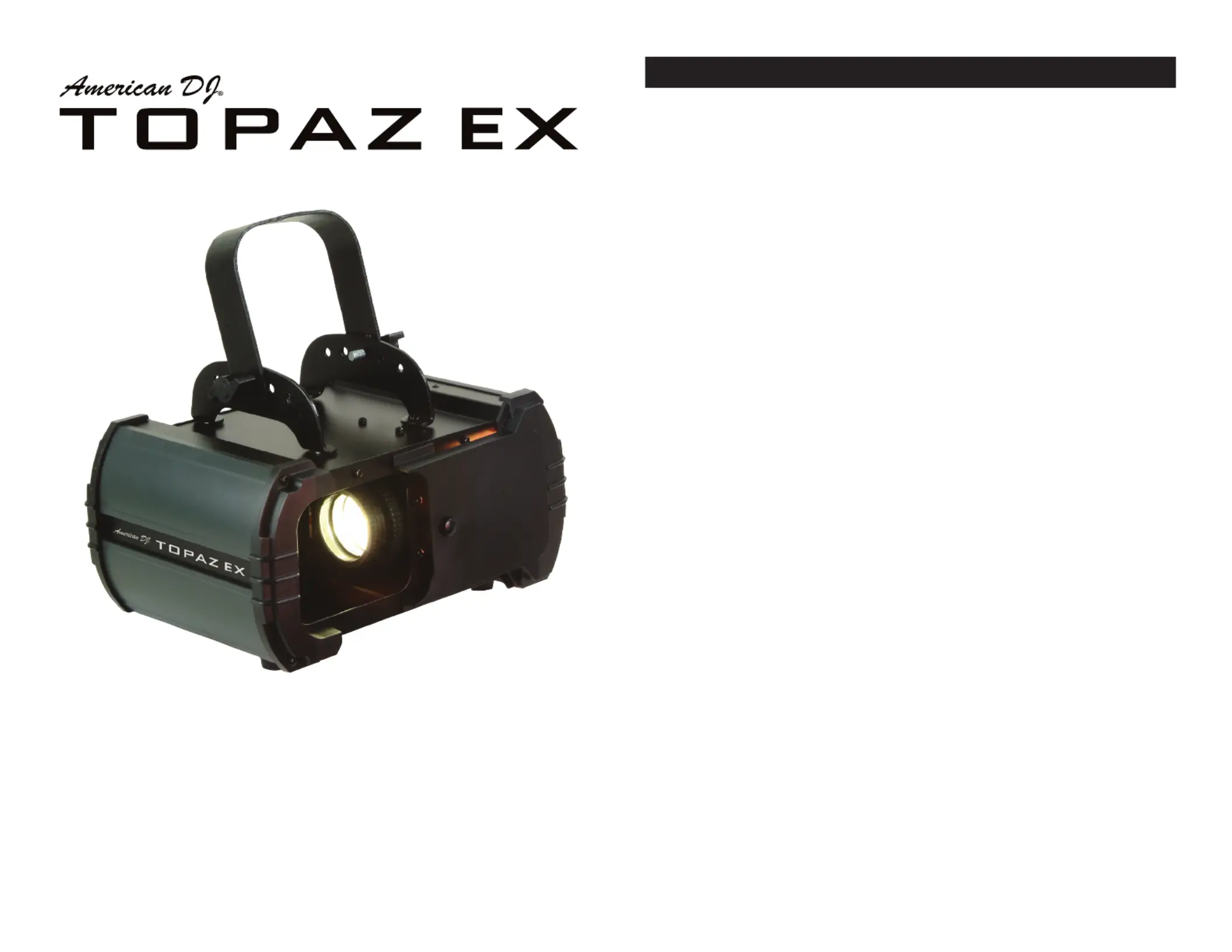

User Instructions
© ®American DJ - www.americandj.com - Topaz EX™ Instruction Manual Page 2
Unpacking: Thank you for purchasing the Topaz EX™ by Ameri-
can DJ . Every Topaz EX™ has been thoroughly tested and has been ®
shipped in perfect operating condition. Carefully check the ship-
ping carton for damage that may have occurred during shipping. If
the carton appears to be damaged, carefully inspect your unit for any
damage and be sure all equipment necessary to operate the system
has arrived intact. In the event damage has been found or parts are
missing, please contact our toll free customer support number for fur-
ther instructions. Please do not return the unit to your dealer without
rst contacting customer support.
Introduction: Thank you for purchasing the American DJ Topaz ®
EX™. The Topaz EX™ is a unique multi-colored effects xture. This
unit creates a multi-colored rippling effect. The unit comes with a glass
lter that may be remove for an entirely different effect. The unit has
3-way mode switch that allows the unit to be operated in three differ-
ent modes (see page 5 for operating modes). To optimize beam inten-
sity use this xture with a fog machine or other type of special effect
smoke.
Customer Support: American DJ provides a toll free customer sup-®
port line, to provide set up help and to answer any question should
you encounter problems during your set up or initial operation. You
may also visit us on the web at www.americandj.com for any com-
ments or suggestions. For service related issue please contact Ameri-
can DJ . Service Hours are Monday through Friday 9:00 a.m. to 5:00 ®
p.m. Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2941
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
American DJ.
PLEASE recycle the shipping carton whenever possible.
Topaz EX™ General Introduction
American DJ ®
4295 Charter Street
Los Angeles, CA. 90058
www.americandj.com
6/07
© ®American DJ - www.americandj.com - Topaz EX™ Instruction Manual Page 4
© ®American DJ - www.americandj.com - Topaz EX™ Instruction Manual Page 3
Please carefully read and understand the instructions in this manual
thoroughly before attempting to operate this unit. These instructions
contain important safety information regarding the use and mainte-
nance of this unit. Please keep this manual with the unit, for future
reference.
Topaz EX™ General Instructions Topaz EX™ Precautions
Safety Issues: This unit may blow the breaker if the maximum allot-
ted load of 5 amps is reached. If the breaker needs replacement, always
replace the breaker with same exact type that was remove, unless oth-
erwise instructed by an authorized American DJ service technician. ®
Use of a different type breaker from that which is recommended may
cause fire or electric shock and will void the manufactures warranty.
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit
• Do not attempt to operate this unit if the power cord has been
frayed or broken
• Do not attempt to remove or break off the ground prong from the
electrical cord. This prong is used to reduce the risk of electrical
shock and re in case of an internal short
• Disconnect from main power before making any type of connection
• Do not remove the cover under any conditions. There are no user
serviceable parts inside
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall
• Do not attempt to operate this unit, if it becomes damaged
• This unit is intended for indoor use only, use of this product out-
doors voids all warranties
• During long periods of non-use, disconnect the unit’s main power
• Always mount this unit in safe and stable matter
• Power cords should be routed so they are not likely to be walked
on, pinched by items placed upon or against them.
• Cleaning -The fixture should be cleaned only as recommended by
the manufacturer. See page 3 for cleaning details
• Heat -The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances (incl-
uding amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the unit.
C. The unit has been exposed to rain or water.
D. The unit does not appear to operate normally or exhibits a
marked change in performance.
Topaz EX™ Warranty Registration
The Topaz EX™ carries a one year (365 days) limited warranty.
Please fill out the enclosed warranty card to validate your purchase.
All returned service items whether under warranty or not, must be
freight pre-paid and accompany a return authorization (R.A.) number.
If the unit is under warranty you must provide a copy of your proof of
purchase invoice. Please contact American DJ customer support for ®
a R.A. number.
Fixture Cleaning:
Due to fog residue, smoke, and dust cleaning the internal and exter-
nal lenses should be carried out periodically to optimize light output.
1. Use normal glass cleaner and a soft cloth to wipe down the
outside casing.
2. Clean the external optics with glass cleaner and a soft
cloth every 20 days.
4. Clean the internal optics with glass cleaner and a soft cloth
every 30-60 days.
5. Always be sure to dry all parts completely before plugging
the unit back in.
Cleaning frequency depends on the environment in which the fixture
operates (I.e. smoke, fog residue, dust, dew). In heavy use we recom-
mend cleaning on a monthly basis. Periodic cleaning will ensure lon-
gevity, and crisp beam output.
Topaz EX™ Cleaning
Topaz EX™ Breaker & Lamp Replacement
© ®American DJ - www.americandj.com - Topaz EX™ Instruction Manual Page 6
Topaz EX™ Operation
Power Supply: Before plugging your unit in, be sure the source
voltage in your area matches the required voltage for your American
DJ Topaz EX™ before attempting operation. ®
General Operation: Just plug this light in, and watch it go. This fix-
ture is designed to operate as a stand alone unit. It has been tested
and the lamp has been installed at the factory there is no assembly
necessary. The Topaz EX™ is ready to be plugged in, out of the box.
There is no power switch, after plugging the unit the unit’s internal
beveled glass gobo will remain static, while the outside multi-color
dish respond to whatever mode you are in. The unit will create multi-
colored patterns that will simulate the rippling effect of water. If there
is no lamp output check the fuse and bulb. If the fuse and bulb are
good, please return the unit for servicing.
Operating Modes:
This unit comes with a 3-way multi-operating switch located on the
rear of the unit. The switch controls three different operating modes;
Static, Sound Active, and Continuous Rotation.
Switch in the "I" position: Mode 1 - In this mode the multi-colored
mirror dish will spin continuously in clockwise direction, regardless of
the presence of sound.
Switch in the “0” position: Mode 2 - In this mode the multi-colored
mirror dish will remain static. In this mode the unit may be used as a
projector.
Switch in the “II” position: Mode 3 - In the this mode the outer multi-
colored mirror dish will react to sound. Please note that tapping on
the unit, or high pitched sounds may not trigger the unit, the unit is
designed to react to low frequencies (bass). Also note that the music
sensitivity is preset at the factory and may not be changed or adjust-
ed.
Focusing:
The unit has a fully focusing lens. The lens is focused by manually
turning the lens in either a clockwise or counter-clockwise direction.
© ®American DJ - www.americandj.com - Topaz EX™ Instruction Manual Page 5
Caution: Always replace with the exact same type lamp and fuse,
unless otherwise specified by an authorized American DJ techni-®
cian. Replace with anything other than the specified part can damage
your unit and will void your manufactures warranty.
Warning: If after you have replaced the lamp and/or fush and you
continue to blow either one, STOP using the unit. Contact customer
support for further instructions, you may have to return the unit for
servicing. Continuing to use the unit may cause serious damage.
Fuse Replacement: Locate and remove the unit’s power cord. Once
the cord has been removed located the fuse holder located inside the
power socket. Insert a flat-head screw driver into the power socket
and gently pry out the fuse holder. Remove the bad fuse and replace
with a new one. The fuse holder has a built-in socket for a spare fuse
be sure not to confuse the spare fuse with active fuse.
Lamp Replacement: Caution! Never open the unit when in use.
Always disconnect the main power and allow the fixture ample time
to cool before attempting to replace the lamp. Lamp replacement has
been made simple by incorporating a split dome that is retained by
thumb screws. Again, please remember to always replace with the
exact same type lamp.
1. Be sure to follow the proper procedures when handling halogen
lamps. Never touch the new lamp with your bare fingers.
2. Unscrew the single thumb screw located on the front right of the
unit.
3. Once the thumb screw has been removed, pull the lamp assem-
bly cover plate to the right to expose the lamp.
4. Slide the lamp out and replace the lamp with an exact match.
5. Reassemble in reverse order.

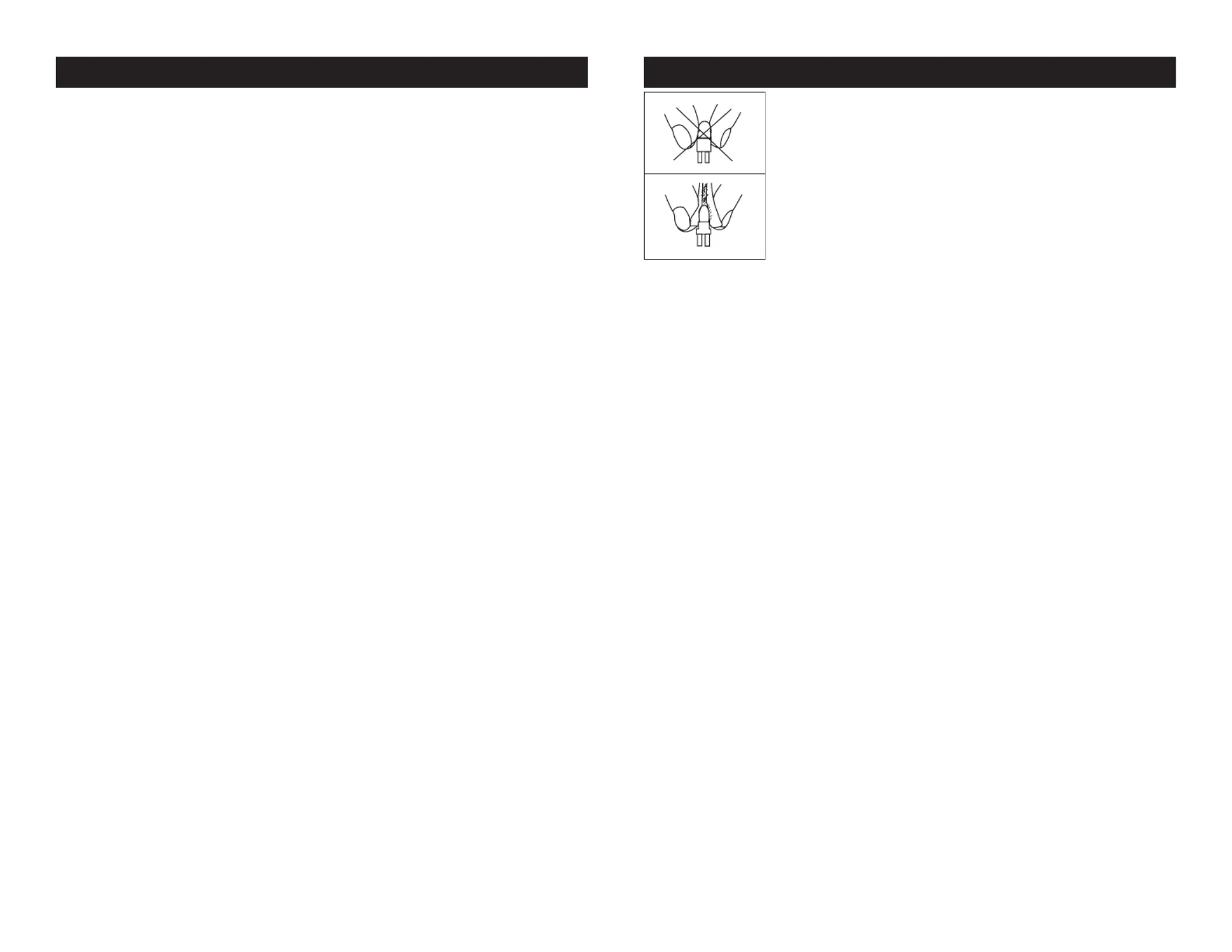

Halogen Lamp Warning! This fixture is fitted with
halogen lamps which are highly susceptible to
damage if improperly handled. Never touch the
lamps with your bare fingers as the oil from your
hands will shorten lamp life. Also, never move the
fixture until the lamps have had ample time to cool.
Remember, lamps are not covered under warranty
conditions.
