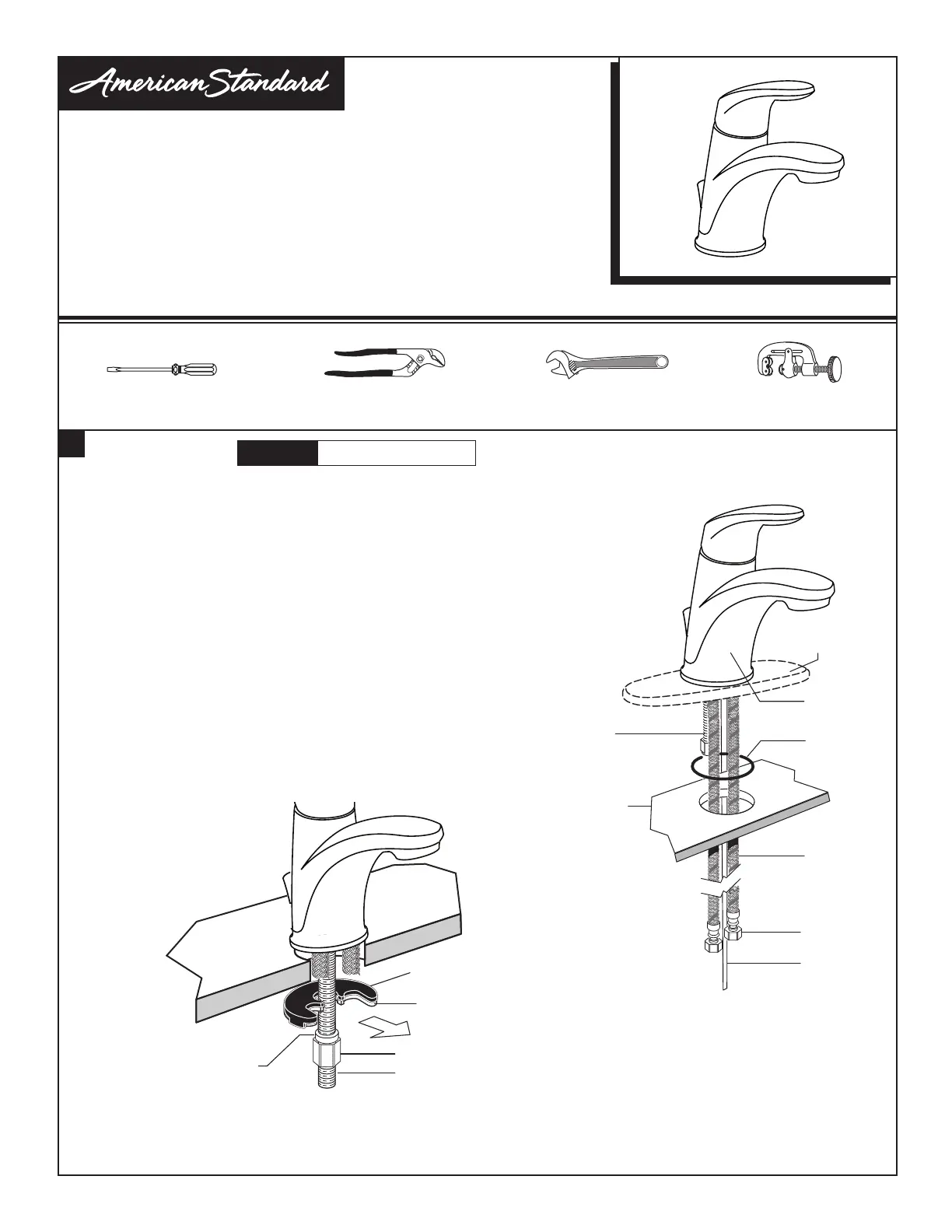

- 1 -

Product names listed herein are trademarks of AS America, Inc.

© AS America, Inc. 2016

Thank you for selecting American Standard...

the benchmark of fine quality for over 100 years.

To ensure that your installation proceeds smoothly-please read

these instructions carefully before you begin.

RECOMMENDED TOOLS

1

M965764 (8/16)

INSTALL FAUCET

COLONY

®

PRO

SINGLE LEVER MONOBLOCK

LAVATORY FAUCET

INSTALLATION

INSTRUCTIONS

7075.100

7075.102

7075.104

ScrewdriverAdjustable WrenchTubing CutterChannel Locks

Certied to comply with ANSI A112.18.1M

2

5

8

4

MOUNTING

SURFACE

3

Figure A

(OPTIONAL

DECK PLATE)

2000102P-YYY

1

CAUTION

Turn off hot and cold water

supplies before begining.

• Seat SEAL (2) into under side of FAUCET BODY (1).

• Feed FAUCET SUPPLIES (3), MOUNTING STUD (4) and DRAIN ASSEMBLY

(8) through the mounting hole of lavatory. Figure A.

• From below, push GASKET (7) and RETAINING WASHER (5) onto

MOUNTING STUD (4). Secure Faucet with MOUNTING NUT (6), pulling

faucet to front of sink, so SUPPLIES (3) rests against mounting hole.

Before nal tightening, make sure collar on MOUNTING NUT (6) is

seated into RETAINING WASHER (5).

• Adjust Faucet so that it is centered. Tighten MOUNTING NUT (6)

to complete faucet mounting.

6

4

COLLAR ON

MOUNTING NUT

7

5

Figure B
