SAVE FOR FUTURE USE

7302242-100 Rev. A

CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!

Product names listed herein are trademarks of AS America, Inc.

© AS America, Inc. 2016

NOTE: Pictures may not exactly define contour of china and components.

Edgemere

™

0445 Series Console / Pedestal

INSTALLATION INSTRUCTIONS

CARE AND MAINTENANCE

Thank you for selecting American Standard - the benchmark of fine quality for over 100 years. To ensure this product is installed

properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be

sure your installation conforms to local codes.

!

OBSERVE LOCAL PLUMBING AND BUILDING CODES

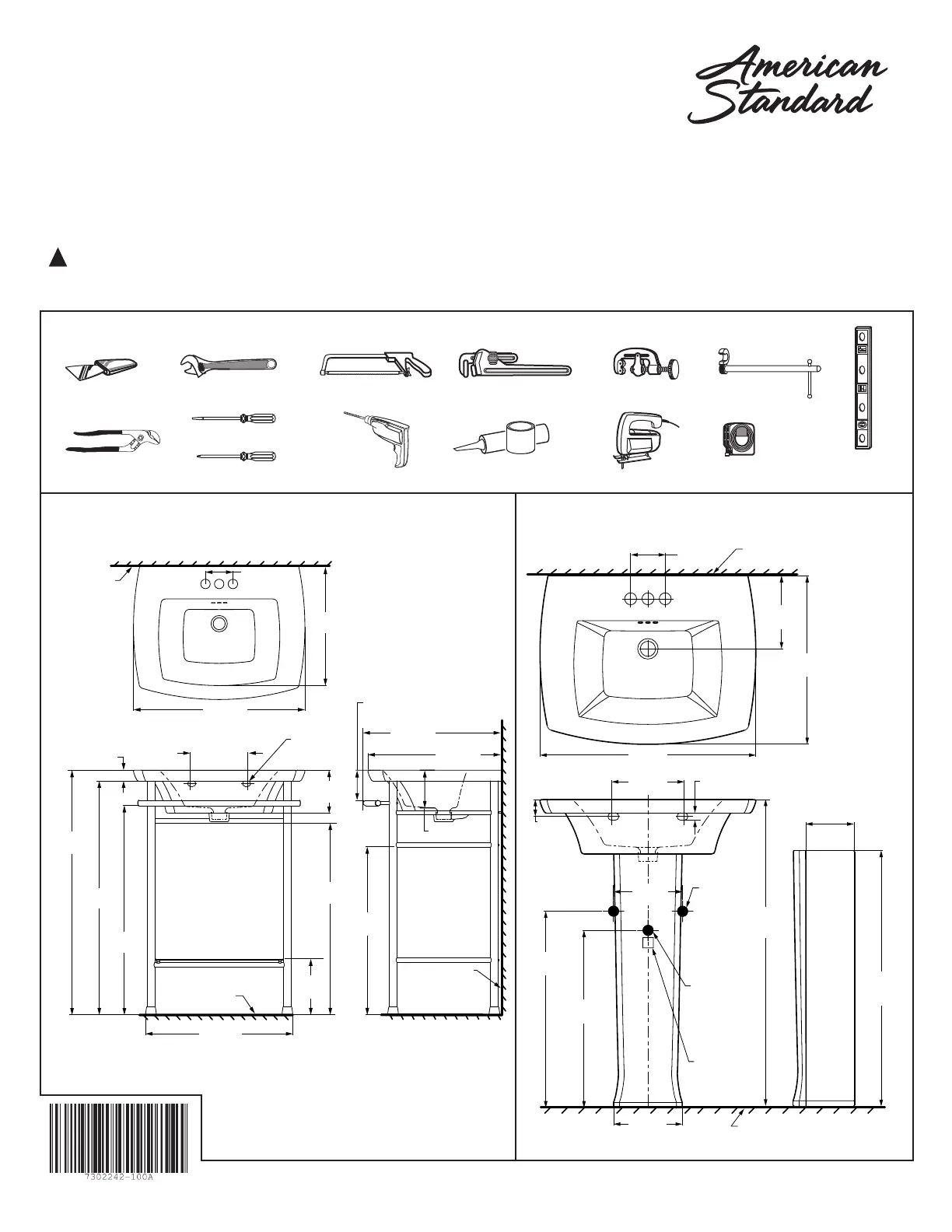

Recommended Tools & Materials

Edgemere Console LavatoryEdgemere Pedestal Lavatory

Adjustable Wrench

Channel Lock Pliers

Regular Screwdriver

Phillips Screwdriver

Pipe Wrench

Putty Knife

Drill

Saber Saw

Basin Wrench

Plumbers' Putty or

Caulking

Tubing Cutter

Tape Measure

Hacksaw

Level

FINISHED

FLOOR

FOR

ANCHOR

SCREW

MOUNT

FINISHED

WALL

FINISHED

WALL

906mm

(35-11/16")

496mm

(19-1/2")

112mm

(4-7/16")

160mm

(6-5/16")

40mm

(1-9/16")

545mm

(21-1/2")

213mm

(8-3/8")

775mm

(30-1/2")

710mm

(28")

866mm

(34-1/16")

207mm

(8-1/8")

622mm

(24-1/2")

634mm

(25")

102mm

(4")

444mm

(17-1/2")

514mm

(20-1/4")

140mm

(5-1/2")

OPEN TO

FLOOR

FINISHED WALL

OR BACKSPLASH

SUPPLIES

AS REQ'D

1-1/4" O.D.

WASTE

1-1/4" O.D.

TAILPIECE

FINISHED

FLOOR

*578mm

(22-3/4")

*521mm

(20-1/2")

202mm

(8")

213mm

(8-3/8")

22mm

(7/8")

102mm

(4")

215mm

(8-1/2")

634mm

(25")

495mm

(19-1/2")

DRAIN CHASE

50mm

(2")

203mm

(8")

906mm

(35-5/8")
