CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!

NOTE: For proper operation the recommended working pressure is between 25 psi at valve when flushing and 80 psi static.

!

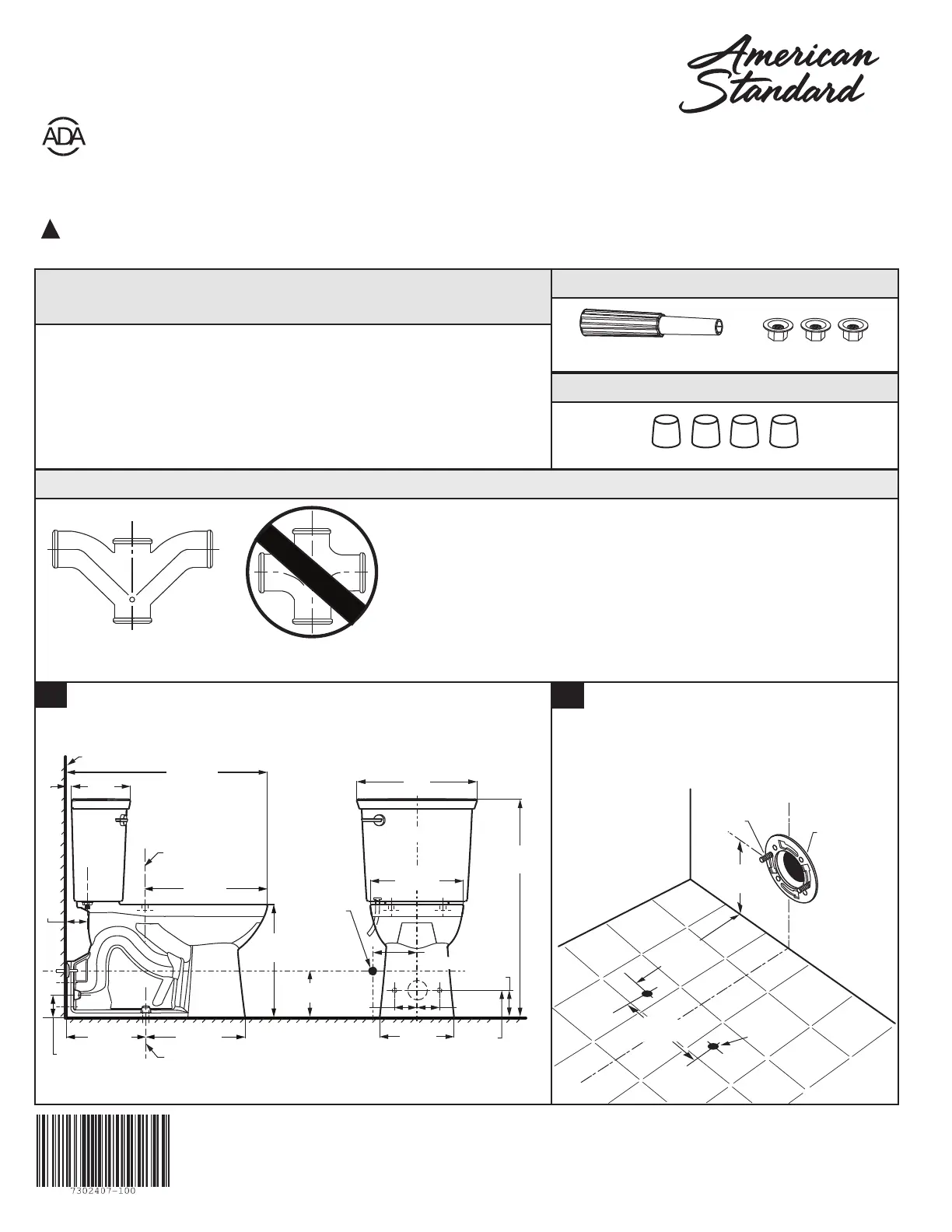

INSTALLATION INSTRUCTIONS

YORKVILLE

™

VORMAX

®

BACK OUTLET TOILET

Thank you for selecting American Standard - the benchmark of fine quality for over 100 years. To ensure this product is installed

properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure

your installation conforms to local codes.

SAVE FOR FUTURE USE

Product names listed herein are trademarks of AS America, Inc.

© AS America, Inc. 2018

7302407-100

1

DIMENSIONS (Nominal) NOTE: Distance from floor to closet

flange centerline (rough-in) must be 4" (102 mm) with flange

surface flush to 1/16" (16mm) max. beyond finished wall.

2

FLUSH TO

1/16" (16mm)

EXPOSED

CLOSET

FLANGE

CLOSET

BOLTS

6-5/8"

(168mm)

PILOT

HOLES

4"

(102mm)

13-3/8"

(340mm)

Install closet bolts in flange channel, turn 90°, and

slide into place 6" (152 mm) apart and parallel to

floor. (Use putty to hold bolts in place if necessary.)

Brace under flooring as needed and drill two

mounting pilot holes as shown.

INSTALL CLOSET BOLTS

C/L OF

WASTE

OUTLET

C/L

C/L OF 1/2" DIA HOLES 168mm (6-5/8") CENTERS

3" (76mm)

30-3/16"

(767mm)

8-7/8"

(225mm)

18-1/2"

(470mm)

13-3/8"

(340mm)

13-7/16"

(342mm)

17"

(432mm)

4" (102mm)

3/4" (19mm)

FINISHED WALL

C/L OF SEAT POST

HOLES 5-1/2"

(140mm CENTERS)

SUPPLY AS

REQ’D

11-3/16"

(284mm)

14"

(355mm)

32-13/16"

(833mm)

18"

(458mm)

3"

(76mm)

3"

(76mm)

4"

(102mm)

*6"

(152mm)

*9"

(229mm)

RECOMMENDED TOOLS AND MATERIALS

(NOT SUPPLIED)

EZ-INSTALL KIT INCLUDED WITH TANK

Attachment Handle

Nuts (3)

KIT INCLUDED WITH BOWL

BACK-TO-BACK INSTALLATION

Recommended fitting type for

back-to-back installations.

Depending upon your plumbing and venting conditions, the flow from the

toilet in a back-to-back installation may create a vacuum on the system

and draw water from the opposing bowl. The National Standards Plumbing

Code prohibits the use of a cross fitting for drainage as throw over is

possible. The code does approve a directional "Y" style fitting with proper

venting to direct the water downward and away from the other toilet.

When installed so top of seat is 17" to 19" (432mm to 483mm) from the nished oor. MEETS THE AMERICANS WITH DISABILITIES ACT

GUIDELINES AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND USEABLE BUILDING FACILITIES - CHECK LOCAL CODES.

Putty Knife

Sealant

Hacksaw

Regular Screwdriver

Tape Measure

Adjustable Wrench

Carpenters Level

Flexible Supply Tube

Closet Bolts

Floor Lag Bolts

Wall Mounting Bolts

Neoprene or

Graphite Felt Gasket

(Yorkville Toilets)

Bolt Caps (4)
