Quick Start Guide

HPX-AV101-DP-RDisplayPort Module with Retractable Cable

Overview

Hydraport Retractable Cable Modules are designed to be used in conjunction

with the HPX-600/900/1200 Connection Port base assembly, to provide the

convenience of various types of cables in a Hydraport System.

The HPX-AV101-DP-R DisplayPort Module with Retractable Cable (FG552-28)

provides a user-accessible Display cable in a retractable spool that mounts into

the Hydraport base assembly (FIG.1).

The HPX-AV101-DP-Rfeatures Dual Mode DisplayPort (DP++) compatibility.

Installation

Warning! - Do not attempt to open the retractable cable module enclosure.

There are no serviceable parts inside the module.

Opening the module enclosure may result in an uncontrolled release of spring

forces which could cause serious injury and/or equipment damage.

Opening the module enclosure will void the product warranty.

Caution: Only use a hand-held screw driver for the mounting instructions in this

document. Over-tightening the screws can hinder performance or damage the

product.

1. For Existing HPX Installations, First Unmount the HPX Base

For new HPX installations, skip to Step 2.

For existing HPX installations, the HPX Base Assembly must be un-mounted

from the surface before the Retractable Cable Modules can be installed:

1.Cut/remove any cable ties that would restrict the removal of the HPX Base

Assembly.

2.Loosen the four mounting screws (located inside and at each end of the

HPX base assembly), in order to rotate the retaining tabs from under the

mounting surface.

Note that when the cover of the HPX base is open, only two of these

screws are visible. To access the other two mounting screws, tip the cover

over to the opposite open position (see FIG.2).

3.Once the retaining tabs have been rotated out from under the mounting

surface, the HPX assembly can be be lifted away from the mounting

surface.

FIG.3 provides a cutaway view of the End Cap, showing the retaining tabs

in both the loose position and the tightened (secure) position:

2. Remove the End Cap and Existing Modules

Remove the End Cap as well as existing modules (as necessary, depending on

how you want the modules arranged) from one end of the HPX base assembly.

1.Remove the (silver) pivot screw and pivot pawl assembly in the center of

the End Cap (FIG.4).

2.Remove the six (black) sheet metal screws that secure the End Cap to the

HPX assembly (locations circled in red below).

3.Gently slide the End Cap out of the HPX base assembly.

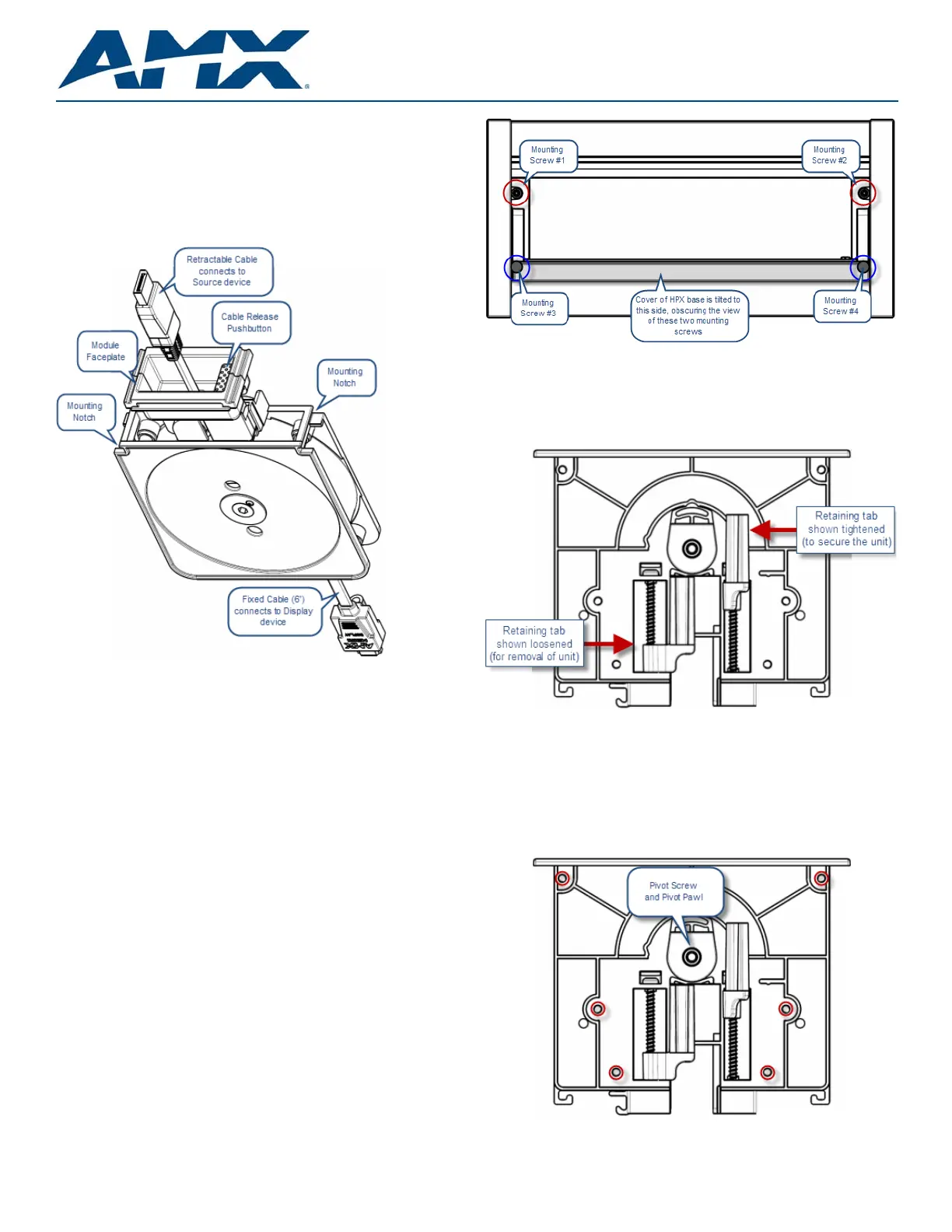

FIG. 1 HPX-AV101-DP-R DisplayPort Module with Retractable Cable

FIG. 2 HPX Base Assembly (shown mounted) - Mounting Screws Locations

FIG. 3 HPX Base Assembly (shown mounted) - Mounting Screws Locations

FIG. 4 HPX Base Assembly (shown mounted) - Mounting/Pivot Screw Locations
