QUICK START GUIDE

HPG-20 HydraPort 2-inch Grommet

Overview

The HPG-20 family of 2-inch Grommets (FG570-02m-cc) are an elegant means to

control cables in conference rooms, meeting rooms and personal workspaces.

They are designed to be mounted into a horizontal surface such as a conference room

table, desk or lectern in order to manage Audio/video, power and or networking cables.

AMX offers nine versions of the HPG-20 2-inch Grommet.

Product Specifications

Installation

Tools Required

•Drill

•2" Hole Saw (recommended brands: LENOX®, DEWALT®,

Milwaukee®)

CAUTION: This installation requires specific woodworking skills. This installation should

be performed by an experienced person, comfortable with these types of woodworking

operations. Improper installation may result in damage to the mounting surface. AMX is

not responsible for damage caused by improper installation.

Read these instructions in their entirety before beginning the installation. The

installation requires specific steps to be performed in specific order.

1) Select a Suitable Location For the HPG-20

Note the space requirements for installing the system (FIG.2):

Note that the HPG-20 requires 0.2" (5mm) above the mounting surface.

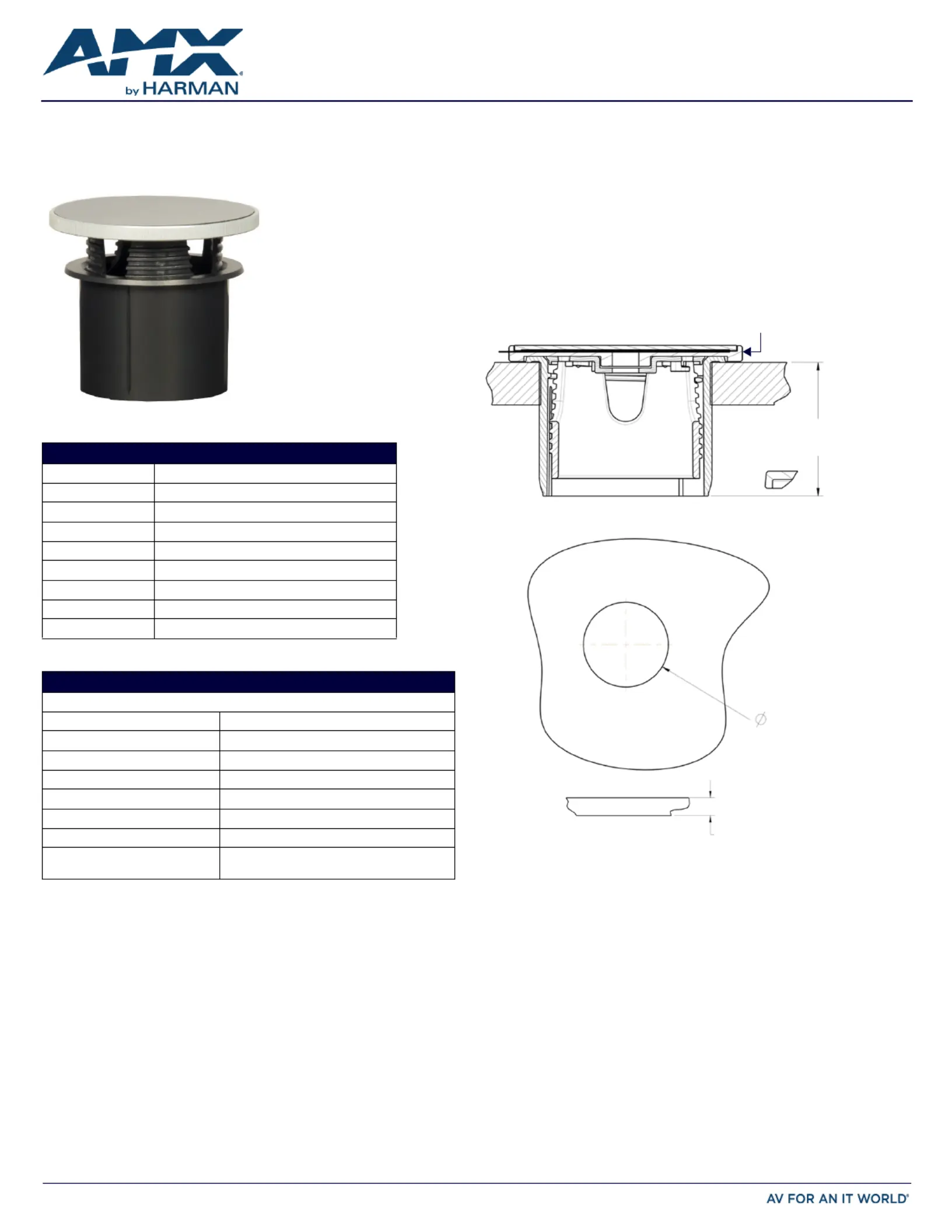

FIG. 1

HPG-20 2" GROMMET

HPG-20 2-INCH GROMMETS

FG570-02-SLMatte Silver Plastic Top

FG570-02S-MBMatte Black in Silver Metal Top

FG570-02B-MBMatte Black in Black Metal Top

FG570-02S-GSGloss Silver in Silver Metal Top

FG570-02B-GSGloss Silver in Black Metal Top

FG570-02S-GBGloss Black in Silver Metal Top

FG570-02B-GBGloss Black in Black Metal Top

FG570-02S-FGFrosted in Silver Metal Top

FG570-02B-FGFrosted in Black Metal Top

HPG-20 SPECIFICATIONS

Dimensions (HWD)

•Max above mounting surface:1” (25mm)

•Max below mounting surface:1.1” (28mm)

•Mounting surface footprint:2.76” (70mm) Diameter

•Min. mounting surface thickness:1/2" (13 mm)

•Max mounting surface thickness:2-inch (51mm)

•Table Cutout Dimensions:2-inch (51mm) Round Hole

Weight6oz (.2 Kg)

EnclosureBlack plastic structure with a top cap made of

plastic or metal with an acrylic inlay.

FIG. 2 HPG-20 INSTALLATION SPECIFICATIONS

1.575

[40,00]

2.000

[50, 80]

HOLE

.500

[12,70]

0.2” (5mm) above the mounting surface
