Installation Guide

MXA-UENET-43D Video Acceleration Cable

For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).

4/13

©2013 AMX. All rights reserved. AMX and the AMX logo are registered trademarks of AMX.

AMX reserves the right to alter specifications without notice at any time.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com

93-5968-76REV: A

Overview

The MXA-UENET-43D Video Acceleration accessory cable (FG5968-76) plugs into a USB

port of the Modero X Series® Touch Panel and routes Ethernet traffic into the Modero X

Series USB subsystem, which has been optimized to further accelerate streaming video

performance (FIG.1).

Within the Modero X Series touch panels, streaming video is optimized via the use of the

MXA-MPL Multi Preview Live (FG5968-10). If using an MXA-MPL is not an option, the

MXA-UENET-43D video acceleration cable may be used to connect streaming video feeds to

the MXD-430 touch panel. Since the MXD-430 is powered via Power over Ethernet (PoE),

the MXA-UENET-43D also supplies power to the touch panel.

Specifications

Installation

To connect your MXD-430 wall/flush mount touch panel to the network via the

MXA-UENET-43D:

NOTE: If the touch panel has already been installed in the wall or mounting surface, the

touch panel and the back box must be removed from the mounting surface to install the

MXA-UENET-43D. Thread the connecting CAT5 Ethernet cable through the back box hole

before installing the MXA-UENET-43D. In new installations, separate the back box from the

touch panel, as the back box must have the MXA-UENET-43D threaded through it before the

touch panel can be installed.

NOTE: In solid-wall installations, make sure to have clearance within the wall for the Ethernet

port jack and the excess cable before starting the installation.

1.The USB connector on the MXA-UENET-43D must be connected to the USB port on

the bottom of the touch panel (FIG.2).

2.Thread the MXA-UENET-43D through the knockout hole, and install the back box into

the wall or mounting surface (FIG.3). Lock down the back box using the back box’s

locking tabs for drywall installations or with screws (not included) for solid-wall or

rough-in box installations

..

3.With the touch panel still outside of the back box, insert the USB connector and the

Ethernet connector into the appropriate ports(FIG.4)

.

4.Carefully install the touch panel into the back box, hooking the panel at the top of the

back box. Make sure that the cords for the USB and Ethernet connectors pass through

the knockout holes in the bottom of the back box without interference.

5.Connect the Ethernet port on the MXA-UENET-43D (FIG.1) to the network via CAT5

Ethernet cable and apply power.

NOTE: For more information on installing your touch panel, please refer to the MXD-430

Operation Reference Guide, available at www.amx.com.

Configuring the Touch Panel to Receive the Video

Stream

To receive streaming video from a network source:

1.In the touch panel’s Settings Pages, select Configuration > Advanced Config >

Streaming Video, entering the touch panel’s password if necessary.

2.From the Streaming Video page, select Enter URLSet URL to open the keyboard.

3.Enter the URL for the video stream and click OK.

NOTE: For more information on configuring your touch panel for streaming video, please

refer to the Modero X Series Programming Guide, available at www.amx.com.

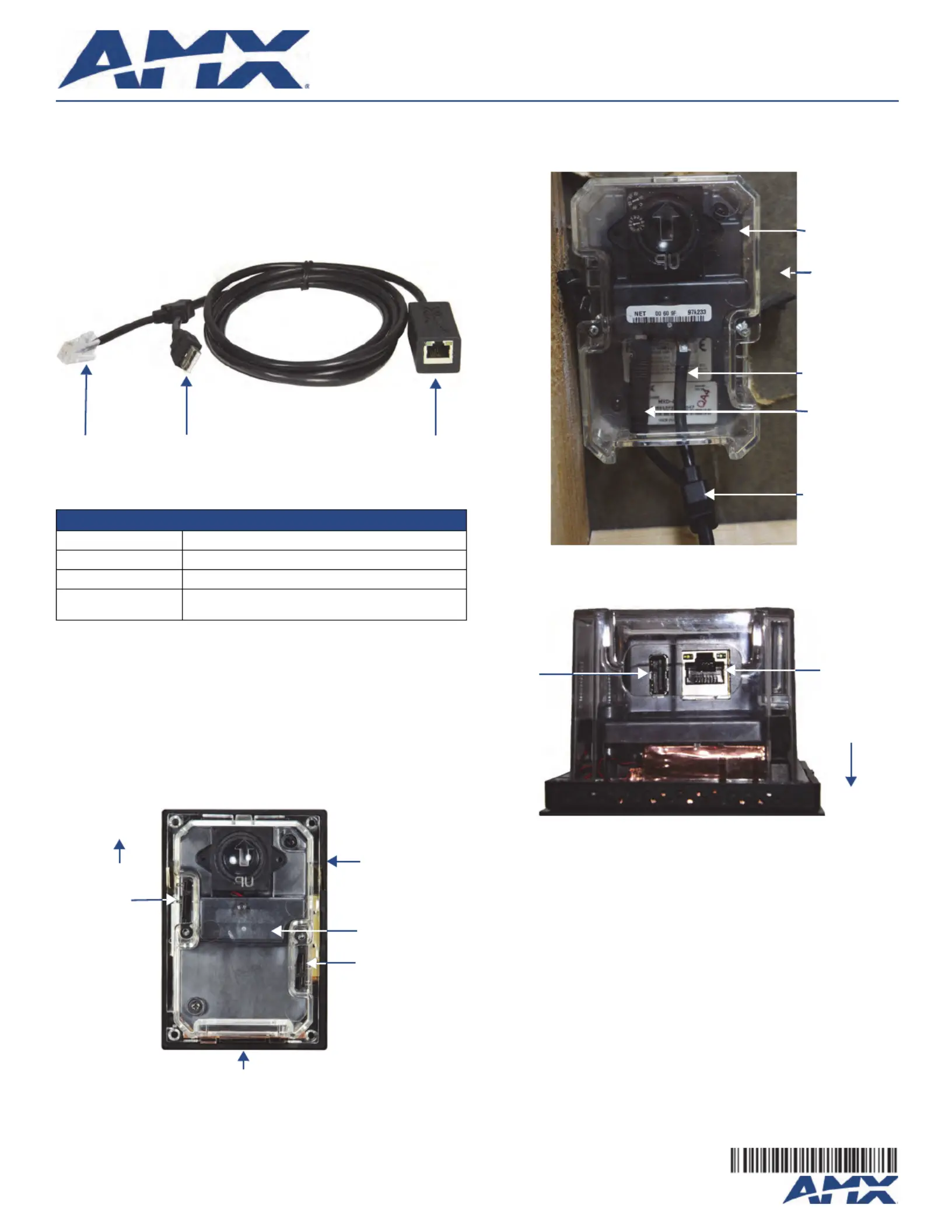

FIG. 1 MXA-UENET-43D

MXA-UENET-43D (FG5968-76) Specifications

Length:1’8 1/2” (52.07 cm)

Weight:0.15 lbs (68.04 g)

Included Accessories:MXA-UENET-43D Installation Guide (93-5968-76)

Other AMX Equipment:•MXD-430 4.3" Modero X® Series Wall/Flush Mount Touch

Panel (FG5968-15)

FIG. 2 Rear of MXD-430 touch panel, showing back box

Ethernet

USB

Connector

Port

Ethernet

Connector

Touch panel

Back box

Top

Entry knockout for

MXA-UENET-43D

connector

Locking tab

Locking tab

FIG. 3 Installation of the MXA-UENET-43D into an MXD-430 back box

FIG. 4 MXD-430 touch panel connections

MXA-UENET-43D

Backside

of wall

USB connector

cable

Ethernet connector

cable

Back box

Ethernet Port

USB Port

Front

of touch

panel
