Installation Guide

NXD-500i 5" Modero Wall/Flush Mount Touch Panel

For more detailed installation, configuration, programming, file transfer, and operating

instructions, refer to the NXD-500i Operation/Reference Guide, available online at

www.amx.com.

Overview

The NXD-500i (FG2261-02) widescreen color panel includes a built-in microphone,

speakers, a mini-USB port for programming and audio output, and one

NetLinx-programmable button. All power is supplied via Power Over Ethernet (PoE),

utilizing a PS-POE-AF PoE Injector (FG423-80) or equivalent PoE device.

The NXD-500i supports Intercom functionality, which allows two communicating

panels (controlled by the NetLinx Master) to transmit full-duplex audio signals over a

network in order to be used as an Intercom system.

Specifications

Panel Connectors and Wiring

FIG. 2 shows the connectors located on the NXD-500i Modero panel. The mini-USB

port is used both for programming the touch panel and for audio output. The mini-USB

port automatically detects the presence of a headphone adaptor, allowing the port to

be used for headphone connectivity.

For more information on connection and use of the Panel Connectors, as well as

information on programming and headphone connectivity, please refer to the

NXD-500i Operation/Reference Guide, available at www.amx.com.

Front Bezel Button

The NXD-500i has only one button on the front of the device, in the center of the

button trim ring. This button has several uses:

•Press the button once to start a previously programmed function, or to turn off

the display if not previously programmed.

•Press and hold the button for 6 seconds to put the device into Setup Mode.

•Press and hold the button for 9 seconds to enter Calibration Mode.

•Press and hold the button for 20 seconds to reboot the panel.

NXD-500i Setup and System Connection

1.Carefully remove the panel from the shipping box, peel the protective plastic

cover from the LCD, and apply power to the panel via the PoE Injector.

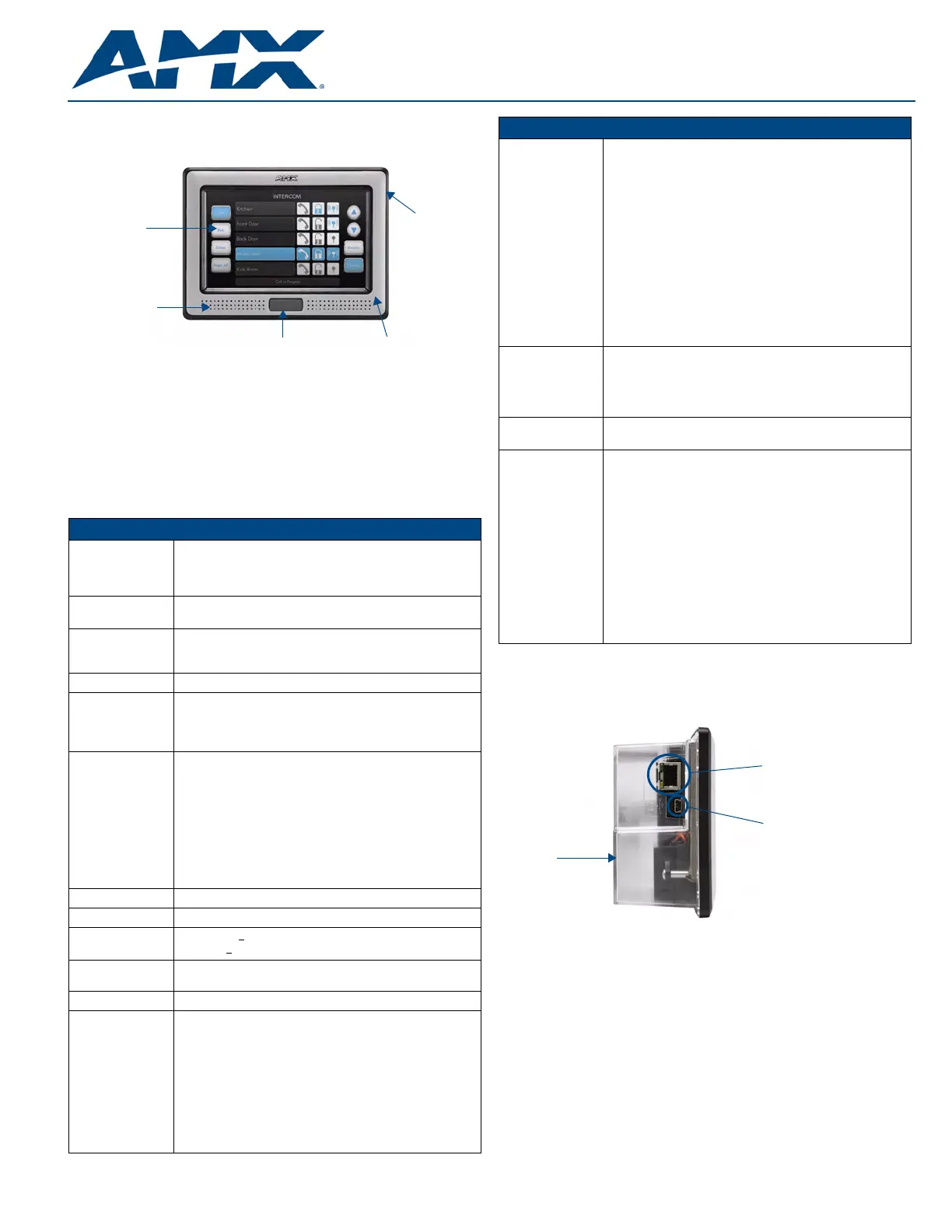

FIG. 1

NXD-500i 5" Modero Widescreen WallMount Touch Panel

NXD-500i (FG2261-02) Specifications

Dimensions (HWD):•NXD-500i (with faceplate): 4.15" x 5.59" x 1.97"

(10.50 cm x 14.20 cm x 5 cm)

•CB-TP5 Rough-In/Wallbox (optional): 4.27" x 5.14" x 3.40"

(10.86 cm x 13.06 cm x 8.64 cm)

Power

Requirements:

•PoE Powered - No local Power Supply needed

•Max power draw: 5.5W.

Memory (Factory

default):

•128 MB SDRAM

•256 MB integrated Flash Memory (not upgradeable - factory

programmed)

Weight:•0.80 lbs (0.36 kg)

Certifications:•FCC Part 15 Class B

•CE

•IEC 60950

•RoHS

Panel LCD

Parameters:

•Aspect ratio: 16 x 9

•Maximum brightness (luminance): 200 cd/m2

•Channel transparency: 8-bit Alpha blending

•Contrast ratio: 250:1

•Display colors: 256 thousand colors (18-bit color depth)

•Dot/pixel pitch: 0.14 mm

•Panel type: TFT Color Active-Matrix

•Screen resolution: 800 x 480 pixels (HV) @ 60 Hz frame

frequency

•Viewing dimensions: 4.3" x 2.58" (109.2 mm x 65.2 mm)

Active Screen Area:•4.25” x 2.55” (10.80cm x 6.48cm)

Viewing Angles:•Up/Down/Left/Right: 85/85/85/85

IR Reception Angle:•Horizontal: +

25° (left and right from center)

•Vertical: +

15° (up and down from center)

Supported Audio

Sample Rates:

•48000Hz, 44100Hz, 32000Hz, 24000Hz, 22050Hz, 16000Hz,

12000Hz, 11025Hz, and 8000Hz.

Intercom:•Full duplex VoIP capabilities.

Front Panel

Components:

•Light Sensor: Photosensitive light detector for automatic

adjustment of the panel brightness

•Motion Sensor (PIR): Proximity Infrared Detector to wake the

panel when panel is approached.

•Front Bezel Button: Provides both access to the Setup and

Calibration pages and toggles the panel between a "sleep" or

"wake" state. This button is also user-programmable.

•Microphone: Frequency response of 300 to 3400Hz; used for

intercom applications.

•Speaker: Output of 4Ohm, 2 Watts, with a 300Hz low cutoff

frequency.

Front Bezel Button

Button Trim Ring

Speaker

Touch screen

Microphone

NXD-500i Specifications (Cont.)

Side Panel

Connectors:

•Ethernet 10/100 Port: RJ-45 port for 10/100 Mbps

communication. The Ethernet port automatically negotiates the

connection speed (10 Mbps or 100 Mbps), and whether to use

half duplex or full duplex mode. Power is supplied through

Power Over Internet (PoE). NXD-500i panels communicate with

the NetLinx Master using the ICSP protocol over Ethernet. LEDs

show communication activity, connections, speeds, and mode

information:

L/A-link/activity - Yellow LED lights On when the Ethernet cables

are connected and terminated correctly and then blinks when

receiving Ethernet data packets.

SPD-speed - Green LED lights On when the connection speed is

100 Mbps and turns Off when the speed is 10 Mbps.

•Mini-USB Connector: 5-pin Mini-USB connector used for

programming, firmware update, and touch panel file transfer

between the PC and the target panel. The connector is also

used for providing audio output for external speakers.

Operating /Storage

Environments:

•Operating Temperature: 0° C (32° F) to 40° C (104° F)

•Operating Humidity: 5% - 85% relative humidity

(non-condensing)

•Storage Temperature: -20° C (-4° F) to 60° C (140° F)

•Storage Humidity: 5% - 85% RH

Included

Accessories:

•NXD-500i Installation Guide (93-2261-02)

•Front Bezel (60-2261-11)

Other AMX

Equipment:

•CB-TP5i Rough-In/Wallbox (FG038-11)

•Back Cover for the CB-TP5i Rough-In/Wallbox (FG038-12)

•PS-POE-AF PoE Injector (FG423-80)

•CC-USB Type-A to Mini-B 5-wire programming cable

(FG10-5965)

•USB to Headphone Adaptor (FG5966-23)

•NXA-BEZP-500-BL Black Portrait Bezel Kit for NXD-500i

(FG2261-10)

•NXA-BEZP-500-SL Silver Portrait Bezel Kit for NXD-500i

(FG2261-11)

•NXA-RK5 Rack Mount Kit for 5" Wall Mount panels (FG2904-55):

- 5" Rackmount

- Four Screws, #10-32 x.625, PH Truss, BLK

- Four Washers, #10, Black Nylon

- Three Screws, #4-40 x.250, PPH, BLK

FIG. 2 Connector layout on the NXD-500i Touch Panels

Ethernet 10/100 port

Mini-USB port

Back box
