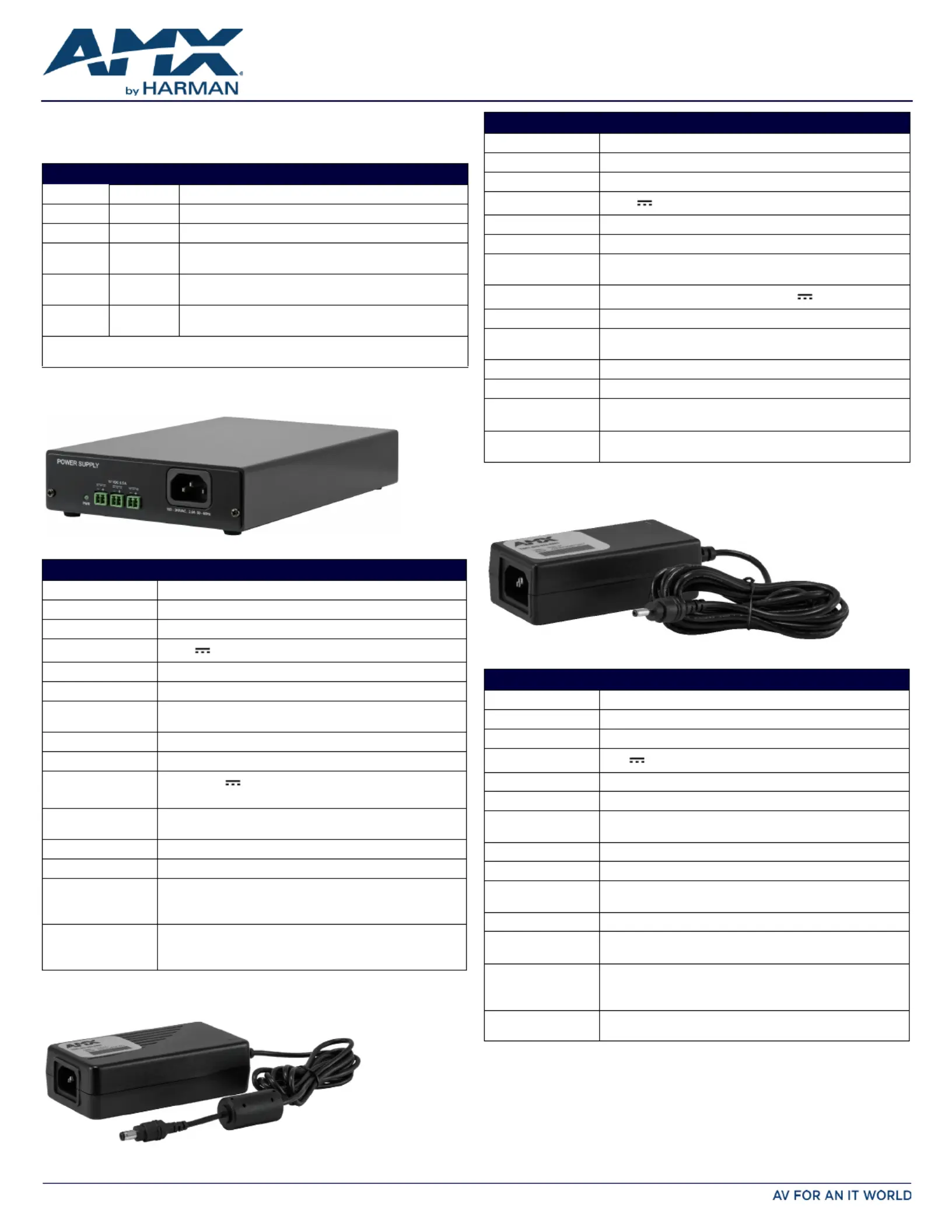

QUICK START GUIDE

PS/N/R Power Supplies

Power Supply Models

AMX offers 6 variations of our Class I, CSA/CE approved, and UL listed system

power supplies:

PSN6.5 Specifications

FIG.1 displays the rear panel of the PSN6.5.

PS4.4 Specifications

FIG.2 displays the PS4.4.

PS3.0 Specifications

FIG.3 displays the PS3.0. The PS3.0 is a Class I power supply which is CE approved

and UL listed. The PS3.0 uses a barrel-plug connector.

PS/N/R POWER SUPPLIES

PSN6.5(FG423-41)With US power cord

PS4.4(FG423-44)Includes US power cord and barrel plug

PS3.0(FG423-30)Includes US power cord and barrel plug

PSR2.5(FG423-47)Includes 3-pin retained captive-wire connector and US

power cord

PSR5.4(FG423-48)Includes 2-pin retained captive-wire connector and US

power cord

PSR7-V(FG423-49)IEC power cord provided as a separate part, dependent

on country requirements.

Note: All models use an input connector sanctioned by the IEC (International

Electrotechnical Commission).

FIG. 1 PSN6.5 POWER SUPPLY

PSN6.5 SPECIFICATIONS

Dimensions (HWD):1 1/2" x 5 9/16" x 9 1/4" (3.81 cm x 14.10 cm x 23.50 cm)

Weight:2.76 lbs. (1.25 kg) (without power cord)

Input:~100-240 V, 2.6A MAX (1.3A MAX @ 230), 50/60 Hz

Output Voltage:

13.5 V

Output Current:6.5 A (continuous power output is 90 W max)

Ripple and Noise:350 mV peak-to-peak @ 70% load

Protection:Over-voltage, over-current, short-circuit, transient and

thermal switching regulated, overload protected

Power Indicator:Green LED indicates presence of DC on the output.

Connectors:Three removable 2-pin 3.5 mm mini-Phoenix connectors

Rear Panel

Components:

•Three 12 V power supply connectors

•Standard IEC (male) jack for the power cord

Input Power Cord:6-foot (1.83 m) IEC cord with a grounded Edison plug for AC

input (US only)

Enclosure:Metal with black matte finish

Temp Range:32°F - 122°F (0°C - 50°C)

Certification:•UL: US listed - Class I Power Supply

•CSA approved

•CE approved

•PSE approved

•CCC approved

Accessories:•US power cord

•3 removable 2-pin 3.5 mm mini-Phoenix connectors

•(Optional) AC-RK Accessory Rack Kit (FG515)

FIG. 2 PS4.4 POWER SUPPLY

PS4.4 SPECIFICATIONS

Dimensions:4 5/8" x 2 1/4" x 1 1/2" (11.7 cm x 5.8 cm x 3.5 cm)

Weight:1.1 lb. (499 g)

Input:~100-240 V, 1.5A MAX (0.6A MAX @ 230), 50/60 Hz

Output Voltage:

13.5 V

Output Current:4.5A MAX

Ripple and Noise:150 mV peak-to-peak @ full load

Protection:Over-voltage, over-current, short-circuit, transient and

thermal. Switching regulated, overload protected.

Power Indicator:

Green LED indicates the presence of V on the output.

Connector:Barrel plug (2.1mm ID, 5.5mm OD, 9.5mm length)

Input Power Cord:6-foot (1.83 m) IEC cordwith a grounded Edison plug for AC

input (US only)

Enclosure:Molded black matte plastic

Temp Range:32°F - 104°F (0°C - 40°C)

Certification:•UL: US listed - Class I Power Supply

•CSA approved

•CE approved

•PSE approved

Included

Accessories:

US power cord

FIG. 3 PS3.0 POWER SUPPLY

PS3.0 SPECIFICATIONS

Dimensions (HWD):3 7/8" x 1 3/4" x 1 1/4" (9.8 cm x 4.5 cm x 3.05 cm)

Weight:5.6 oz (150 g) (without power cord)

Input:~100-240 V, 3A MAX, 50/60 Hz

Output Voltage:

12 V

Output Current:3.0 A

Ripple and Noise:200 mV (60Hz Ripple + Switching ripple and noise)

Protection:Over-voltage, over-current, short-circuit, transient and

thermal switching regulated, overload protected

Power Indicator:Green LED indicates presence of DC on the output.

Connectors:1.3mm barrel plug, 11mm long

Input Power Cord:6-foot (1.83 m) IEC power cord terminated with a grounded

Edison plug for AC input (US only).

Enclosure:Molded black matte plastic

Temp Range:•Operating temperature: 32°F - 122°F (0°C - 50°C)

•Storage temperature: -4°F - 185°F (-20°C - 85°C)

Certification:•UL: US listed - Class I Power Supply

•CUL approved

•TUV approved

•FCC approved

•CE approved

•PSE approved

Included

Accessories:

US power cord
