Seite 1/8

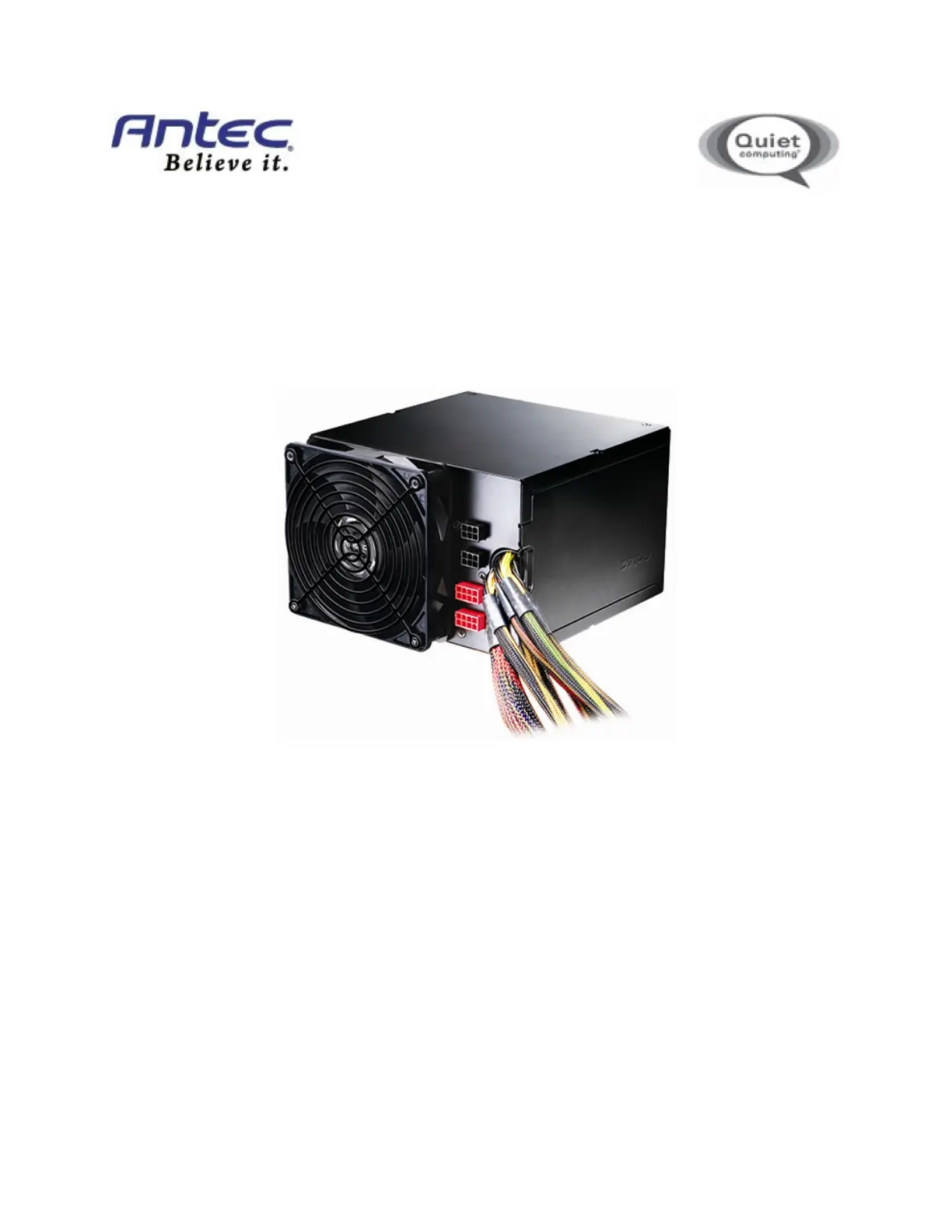

CP-850

OWER

UPPLY

SER

’

ANUAL

SER

’

ANUAL

CP-850

OWER

UPPLY

TANDARD

The CP Series is Antec’s exclusive new high-performance power supply unit (PSU). It balances size,

cost, and plenty of quality power by combining cutting-edge technology with a new form factor.

The design features in this expanded form factor allow for improved component selection, better

circuit board layout, more room between components for airflow, and a straight-through air path

that takes full advantage of the large fan. Larger fans move more air at lower RPMs and make less

noise. Antec’s new CPX form factor has better airflow than any standard size PSU that uses a large

fan. The CPX form factor is exclusively compatible with Antec’s cutting-edge Gaming and

Performance One cases, including the Twelve Hundred, P183 and P193. For an updated list of

models supported please visit www.antec.com/cp850.

TANDARDS AND

EATURES

The connectors and power specifications of the CP-850 PSU are all compatible with the ATX12V

v2.3 and EPS12V v2.91 specifications. The CP-850 features Universal Input, which automatically

senses when you connect the power supply to any AC power source between 100~240V without

setting a voltage switch. This power supply also features Active Power Factor Correction (Active

PFC), which improves the power factor value of the power supply by altering the input current wave

shape, helping power transmission across the grid.

YSTEM

ROTECTION

A variety of industrial-grade safety circuitry will help protect your computer: OVP (Over Voltage

Protection), SCP (Short Circuit Protection), and OCP (Over Current Protection). Sometimes the PSU

will “latch” into a protected state. You will need to power off the PSU and clear the fault before it

will function again. There are no user-replaceable fuses in your CP-850.

PECIAL

UIET

OMPUTING

™

PWM

FAN

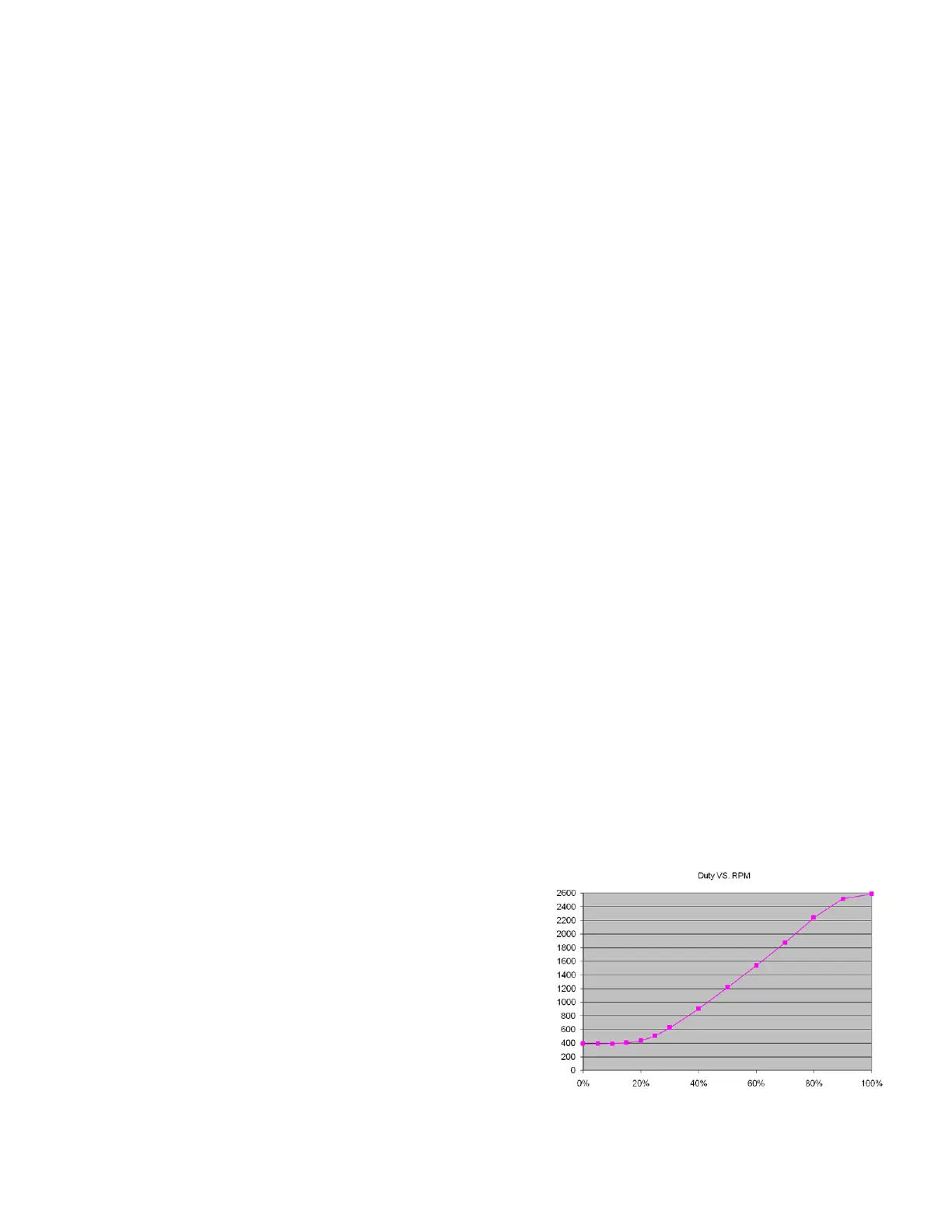

Another innovation in your CP-850 is the use of pulse

width modulation (PWM) fan technology. A PWM fan can

spin much more slowly and be quieter than a voltage-

controlled fan. The PSU uses a PWM fan that can spin as

slow as 390 RPM or as fast as 2600 RPM, depending on

load and ambient temperature. It should be nearly

inaudible when your computer is idling, and the PSU will

vary the fan speed depending on the load of your

computer. The location of the PSU fan also helps to

reduce the sound emitted by your computer.

Produktspezifikationen

Marke:	Antec
Kategorie:	Computeradapter
Modell:	CP-850
Gewicht:	3200 g
Produktfarbe:	Schwarz
AC Eingangsspannung:	100 - 240 V
Betriebstemperatur:	0 - 50 °C
Mittlere Betriebsdauer zwischen Ausfällen (MTBF):	100000 h
Abmessungen (BxTxH):	175.3 x 200 x 119.4 mm
ATX Stromstecker (24-pol.):	Ja
Sicherheit:	UL, FCC, TÜV, CE, C-tick, CCC, CB
Gesamtleistung:	850 W
Anzahl SATA Stromstecker:	3
Anzahl Molex Anschlüsse 4pin:	Ja
Floppy-Laufwerk Stromverbindung:	1
Anzahl PCI Express Stromstecker 6pin:	Ja
