TECHNOLOGY FURNITURE
®
36” Wide AdjustaCart
Assembly Instructions
Anthro
®
Corporation Technology Furniture
®
10450 SW Manhasset Drive Tualatin, Oregon 97062 anthro.com
SAVE THESE INSTRUCTIONS!
Rev. D December 2014
1-800-325-3841
02
04
03
06
10
01
05
11
09
12
07
15
08
13
14

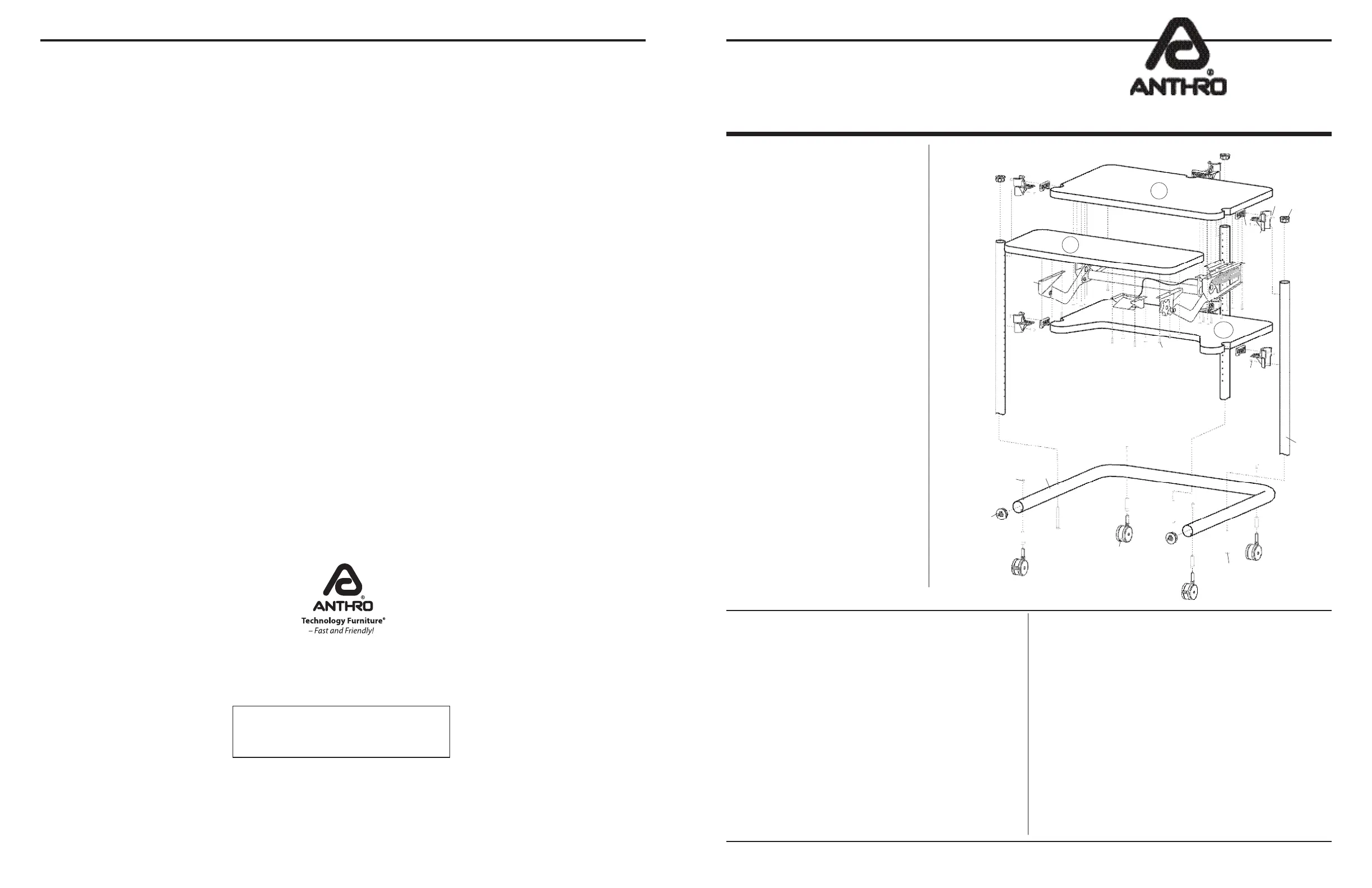

Hello! Thank you for choosing Anthro.
Before beginning assembly of your
36” Wide AdjustaCart, please take a
moment to review the parts listed below
to verify that your shipment is complete.
Component list for part # AJ36xx/xx
01–36” W Base Tube ................ Qty. 1 ...............125-5003-xx
02– Caster Insert Screws ........ Qty. 4 ............325-5052-00
03– 1.75” Large End Caps ....... Qty. 2 ...............175-5021-xx
04– Base Tube Screws ................. Qty. 3 ..............325-5000-00
05– 26.875” Vertical Legs .......... Qty. 3 ...............125-5049-xx
06– Self-threading Screws .......... Qty. 6 ..............325-5010-00
07– Wood Screws................... Qty. 28 ..........325-5106-00
08– 36” W Recessed Shelf ....... Qty. 1 .............100-6047-xx
09– Shelf Supports ...................... Qty. 6 ...............175-5060-xx
10– Shelf Clamps ......................... Qty. 6 .......... 175-5059-xx
11– Clamp Screws ....................... Qty. 6 ..............325-5086-00
12– 1.5” Small End Caps .......... Qty. 3 ...............175-5020-xx
13– 36” W Adjusta Shelf ............ Qty. 1 .......... 100-6167-xx
14– 36” W Caddy Shelf .............. Qty. 1 .......... 100-6165-xx
15– 36” W Adjusta Mechanism . Qty. 1 ..............225-5317-00
(The Adjusta Mechanism is packaged separately & requires assembly)
The following Tools have been provided (but not shown above):
Hex Driver
5
/
32
” ......................... Qty. 1 ..............375-5000-00
Hex Driver Bit
5
/
32
” .................. Qty. 1 ..............375-5003-00
(The Hex Driver Bit can be used in your electric drill)
Hex Key
5
/
32
” .............................. Qty. 1 .................. 375-5016-00
8 oz. Rubber Mallet .................. Qty. 1 .................. 375-5022-00
3-Way Wrench .......................... Qty. 1 .................. 225-5196-03
All Screw quantities listed here are the minimum needed for your Cart
assembly. There may be a few extra Screws included, which are not
counted in the Parts List.
Anthro Corporation
®
| 10450 SW Manhasset Dr. | Tualatin, OR 97062
Toll-free: 800.325.3841 | Fax: 800.325.0045 | email: sales@anthro.com | anthro.com
Outside the U.S. | Tel: 503.691.2556 | Fax: 503.691.2409
*300-5052-00*
300-5052-00
Warranty:
This 36” Wide AdjustaCart has a Lifetime Warranty against manufacturing defects.
Notices:
Technology Furniture and AdjustaCart are trademarks of Anthro Corporation. Anthro reserves the right to modify the design and specifications with-
out prior notice.
36” Wide AdjustaCart
Assembly Instructions
Anthro
®
Corporation Technology Furniture
®
10450 SW Manhasset Drive Tualatin, Oregon 97062 anthro.com
Step 1
This Instruction will cover the AJ36xx AdjustaCart
assembly and will place your Adjusta Shelf approximately
31” and your recessed shelf 20” from the oor using the
standard 2
3
/
8
” casters.
Before proceeding, please review the Assembly Instructions
of all Anthro products you purchased and plan to include in
this installation.
Questions? 1-800-325-3841

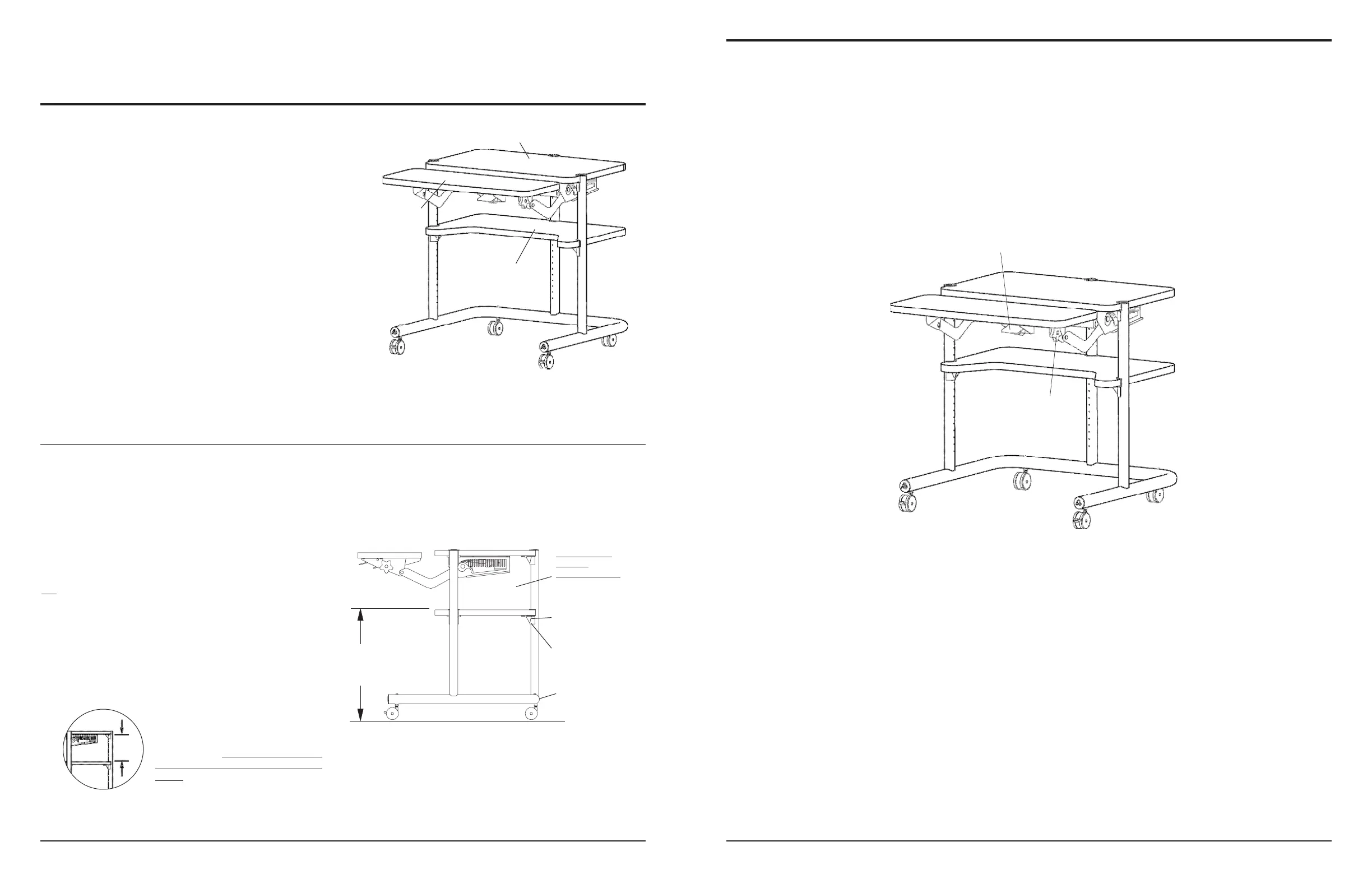

Step 2
Determine the best location for your AdjustaCart’s
recessed shelf. Your cart is designed to have the Adjusta
shelf installed above the recessed shelf (as shown in these
instructions).
For a recessed shelf location that is lower than 20” from
the oor, refer to the illustrations shown at right to
determine which hole to attach your shelf.
TIP: You may want to measure your equipment to make sure it
ts between the selected shelf locations.
AJ36xx with 2
3
/
8
” Casters
Hole 12=20”
(measured from the
coped end)
Hole 11=19”
Coped end
20”
The Adjusta mechanism needs a minimum
clearance of 10” between the shelves to
function properly. Do not install your recessed
shelf any higher than the hole locations given
at right.
10” clearance
required
between Shelves
20” High Recessed Shelf
Caddy Shelf has
approximately
11” of travel
31” High Adjusta Shelf
Rotate knob to adjust
Caddy Shelf angle.
Adjusting your Caddy Shelf Height
1. Squeeze and hold the paddle.
2. Reposition the Caddy Shelf to the desired location.
3. Release the paddle.
Squeeze Paddle to adjust
Caddy Shelf height.
Adjusting your Caddy Shelf Angle
1. Rotate the knob counterclockwise.
2. Reposition the Caddy Shelf to the desired angle.
3. Rotate the knob clockwise (tighten into place).
Questions on your AdjustaCart Assembly? Call 1-800-325-3841
