1/2” Caster Insert Screw
325-505 2-00
UltraCompact Cart
Assembly Instructions
01– Caddy Tray ...................................Qty. 1 .....................225-5046-00
02– Rubber Bumpers .........................Qty. 2 ..................... 175-5130-03
03– Caddy Screws ................................Qty. 4 ......................575-5001-10
04– Keyboard Pads .............................. Qty. 4 ......................575-5001-11
05– Wrist Rest ....................................... Qty. 1 ................... 575-5001-01
06– Caddy Platform .............................Qty. 1 ................... 575-5001-04
07– Acorn Nuts .................................... Qty. 4 ...................325-5023-00
08– Caddy Mechanism ........................Qty. 1 ................... 575-5001-09
09– Mouse Pad ...................................... Qty. 1 ................... 575-5001-03
10– Mouse Rail .....................................Qty. 1 ................... 575-5001-02
11–
3
/
4
” Wood Screws .......................... Qty. 10 ................. 325-5106-00
12– 1.75” Large End Caps ............... Qty. 2 ...................... 175-5021-xx
13– 2
3
/
8
” Locking Casters ............... Qty. 2 .................. 150-5003-00*
14– 3-1/2” Bolt .....................................Qty. 4 ..................... 325-5000-00
15– Caster Inserts .......................... Qty. 4 .................... 525-1000-00*
16– Caster Insert Screws ................ Qty. 4 .................... 325-5052-00
17– 2
3
/
8
” Non-Locking Casters ...... Qty. 2 ...................150-5002-00*
18– Vertical Legs .................................Qty. 4 ......................125-5049-xx
19– 1.5” Small End Caps ................. Qty. 4 ......................175-5020-xx
20– 1-5/8” Screws ................................Qty. 8 ..................... 325-5086-03
21– Shelf Supports ............................... Qty. 8 ......................175-5060-xx
22– Shelf Clamps .................................. Qty. 8 .................... 175-5059-xx
23– Self-threading Screws ................Qty. 8 ......................325-5010-00
24– Ultra Compact Large Shelf ........Qty. 1 ...................... 100-6001-xx
25– Ultra Compact Small Shelf ........Qty. 1 ...................... 100-6005-xx
26– Ultra Compact Base Tube ...........Qty. 1 ......................125-5046-xx
All fastener quantities listed here are the minimum needed for your
cart assembly. Your shipment may include a few extras.
Cable Management Components
Cable Alley, 9” .................... Qty 1 ....................................... 175-5061-03
Cable Alley, 3” .................... Qty 1 .......................................175-5062-03
Cord Handler ......................Qty 1 ....................................... 175-5001-03
Self-threading Screws ....Qty 6 ....................................... 325-5010-00
Anthro
®
Corporation Technology Furniture
®
10450 SW Manhasset Drive Tualatin, Oregon 97062 anthro.com
SAVE THESE INSTRUCTIONS!
Rev C, January 2015

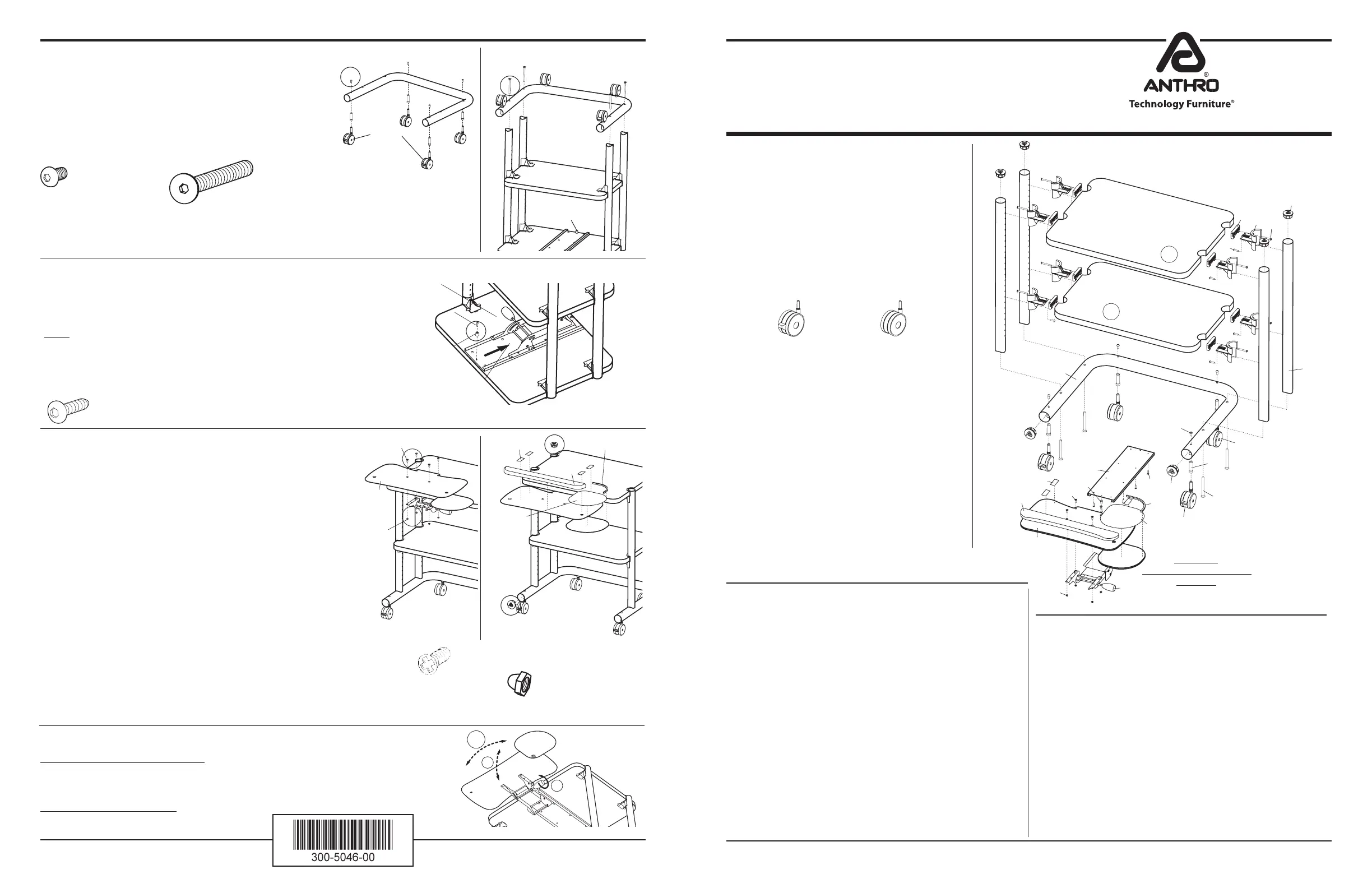

Step 8
Install all four caster inserts into the base tube and secure
with one Caster Insert Screw per insert. Push the casters,
(locking ones in front) into the caster inserts.
Next, place the base tube assembly onto the vertical legs of
the shelf assembly. Attach the base tube to each leg using
a total of four 3-1/2” Bolts.
Step 9
Unpack the remaining Keyboard & Mouse Caddy items.
Slide the Caddy Mechanism into the tray.
NOTE: If needed, rotate the Mechanism Handle and LIFT to
allow the Mechanism to slide to the rear.
Install the remaining Wood Screw and Rubber Bumper into
the front of the Tray.
Hello! Thank you for choosing Anthro.
Before beginning assembly of your
UltraCompact Cart, review the parts list below to
verify that your shipment is complete.
It may be helpful to review the assembly
instructions of all Anthro products you purchased
and plan to include in this installation.
Does your Cart have 4” Casters?*
(Such as a 075xx4. ) Here are 4” caster part numbers:
1-800-325-3841
4” Locking Caster
150-5011-00
4” Non-Locking Caster
150-5010-00
Questions? 1-800-325-3841
12
13
15
16
18
14
19
17
23
21
22
20
26
24
25
Locking
Casters
Rubber Bumper
NOTE: The rubber bumper is located towards
the rear of the cart
05
04
02
06
01
ITEMS 01-11
ARE BOXED SEPARATELY FROM
YOUR CART
03
08
07
10
09
11
Enclosed Parts List
Detailed views of all Hardware are provided with each Assembly Step.
Caddy Mechanism
Rubber Bumper
Rear
of
Cart
Wood Screw
Rotate Handle
to LIFT
Step 10 (requires the Crescent Wrench & Screwdriver)
Carefully rotate your cart back onto the casters.
Pull the mechanism to the front and place the platform onto
the mechanism. Secure the platform using the four Caddy
Screws and Acorn Nuts.
Then, install the Mouse Rail, Pad and Wrist Rest.
Pop the small end caps into the legs and the large end caps
into the base tube.
After you add your equipment to the cart, select the cable
management components that suit.
To install the Cable Alleys, expand each sleeve and fit it over
a cart leg. Align the mounting hole(s) in the sleeve with the
holes on the leg, then install with self-threading screws.
To install the Cord Handler, snap the large end around any
cart leg, then route cables through the small end.
Congratulations! Your assembly is complete.
(#10-24) Caddy Screw
575-5001-10
Caddy Screws
Acorn
Nuts
Platform
Mouse
Pad
KB Pads
Wrist Rest
Mouse Rail
Adjust the Platform height & angle:
1. Rotate the handle counterclockwise.
2. Reposition the shelf, then retighten the handle.
Adjust the Platform rotation:
1. Firmly grasp the platform, then rotate
to the desired angle.
Adjusting your Keyboard and Mouse Caddy
2
1
Rotate
TOOLS
To make the assembly of your cart even easier, we have
included these tools . Use the handy Hex Driver Bit in
your electric drill in place of the Hex Driver.
Hex Driver 5/32”.................. 375-5000-00
Hex Driver Bit 5/32” ........... 375-5003-00
8 oz. Rubber Mallet............ 375-5022-00
A Phillips Screwdriver and an Adjustable Wrench (not
included) are required for this assembly.
3-1/2” Bolt
325-500 0-00
3/4" Wood Screw
325-5106-00
3/8” Acorn Nut
325-5023-00
Ultra Compact Cart
Assembly Instructions
Anthro
®
Corporation Technology Furniture
®
10450 SW Manhasset Drive Tualatin, Oregon 97062 anthro.com

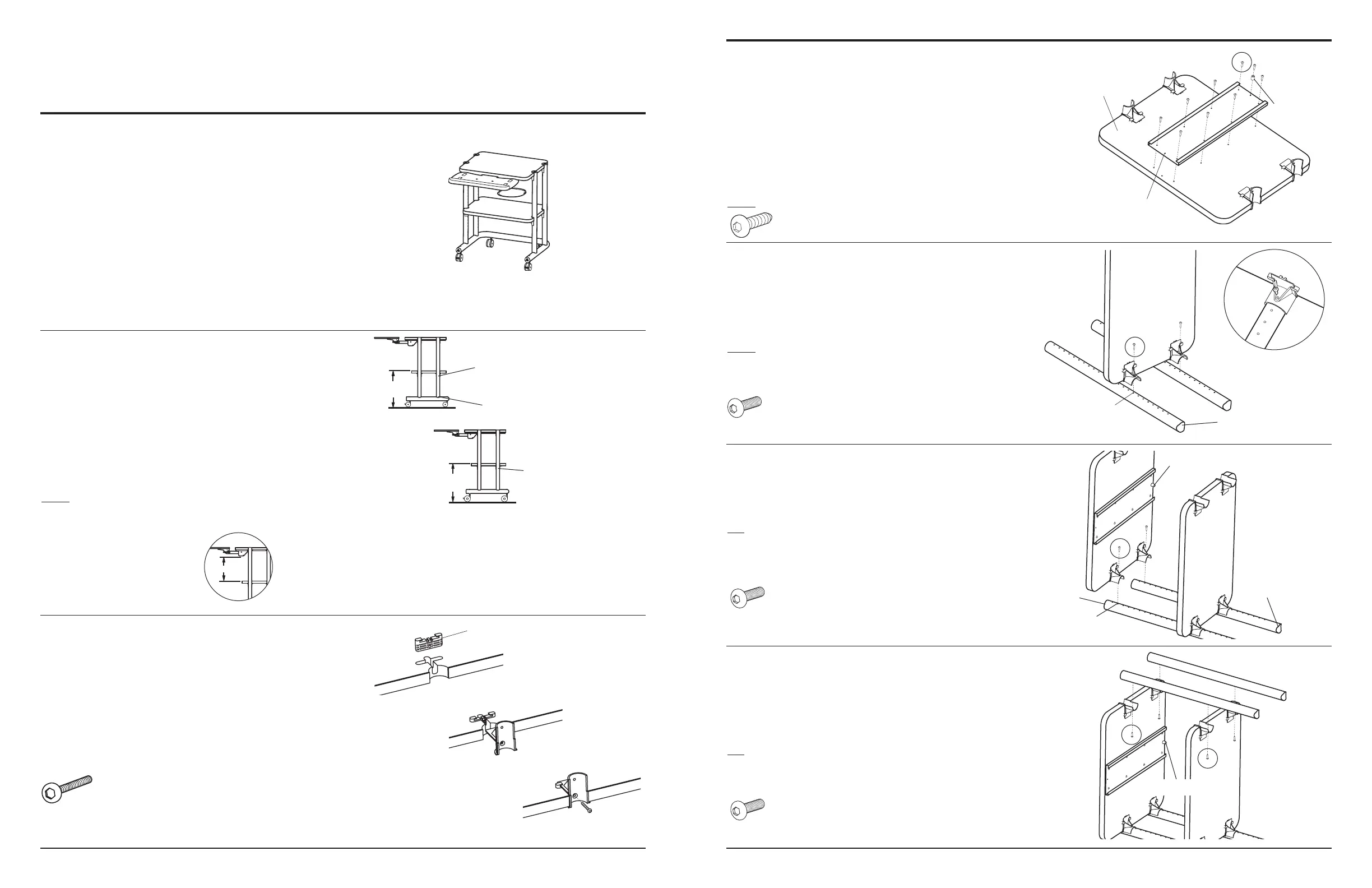

Step 1
Before proceeding, please review the Assembly Instructions
of all Anthro products you purchased and are planning to
include in this installation.
These instructions will cover both the Ultra Compact Cart
and Universal Keyboard and Mouse Caddy assembly.
You may disregard the Keyboard & Mouse Caddy Instructions
that came in the separate packaging.
Step 3
Attach four shelf supports to both shelves.
Begin by first installing a shelf clamp into the shelf notch.
Be sure the pointed barbs face towards the outer shelf
edge.
Slide a shelf support into the recesses of the shelf clamp
and shelf. Push in as far as possible.
Secure with a 1-5/8” Screw.
anthro.com
Step 4
Unpack the Universal Keyboard and Mouse Caddy items.
Align the ten Caddy Tray holes with those on the underside of
your cart’s large shelf. Secure the tray using eight Wood Screws,
325-5106-00 (installed on the edges of the tray).
Finally, insert one wood screw through a rubber stop and install
the stop towards the rear of your cart.
NOTE: One hole will be left open.
Step 5
Loosely attach the small shelf to hole 8 from the bottom
(coped end) of two vertical legs using two Self-threading
Screws (325-5010-00). These fasteners are cutting threads
into the leg, so the first few turns will require some force.
NOTE: Handle the shelf assembly carefully until the cart is
fully assembled.
Step 6
Loosely attach the large shelf to hole 2 from the top
(non-coped end) of the vertical leg assembly (from Step 5)
using two Self-threading Screws.
TIP: Use the holes in the vertical legs as a ruler to ensure
that your Self-threading Screws are installed into the
correct locations.
Questions? 1-800-325-3841
First
Next
Last
Barbs
Step 2
Determine the best location for your cart’s shelves.
Your cart is designed to have the large shelf installed above
the small shelf (as shown in these instructions).
For a small shelf location that is higher or lower than
16” from the floor, refer to the illustrations shown at right
to determine which hole to attach your small shelf.
Once assembled, it is very difficult to move a shelf without
taking the cart apart and starting over.
NOTE: These instructions will place your small shelf 16” from
the floor using the standard 2
3
/
8
” casters.
075xx with 2
3
/
8
” Casters shown
075xx
Ultra Compact Cart shown with
2
3
/
8
” Casters
075xx4 with 4” Casters shown
Hole 9=17”
Hole 8=16” (measured from the coped end)
Hole 7=15”
Hole 8=17”
Hole 7=16”
Hole 6=15”
REMINDER: You may want to
measure your equipment to make
sure it fits between the selected
shelf locations.
Coped end
16”
16”
Step 7
Loosely attach the 3
rd
and 4
th
vertical legs to the shelf assembly
(from Step 6) using one Self-threading Screw per shelf support.
Once all four vertical legs are attached, tighten all Self-threading
Screws.
TIP: Use the holes in the vertical legs as a ruler to ensure that your
Self-threading Screws are installed into the correct locations.
In preparation for Step 8, rotate your cart upside down.
Do not install a Wood Screw
into this hole
NOTE: There is more
distance from the shelf
supports to the front
shelf edge
DON’T FORGET: The Keyboard Caddy will
require additional space between the
Shelves in order to fully slide to the back
of the tray.
Rubber Bumper
Rubber Bumper
Rubber Bumper
Bottom (coped) end
Hole 8=16”
(using 2
3
/
8
” Casters)
Insert one Support Screw
through each Shelf Support
Top (non-coped) end
Hole 2
Bottom (coped) end
1-5/8" Screw
325-5086-00
3/4" Wood Screw
325-5106-00
Self-threading Screw
325-5010-00
Self-threading Screw
325-5010-00
Self-threading Screw
325-5010-00
