Data Distribution Cable System

Overview

The Data Distribution Cable System provides a high-density, rack-to-rack connection system for data

and telecommunication equipment. When properly installed, this device meets all

TIA-EIA-568-B.2-1 Category 5e and 6 requirements and provides optimum performance in

10 Base-T Ethernet, 100 Base-T Fast Ethernet, and 10000 Base-T Gigabit Ethernet operating

environments.

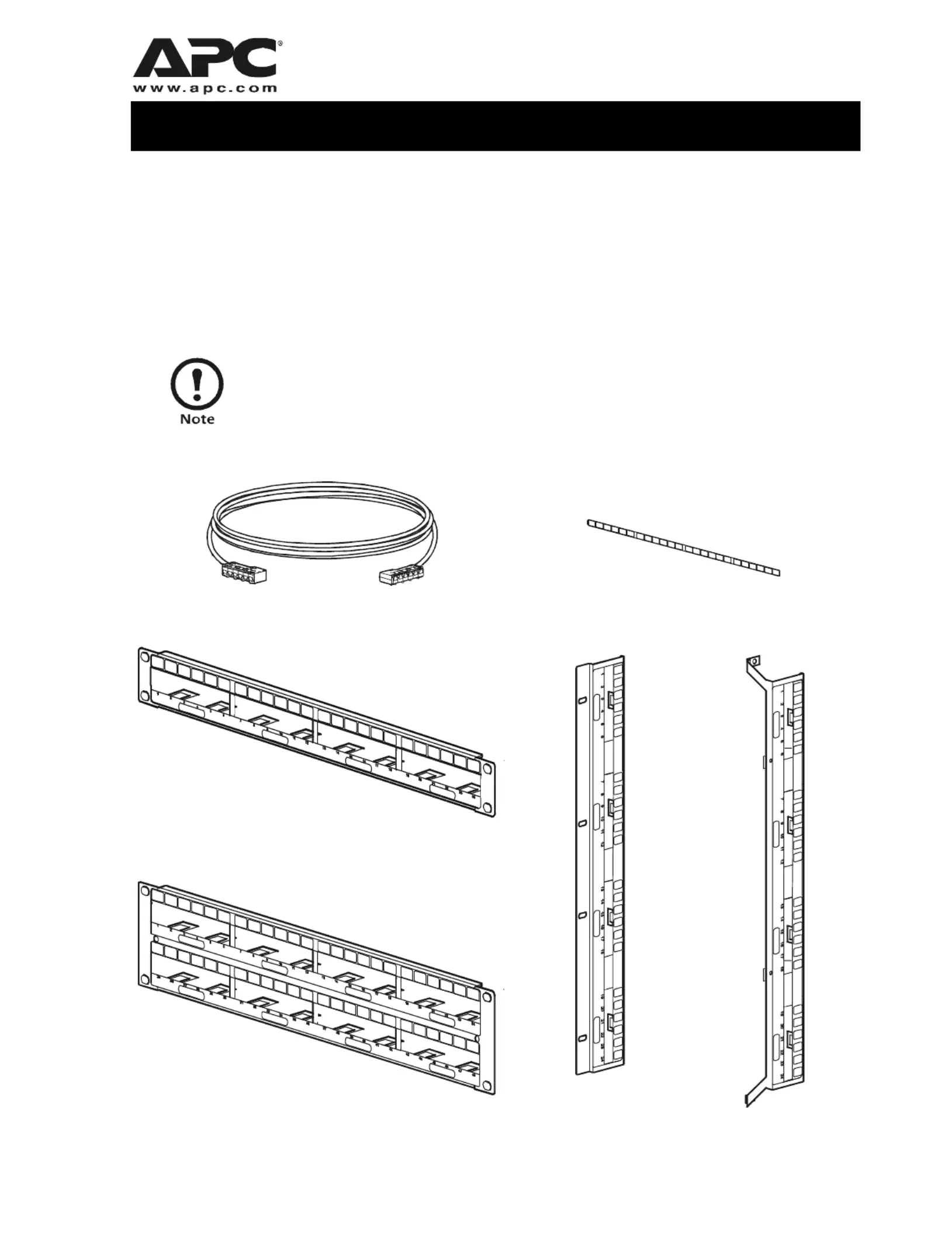

Identifying parts

Proper handling of coiled cable is necessary to ensure the correct operation of the data

distribution cable. See“How to Unroll a Cable” on page 3 for proper handling

instructions.

6-port data distribution cable 24-port label strip—Each Data Distribution Cable

System Panel comes with a label strip. Use this

strip to renumber or identify ports.

AR8452—2-U 48-port panel for mounting

8 data distribution cables

AR8453—0-U

NetShelter

VX Channel

24-port panel for

mounting 4 data

distribution cables

AR8457—0-U

NetShelter SX Channel

24-port panel for

mounting 4 data

distribution cables

AR8451—1-U 24-port panel for mounting

4 data distribution cables

2 Data Distribution Cable System

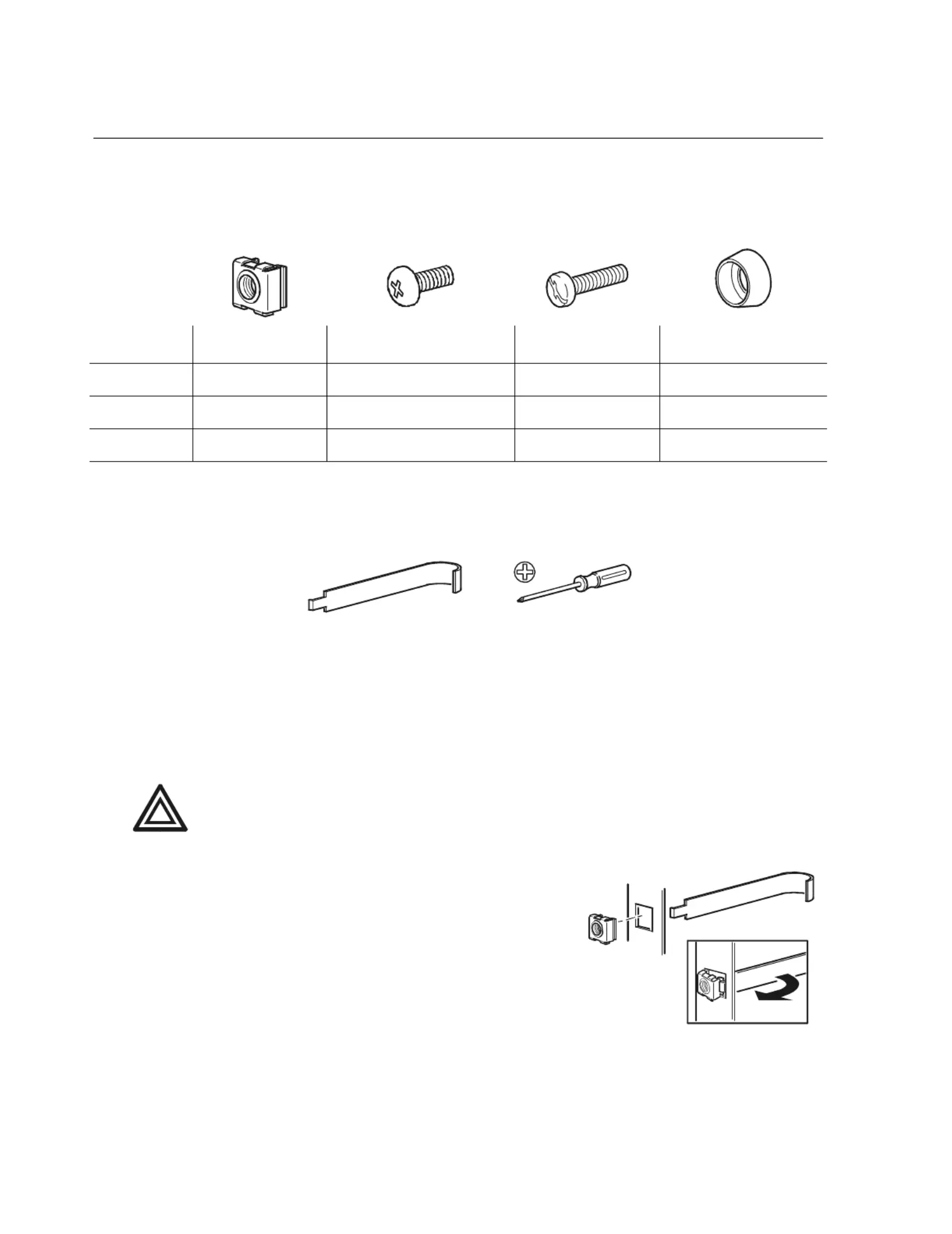

Hardware Accessories

Hardware (provided)

Tools required (not provided)

How to install and remove cage nuts

To install a cage nut:

1. Insert the cage nut into the square hole by hooking one side

of the cage nut assembly through the far side of the hole.

The view shown is from the inside of a rack.

2. Place the cage nut tool on the other side of the cage nut and

pull to snap it into position.

To remove a cage nut:

1. Remove any attached screw.

2. Grasp the cage nut and squeeze one side firmly, then rotate the cage nut to release it from the

square hole.

Panel type M6 cage nut M6 Phillips screw #12-24 screw Plastic cup washer

0U 2 2 0 2

1U 4 4 4 4

2U 4 4 4 4

Cage nut tool #2 Phillips screwdriver

Warning

Install the cage nut horizontally. Do not install the cage nut

vertically with the sides of the cage nut engaging the top and

bottom of the square hole.

Data Distribution Cable System 3

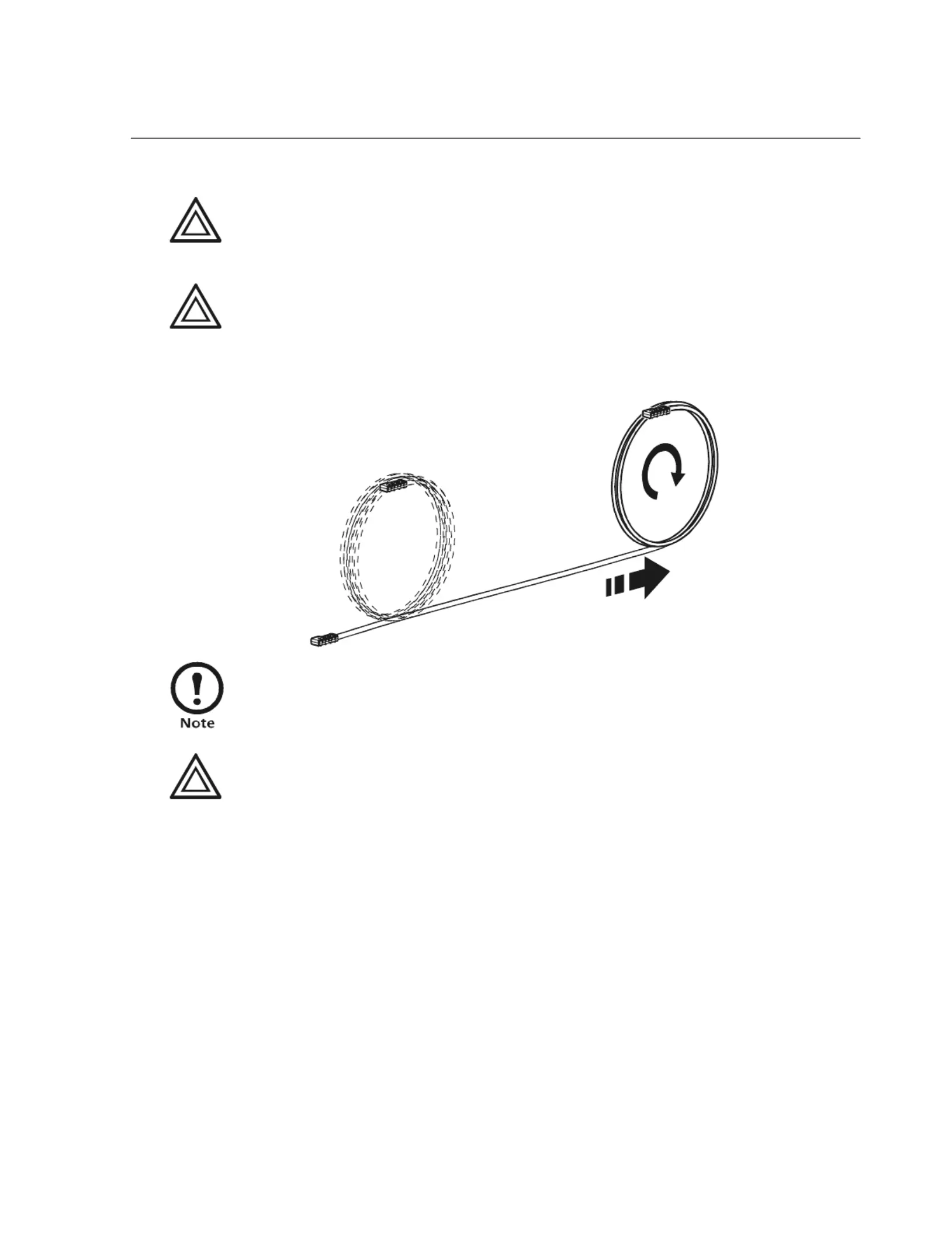

How to Unroll a Cable

Lay one end of the cable on the floor and roll the rest of the cable on the coil away from that end.

Caution

You must unroll cables from the coil. Pulling the cable end off the side of the coil can

cause permanent damage, adversely affecting performance and voiding your

warranty.

Caution

When routing and pulling cables, maintain a minimum 5-inch radius for all bends.

If cables are ever removed for storage or relocation, you must recoil them in the same

manner.

Caution

Do not overly tighten cable ties or other fasteners. Fasteners that are too tight can

cause damage to the cables.

ns0594a

Produktspezifikationen

Marke:	APC
Kategorie:	Netzwerkkarte / Adapter
Modell:	AR8452
Gewicht:	450 g
Produktfarbe:	Schwarz
Paketgewicht:	680 g
Warentarifnummer (HS):	85381000
Abmessungen (BxTxH):	89 x 25 x 495 mm
Verpackungsabmessungen (BxTxH):	152 x 84 x 533 mm
Rack-Kapazität:	2U
