Seite 1/4

Safety

Read the following information before installing or operating your APC by Schneider

Electric Rack Power Distribution Unit (PDU)

Installation

Mount the Rack PDU vertically in an Easy rack or any standard EIA-310 rack.

DANGER

HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH

• The Rack PDU is intended to be installed and operated by a skilled person in a

controlled location.

• Do not operate the Rack PDU with the covers removed.

• This Rack PDU is intended for indoor use only.

• Do not install this Rack PDU where excessive moisture or heat is present.

• Never install any wiring, equipment, or Rack PDUs during a lightning storm.

• Plug this Rack PDU into a grounded power outlet only. The power outlet must be

connected to appropriate branch circuit/mains protection (fuse or circuit breaker).

Connection to any other type of power outlet may result in a shock hazard.

• Do not use extension cords or adapters with this Rack PDU.

• If a socket-outlet is not accessible to the equipment, a socket-outlet shall be

installed.

• Do not work alone under hazardous conditions.

• Check that the power cord, plug, and socket are in good condition.

• Disconnect the Rack PDU from the power outlet before you install or connect

equipment to reduce the risk of electric shock when you cannot verify grounding.

Reconnect the Rack PDU to the power outlet only after you make all connections.

• Do not handle any kind of metallic connector before the power has been removed.

• Use one hand, whenever possible, to connect or disconnect signal cables to avoid a

possible shock from touching two surfaces with different grounds.

• This unit does not have any user-serviceable parts. Repairs are to be performed only

by factory-trained service personnel.

• High leakage current from attached loads is possible. If total leakage current will

exceed 3.5mA, attach a ground wire from the Rack PDU supplementary ground (M5

thread) to a reliable ground in your facility before energizing the Rack PDU.

Failure to follow these instructions will result in death or serious injury.

WARNING

FIRE HAZARD

• This equipment should be connected to a single-outlet dedicated circuit protected by

a circuit breaker or fuse with the same current rating as the Rack PDU.

• The plug or inlet serves as the disconnect for the Rack PDU. Make sure the utility

power outlet for the Rack PDU will be close to the Rack PDU and readily accessible.

• Some models of Rack PDUs are provided with IEC C14 or C20 inlets. Use of the

proper power cord is the user’s responsibility.

Failure to follow these instructions can result in death or serious injury.

Easy PDU Basic Rack Power Distribution Unit Installation

Worldwide Customer Support

Customer support for this product is available at www.apc.com

Electric SE. All other trademarks are property of their respective owners.

Overview

This sheet provides installation information for your Easy PDU. Read the instructions

carefully.

Receiving

Inspect the package and contents for shipping damage. Make sure all parts were sent.

Immediately report any shipping damage to the shipping agent. Report missing

contents, product damage, or other problems with the product to APC by Schneider

Electric or your APC by Schneider Electric reseller.

Material recycling

The shipping materials are recyclable. Please save them for later use, or dispose of

them appropriately.

EPDU1116B

EPDU1132B

990-91330A

10/2021

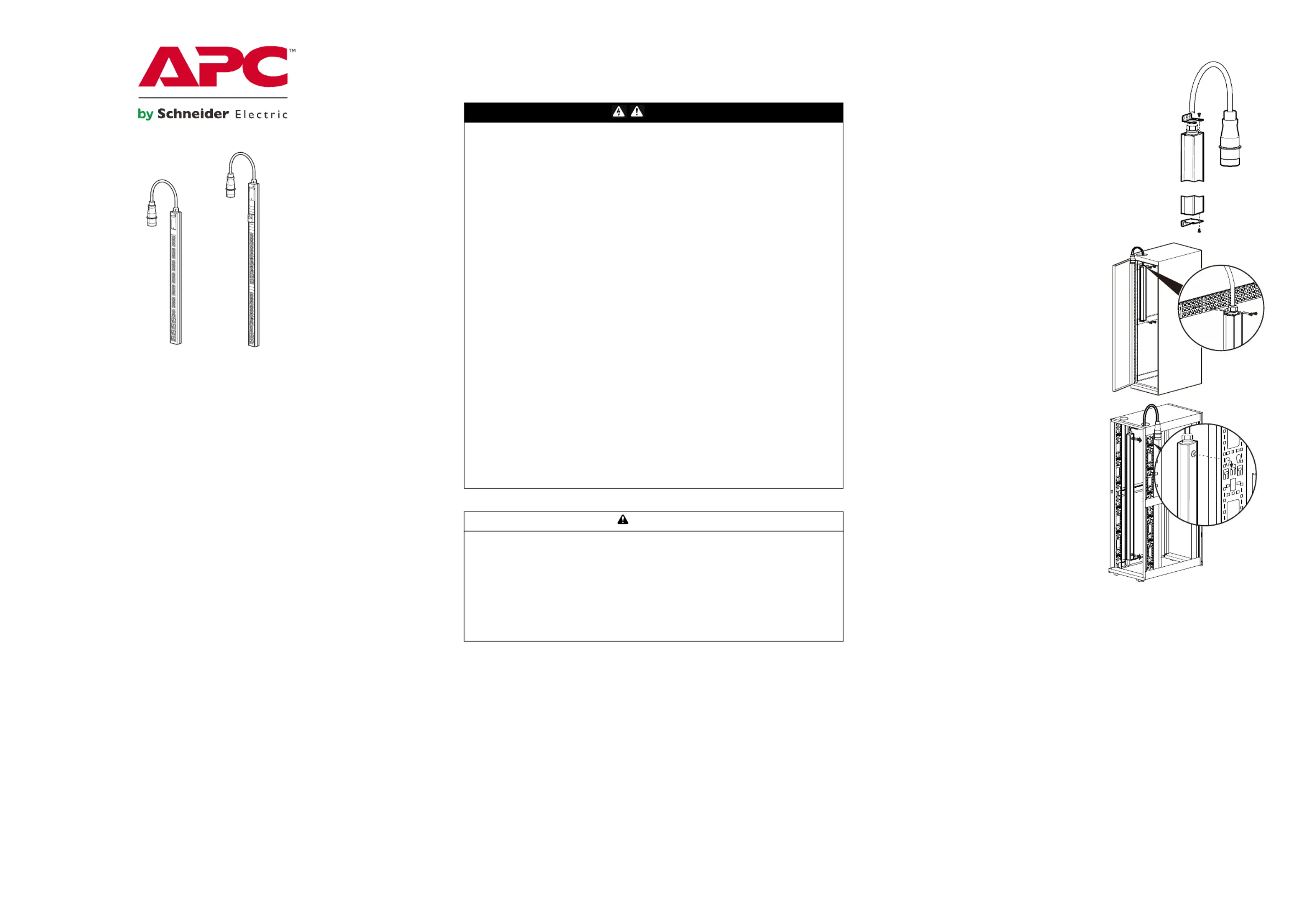

Option 1 - Vertical Installation with Brackets

1. Install the two (2) brackets to the Rack PDU with the

provided screws.

2. Install to the rack with the provided four (4)

M5 p1-x10 mm self tapping screws.

Option 2 - Toolless Mounting

The mounting pegs of the Rack PDU are

installed at the factory. Slide both mounting

pegs into the holes located in the channel in

the rear panel of the rack. Snap the Rack PDU

into place by pushing it downward until it locks

into position.

NOTE: When installing the Rack PDU, ensure

that the power cord plug is accessible and that

it is connected to a grounded outlet.

pdu0891b

pdu 0888b

pdu0890b

Specifications

EPDU1116B EPDU1132B

Electrical

Nominal Input Voltage 200 - 240 VAC 1 PHASE

Maximum Input Current

(Phase)

16A 32A

Input Frequency 50/60Hz

Input Connection IEC-309 16A 2P+E IEC-309 32A 2P+E

Output Voltage 200 - 240 VAC 1 PHASE

Output Connections

IEC-320-C13 (20)

Max. output current 10A

IEC-320-C19 (4)

Max. output current 16A

Bank1:

IEC-320-C13 (10) Max.

output current 10A

IEC-320-C19 (2)

Max. output current 16A

Bank2:

IEC-320-C13 (10) Max.

output current 10A

IEC-320-C19 (2)

Max. output current 16A

Circuit Breakers None

Two (2) 16A 1-pole

hydraulic-magnetic

circuit breakers

Physical

Dimensions (H x W x D)

902 x 62 x 44.4 mm

(35.5 x 2.44 x 1.74 in)

1175 x 62 x 44.4 mm

(46.25 x 2.44 x 1.74 in)

Input power cord length 3 m (9.8 ft) 3 m (9.8 ft)

Shipping dimensions

(H x W x D)

1320 x 160 x 110 mm

(52.0 x 6.30 x 4.33 in)

1320 x 160 x 110 mm

(52.0 x 6.30 x 4.33 in)

Weight/Shipping weight

2.2 kg (4.85 lb)/

2.98 kg (6.56 lb)

3.58kg (7.89 lb)/

4.36 kg (9.61 lb)

Environmental

Maximum elevation

(above MSL)

Operating/Storage

0–3000 m (0–10,000 ft) /

0–15000 m (0–50,000 ft)

Temperature:

Operating/Storage

–5 to 45°C (23 to 113°F) /

–25 to 65°C (–13 to 149°F)

Humidity:

Operating/Storage

5–95% RH, non-condensing

Compliance

EMC verification

CE EN55035, EN55032, EN55024

Safety verification

CE, TUV, EAC, KC, UKCA, EN/IEC62368-1

CE EU Contact Address

Schneider Electric, 35 rue Joseph Monier

92500 Rueil Malmaison, France

Environmental

RoHS & Reach

Life Support Policy

General policy

APC by Schneider Electric does not recommend the use of any of its products in the following

situations:

• In life-support applications where failure or malfunction of the APC by Schneider Electric

product can be reasonably expected to cause failure of the life-support device or to affect

significantly its safety or effectiveness.

• In direct patient care.

APC by Schneider Electric will not knowingly sell its products for use in such applications unless it

receives in writing assurances satisfactory to APC by Schneider Electric that (a) the risks of injury

or damage have been minimized, (b) the customer assumes all such risks, and (c) the liability of

APC by Schneider Electric is adequately protected under the circumstances.

Examples of life-support devices

The term includes but is not limited to neonatal oxygen analyzers, nerve life-support device

stimulators (whether used for anesthesia, pain relief, or other purposes), autotransfusion devices,

blood pumps, defibrillators, arrhythmia detectors and alarms, pacemakers, hemodialysis systems,

peritoneal dialysis systems, neonatal ventilator incubators, ventilators (for adults and infants),

anesthesia ventilators, infusion pumps, and any other devices designated as “critical” by the U.S.

FDA.

Hospital-grade wiring devices and leakage current protection may be ordered as options on many

APC by Schneider Electric UPS systems. APC by Schneider Electric does not claim that units with

these modifications are certified or listed as hospital-grade APC by Schneider Electric or any other

organization. Therefore these units do not meet the requirements for use in direct patient care.

Radio frequency interference

Changes or modifications to this unit not expressly approved by the party responsible for compliance could

void the user's authority to operate this equipment.

1 Year Factory Warranty

This warranty applies only to the products you purchase for your use in accordance with this

manual.

Terms of warranty

APC by Schneider Electric warrants its products to be free from defects in materials and

workmanship for a period of one year from the date of purchase. APC by Schneider Electric

will repair or replace defective products covered by this warranty. This warranty does not

apply to equipment that has been damaged by accident, negligence or misapplication or

has been altered or modified in any way. Repair or replacement of a defective product or

part thereof does not extend the original warranty period. Any parts furnished under this

warranty may be new or factory remanufactured.-

Non-transferable warranty

This warranty extends only to the original purchaser who must have properly registered the

product. The product may be registered at the APC by Schneider Electric website,

www.apc.com.

Exclusions

APC by Schneider Electric shall not be liable under the warranty if its testing and

examination disclose that the alleged defect in the product does not exist or was caused by

end user’s or any third person’s misuse, negligence, improper installation or testing. Further,

APC by Schneider Electric shall not be liable under the warranty for unauthorized attempts

to repair or modify wrong or inadequate electrical voltage or connection, inappropriate on-

site operation conditions, corrosive atmosphere, repair, installation, exposure to the

elements, Acts of God, fire, theft, or installation contrary to APC by Schneider Electric

recommendations or specifications or in any event if the APC by Schneider Electric serial

number has been altered, defaced, or removed, or any other cause beyond the range of the

intended use.

THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, BY OPERATION OF LAW OR

OTHERWISE, OF PRODUCTS SOLD, SERVICED OR FURNISHED UNDER THIS

AGREEMENT OR IN CONNECTION HEREWITH. APC BY SCHNEIDER ELECTRIC

DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY, SATISFACTION

AND FITNESS FOR A PARTICULAR PURPOSE. APC BY SCHNEIDER ELECTRIC

EXPRESS WARRANTIES WILL NOT BE ENLARGED, DIMINISHED, OR AFFECTED BY

AND NO OBLIGATION OR LIABILITY WILL ARISE OUT OF, APC BY SCHNEIDER

ELECTRIC RENDERING OF TECHNICAL OR OTHER ADVICE OR SERVICE IN

CONNECTION WITH THE PRODUCTS. THE FOREGOING WARRANTIES AND

REMEDIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES AND

REMEDIES. THE WARRANTIES SET FORTH ABOVE CONSTITUTE APC BY

SCHNEIDER ELECTRIC’S SOLE LIABILITY AND PURCHASER’S EXCLUSIVE

REMEDY FOR ANY BREACH OF SUCH WARRANTIES. WARRANTIES EXTEND ONLY

TO PURCHASER AND ARE NOT EXTENDED TO ANY THIRD PARTIES.

IN NO EVENT SHALL APC BY SCHNEIDER ELECTRIC, ITS OFFICERS, DIRECTORS,

AFFILIATES OR EMPLOYEES BE LIABLE FOR ANY FORM OF INDIRECT, SPECIAL,

CONSEQUENTIAL OR PUNITIVE DAMAGES, ARISING OUT OF THE USE, SERVICE

OR INSTALLATION, OF THE PRODUCTS, WHETHER SUCH DAMAGES ARISE IN

CONTRACT OR TORT, IRRESPECTIVE OF FAULT, NEGLIGENCE OR STRICT

LIABILITY OR WHETHER APC BY SCHNEIDER ELECTRIC HAS BEEN ADVISED IN

ADVANCE OF THE POSSIBILITY OF SUCH DAMAGES. SPECIFICALLY, APC BY

SCHNEIDER ELECTRIC IS NOT LIABLE FOR ANY COSTS, SUCH AS LOST PROFITS

OR REVENUE, LOSS OF EQUIPMENT, LOSS OF USE OF EQUIPMENT, LOSS OF

SOFTWARE, LOSS OF DATA, COSTS OF SUBSTITUENTS, CLAIMS BY THIRD

PARTIES, OR OTHERWISE.

NO SALESMAN, EMPLOYEE OR AGENT OF APC BY SCHNEIDER ELECTRIC IS

AUTHORIZED TO ADD TO OR VARY THE TERMS OF THIS WARRANTY. WARRANTY

TERMS MAY BE MODIFIED, IF AT ALL, ONLY IN WRITING SIGNED BY AN APC BY

SCHNEIDER ELECTRIC OFFICER AND LEGAL DEPARTMENT.

Warranty claims

Customers with warranty claims issues may access the APC by Schneider Electric

customer support network through the Support page of the Schneider Electric website,

www.apc.com/support. Select your country from the country selection pull-down menu at

the top of the Web page. Select the Support tab to obtain contact information for customer

support in your region.

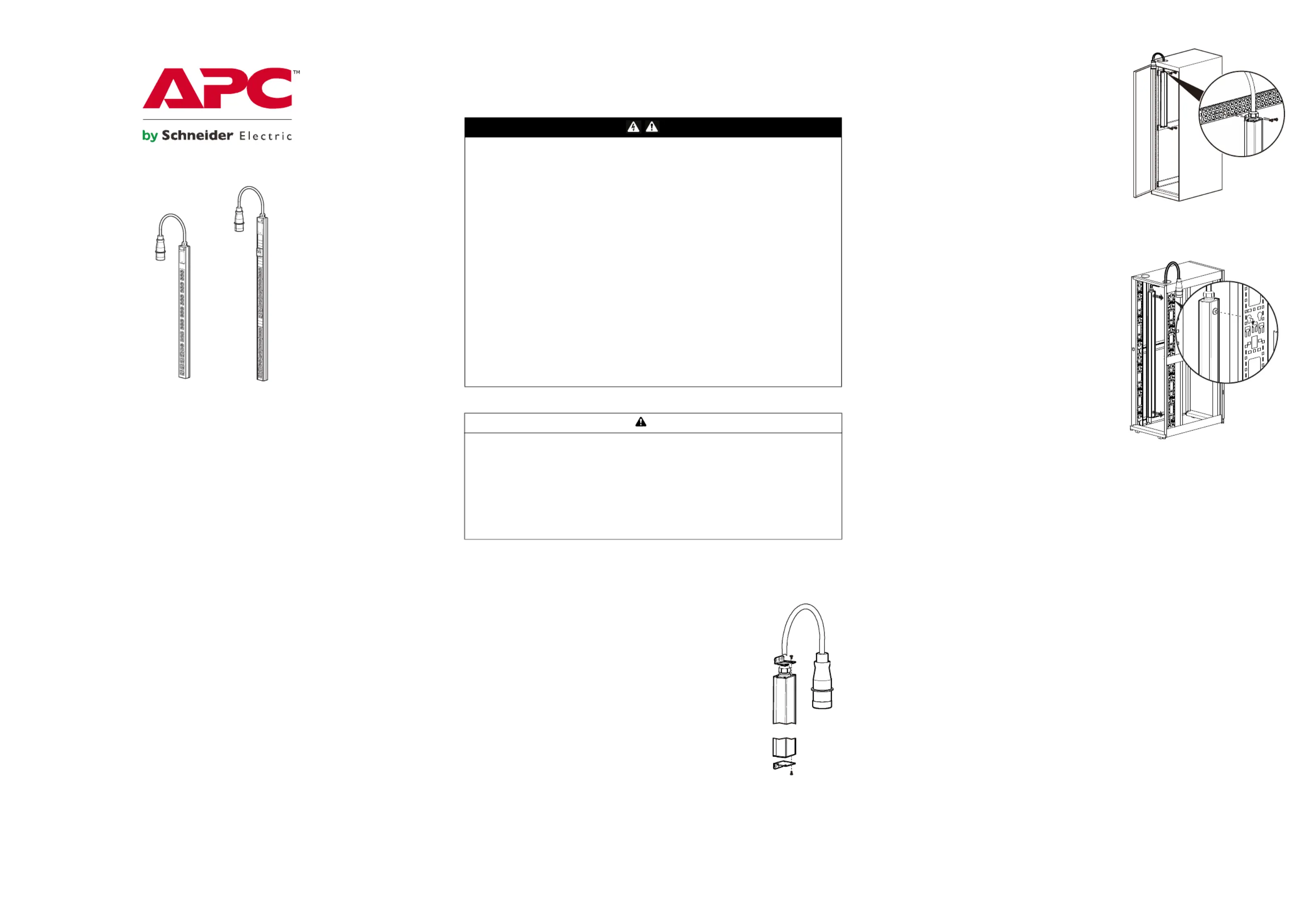

Basic Rack PDU 机架配电单元安装手册

全球客户支持

客户支持和保修信息，请访问：www.apc.com。

安全信息

此表提供了 Easy PDU 的安装信息。请仔细阅读说明。

接收

检查包装和内容是否有运输损坏。确保所有部件都已发送。立即向运输代理商报告任何

运输损坏。

请通过 apc.com 联系您的 APC by Schneider Electric 经销商或全球客户支持，以报告

产品缺失的内容，产品损坏或其他问题。

材料回收

运输材料是可回收的。请妥善保管以备日后使用，或妥善处理。

EPDU1116B

EPDU1132B

990-91330A 10/2021

安全

在安装或操作您的 APC by Schneider Electric Rack 配电单元（PDU）之前，请阅读以

下信息。

安装

把机架 PDU 垂直的安装在 Easy 机架或任何标准的 EIA-310 机架。

方式 1– 垂直支架安装

1. 使用随附的硬件，把两个支架安装到机架 PDU 上。

危险

触电、爆炸或电弧闪光的危险

• 如果盖板拆除，请勿操作机架 PDU。

• 内部没有用户可以检修的零件。请安排具有资历的人员进行检修。

• 连接固定和电缆控制附件时，只能使用我们提供的器件。

• 只能在室内的干燥位置使用。

• 安装机架 PDU 时，请遵守当地和国家的所有法规。

• 在无法确认是否接地时，在机架 PDU 连接设备前，请从市电电源插座断开机架

PDU。

• 机架 PDU 适当安装到机架式机柜，且完成了所有负载和信号连接后，在市电电源

插座，连接机架 PDU 的电源线。

• 确保市电电源插座和机架 PDU 电源线和插头状况良好。

• 请勿独自作业，亦不得在危险条件下作业。

• 高电流通过导电材料会引起严重烧伤。

• 检修负载设备或电源线前，从该产品断开负载电源线。

• 请务必使用具有合适额定电压的传感设备，确认电源已经关闭。

• 连接的负载可能泄漏出高电流。如果总的泄漏电流将超出 3.5mA，接通机架 PDU

前，将一根接地线从机架 PDU 辅助接地（M5 螺纹）连接到设施中的可靠接地。

否则，可能导致死亡或严重受伤。

警告

起火危险

• 该设备应当连接到单一插座的专用电路，并利用具有与机架 PDU 相同电流等级的

断路器或保险丝加以保护。

• 插头或引入线用作机架 PDU 的断路器。确保机架 PDU 的市电电源插座靠近机架

PDU，且容易接近。

• 一些型号的机架 PDU 提供有 IEC C14 或 C20 引入线。用户应负责使用合适的电源

线。

否则，可能导致死亡或严重受伤。

pdu0891b

2. 用随附的四个 M5 x10 mm 自攻螺丝，把机架

PDU 固定在机架上。

方式 2- 免工具安装

机架 PDU 的安装钉已经在工厂预安装。

把两个固定销滑入机柜背面板通道中的空洞。

向下按压机架 PDU, 将其卡入，直至锁紧。

注意：安装机架 PDU 时，请确保电源线插头易于触

及，并且 PDU 连接到一个接地插座。

pdu 0888b

pdu0890b

Produktspezifikationen

Marke:	APC
Kategorie:	Nicht kategorisiert
Modell:	EPDU1216B
Breite:	62 mm
Tiefe:	44 mm
Gewicht:	3080 g
Produktfarbe:	Schwarz
Höhe:	1506 mm
Stecker:	IEC 60309
AC Eingangsfrequenz:	50 - 60 Hz
Betriebstemperatur:	-5 - 45 °C
Relative Luftfeuchtigkeit in Betrieb:	5 - 95 %
Verpackungsbreite:	160 mm
Verpackungstiefe:	110 mm
Verpackungshöhe:	1660 mm
Paketgewicht:	4280 g
Montage:	Senkrecht
Zertifizierung:	CE, TUV
Typ:	Dreiphasig
Kabellänge:	2.5 m
Betriebsanleitung:	Ja
Gehäusematerial:	Aluminium
Temperaturbereich bei Lagerung:	-25 - 65 °C
Luftfeuchtigkeit bei Lagerung:	5 - 95 %
Ein-/Ausschalter:	Nein
Ausgangsleistung:	11000 W
Max. Leistung:	11000 W
Höhe bei Betrieb:	0 - 3000 m
Anzahl der AC-Ausgänge:	42 AC-Ausgänge
AC-Steckertypen:	C13 coupler, C19 coupler
Stromstärke (maximal):	16 A
Nominale Eingang Spannung:	400 V
Nominale Ausgang Spannung:	230 V
Rack-Kapazität:	0U
Höhe bei Lagerung:	0 - 15000 m
PDU-Typen:	Standard
Maximaler Eingang Strom pro Phase:	16 A
Ladekapazität:	11000 VA
