Seite 1/28

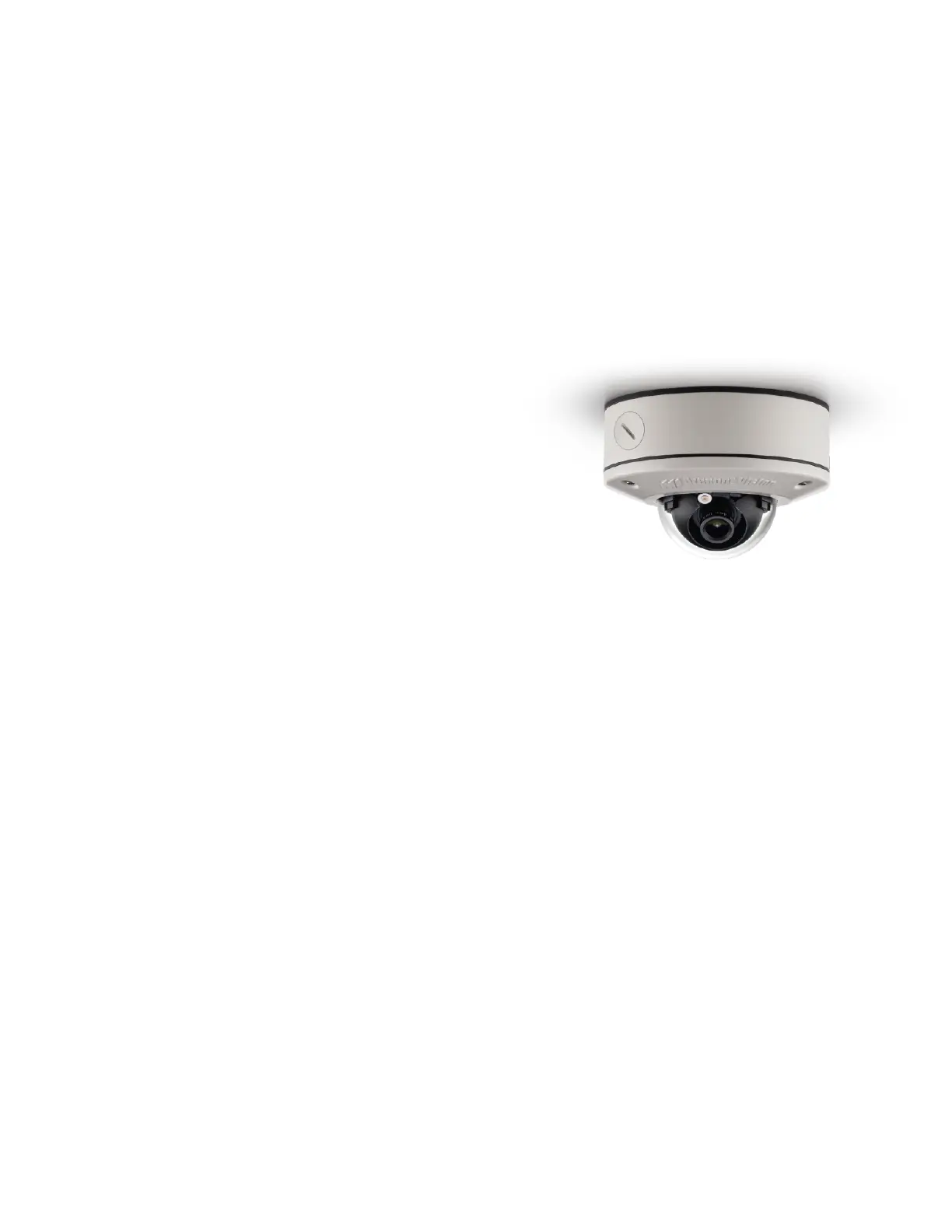

MicroDome®!G 2

-S Model Installation Manual!

Models:

1.2 Megapixel

• AV1555DN-S

• AV1555DN-S-NL

1080p

• AV2555DN-S

• AV2556DN-S

• AV2555DN-S-NL

• AV2556DN-S-NL

3 Megapixel

• AV3555DN-S

• AV3556DN-S

• AV3555DN-S-NL

• AV3556DN-S-NL

5 Megapixel

• AV5555DN-S

• AV555DN-S-NL

!! ! Installation!Manual!

Page | 2 support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

MicroDome®!G2

Contents

Package Contents!..................................................................................................................................................!3!

Camera Overview!...................................................................................................................................................!5!

Surface Mount (-S Model) Installation!.................................................................................................................!6!

Changing the Lens!...............................................................................................................................................!12!

Optional: Removing the Bubble!..........................................................................................................................!13!

Optional: Connecting Digital I/O!.........................................................................................................................!14!

Camera Discovery, Setup, and Configuration!..................................................................................................!18!

Network Protocols!................................................................................................................................................!18!

General Remote Focus!.......................................................................................................................................!19!

Refined Remote Focus!........................................................................................................................................!20!

AV IP Utility Focus Tab!........................................................................................................................................!22!

Wall Mount Accessory (MCD-WMT)!..................................................................................................................!23!

Pendant Mount Accessory (MCD-CMT)!................................................................................................ ...........!24!

Mounting Template: MicroDome

G2 Camera!.................................................................................................!25!

Mount Template: MicroDome

MCD-WMT Wall Mount!..................................................................................!26!

Mount Template: MicroDome

MCD-CMT Pendant Mount!...........................................................................!27!

Support!..................................................................................................................................................................!28!
