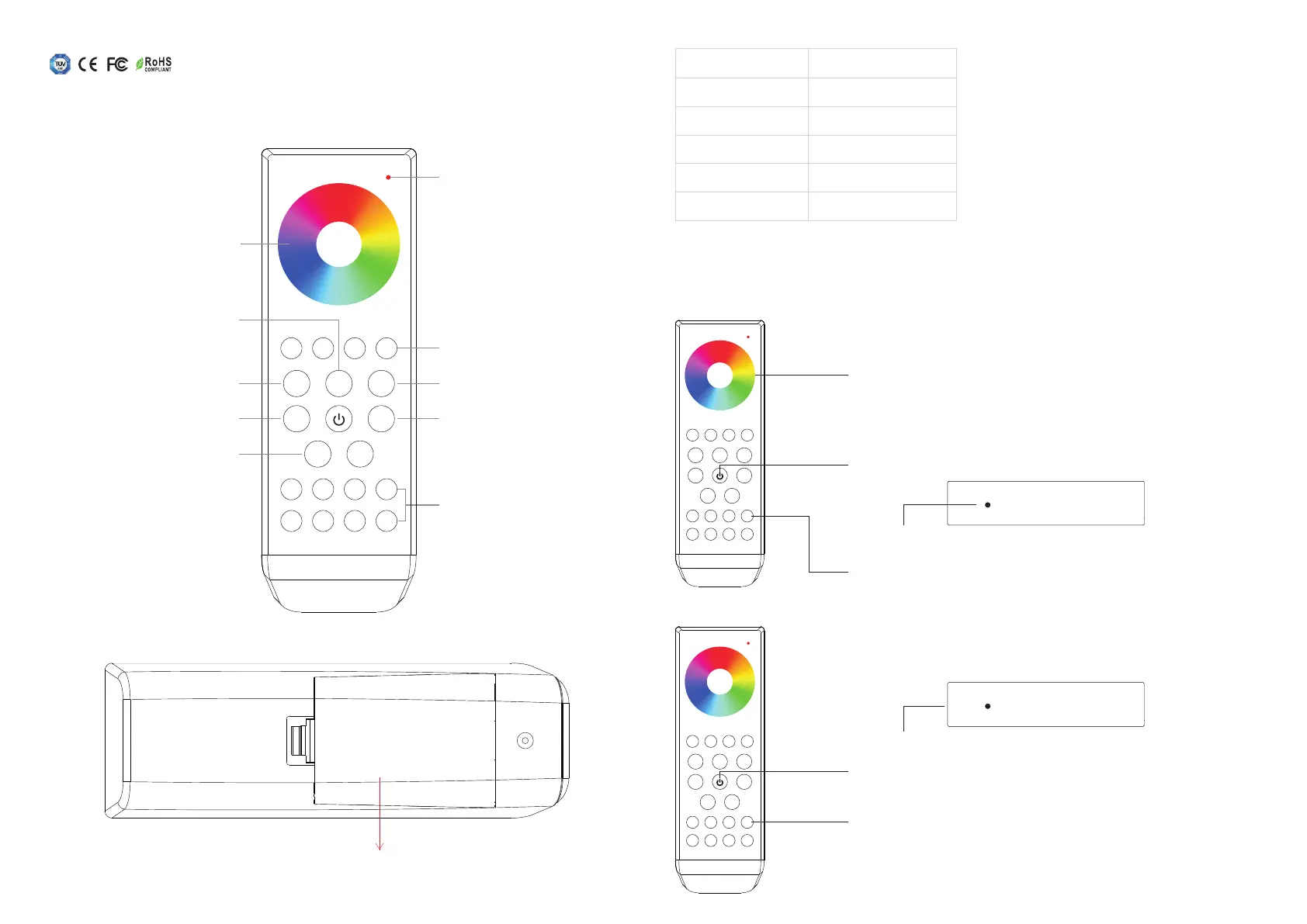

RF RGBW Remote Controller

09.289T8.04168

Indicator: indicate the state of

remote control

Click to switch CW,

NW, WW mixed by RGB

4.5V(3xAAA battery)

Function introduction

Important: Read All Instructions Prior to Installation

Output

RF signal

Operation Frequency

869.5/916.5/434MHz

Operating temperature

0-40°C

Relative humidity

8% to 80%

Dimensions

131.4x43.8x24.3mm

Front side

Back side

• High sensitive & high stable, fast & precise color control.

• Enable to control 8 zones separately.

• 10 changing modes.

• Compatible with all universal series RF receivers

• 1 receiver can be paired by max 8 different remote controls.

• Waterproof grade: IP20

Product Data

Safety & Warnings

Power Supply

4.5V(3xAAA battery)

RGBW

S-S+

B-B+

Touch color wheel, touch to

choose RGB color tone

8 zones

Click to choose the zone/zones,

Press and hold down to turn on/off

corresponding zone

Press and hold down to increase

light intensity of RGB

Press and hold down to

decrease light intensity of RGB

Speed up under dynamic modeSpeed down under dynamic mode

R/G/B/W 4 channels.

Click to switch on/off each channel;

Press and hold down to increase/

decrease light intensity of each

channel

W+

P-P+

12

3

4

5

6

7

8

Built-in 10 dynamic modes,

P- is previous mode,P+ is next mode.

• This device contains AAA batteries that shall be stored and disposed properly.

• DO NOT expose the device to moisture.

Pair with RF receiver(Method 1)

Step 4:Choose and click a zone number(e.g.zone4)

Step 3:Click the “Learning Key” button on RF receiver or re-power on the receiver

three times continuously to set it into pairing status

LearningKey

RF LED Receiver

Step 1:Do wiring the RF receiver according to wiring diagram(please refer to the

instruction of RF receiver that you would like to pair with.

Step 5:Touch the color wheel, LED lights connected with the RF receiver flicker

once means the receiver is paired with zone 4 successfully.

Step 2:Click ON/OFF button to activate the remote

Pair with RF receiver(Method 2)

Step 4:Choose and click a zone number(e.g.zone4) twice, then press and hold it

continuously and quickly within 10 seconds, LED lights connected with the RF receiver

flicker once means the receiver is paired with zone 4 successfully.

Step 3:Power off and power on the receiver

LearningKey

RF LED Receiver

Step 1:Do wiring the RF receiver according to wiring diagram(please refer to the

instruction of RF receiver that you would like to pair with.

Step 2:Click ON/OFF button to activate the remote

RGBW

S-S+

B-B+

W+

P-P+

12

3

4

5

6

7

8
