AMERICAN SPECIALTIES, INC.

441 Saw Mill River Road, Yonkers, NY 10701

(914) 476.9000 • (914) 476.0688

www.americanspecialties.com

MODEL №:

ISSUED:

REVISED:

THIS MANUFACTURER RESERVES THE RIGHT TO MAKE CHANGES IN DESIGN OR DIMENSIONS WITHOUT FORMAL NOTICE

SPECIFICATION

L-shaped Phenolic Fold-up Shower Stall Seat shall have all metal parts fabricated of 18-8 alloy type 304 stainless

steel. Seat frame and support legs shall be 1" diameter [Ø25] and 1-1/4" [32] square x 18 gauge [1,2] with

3/16" [4,8] thick mounting flanges and 16 gauge [1,5] guide bracket/arm support. All exposed surfaces shall have

satin finish. Structural assembly shall be of welded construction and all exposed edges and corners shall be radi-

used and/or deburred. Seat shall be solid phenolic with white color top and bottom surfaces and shall have black

edges. Support arm shall fold up when in retracted position to provide low profile against wall. No extra fittings

shall be required to retain seat in storage position. Guide bracket shall control seat lowering into operating posi-

tion. Unit shall satisfy 2010 ADA Accessibility Standards when mounted properly.

L-shaped PhenolicFold-up Shower Stall Seat shall be Model N

o

8206-___ (R for right hand or L for left

hand) of American Specialties, Inc., 441 Saw Mill River Road, Yonkers, New York 10701- 4913

INSTALLATION

This unit is surface mounted. Installer/construction contractor must provide concealed anchor plate or blocking as

specified in construction documents or as required by local building codes prior to wall finishing. Fasten unit

flanges and guide bracket to concealed anchor or blocking plate with appropriate hardware. See “STRENGTH”

section below. Note that concealed mounting plates or anchors and hardware are not supplied with this product

and must be specified separately. Ensure that mounting configuration complies with local building codes. Unit is

reversible in the field for right or left hand installation.

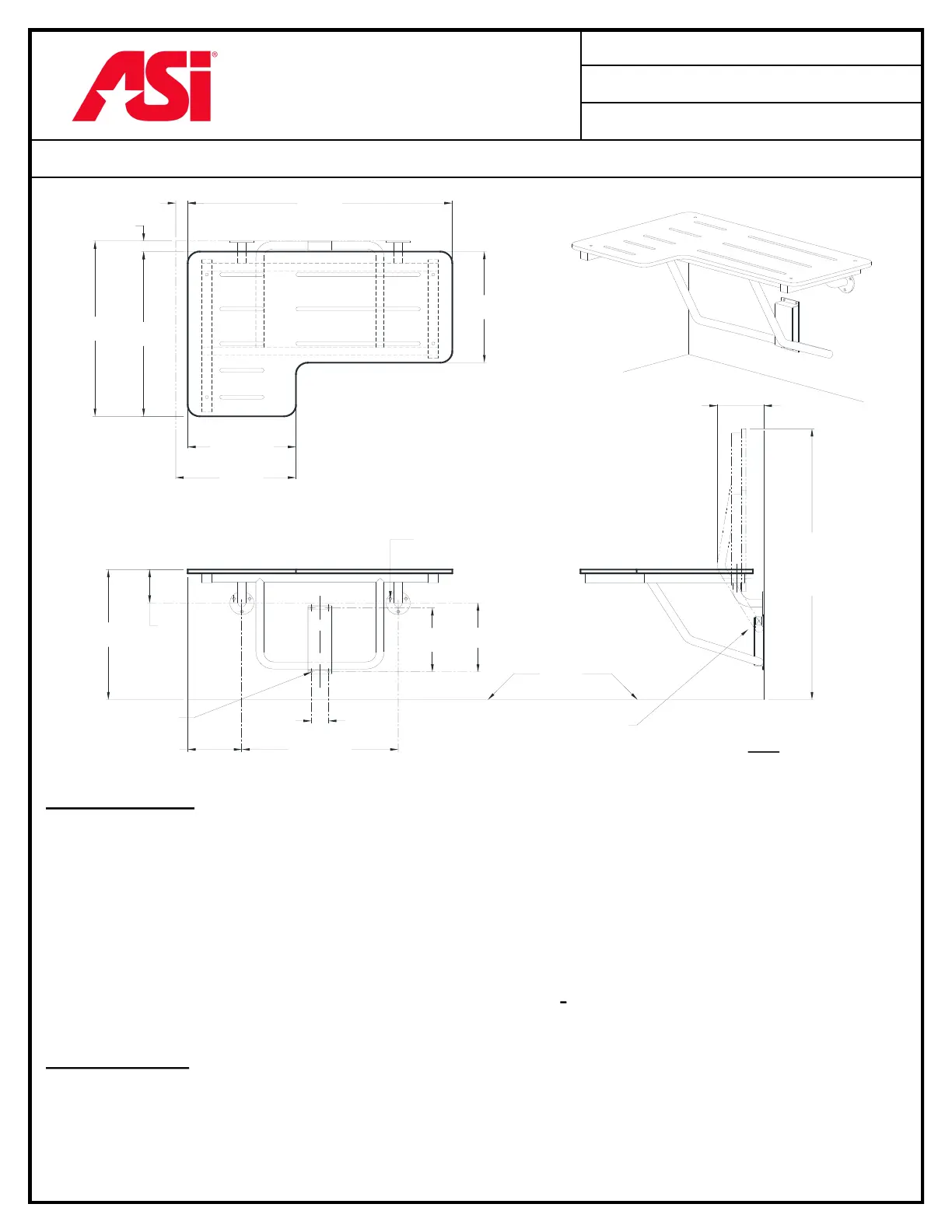

L-SHAPED PHENOLIC FOLD-UP SHOWER STALL SEAT (Pg 1 of 2)

8206

05 JAN 1987

12 SEP 2019

17" TO 19"

[432 TO 483]

4-3/8"

[111]

6-3/4" [171]19-1/2" [495]

9

[229]

8-3/8"

[213]

35-3/8"

[899]

TO

37-3/8"

[949]

22-7/8"

[581]

21-1/2"

[546]

1-3/8"

[35]

33" [838]1-1/2" [38]

13-1/2" [343]

15" [381]

14-1/2"

[368]

2-1/8"

[54]

SPRING

DETENT

2-1/4" DIA [Ø 57]

BOLT CIRCLE FOR #10

FASTENERS

1/4" DIA [Ø6]

HOLES (4)

FINISHED

FLOOR

C

L

C

L

C

L

C

L

C

L

C

L

C

L

C

L

5-13/16"

[147]

RIGHT HAND SHOWN

LEFT HAND OPPOSITE

FIELD REVERSIBLE

NOTE:

ALL DIM’S INCH [MM]

ILLUSTRATION FOR REF ONLY AND NTS
