Seite 1/2

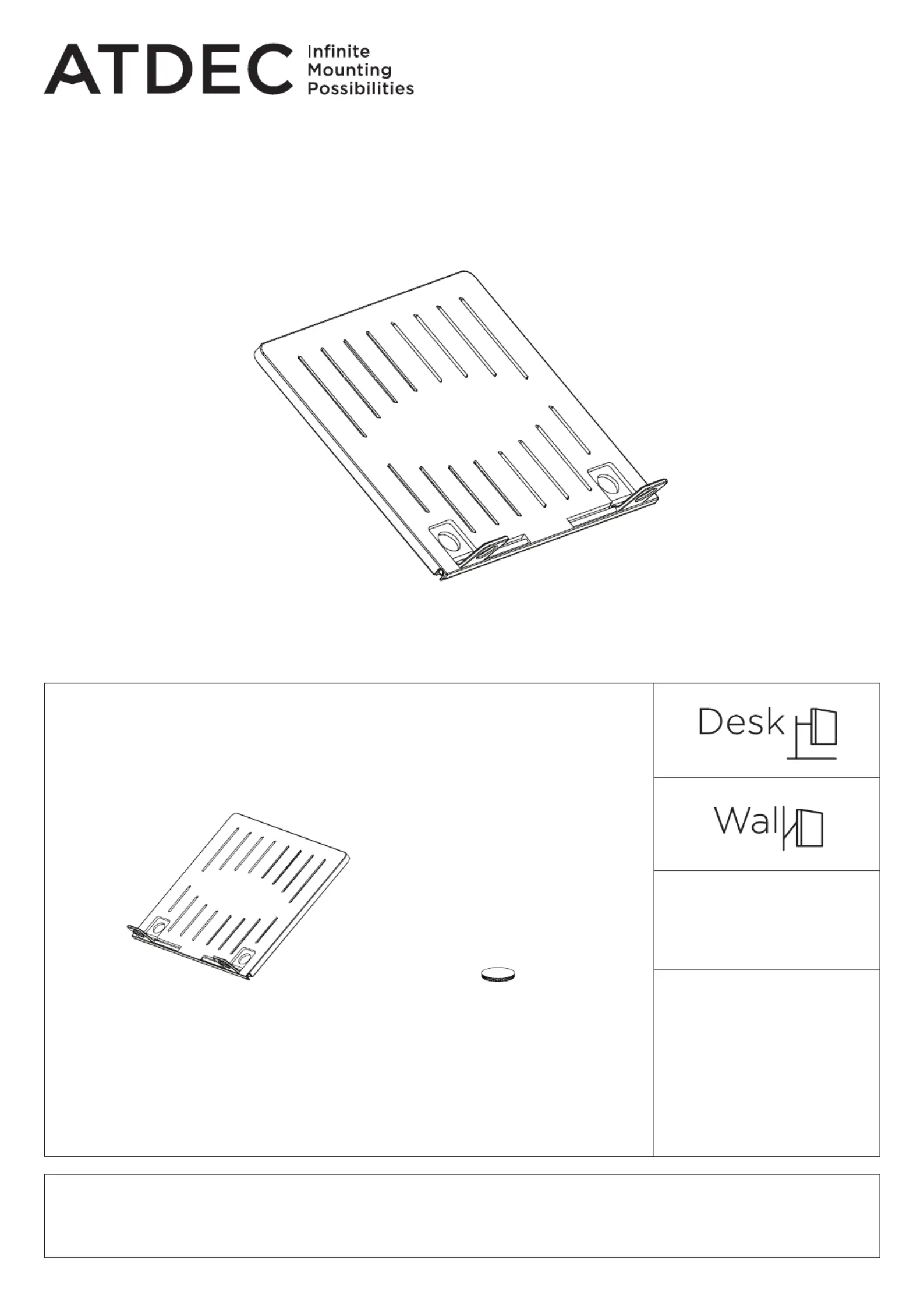

AWM-HN Page 1 of 2

Installation Guide

AWM-HN

AWM Notebook Tray

COMPONENT CHECKLIST

REQUIRED TOOLS

• 4mm allen key

(supplied with monitor arm)

Notebook

Tray

(x1)

Hook-and-Loop

Fasteners

(x4)

0 - 8 kg

(0 - 18 )lb

WEIGHT RANGE

Device weight should be

within the weight range of

all modular elements that

make up the complete

monitor mounting solution.

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! This product is compatible with AWM Series monitor arms: AWM-A13, AWM-A46, AWM-A71, AWM-AD

! The manufacturer accepts no responsibility for incorrect installation.

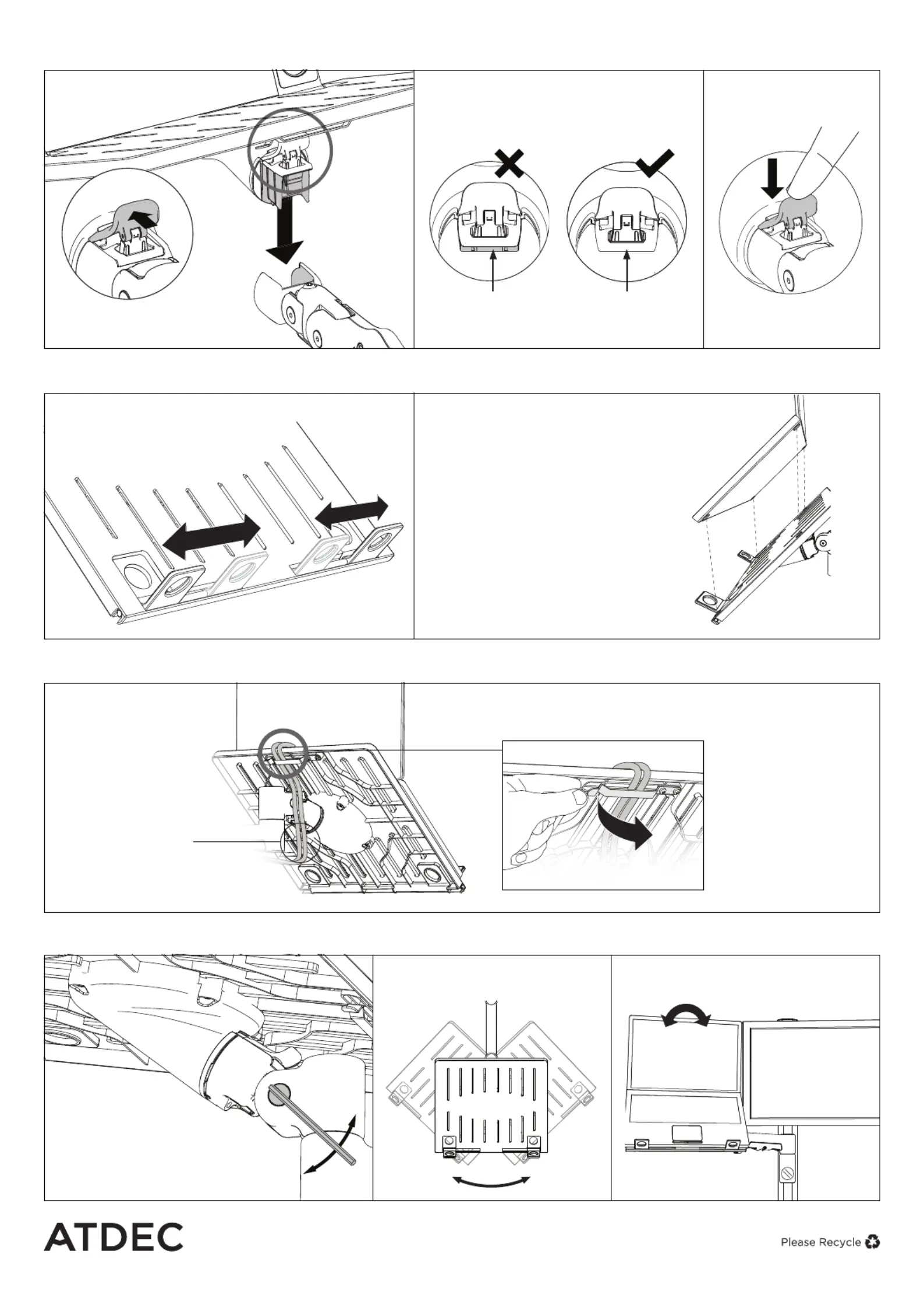

AWM-HN Page 2 of 2

1. Mount Notebook Tray onto arm

2. Mount notebook computer

3. Cable management

4. Adjust Notebook Tray

1.3 Push the lever down

to secure it to the arm

assembly.

1.2 Ensure that the Notebook Tray is seated

fully into the receptacle at the end of the

monitor arm. There should be gap.no

1.1 Insert Notebook Tray into

the monitor arm

Gap No gap

Note: Ensure the lever is

unlocked when tting.

2.1 Adjust the support tabs to

suit the width of the notebook

computer ensuring that cable

ports are not obstructed.

2.2 To increase stability, use the

self adhesive Hook-and-Loop

Fasteners supplied.

a. Peel off the backing paper to

the fasteners.

b. Attach fasteners to both the

Notebook Tray and notebook

computer.

c. Ensure that each set of

fasteners are correctly aligned

i.e. Hook to Loop.

3.1 Cable clips and covers

can be used to further

manage cables.

4.1 Adjust monitor

arm tilt tension using

4mm allen key.

Tighten

Loosen

4.3 Position and align notebook with

other monitors.

4.2 Pan Notebook Tray to desired

position.

Note: After

connecting the

notebook computer

cables, route them

through the cable

management clip

on the back of the

Notebook Tray.

Note: Ensure enough

cable slack is given to

allow for movement.

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

LIFT

Note: Ensure Notebook

Tray is supported whilst

making tilt adjustments.

+/- 5°

Levelling

Adjustment

Produktspezifikationen

Marke:	Atdec
Kategorie:	Nicht kategorisiert
Modell:	AWM-HN
Produktfarbe:	Schwarz
Verpackungsbreite:	290 mm
Verpackungstiefe:	320 mm
Verpackungshöhe:	90 mm
Paketgewicht:	820 g
Menge pro Packung:	1 Stück(e)
Anzahl Produkte pro Versandkarton:	10 Stück(e)
Gewicht Versandkarton:	8600 g
Länge des Versandkartons:	595 mm
Breite des Versandkartons:	335 mm
Höhe des Versandkartons:	450 mm
