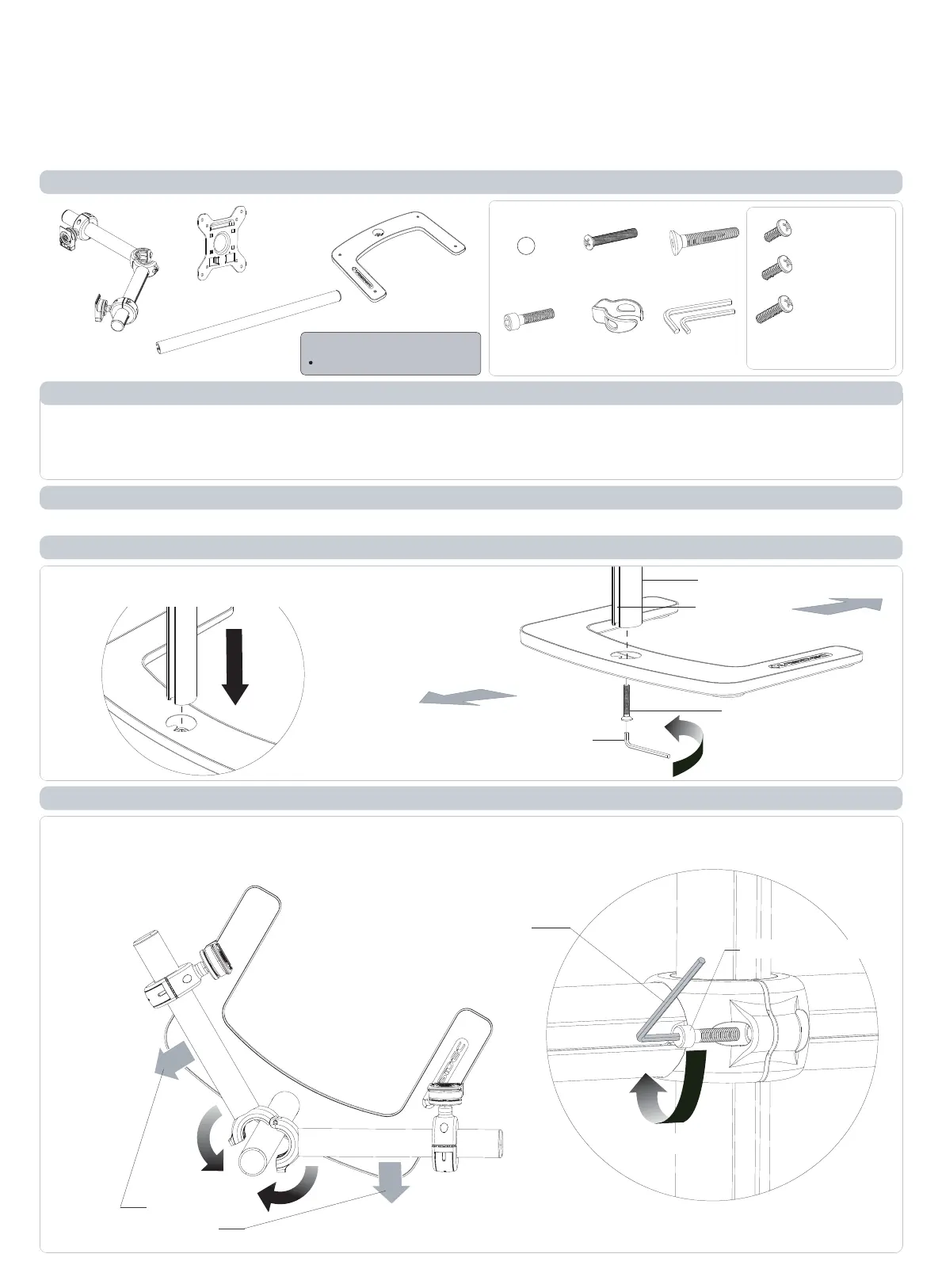

Component Checklist

VFS-Q

IMPORTANT INFORMATION:

Step 1. Check Components

Step 2. Attach Upright Pole to Base

! IMPORTANT - Install Freestanding/Quad as per Installation Instructions.

! Each Quickshift Donut supports a maximum weight of 12kg (26.5lbs).

! This product supports VESA mounting hole configurations: 75x75mm and 100x100mm.

Display Mounting

Screws

Hardware

Check you have received all parts against the component checklist and Hardware above.

M4x12mm (x16)

VESA Plate (x4)

M4x10mm (x16)

M4x16mm (x16)

(Optional)

Security Screw (x4)

Cable Ball

(x8)

Cable Clip (x4)

5/3mm Allen

Key (x1 each)

Installation Instructions

Freestanding

l

Quad

Base

Upright Pole

TOOLS REQUIRED:

Phillips Head Screw Driver

M8x50mm

Screw (x1)

Step 3. Attach Horizontal Support

Cable Slot

USER

BACK

TIGHTEN

FIRMLY

Upright Pole

M8x50mm Screw

5mm Allen Key

Attach the Upright Pole to the Base as shown

below. Ensure the Cable Slot faces towards the rear.

! The manufacturer accepts no responsibility for incorrect installation.

Horizontal

Support (x2)

Clamp the Horizontal Support around the Upright Pole at the required height. Ensure the

Slots in all the Poles are facing to the rear. Tighten support using the M6x25mm Cap

Screw and 5mm Allen Key supplied.

M6x25mm

Cap Screw (x2)

Cable slot to

face back

CLAMP

HOLD SUPPORT IN PLACE

TIGHTEN

M6x25mm Cap Screw

5mm Allen Key
