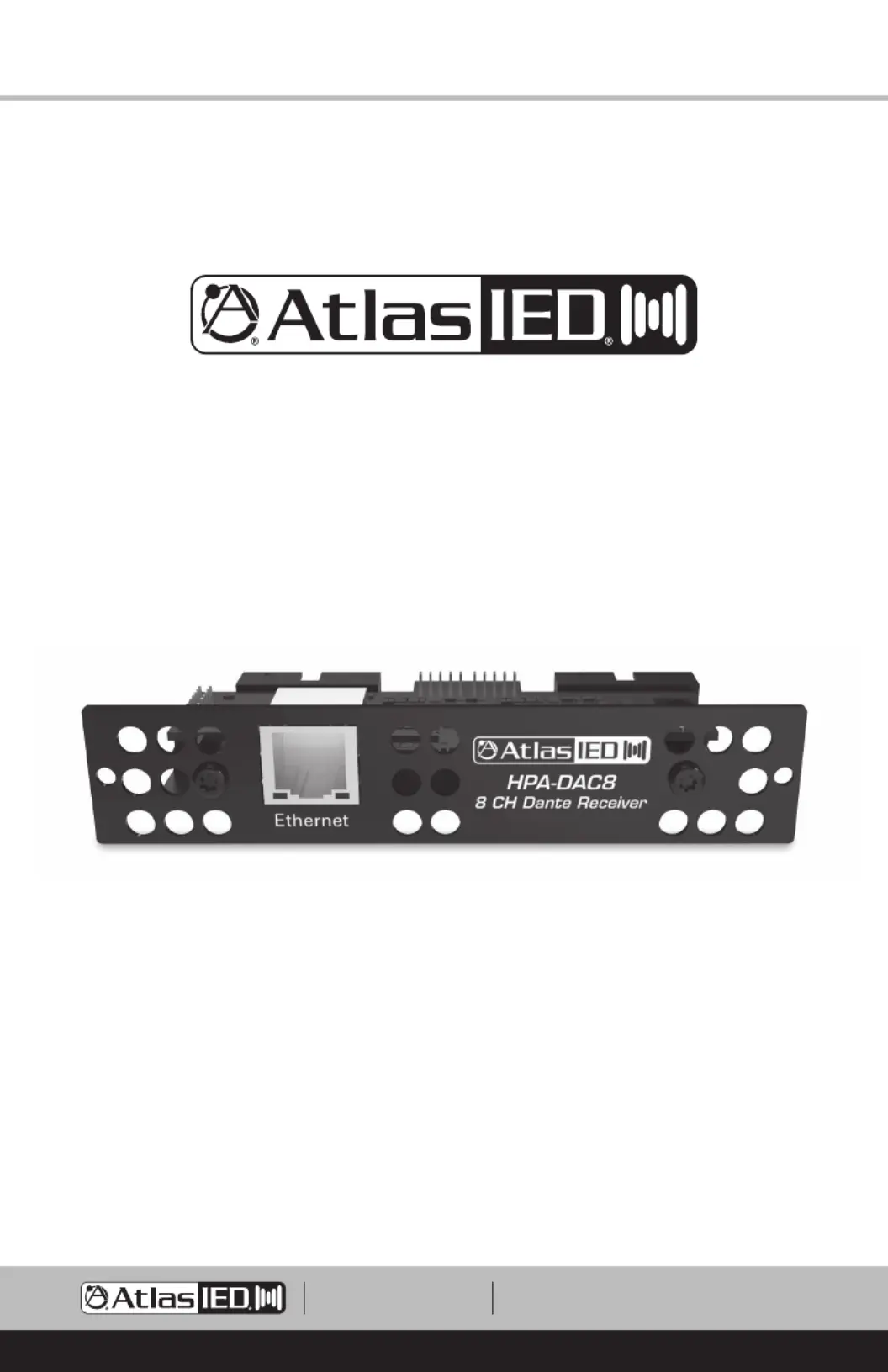

HPA-DAC8
Dante
®
Accessory Card
– 2 –
HPA-DAC8
Owner’s Manual
AtlasIED.com
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
Introduction
The HPA-DAC8 accessory card is designed to work in conjunction with HPA Series
8-channel amplifiers. The HPA-DAC8 is an 8-input Dante
®
receiver that features digital
audio transportation over standard IP networks. The HPA Series 8-channel amplifiers
come standard with eight balanced line inputs and an accessory slot to fit the HPA-DAC8.
Dante
®
input 1, and the analog balanced input levels are isolated from each other and
are electronically summed together forming a mixed output. Both the Dante
®
input and
the analog balanced input levels to the amplifier channel are controlled by the Ch-1 level
control. Channel 2 through 8 inputs are configured the same as Channel 1.
Key Features
• Dante
®
Digital Audio Platform
• 8-Channel Receiver
• Integrates with 8-Channel HPA Series Amplifiers
Dante
®
Overview
Audinate
®
created Dante
®
, an uncompressed, multi-channel digital media networking
technology, with near-zero latency and synchronization. Hundreds of Dante
®
enabled
products allow you to find the right mix of devices for your system requirements.
One cable does it all. Dante
®
does away with heavy, expensive analog or multicore
cabling, replacing it with low-cost, easily-available CAT5e, CAT6, or fiber optic cable for a
simple, lightweight, and economical solution. Dante
®
integrates media and control for your
entire system over a single, standard IP network.
Dante
®
systems can easily scale from a simple pairing of a console to a computer, to large
capacity networks running thousands of audio channels. Because Dante
®
uses logical
routes instead of physical point-to-point connections, the network can be expanded and
reconfigured at any time with just a few mouse clicks.
Since the signal audio is transmitted digitally, common analog challenges like interference
from other electrical equipment, crosstalk between cables, or signal degradation over long
cable runs is not a problem. Setting up Dante
®
networks is easy, even the most complex
networks can be set up and configured quickly and easily with Dante
®
, making system
integration simple. Dante
®
automatically handles the technical complexities.
Signal routing and system configuration with Dante
®
is fast, simple, and incredibly
flexible. Dante
®
Controller is a powerful software application that manages devices on the
network. Setting up a Dante
®
network is typically just a matter of plugging devices into
an Ethernet switch and connecting a computer to the network. All Dante
®
devices are
automatically discovered and displayed in Dante
®
Controller, so a system can be up and
running in seconds.
Visit www.audinate.com for details or to learn more on using Dante
®
. There are many
Dante
®
guides available in the industry. AtlasIED offers one in the BlueBridge
®
DSP
section of atlasied.com.
– 3 –
HPA-DAC8
Owner’s Manual
AtlasIED.com
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
Audio Applications
When installed, the HPA-DAC8 converts the HPA Series amplifier into a digital audio
network amplifier and makes the HPA Series amplifier the “go to” solution for a variety of
applications including:
• Restaurants
• Government Facilities
• Schools
• Industrial Facilities
• Houses of Worship
Matching Gain from a Source to the HPA Series Amplifier in a
Dante
®
Network
Understanding the gain structure is very important to avoid clipping the audio signal or
amplifier output. There are three potential ways to clip the signal chain.
1. Amplifier Input Clipping - This occurs when the applied input signal exceeds the
maximum input level of the amplifier input stage.
2. Amplifier Output Clipping - When the channel level controls are set to maximum,
0dBV / 1V of input signal is required to achieve maximum amplifier output.
Note: AtlasIED recommends the level to be set with the level being controlled from
the source. Exceeding 1V or 0dBV level will cause the amplifier output stage to clip.
3. Digital Clipping - This occurs when the 0dBFS levels are exceeded. This is very
important to understand. Several examples are provided to help understand digital to
analog gain structure. AtlasIED recommends to always place a limiter set for 0dB Note:
in the signal path prior to the Network Output of the transmitting device. This is the
best way to prevent clipping the HPA-DAC8.
