Seite 1/13

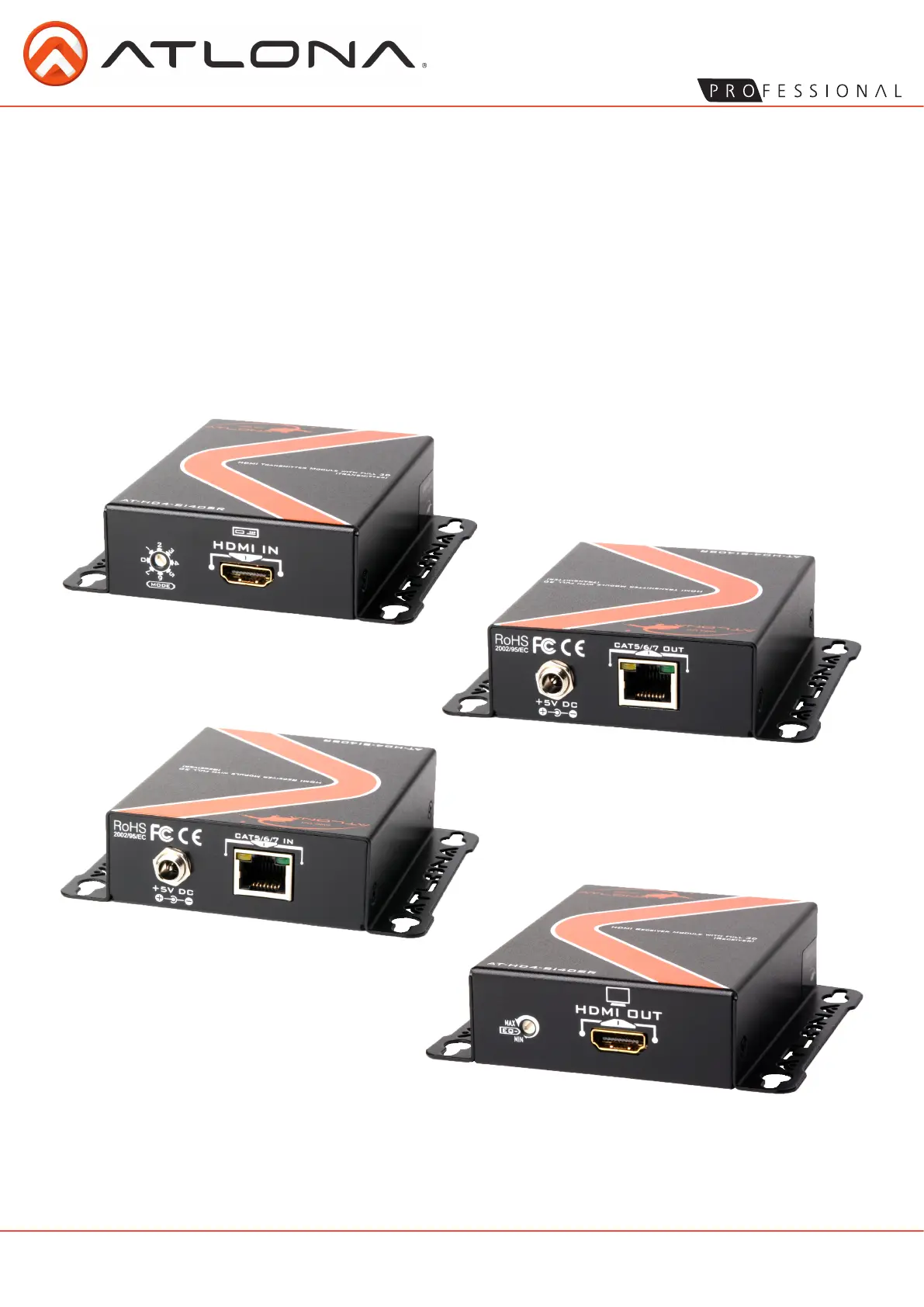

Atlona HDMI Extender
over Single CAT5/6 up to 130 feet
with 3D Support
AT-HD4-SI40SR
User Manual
1. Introduction .................................................. 3
2. Package Contents .................................................. 3
3. Features .................................................. 3
.................................................. 4
5. Panel Descriptions .................................................. 5
5.1. Transmitting Module .................................................. 5
5.1.1. Front Panel .................................................. 5
5.1.2. Rear Panel .................................................. 5
5.2. Receiving Module .................................................. 6
5.2.1. Front Panel .................................................. 6
5.2.2. Rear Panel .................................................. 6
6. Installation .................................................. 7
7. EDID Learning .................................................. 7
.................................................. 8
8.1. HDMITM .................................................. 8
8.2. CAT5 [RJ45] .................................................. 8
9. Connection Diagram .................................................. 9
10. Performance Guide .................................................. 9
11. Notice .................................................. 10
12. Safety Information .................................................. 11
13. Warranty .................................................. 12
14. Atlona Product Registration .................................................. 12
Table of Contents
INTRODUCTION
The AT-HD4-SI40SR boosts up your video/audio transmission distance up to 60m (200ft) in HDTV 1080i format,
40m (130ft) in HDTV 1080p format, and 20m (65ft) in HDTV 1080p with 36-bit color depth. AT-HD4-SI40SR also
supports the most advanced 3D video format complaint with HDMI TM
the highest 3D video compatibility on the market. With only one cost effective Cat.5/5e/6 cable, users can readily
extend HDTV sources from DVD players, Blu-ray Disc player, PS3, PC, and any other kinds of sources compliant
with TMDS to distant display monitors including HDMITM
makes HDCP compliant DVD players or PS3 transmit utmost high quality video and audio with a greater distance
at the minimal cost, when integrating several components apart.
The AT-HD4-SI40SR includes two modules: transmitting module and receiving module. The transmitting module
is used to capture the input HDMITM/DVI signals and carry the signals via one cost effective Cat.5/5e/6 cable.
The receiving module is responsible for equalizing the transmitted HDMI TM signal. The transmission distance
between the sending and receiving modules can be up to 60m (200ft) at HD 720p or 1080i; or 40m (130ft) at Full
HD 1080p. With an 8-level equalization rotary control on the receiving module, users can adjust the equalization
strength to the received HDMITM signals accordingly, and therefore optimize the transmission distance between
source and destination.
PACKAGE CONTENTS
FEATURES
• High Speed HDMITM - Deep Color & full 3D support
• Extends the transmission up to 60m (200ft) from the HDMI source at HD 1080i or 720p 24-bit color
• Extends the transmission up to 40m (130ft) from the HDMI source at Full HD 1080p 24-bit color
• Extends the transmission length up to 20m (65ft) from the HDMI sources under Full HD resolution (1080p at
36-bit color depth)
• HDCP 1.1 compliant
• Minimizes the cable skew by adjustable 8-level equalization control
• Pure unaltered uncompressed 7.1ch digital HDMI over Cat.5/5e/6 cable transmission
• DTS-HD and Dolby TrueHD high bit rate audio support
• Allows cascading
• Wall mounting housing design for easy and robust installation
• Perfectly integrated with other HDMI over CAT5 series products
* The claimed transmission distance here is subject to the grade of installed cable(s), source device and display.
* For over CAT5/COAX transmission, the cable(s) has to be solid, not stranded. Any keystone jack along the
• 1x AT-HD4-SI40SR (Transmitting and Receiving Modules)
• 2x 5V power supply unit
• 1x User’s manual
3
