Seite 1/16
www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515

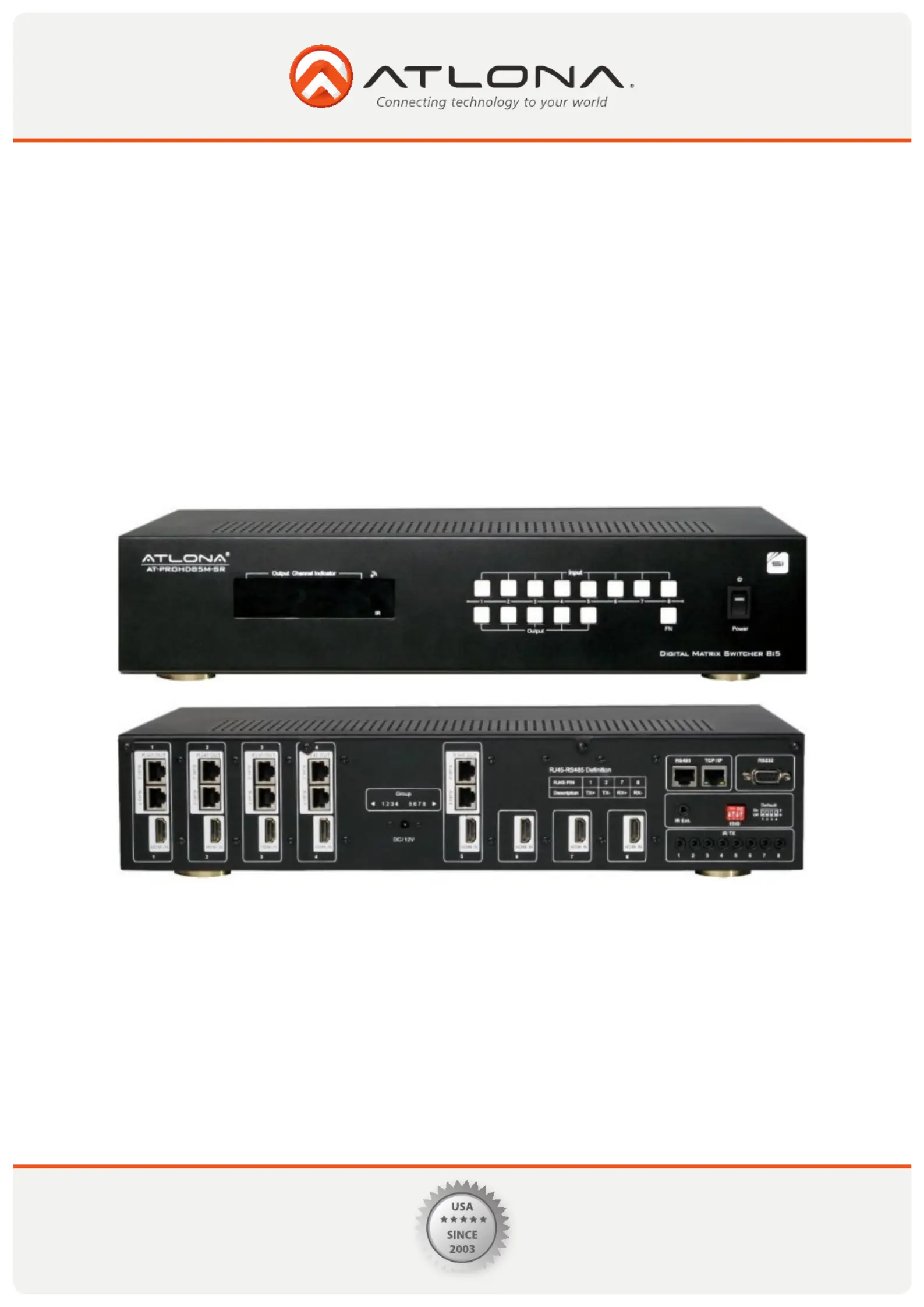

User Manual
8 X 5 HDMI MATRIX SWITCH
WITH 5 X CAT5 RECEIVERS INCLUDED
AT-PROHD85M-SR
1
www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
1. Introduction .................................................. 2
2. Package Contents .................................................. 2
3. Features .................................................. 2
4. Specification .................................................. 3
5. Panel Description .................................................. 3
5.1 Main Unit .................................................. 3
5.1.1. Front Panel .................................................. 3
5.1.2. Rear Panel .................................................. 4
5.2 HDMI Receiver .................................................. 4
6. Connection and Operation .................................................. 5
7. IR Remote Control .................................................. 8
8. TCP/IP Control .................................................. 9
9. RS-232 .................................................. 10
9.1. RS232 Control .................................................. 10
9.2. RS232 Cable Wiring .................................................. 11
9.3. RS232 Commands .................................................. 11
10. Safety Information .................................................. 13
11. Warranty .................................................. 14
12. Atlona Product Registration .................................................. 15
TABLE OF CONTENTS
2
www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
The Atlona AT-PROHD85M-SR is an HDMI 8X5 matrix switch which allows up to eight HDMI sources to be
independently switched to five HDMI displays. It extends sources such as Blu-Ray, X-Box or a Satellite receiver
up to 165ft @ 1080p and 1920x1200 resolutions to each remote video display. It offers full pass through for
all Digital audio formats such as Dolby True HD, DTS-HD Master Audio. You can control the AT-PROHD85M-
SR matrix by IR, RS-232, RS485, TCP/IP or from the front panel. Additionally an IR signal can be extended
through each remote location CAT5 receiver to the AT-PROHD85M-SR to control a source device.
• 1 x AT-PROHD85M-SR (main switch)
• 5 x AT-PROHD85M-R (receiver)
• 1 x IR handheld remote control
• 1 x 12V 5A DC power supply (110/220V universal) for main switch
• 5 x 5V 1A DC power supply (110/220V universal) for receivers
• 5 x receiver mounting brackets including screws
• 5 x IR RX (IR receiver cable)
• 8 x IR TX (IR emitter cable)
• 1 x USB to RS-232 (DB-9) cable (PC to matrix control cable)
• 1 x RS-485 to RS-232 adaptor
(extends an RS-232 connection over CAT5 from the matrix switches RS-485 port)
• 1 pair Rack mounting ears including screws
• 1 x instructional manual
• 1 x CD with Manual, RS232 codes, IR codes, TCP/IP Control program
• Allows up to eight HDMI sources to be independently switched to 5 HDMI video displays.
• Each RJ45 CAT5 zone output supports either dual or single CAT5.
• HDMI source to HDMI video display extension up to 165ft @ 1080p and 1920 x 1200 through CAT5.
• IR signal extension from supplied receivers to AT-PROHD85M-SR for local equipment rack source control.
• AT-PROHD85M-SR matrix switch can be controlled by IR, RS-232, RS485, TCP/IP or from the front panel.
• Supports HD resolutions up to 1080p or 1920 x 1200
• Pass through Digital Audio for all formats up to and including Dolby True HD and DTS-HD Master Audio
• Supports 3D
• HDCP and EDID compatible
INTRODUCTION
PACKAGE CONTENTS
FEATURES
