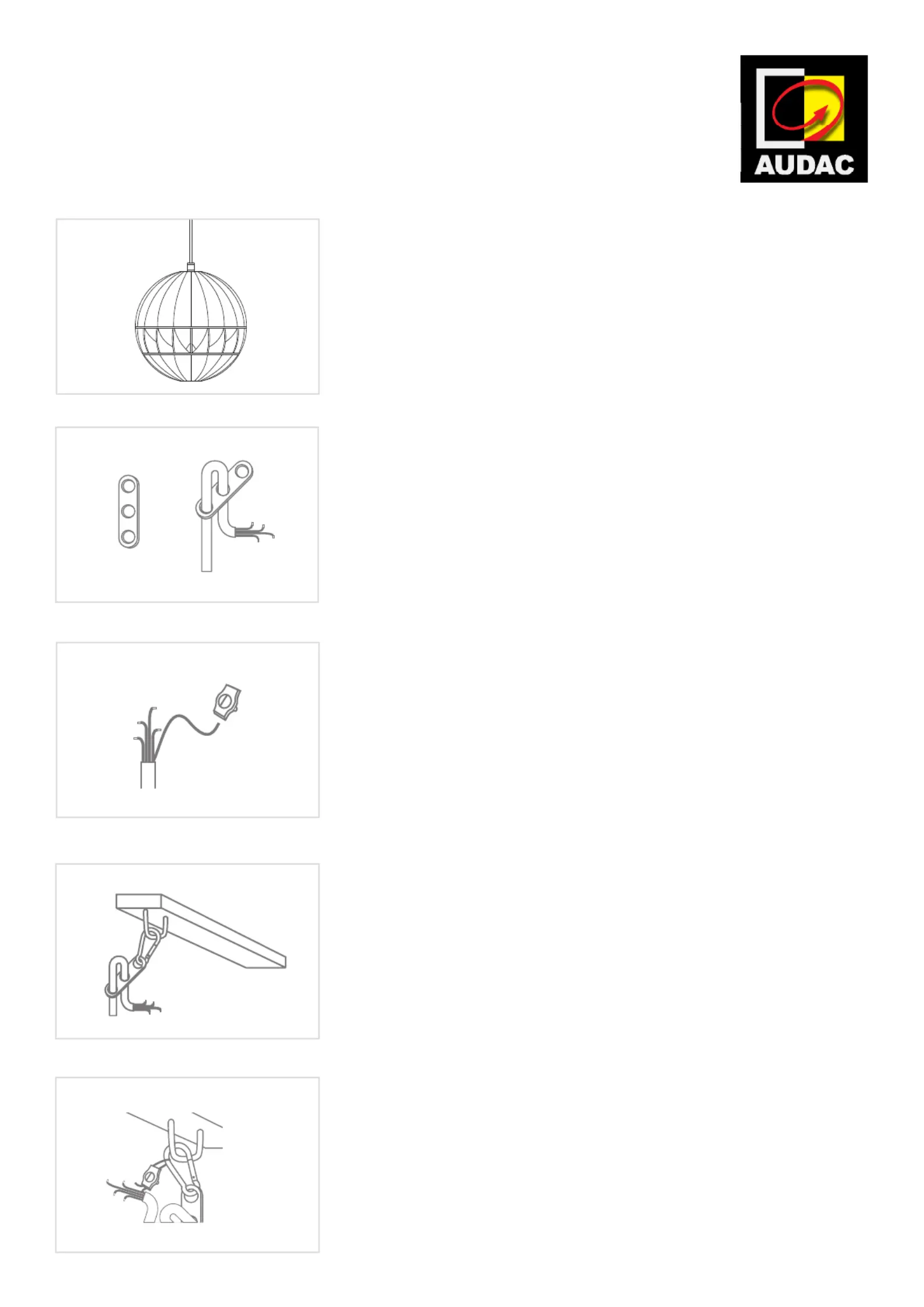

INSTALLATION MANUAL

ASP20 SPHERICAL HANGING SPEAKER

STEP 1

STEP 2

The ASP20 comes with a xed connection cable with a length of 3.5

meters. The connection cable consists of 5 copper cores whereby the

desired power tapping can be selected and a steel core for safe & secure

mounting and suspension of the speaker.

Slide the ceiling cover cap over the connection wire and put the

connection cable through the bottom hole of the included plastic wire

holder as shown in the drawing. Feed the cable through until the

required cable length for suspending is reached. Then pull the cable

through the second hole (middle one) until it is tight.

STEP 3

Cut the excess length of the cable to the desired length for reaching the

connection box, and remove the outer jacket for about 10 centimeters.

Once the outer jacket is removed, terminate the steel safety wire with

a loop whereby it can be hung to the included snap hook. Termination

of the steel core is done by inserting into the screw cable clamp, pulling

it through and insert it on the other end so a loop is made. Tighten the

screw afterwards.

STEP 4

Hang the speaker to the provided point on the ceiling and x it by

suspending the plastic wire holder to it using the included snap hook.

Make sure the suspension point can structurally support the weight

of the speaker and choose the fasteners depending on the mounting

surface (concrete, wooden, steel, ...).

STEP 5

Connect the speaker. The correct power tapping is chosen by connecting

the appropriate conductors to the wires coming from the amplier. A

description of the power tap selection is shown on the sticker on top

of the loudspeaker or as follows:

• Red: 250 Ω - 70V/20W

• Yellow: 500 Ω - 100V/20W - 70V/10W

• Blue: 1k Ω - 100V/10W - 70V/5W

• Green: 2k Ω - 100V/5W - 70V/2.5W

• Black: COM

Slide the ceiling cover over the connection and xation parts to nish it.

Produktspezifikationen

Marke:	Audac
Kategorie:	Lautsprecher
Modell:	ASP20
Gewicht:	2950 g
Mitgelieferte Kabel:	Audio (3,5 mm)
Empfohlene Nutzung:	Universal
Produktfarbe:	Weiß
Übertragungstechnik:	Kabelgebunden
Impedanz:	- Ohm
RMS-Leistung:	20 W
Equalizer:	Nein
Gehäusematerial:	ABS Synthetik
Audio Kanäle:	1.0 Kanäle
Anzahl des Antriebs:	1
Frequenzbereich:	- Hz
Durchmesser:	254 mm
Lautsprecherplatzierung:	Deckenmontage möglich
Subwoofer-Treiberdurchmesser (imperial):	8 "
Empfindlichkeit:	99 dB
Polklemme:	Ja
Musik Energie:	40 W
Für die Nutzung im Außenbereich geeignet:	Ja
