INSTALLATION MANUAL

CENA SERIES SPRING-FIT™ CEILING SPEAKERS

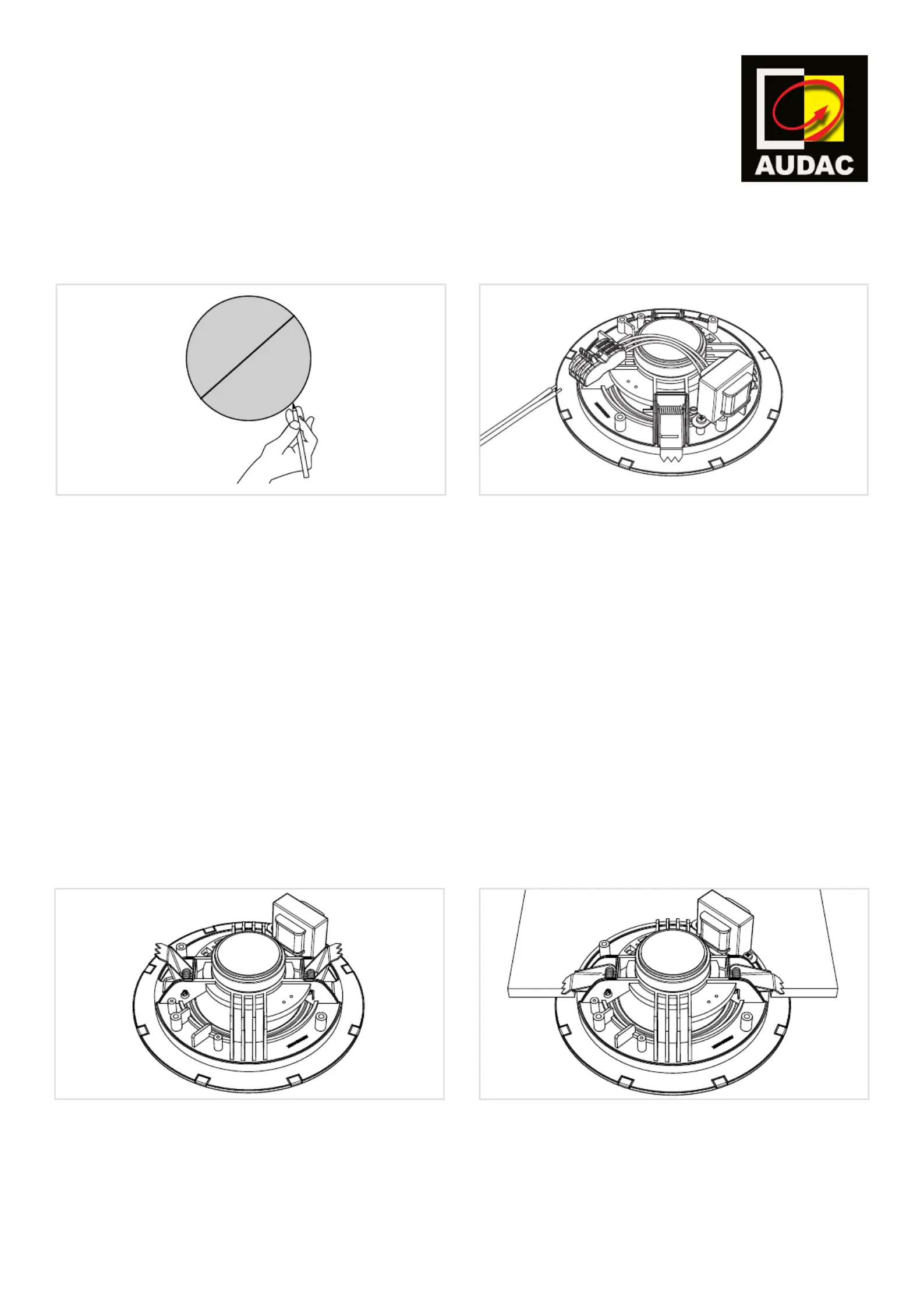

STEP 1STEP 2

Cut a hole on the desired mounting location in the

ceiling. Make sure the dimension is matching the

cut-out measurement for the installing loudspeaker

• CENA306 = Ø 80 mm

• CENA506 = Ø 150 mm

• CENA706 = Ø 167 mm

• CENA812 = Ø 207 mm

Double check if there are no cables or other

obstructions behind the mounting surface before

making the cut-out.

Connect the wires coming from the amplier to the

SnapConnect™ on the rear of the loudspeaker.

The correct power tapping is chosen by connecting the

appropriate terminals of the connector. A description

of the power tap selection is shown on the magnet

sticker on the rear side of the loudspeaker.

CENA306/506/706:

• Red: 6 Watt / 1667 Ω

• White: 3 Watt / 3333 Ω

• Black: COM

CENA812:

• Red: 12 Watt / 833 Ω

• White: 6 Watt / 1667 Ω

• Black: COM

Ø Diameter

STEP 3

Bend the spring loaded mounting arms inwards by

pushing them by ngers, making them t through the

provided ceiling cut-out.

STEP 4

Insert the speaker through the provided ceiling cut-

out, make sure the spring loaded mounting arms are

behind the clamping surface and release them. The

ceiling is clamped between the mounting arms and

the speaker bae and is installed correctly.

The speaker is now ready for use.
