Seite 1/4

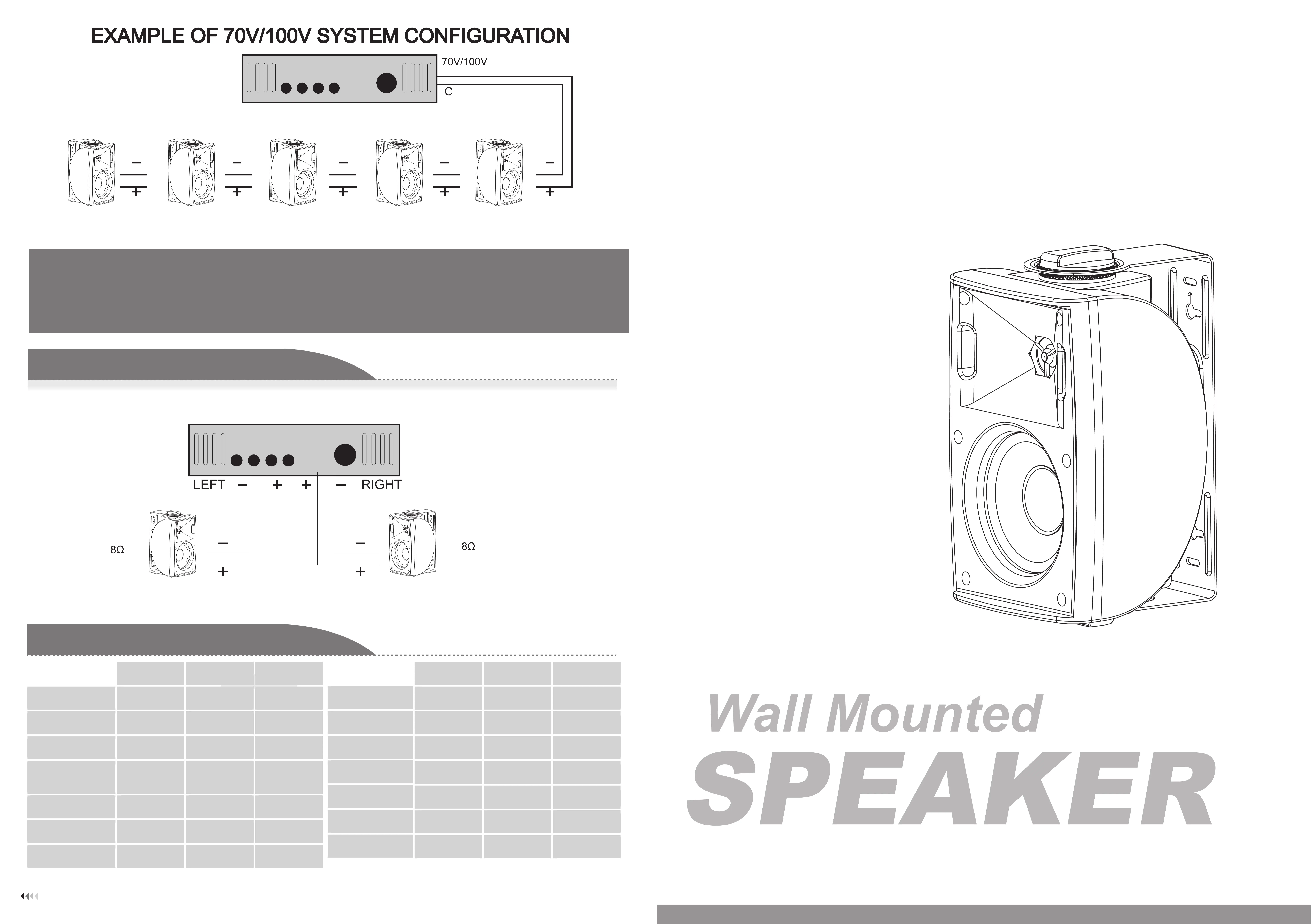

NOTE:The total number of speakers multiplied by the tap value cannot exceed the output power(in watts) of the 70V
/100V amplifier. The above example shows 5 total speakers. Using the 20W taps, you will need an amplifier with at
least (5)×(20)=100W. A good rule of thumb is to select an amplifier with 20% greater power; In this case, an amplifier
that delivers about 125W.

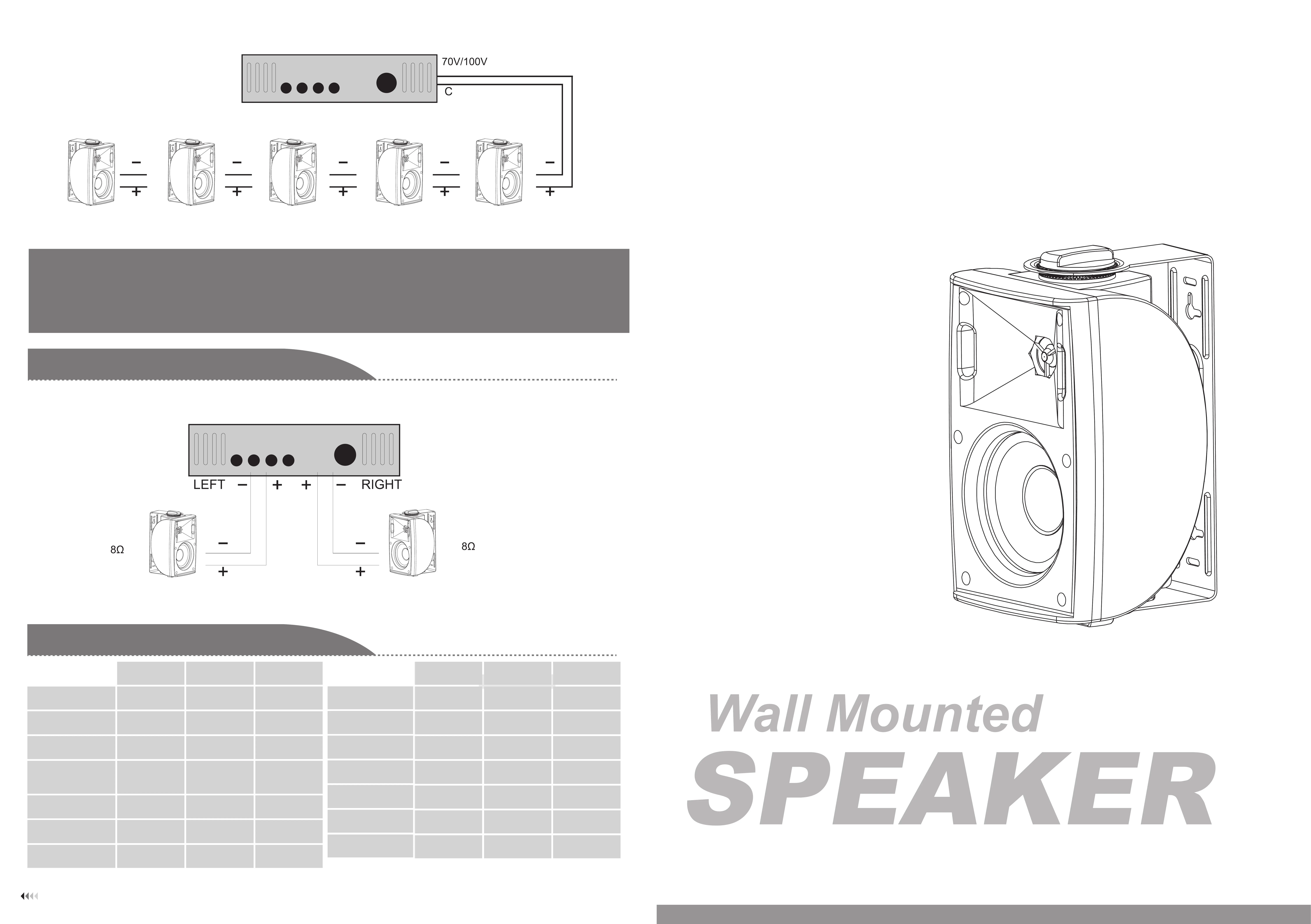

5 SPEAKERS CONNECTED IN PARALLEL USING 20W TAPS
UNDERPOWERING VS.OVERPOWERING
2-CHANNEL AMPLIFIER WITH 8 OUTPUT
2 SPEAKERS PER CHANNEL CONNECTED IN PARALLEL
Observe correct
Polarity for maximum
Bass performance
TECHNIAL SPECIFICATIONS
3
ELIPSE Series
MODEL
Elipse 4Characteristics
Black/White
Color
1,79kgWeight
2 ways
Loudspeaker
system
103mmWoofer Size
13mmTweeter Size
8 ohm
MODEL
Elipse 5
Black/White
2,6kg
2 ways
135mm
13mm
8 ohm
MODEL
Elipse 6
Black/White
3,4kg
2 ways
166mm
13mm
8 ohm
MODEL
Elipse 4
30w
89dB
70HZ-20KHZ
ABS
Steel
No
MODEL
Elipse 5
40w
89dB
70HZ-20KHZ
ABS
Steel
No
MODEL
Elipse 6
50w
89dB
ABS
Steel
No
Impedance
Characteristics
Power
SPL
Frequenzy
Material
Grille Material
100W Line
50HZ-20KHZ
2

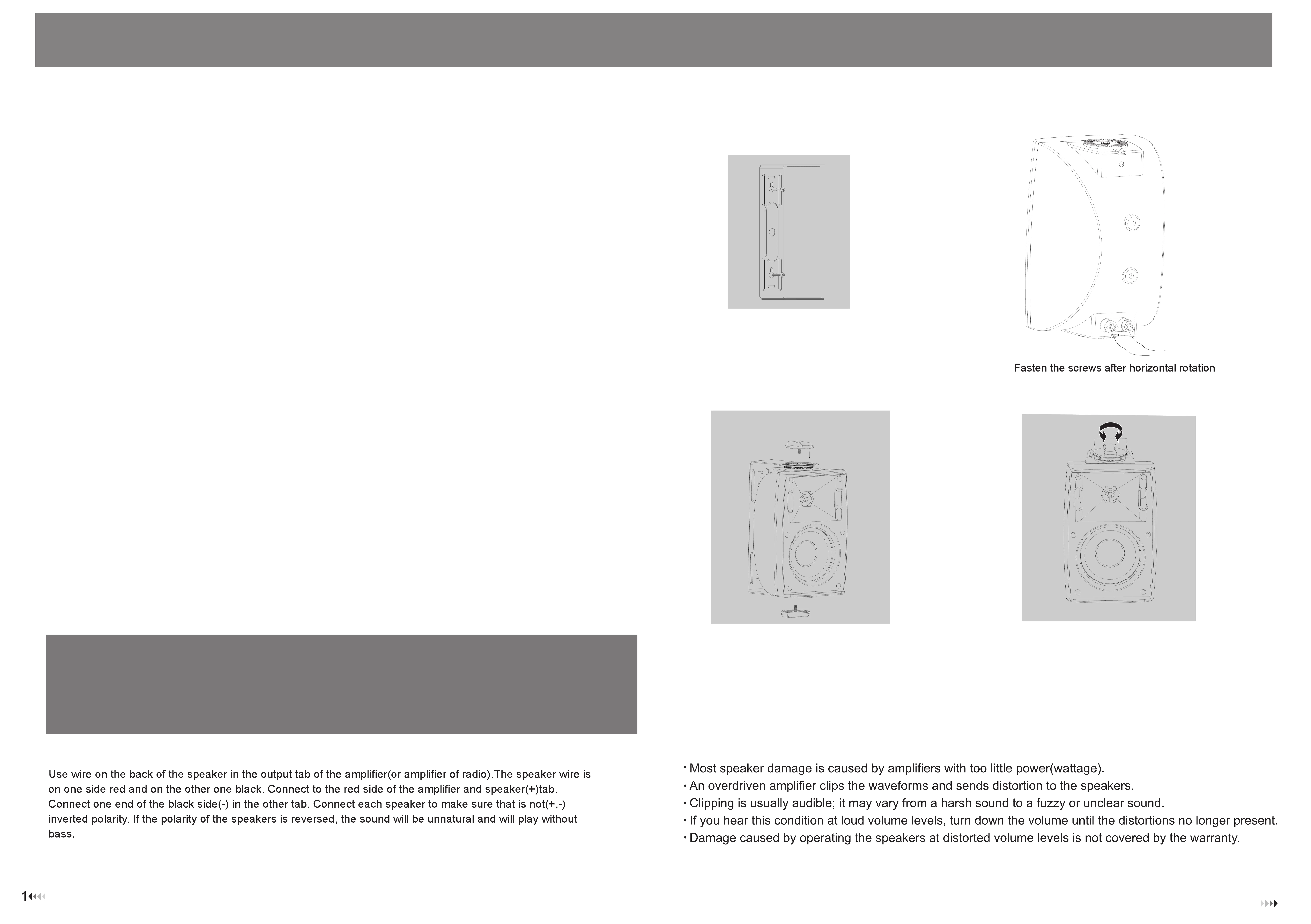

Fasten the bracket to on the wall by 2 pcs screws
Connect the speaker cable to
the terminal(“+”to“+”,“-”to“-”+)
Screw the two knobs
ELIPSE Series
USER GUIDE
The ELIPSE range is a series of wall speakers designed with a woofer 135mm and a 13mm tweeter.
The AMBIENT series is the perfect choice for the distribution of microphone calls and background music both for
restaurants or commercial stores. The mounting frame is made of high quality ABS. The grille is made of metal.
The AMBIENT is available in black / white.
The warranty for hidden defects can only be considered if they appear within the 24-month warranty period.
The warranty is not valid in case of misuse, wear, power surges, improper packaging or shipping, improper use
or storage and failure to comply with Audibax recommendations. The product must be returned in the original
packaging with proof of purchase made by an authorized distributor of Audibax.
WARRANTY INFO
CONNECTION
• Keep this manual for future reference.
• When cutting the mounting hole for the speaker, make sure there is sufficient clearance behind the panel (no
obstructions like A/C channels, power lines etc).
• Do not use nails, adhesives or other unauthorized devices. Long-term use and vibrations can make it fall
easily.
• Take care of your speaker wires, they should be free of damage. Damaged speaker wires might result in poor
sound quality and can damage amplifiers.
• Only use accessories specified by the manufacturer.
• Make sure the mounting panel can support the speakers weight.
• Use sufficient amount of speakers to avoid dead spots.
• No mains power shall be connected to the loudspeakers, doing so will damage the speaker.
• This apparatus should only be serviced by qualified personnel. If not warranty might be void.
• Use cable of the right gauge, certainly for long runs.
• Use cables with clear color indication and maintain polarity throughout the whole system.
• Avoid loud feedback from microphones, this can damage your speaker.
• Please check the units condition after unpacking. If the outside of the carton box has been damaged, inform
your shipper immediately.
SAFETY PRECAUTION
When mounting the panel, check for cables or other obstructions behind the mounting wall.
Ensure that the mounting structure is able to safely support the weight of the speaker.
3
ELIPSE Series
MODELO
Elipse 4Características
Color
1.79KgPeso
2 vías
Loudspeaker
system
103mmTamaño woofer
13mmTamaño tweeter
8 ohm
Elipse 5
2,6kg
2 vías
135mm
13mm
8 ohm
Elipse 6
3,4kg
2 vías
166mm
13mm
8 ohm
Elipse 4
30w
89dB
70HZ-20KHZ
ABS
Acero
No
Elipse 5
40w
89dB
70HZ-20KHZ
ABS
Acero
No
Elipse 6
50w
89dB
ABS
Acero
No
Impedancia
Características
Power
SPL
Frecuencia
Material
Material Rejilla
100W Line
50HZ-20KHZ
NOTA: El número total de altavoces multiplicado por el valor de tap no puede exceder la potencia de salida
(en vatios) del amplificador de 70V / 100V. El ejemplo anterior muestra 5 altavoces. Usando los grifos de
15W, necesitarás un amplificador con al menos (5) × (15) = 75W. Una buena regla general es seleccionar un
amplificador con una potencia 20% mayor; En este caso, un amplificador que entrega aproximadamente
100W.
EJEMPLO DE CONFIGURACIÓN DEL SISTEMA 70V / 100V
5 ALTAVOCES CONECTADOS EN PARALELO USANDO TAPS DE 15W
POTENCIA BAJA VS POTENCIA SUPERIOR
ESPECIFICACIONES DE LA SERIE ELIPSE
2 ALTAVOCES POR CANAL CONECTADO EN PARALELO
AMPLIFICADOR DE 2 CANALES CON SALIDA DE 8Ω
Observa la polaridad correcta
para obtener el máximo
rendimiento del altavoz
Negro/Blanco Negro/Blanco Negro/Blanco
MODELO MODELO MODELO MODELO MODELO
