User Manual

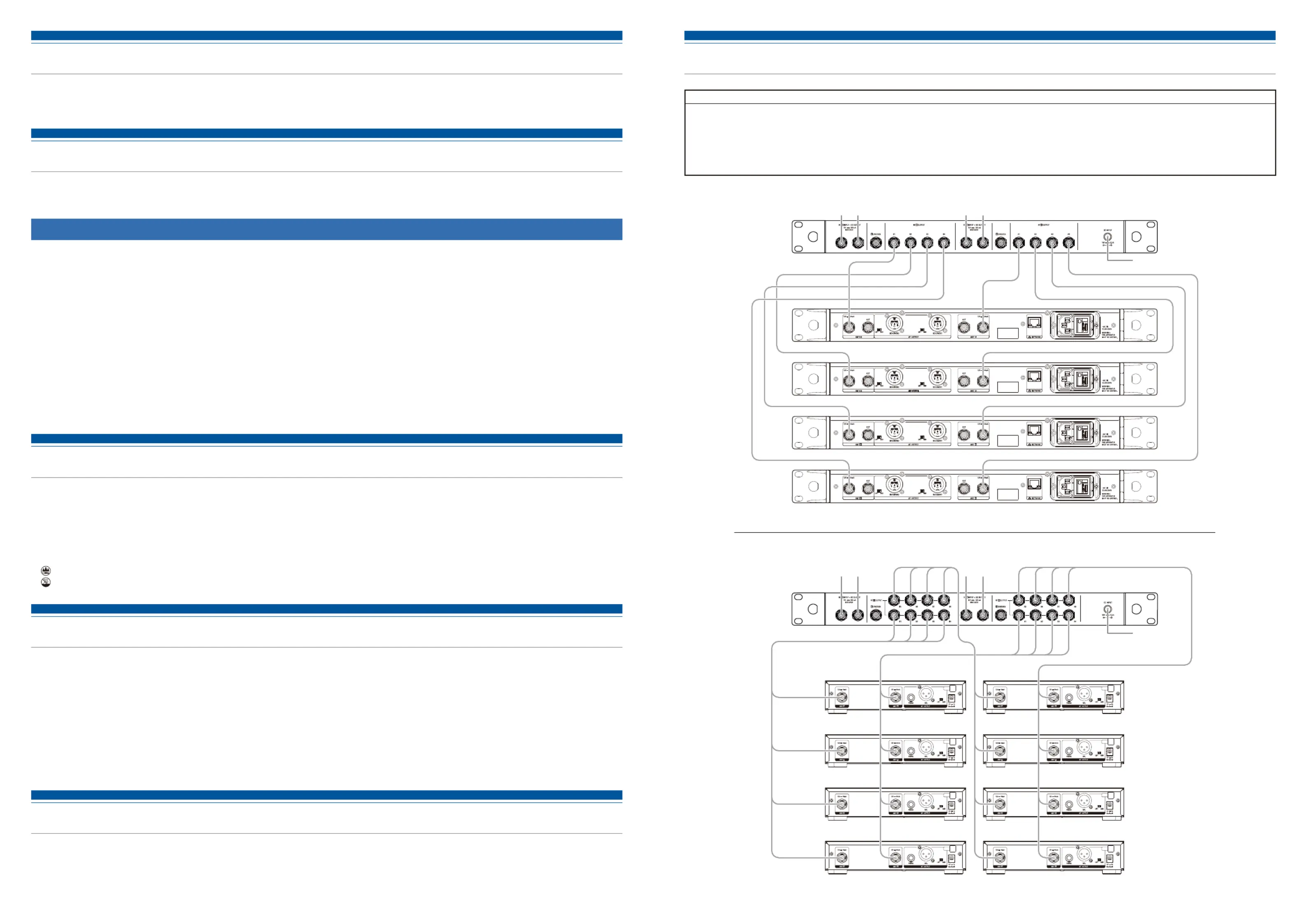

UHF Antenna Distribution System

ATW-DA2214

ATW-DA2218

①Power button

Press to turn the power ON/OFF.

An indicator lights up when the power is ON.

②

③

Antenna per switch with indicatorow

④

Antenna B input jack

These are two antenna combination jacks for Channel B.

12V DC can be supplied from the antenna jacks.

⑤

Antenna B cascade output jack

This is a Channel B cascade output jack.

The signalcan be with insertion loss compensation it

supplied to the antenna input jack of another

ATW-DA2214 or ATW-DA2218.

⑥

Antenna B output jack

These are four distribution output jacks of ATW-DA2214 or

eight distribution output jacks of ATW-DA2218 for Channel B.

⑦

Antenna A input jack

These are two antenna combination jacks for Channel A.

12V DC can be supplied from the antenna jacks.

⑧

Antenna A cascade output jack

This is a Channel A cascade output jack.

The signalcan be with insertion loss compensation it

supplied to the antenna input jack of another

ATW-DA2214 or ATW-DA2218.

⑨

Antenna A output jack

These are four distribution output jacks of ATW-DA2214 or

eight distribution output jacks of ATW-DA2218 for Channel A.

Power input jack

By turning the antenna power switch ON.

12V DC can be supplied to the antenna input jacks

while the switch lights up.

Input jack for the AC adapter.

②

⑤⑥③④⑦⑧⑨

A1A2B1B2

UHF ANTENNA DISTRIBUTION SYSTEM

ATW-DA2214

470-990 MHz

ANTENNA BOOSTER POWER

①

ATW-DA2214

⑤⑥③④⑦⑧⑨

ATW-DA2218

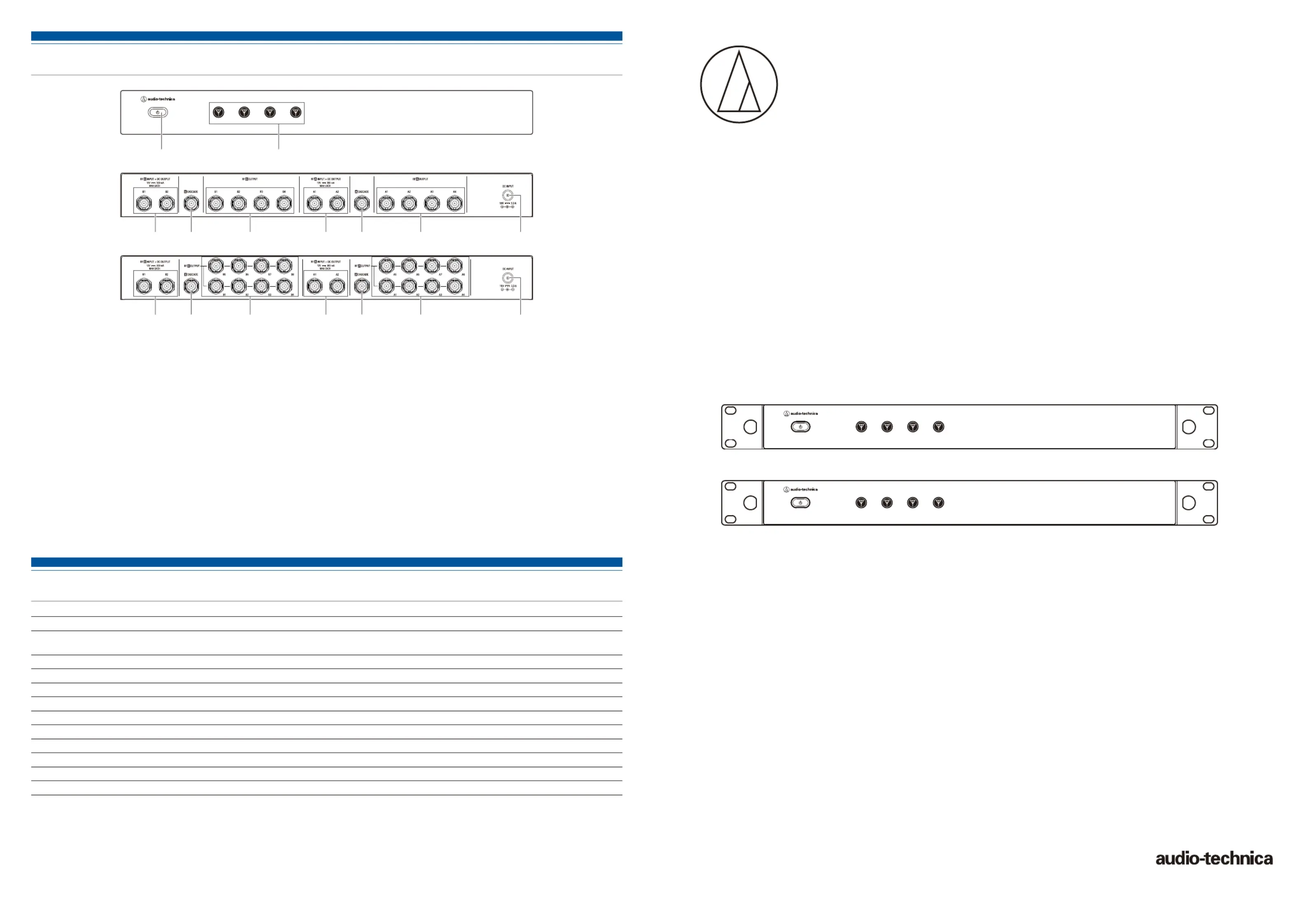

Part names and functions

Specifications

Frequency range470 to 990 MHz

Input/outputATW-DA2214 : 2 × 2input, 2 × 4output, 2 × 1 cascade output combination distribution

ATW-DA2218 : 2 × 2input, 2 × 8output, 2 × 1 cascade output combination distribution

Input/output jackBNC

OIP3+23dBm ()Δf = 10MHz

RF output gain+1.0 dB ± 2.0 dB

Input/output gain+1.0 dB ± 2.0 dB

Antenna input per supply12 V DC, maximum 300 mA × 4ow

Power supply100 to 240 V AC (50/60 Hz) to 18V DC 3.3 A (center positive) switched mode external per supplyow

Operating temperature range-5°C to 45°C (23°F to 113°F)

Dimensions402 mm (15.83”)×44.5 mm (1.75”)×232 mm (9.13”) (W×H×D) (cluding protrusions)ex

WeightATW-DA2214 : 3.5 kg (7.7 lbs) / ATW-DA2218 : 4.2 kg (9.3 lbs)

AccessoriesRack-mount kit (rack-mount × 2, mounting screw × 6), BNC cable × 10(ATW-DA2214) / 18(ATW-DA2218), AC adapter

For product improvement, the product is subject to without notice.modification

Audio-Technica Corporation

2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan

www.audio-technica.com

©2019 Audio-Technica Corporation

Global Support Contact: www.at-globalsupport.com

From No. ATGC-0290-24-WMMAR-2024
