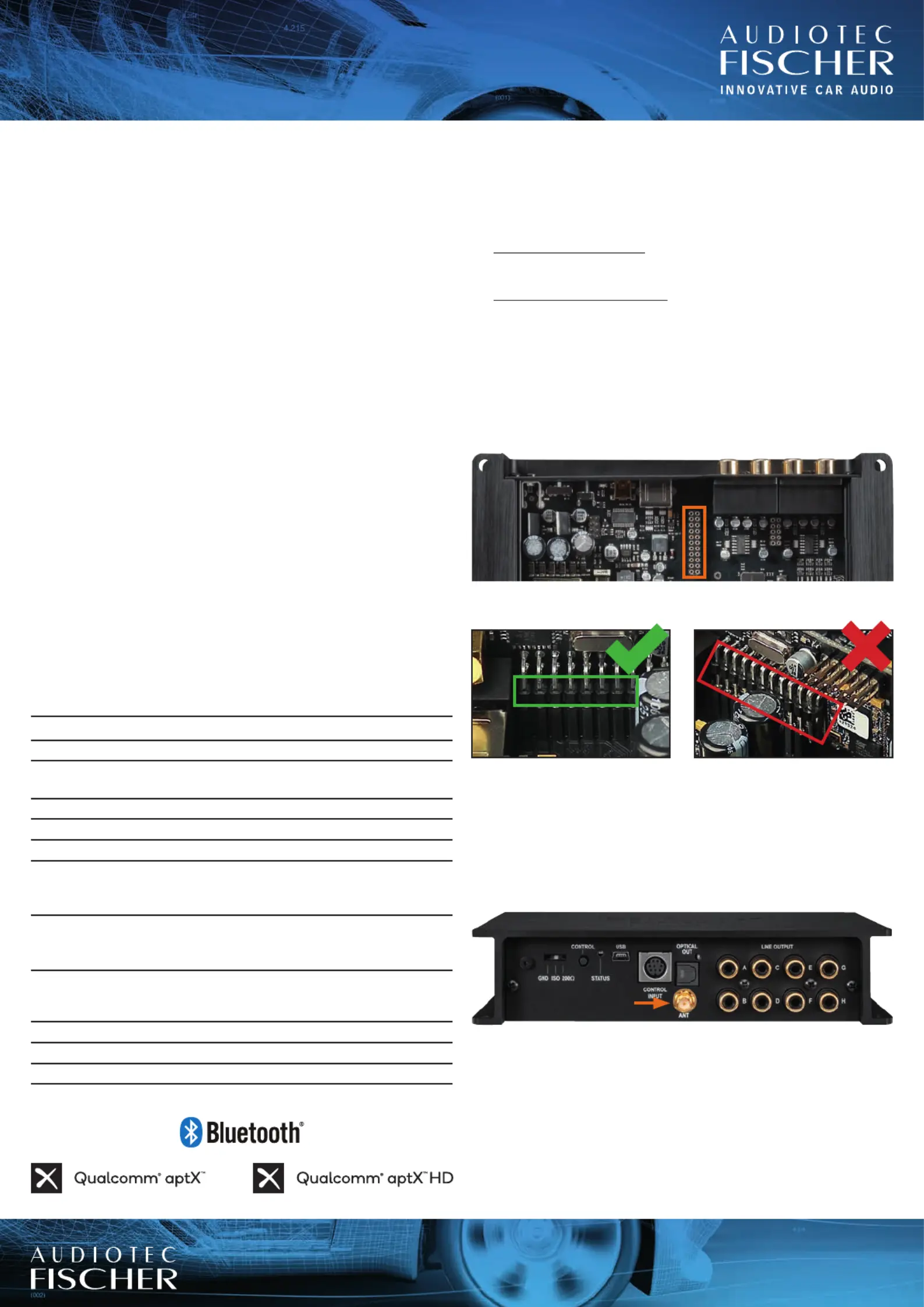

Seite 1/2
Hünegräben 26 · 57392 Schmallenberg · Germany · Tel.: +49 2972 97880 · E-mail: contact@audiotec-scher.com
High Denition Bluetooth
®
5.0 Audio Streaming Module
Congratulations!
Dear Customer,
congratulations on your purchase of this high-qual ity HELIX / MATCH
EXTENSION CARD. We developed the BT HD based on state-of-
the-art engineering and this is reected in its exceptional quality and
the impressive use of sophisticated technologies.
We hope you enjoy using this product.
Yours,
AUDIOTEC FISCHER
General installation instructions for HELIX / MATCH components
To prevent damage to the unit / module and possible injury, read this
manual carefully and follow all installation instructions. This product
has been checked for proper function prior to shipping and is guaran-
teed against manufacturing defects.
Before starting your installation, disconnect the battery’s nega-
tive terminal and all cables from the device to prevent damage
to the unit / module, re and / or risk of injury. For a proper perfor-
mance and to ensure full warranty coverage, we strongly recommend
to get this product installed by an authorized HELIX / MATCH dealer.
Install the Extension Card only in the designated device and its
specic slot. Using the module in other devices or slots can re-
sult in damage of the Extension Card, the device, the head unit /
radio or other connected devices!
Technical data
Bluetooth
®
standard: 5.0 + EDR
Bluetooth
®
prole: A2DP, AVRCP, SPP
Bluetooth
®
codec: SBC, AAC, Qualcomm
®
aptX
™
and Qualcomm
®
aptX
™
HD
Number of paired devices: 8
Wireless frequency range: 2402 ~ 2480 MHz
Range: Up to 10 m
Digital optical output: SPDIF with either 96 kHz / 24 Bit
or 48 kHz / 24 Bit depending on
sampling rate of the device
Status LED of BT HD
Blue LED on: 1 sec,
o: 2 secs, repeat
All profiles are in standby
but not connected with any
Bluetooth
®
device yet
Blue & Enter pairing modeRed LED ash alternate
Blue LED ash every 2 sec. Device is connected
Blue LED ash twice every 2 sec. Device is streaming
Mounting information
1. First disconnect all cables from the device.
2. Depending on the device there are two possibilities to get access
to the Extension Card slot.
1. Bottom plate is bolted: untighten the screws of the bottom plate
and remove it. Afterwards dismantle the appropriate side panel by
removing its screws.
2. Bottom plate is not bolted: dismantle the appropriate side panel
by removing its screws and pull out the bottom plate sideways.
3. Remove the nut and the washer from the antenna socket of the
Extension Card.
4. Insert the Extension Card into the specic slot of the device which
is marked in the following picture (the picture representatively dis-
plays the Extension Card slot of the HELIX DSP.3). The exact
position of the slot can be found in the manual of each device.
5. Make sure that the module is installed properly and all pins are
fully inserted into the socket:
6. If the bottom plate was bolted, x the new side panel which is
delivered with the Extension Card. Afterwards reinsert the bottom
plate and x it, too. Otherwise reinsert the bottom plate and x the
new side panel with the screws.
7. Put the washer and the nut on the antenna socket and bolt it to
the side panel.
Caution: Do not overtighten the nut as this may damage the
socket!
8. Reconnect all cables to the device.
EXTENSION CARD
HEC / MEC BT HD

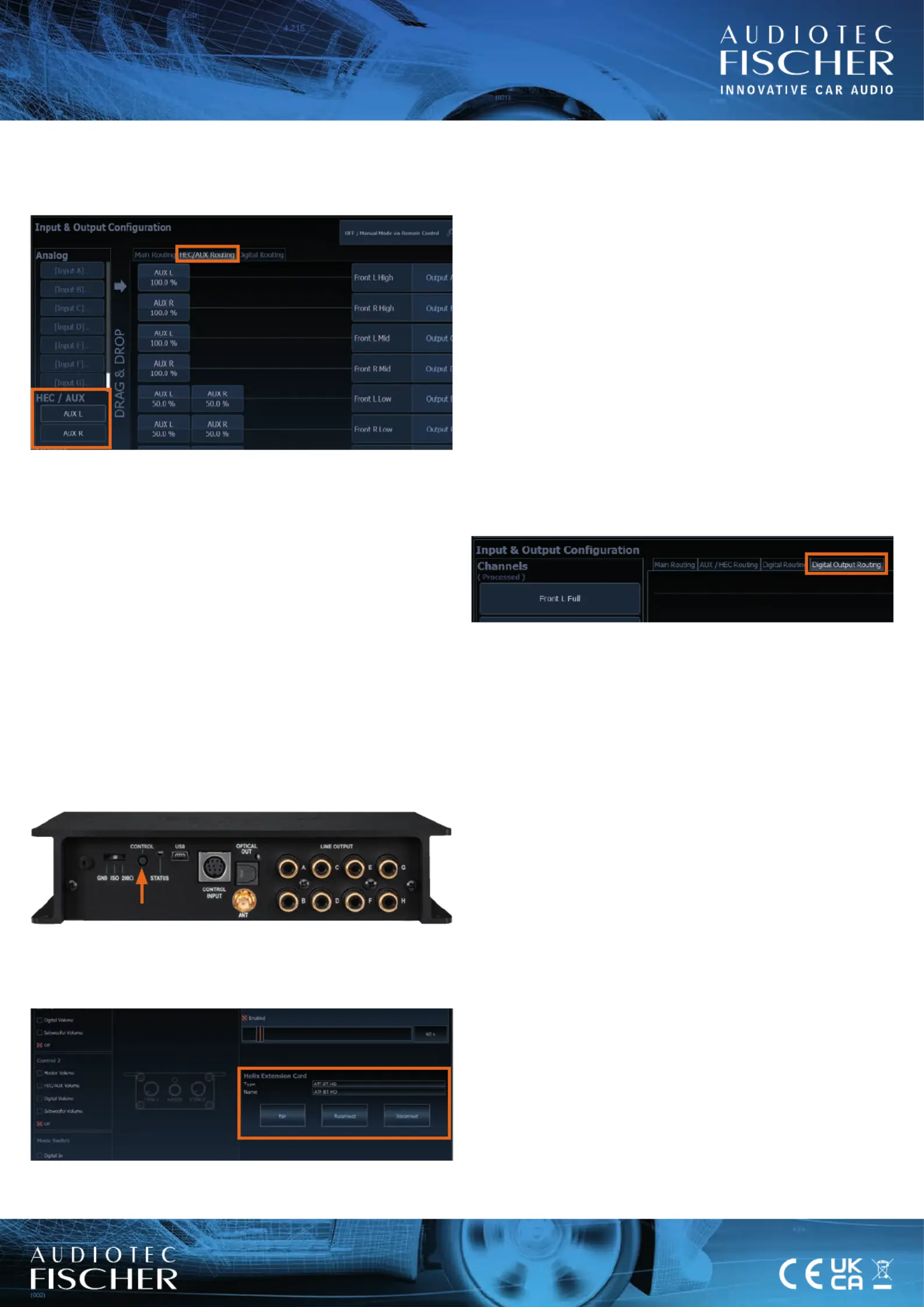

Signal routing of the Extension Card
As soon as the Extension Card is installed, it is automatically detect-
ed by the device. Now you can allocate the Extension Card to the
desired outputs in the “HEC (MEC) / AUX Routing” matrix.
Several new features are visible in the DSP PC-Tool after installing
an Extension Card.
Pairing of the Extension Card with other Bluetooth
®
devices
The HEC / MEC BT HD module supports the A2DP prole featur-
ing Qualcomm
®
aptX
™
,
Qualcomm
®
aptX
™
HD and AAC codec for
maximum sound performance. The digital Bluetooth
®
data stream in
I²S format is directly fed into the DSP without any additional signal
conversion. A one-time pairing procedure is mandatory to establish
a connection between the HELIX / MATCH device and your device
with Bluetooth
®
wireless technology. Make sure that the Bluetooth
®
function on your device has been activated before you start the pair-
ing process.
Important: The Status LED of the HEC / MEC BT HD
module ash-
es alternately blue and red. After three minutes the pairing mode is
left automatically if the connection has not been established.
Option a)
Turn on the HELIX / MATCH device and push the “control” button for
less than 1 sec. in order to start the pairing mode.
Option b)
Start the pairing mode in the DSP PC-Tool software:
After the pairing mode is activated the Bluetooth
®
network can be
found under the name “ATF BT HD”.
The picture representatively displays the “control” button of the HELIX DSP.3
Option c)
Start the pairing process through the CONDUCTOR or DIRECTOR
remote control.
DIRECTOR: Go to the Bluetooth
®
Connect menu and push the
“Pair” button.
CONDUCTOR: Switch to a Volume Control or Bluetooth Playback
control menu and press the rotary knob for more
than 5 seconds.
WIFI CONTROL: Go to the HEC / MEC menu and push the “Pair”
button under the Bluetooth
®
Connect section.
Further information will be found in the corresponding user manual.
The HEC / MEC BT HD module can be paired with up to eight
Bluetooth
®
devices. As soon as you try to pair a ninth device, the rst
one will be erased automatically from the pairing list.
The optical SPDIF output of the HEC / MEC BT HD module
The installation of the Extension Card adds as well an additional
digital optical SPDIF output to your device. This output allows to
transmit any unprocessed input or DSP-processed output signals to
other devices.
A new matrix “Digital Output Routing” appears in the “Input and Out-
put Conguration” page in which you can make your desired settings.
The digital output delivers an uncoded stereo PCM signal with either
96 kHz / 24 Bit or 48 kHz / 24 Bit, depending on the sampling rate of
the designated device.
Wireless DSP tuning – only DSP devices with ACO
The HEC / MEC BT HD also oers a wireless conguration of the
DSP via the DSP PC-Tool V5 software and a PC with Bluetooth
®
wireless technology for all DSP devices equipped with ACO platform.
Therefore follow the subsequent steps:
1. Pair your HEC / MEC BT HD with your PC as explained on the left
side.
2. Start the DSP PC-Tool software (version 5.0 or higher required).
3. Toggle the connect type button, located at the right side navigation,
to “BT”. The software now automatically detects the device.
4. Select the device which should be congured and click the “Con-
nect” button. You can now start your conguration.
Warranty disclaimer
The warranty service is based on the statutory regulations. Defects
and damage caused by overload or improper handling are excluded
from the warranty service. Any return can only take place following
prior consultation, in the original packaging together with a detailed
description of the error and a valid proof of purchase.
Technical modications and errors excepted! We accept no liability
for damage to the vehicle or device defects caused by the incorrect
operation of the device. This product has been issued a CE marking.
This means that the device is certied for use in vehicles within the
European Union (EU).
Legal notes:
Qualcomm aptX is a product of Qualcomm Technologies, Inc. and/or its subsidiaries.
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other
countries. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the
United States and other countries. The Bluetooth
®
word mark and logos are registered trademarks
owned by Bluetooth SIG, Inc. and any use of such marks by Audiotec Fischer GmbH is under license.
Other trademarks and trade names are those of their respective owners.
EXTENSION CARD
HEC / MEC BT HD
Hünegräben 26 · 57392 Schmallenberg · Germany
Tel.: +49 2972 97880 · E-mail: contact@audiotec-scher.com
