Seite 1/3
www.avsl.com 100.598 User Manual UK
Multifunction Audio Convertor
and Bluetooth Receiver
Item ref: 100.598UK
User Manual
An extremely versatile USB powered unit housed in a sleek aluminium chassis that converts Bluetooth and
many other formats of digital audio to analogue. Supplied with an IR remote control and wide range of
connection cables this handy little device is easy to install and operate and is ideal for use with games
consoles, LED TV's, projectors and Blu-Ray players that have no RCA or 3.5mm audio outputs.
Technical Specifications:
Bluetooth version
V5.1
Bluetooth range
15m (obstruction free)
Bluetooth profile
A2DP and AVRCP
Input connections
Bluetooth, Mic, Aux (3.5mm), USB, Toslink, Coaxial
Output connections
AUX (3.5mm), RCA (L&R)
Remote battery
CR2025 (supplied)
Power input
DC/5V (USB lead supplied)
Dimensions
110 x 25 x 85mm
Weight
125g
Application Diagram:
www.avsl.com 100.598 User Manual UK

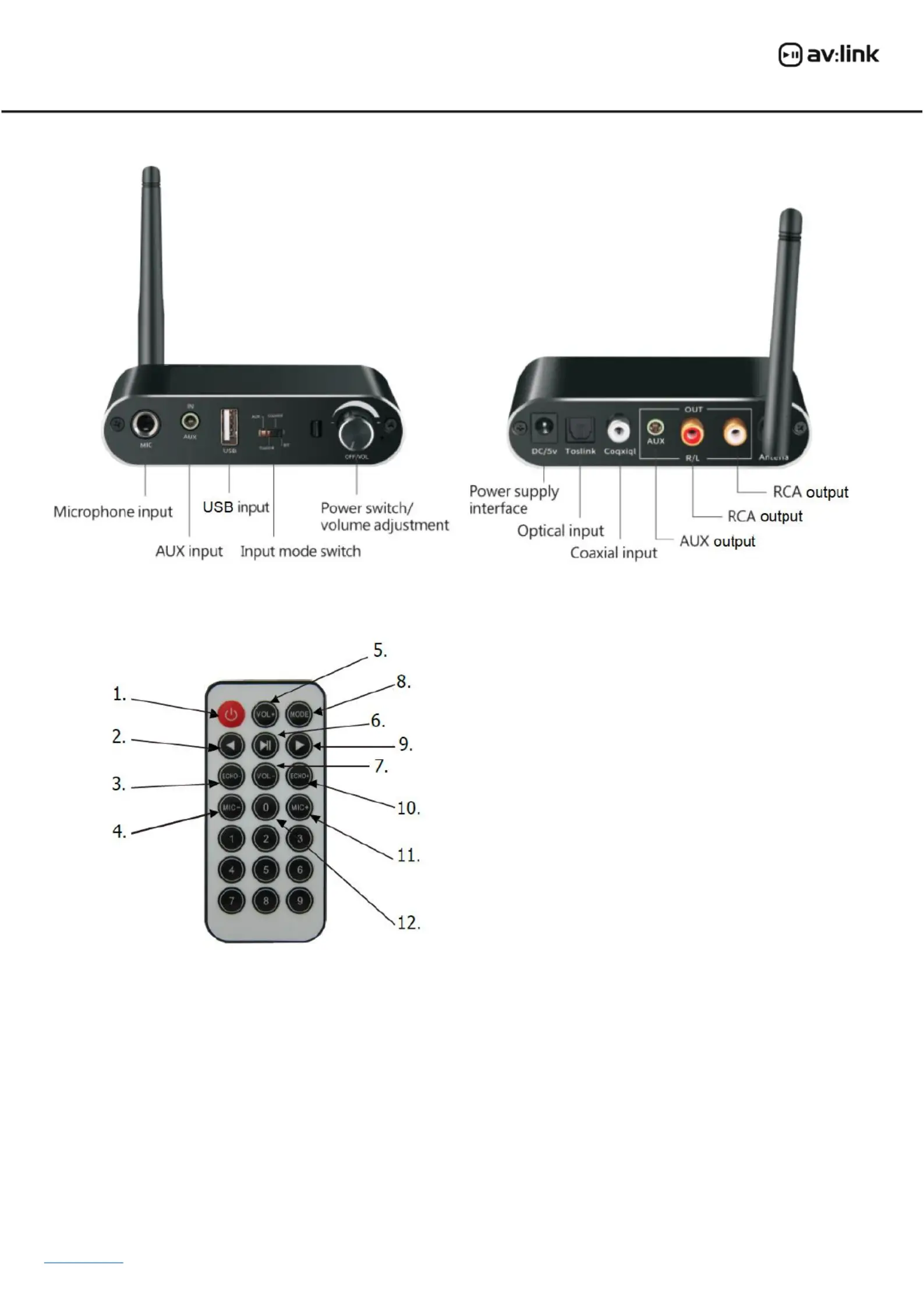

Connectio ns (front and back):
Remote Control:
Standard operation:
1. Using the correct leads provided connect the unit to the required input and output devices.
2. Using the Power lead provided connect the unit to a suitable 5V USB power supply.
3. Power on by turning the Power/Volume knob on the front of the unit clockwise.
4. Next select the required protocol using either the Input mode switch on the front of the unit or the
Input mode button on the remote control.
5. Use either the volume control on the front of the unit or remote control to adjust the volume to a
suitable level for your output med .ia
6. If any issues occur ensure the connections are made correctly and that the correct protocol is selected
for the input media.
1. Power on/off
2. Previous track
3. Mic echo down
4. Mic volume up
5. Volume up
6. Play/Pause
7. Volume down
8. Input modes
(USB/AUX/TOSLINK/COAXIAL/BT)
9. Forward track
10. Mic echo up
11. Mic volu me up
12. 0~9 Track number (USB mode only)
www.avsl.com 100.598 User Manual UK
Bluetooth connection:
1. Ensure the unit is switched on and your smart device’s Bluetooth is enabled.
2. Enable Bluetooth mode by either using the Input mode switch on the front of the unit or the Input
mode button on the remote control.
3. The blue LED on the front of the unit will flash to indicate Bluetooth pairing mode.
4. Next open your smart device s Bluetooth list and search for T02 then select to connect. ’ “ ”
5. If your smart device asks for a pairin code, please enter . g “0000”
6. Once correctly connected the blue LED on the unit will stay lit.
7. You can use some of the function buttons on the remote control for the music tracks on your device.
USB Playback:
1. Insert a compatible USB flash drive into the USB port on the front of the unit.
2. The unit will scan the content on the drive and automatically begin playing the first compatible MP3
track.
3. If the unit fails to detect the drive, try pressing the Input mode button on the remote control.
4. You are now able to control the MP3 content on the drive using the relevant buttons on the remote
control.
NOTE: Ensure the USB flash drive used is no larger than 32GB in size and formatted in FAT32 to be
compatible with this device.
In The Box:
1. Main unit
2. IR Remote Control
3. DC jack to USB power lead (1m)
4. Fibre optic Toslink lead (1m)
5. AUX (3.5mm) to RCA lead (1m)
6. AUX (3.5mm) to AUX (3.5mm) lead (1m)
7. Coaxial to Coaxial lead (1m)
8. User Manual
Warning:
• For reasons of electrical safety this device must never be immersed in water, exposed to damp conditions
or excessive force.
• Please do not use this device if you find that it is damaged in any way and only use the power lead
provided by the manufacture r.
• When not in use for long periods please disconnect from the power supply.
• Do not attempt to repair this device or take apart under any circumstances, as this will invalidate your
warranty.
This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at
the end of its useful life. The goods must be disposed of according to your local council guidelines.
Errors and omissions excepted.
Copyright© 23 AVSL Group it 2 Bridgewater Park, AVSL (Europe) , Unit 3D North Point House, 20 Ltd, Un Ltd
Taylor Road, Traffor Park, Manchester. M41 7JQ. North Point Bus. Park, New Mallow Road, Cork, Ireland. d
