MXNET 10G SDVoE
®
Quick Start Guide
T heMXNet10G SDVoE
®
Ecosystem
QUICK START GUIDE
Overview
The MXNet 10G SDVoE
®
Ecosystem is an AV--overIP platform of products developed and designed by
AVPro Edge. This system is an ultra-low latency HDMI 2.0, 4K 60Hz 4:4:4 video, multichannel audio, and
control signal distribution system over 10G Ethernet infrastructure, based on SDVoE
®
standards and
Semtech
®
ASIC technologies. -Crystalclear 4K video is provided along with versatile AV and control signal
distribution applications.

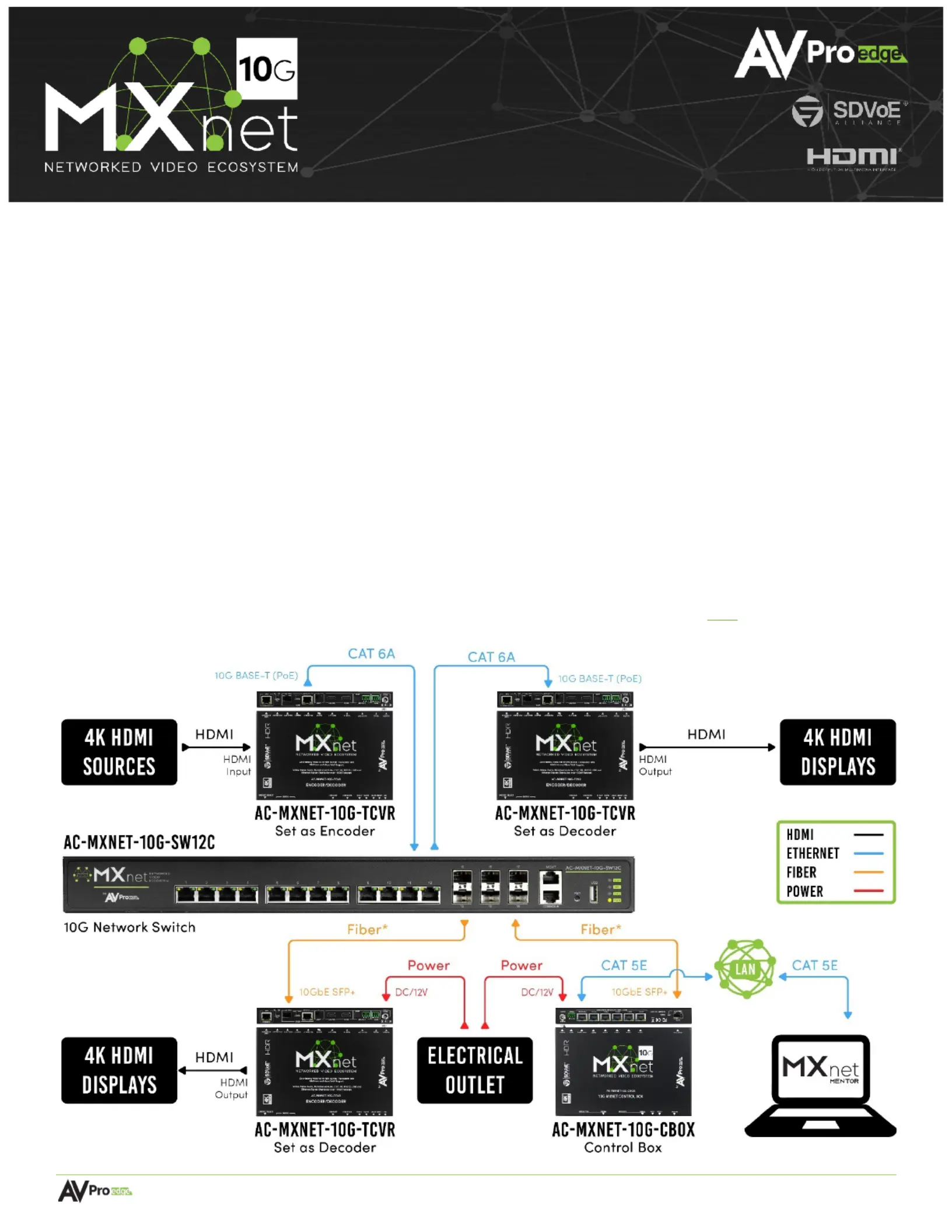

The diagram below shows the basic application with the AC-MXNET---10GSW12C managed switch, AC
MXNET--10GTCVR transceivers, and AC--MXNET10G-CBOX control box. The cable connections can be

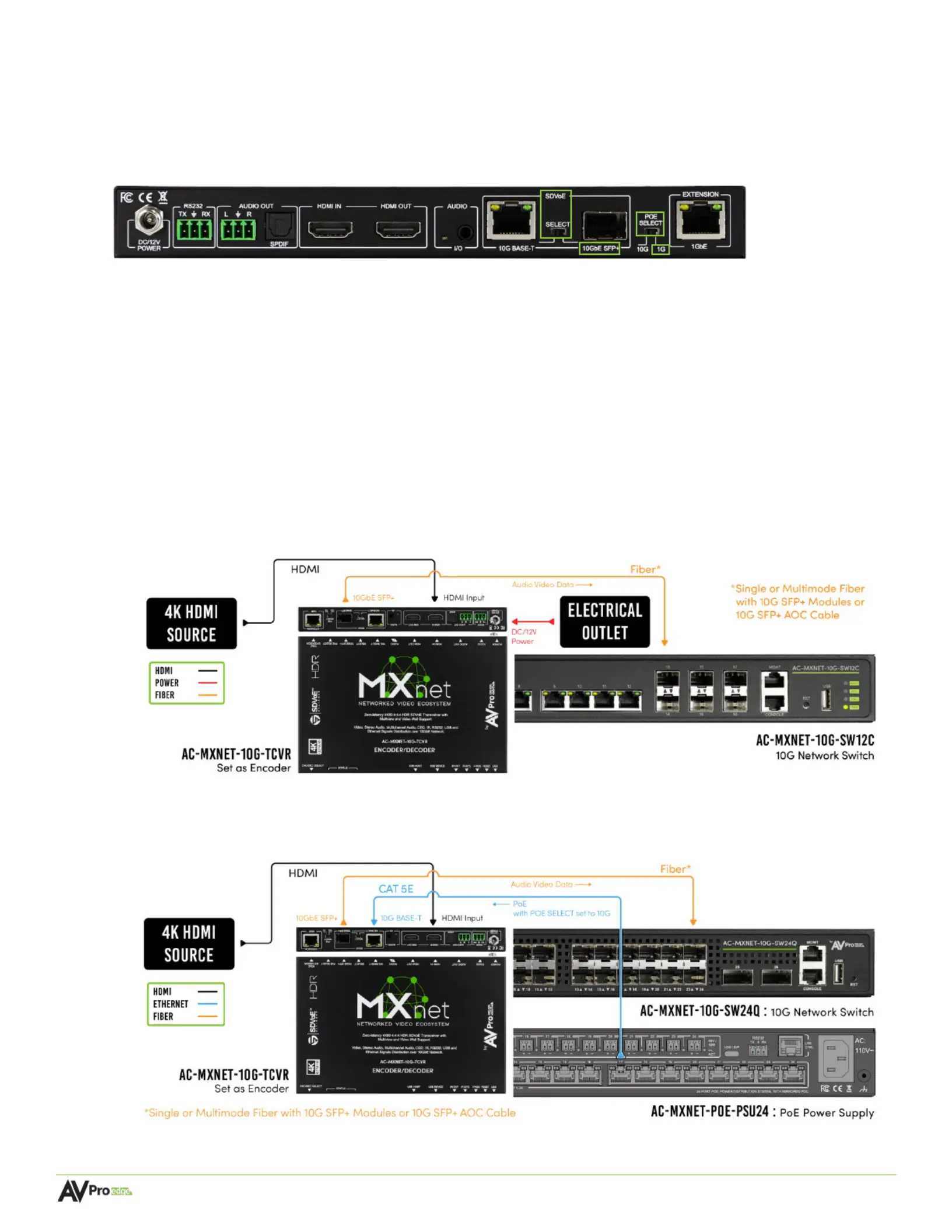

Category cable, optical fiber, or a combination of both , as shown below.
If using aparty network switch with MXNet, please review our Knowledge Base a third-first rticle here.
