Thank you for purchasing our product. Before attempting to connect

or operate this product, please read the instructions carefully before

use.

DESCRIPTION

AV676PIR(W) uses advanced imaging technology from

SONY IMX138 CMOS sensor to capture image resolution as

high as 720P@60FPS and outputs analog signal through

CVBS/BNC. It features 2D/3D adaptive noise reduction.

External button accesses camera’s OSD menu to set Motion

Detection, Privacy Zone, Digital Zoom, Digital Picture

Correction, Shutter, White Balance, and other imaging

features.

PRECAUTIONS

1. Use appropriate power supply.

The power input for AV676PIR(W) is DC12V. Using wrong power source will

damage the camera permanently.

2. Do not attempt to disassemble the camera.

There is not serviceable parts.

3. Handle the camera with care.

Avoid abusing the camera by striking, shaking, or other improper

handling.

4. Do not place the camera in the following locations:

a. Where temperature is lower than -4 or higher than 131 ; ℉ ℉

b. Where humidity is higher than 90%.

5. Clean the CMOS faceplate with care.

Do not use strong detergents. Use a piece of lens tissue or cotton tipped

applicator and ethanol.

6. Do not attempt to aim the camera at the sun.

Aiming at the sun or other extremely bright objects causes smear to

appear irrespectively of whether the camera is operating or not. This can

damage the CMOS.

7. Do not put the camera in places with interference.

When this camera is installed near the equipment like wireless

communication device that emits strong electromagnetic field, some

irregularities such as noise on the monitor screen may happen.

FEATURES

●Sony IMX138 720P CMOS Sensor

●CVBS/BNC 960H/720P@60FPS Video Output

●True Day & Night

●Motion Detection, Privacy Zones

●Adaptive 2D/3D Noise Reduction

●Ingress Protection Rated IP66: Dust & Weather Proof

●OSD Menu & External Button menu access

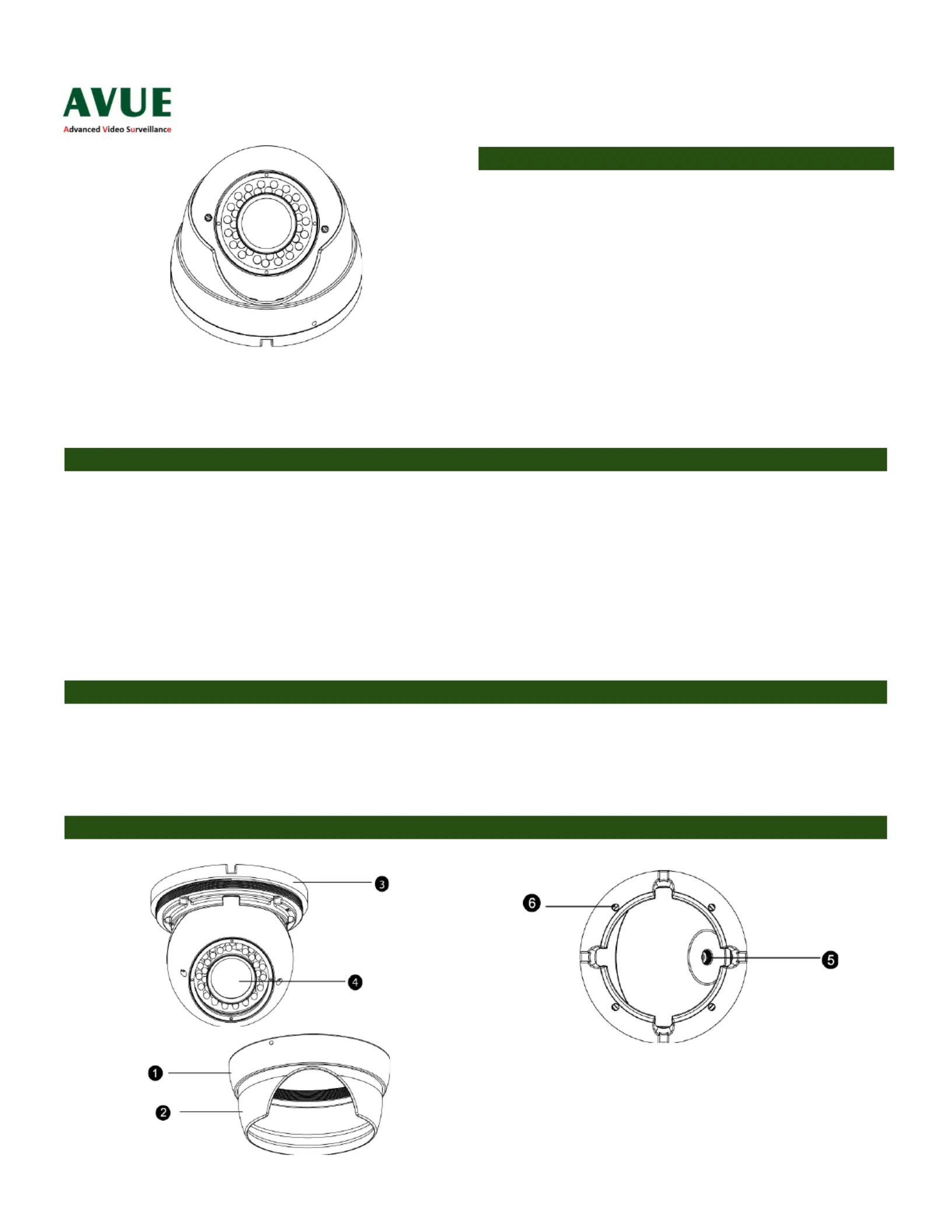

PARTS INSTRUCTIONS

1. Ring Enclosure

2. Camera Holder

3. Base

4. Camera Lens

5. Wire Out Hole

6. Four install screws holes (on base)

www.avueinc.com

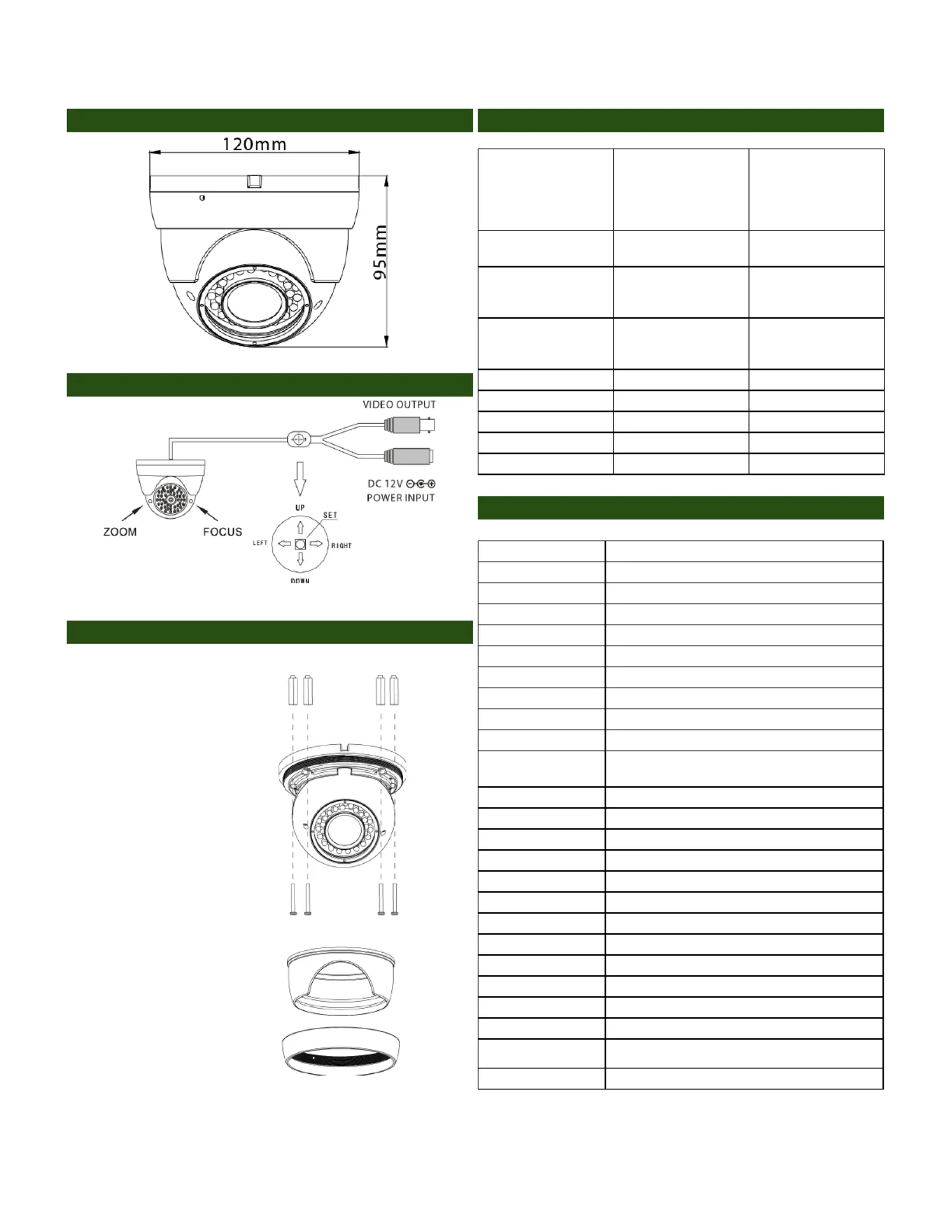

DIMENSION

CONNECTIONS

Use screwdriver to adjust zoom and focus.

SETUP

Camera Installation:

1. Unscrew the ring

enclosure, take it out.

2. Using the foam pat to

locate the holes in the

wall.

3. Drill 4 holes in the

position needed in

accordance with the holes

on the base. Push the

expansion bolt inside,

then screws the base to

the expansion bolt holes

loosely.

4. Get the wire out from the

wire out hole through the

base.

5. Screw tightly the base to

the wall.

6. Screw the enclosure to

the base with the ring

enclosure.

IMAGE ↩

3D-NR ↩

AE MODE

IMAGE ENHANCE ↩

FLIP

ZOOM IN

IRIS ↩

MIRROR

BRIGHTNESS

DAY & NIGHT

AUTO

B&W

COLOR

EXTERNAL

ZONE MASKING ↩

STATUS

VERTICAL SIZE

VERTICAL MOVE

HORIZONTAL SIZE

HORIZONTAL MOVE

MOTION DETECTION ↩

STATUS

HORIZONTAL SIZE

HORIZONTAL MOVE

COLOR

VERTICAL SIZE

VERTICAL MOVE

VIDEO STANDARD

PAL

NTSC

LANGUAGE

ENGLISH

CHINESE

LOAD DEFAULT

SOFT VERSION

SAVE & EXIT

SPECIFICATIONS

Sensor

⅓” SONY IMX138 CMOS

Effective Pixels

1.3 Megapixels

Scanning System

2:1 Interlaced

Sync. System

Internal

Resolution

720P (equal to 1000TVL)

Lens

2.8-12mm Varifocal

White Balance

AUTO

Electronic Shutter

AUTO

OSD

Built-in with external access button

White Balance

AWB-PRO/AWB-TEMP/AWB-AI/AWB-GW/AWB-CCT

Backlight

Compensation (BLC)

ON/OFF/AUTO

Noise Reduction

3D Noise Reduction

Motion Detection

Off/On (4 Areas)

Privacy Zones

Off/On (8 Areas)

Day & Night

Auto / B&W / Exton / Color

S/N Ratio

> 50dB (AGC Off)

Video Output

1.0V p-p Composite Video Output, 75Ω

IR LED

36 pcs IR LED ( 5mm/850nm) ⌀

IR Distance

100 Feet / 30 Meters

Min. Illumination

0 Lux (IR On)

Power Supply

DC 12V ± 10%

Power Consumption

300mA, 3.6W

Operating Temp.

-4 ~ 131 / -20 ~ 55 ℉ ℃

Dimension ( x H)

⌀

⌀⌀

⌀ ⌀4.72 x 3.74 inches / 120 x 95 mm

Weight

1.81 lb / 820g
